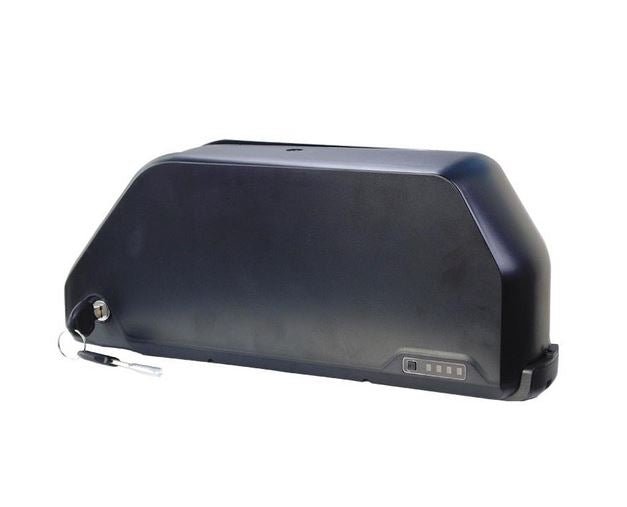

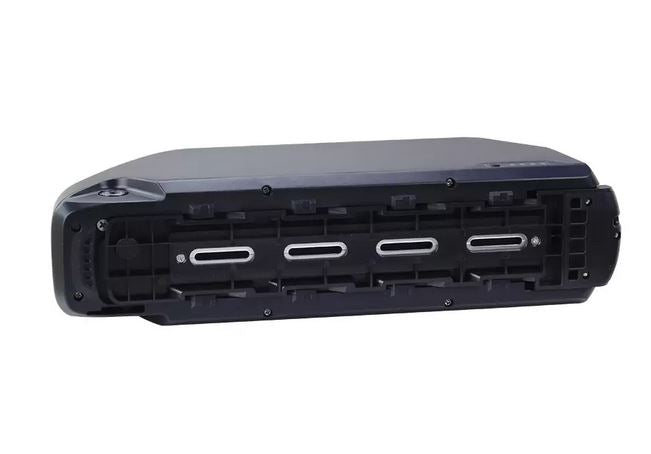

52V 25Ah / 1300Wh Downtube Samsung eBike Battery CPHV52-25

Original price $0.00 - Original price $0.00
Original price $0.00
$1,199.00
$1,199.00 - $1,199.00
Current price $1,199.00

Mega Battery 4000 Watts

52 Volt

25 Ah

1300 Wh

Samsung 50S High Discharge 5000mah 21700 Cells

80A Continuous Discharge BMS - For Motors Up To 4000 Watts

XT90 Discharge Port Directly From The Battery

XT60 Charge Port

1-5A, 5A or 10A Battery Charger Options

Removable Branding

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

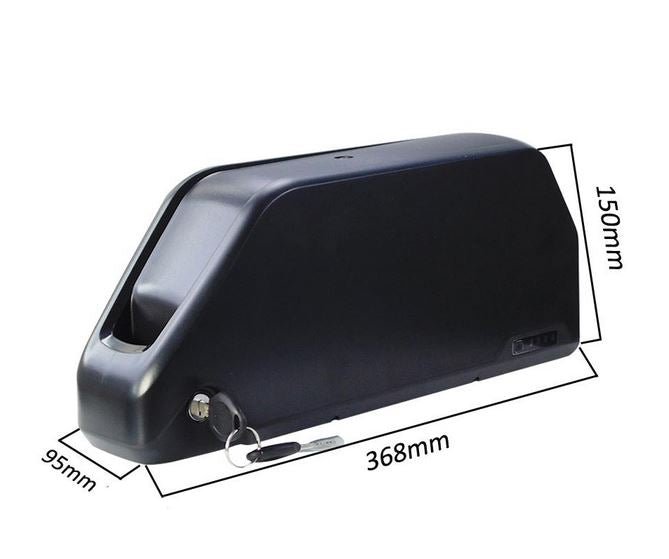

Dimensions: L 367mm - W 95mm - H 150mm

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 4000W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

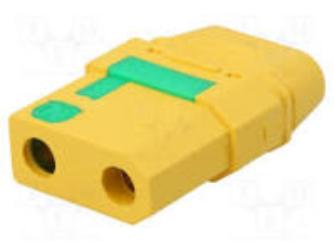

XT90 Spark proof connector instructions here

  • 52 Volts
  • 25 Ah
  • 1300 Wh
  • 14S5P
  • Samsung 50S 21700 cells, tested to EN62133-2-22017
  • Dimensions: L 367mm - W 95mm - H 125mm
  • 1-5 Variable, 5A, 10A battery charger options
  • XT60 Charger port
  • 10A maximum charge input
  • DP-21700-7 Reention case - Not interchangeable with other Reention DP casings
  • 5.95 Kg Including bracket / excluding charger
  • XT90 female discharge connector direct from battery
  • 80A Continuous discharge, for motors up to 4000W

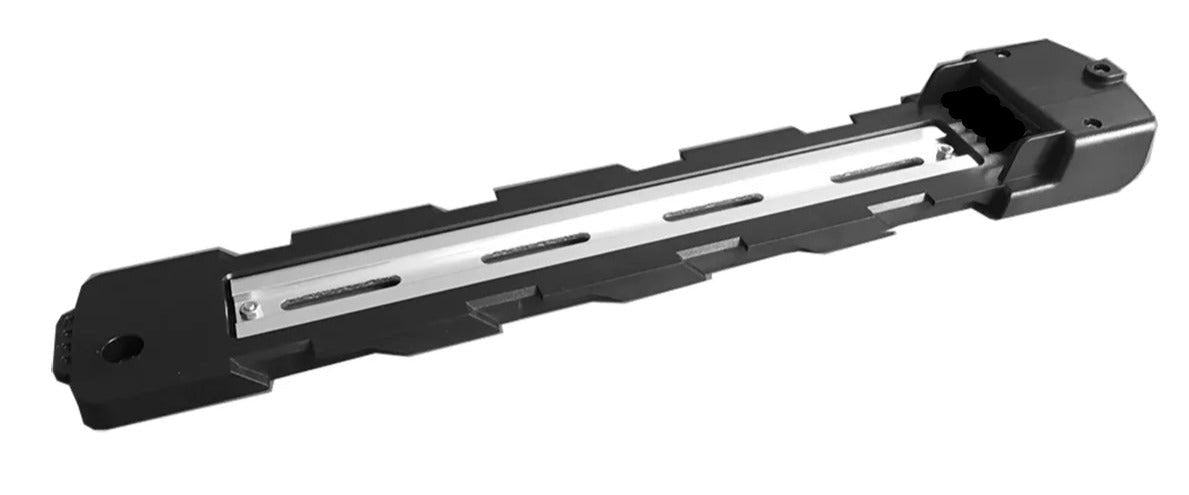

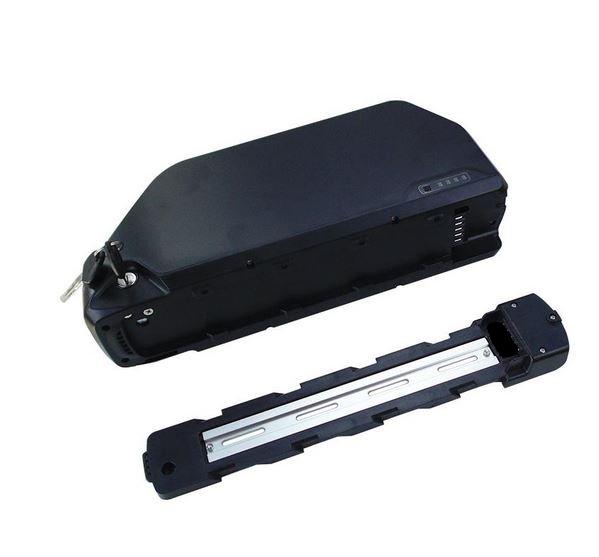

  • Battery base bracket included
  • Battery power indicator
  • 2 Keys included
  • Battery Management System (BMS)
  1. Charging voltage
  2. Balance voltage for single cell
  3. Current consumption
  4. Maximal continuous charging current
  5. Maximal continuous Discharging current
  6. Over charge Protection
  7. Over discharge protection
  8. Over current protection
  9. Short protection
  10. Resistance Protection
