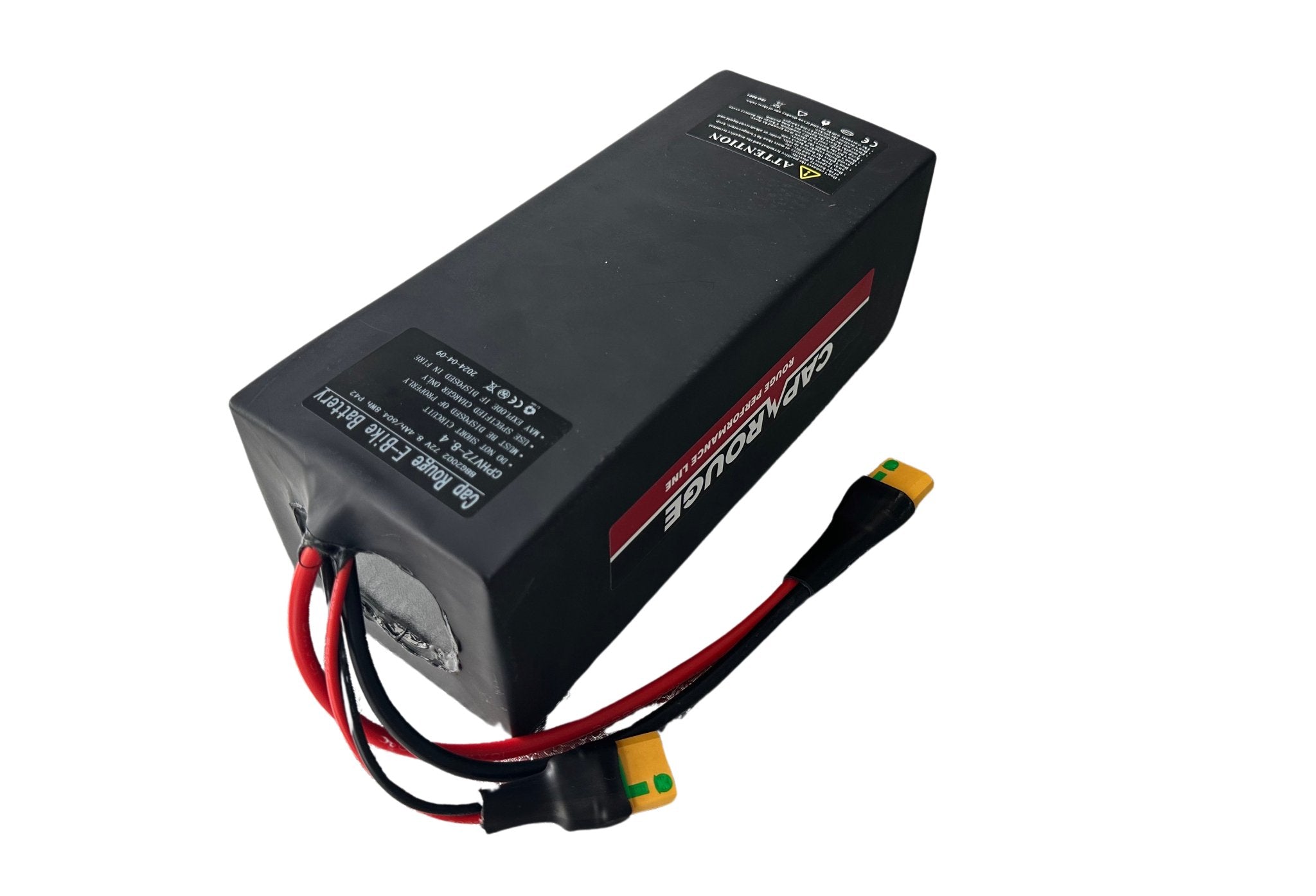

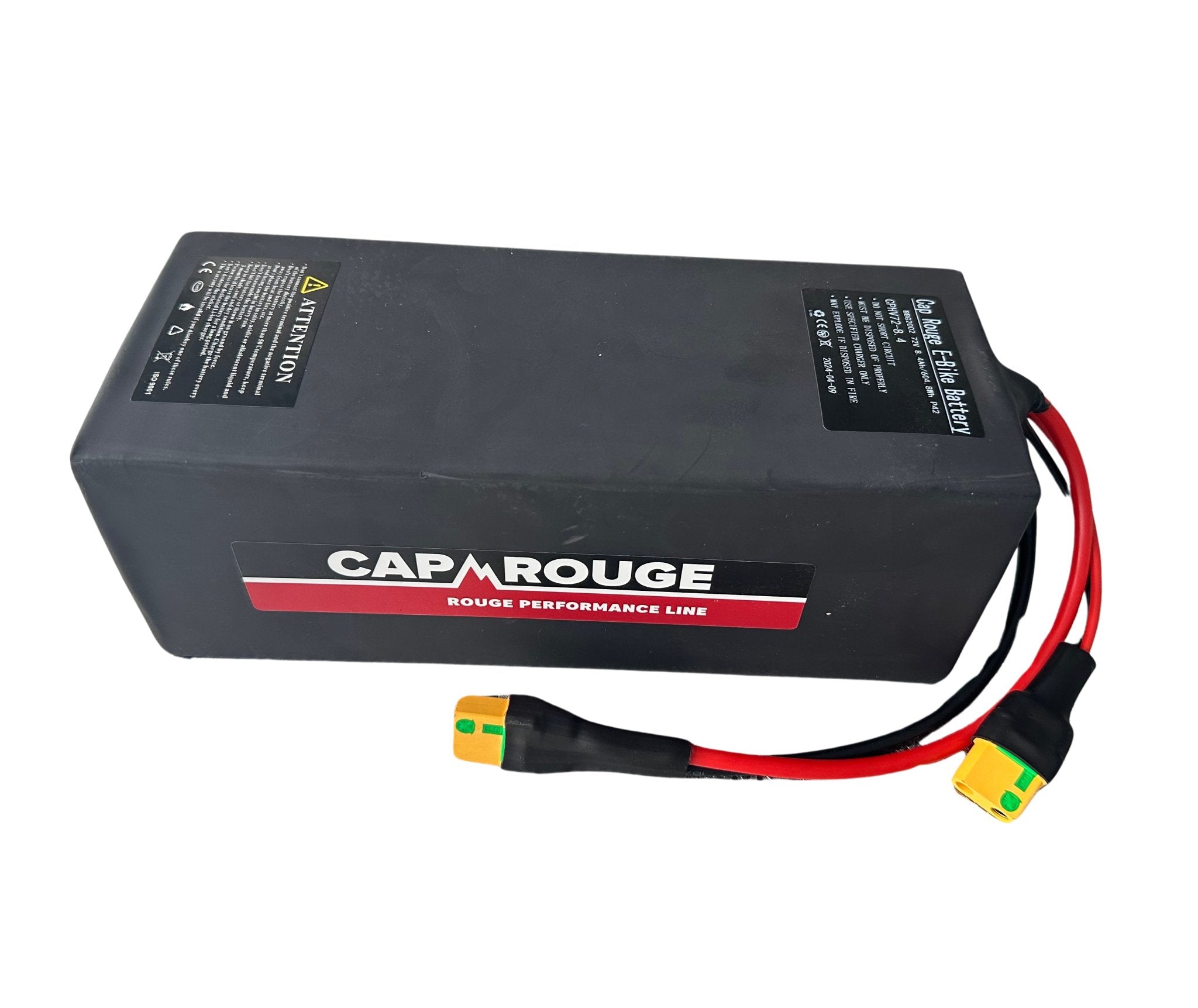

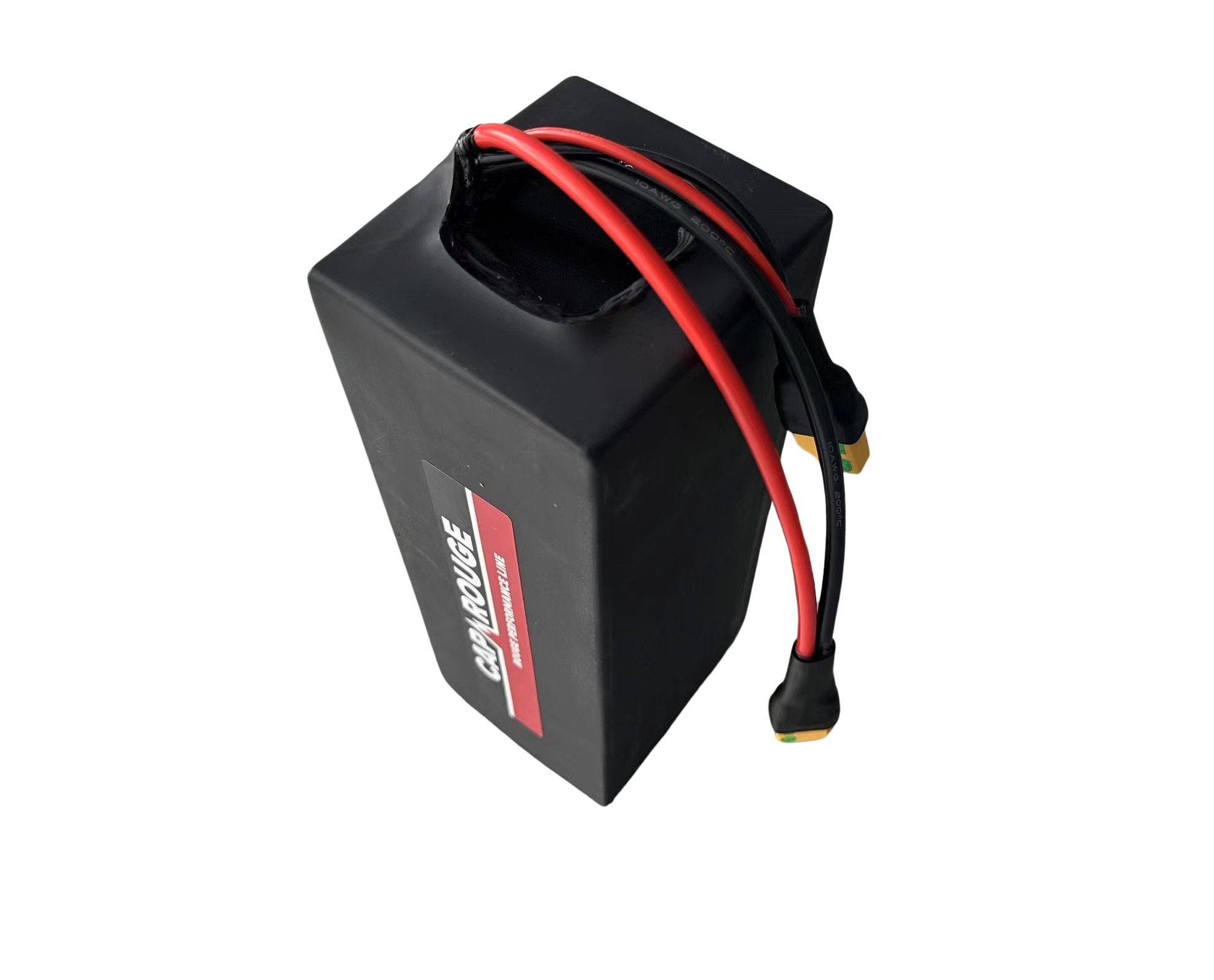

72V 8.4Ah / 605Wh Molicel P42A eBike Battery 80A BMS CPHV72-8.4

72V 8.4 AH / 605 WH Molicel P42A Lithium Mini Rectangle High Intensity e-Bike Battery

High Discharge Molicel P42A 21700 Cells

8.4 AH / 605 Wh

Continuous 80A BMS - Suitable for Motors Up to 5700W

230mm L - 92mm W - 85mm H

XT90 Female Charging Port - Cable 12cm

XT90 Female Discharge Port - Cable 22cm

Extra Layer Of High Grade Thick Rubber Shrink

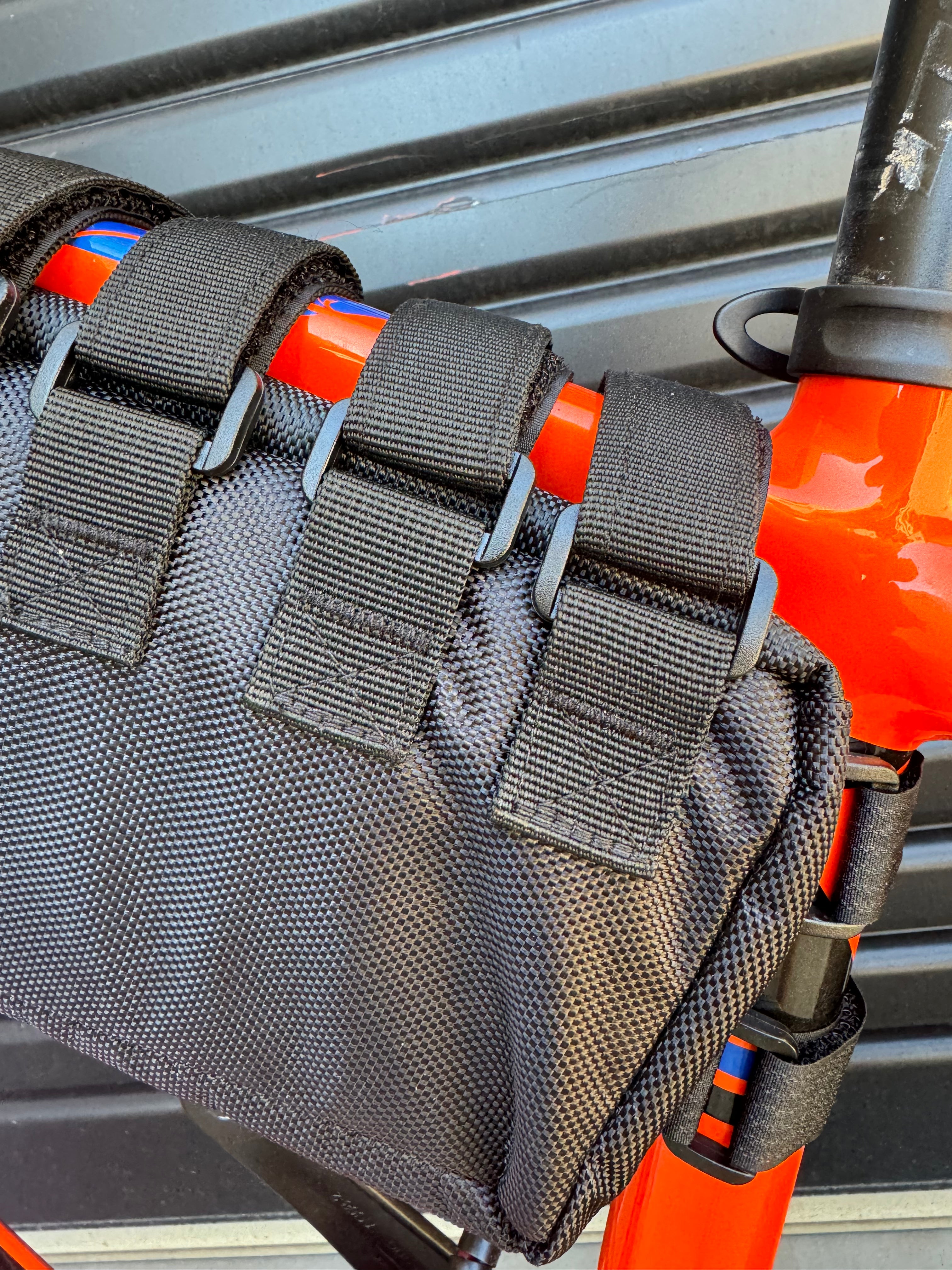

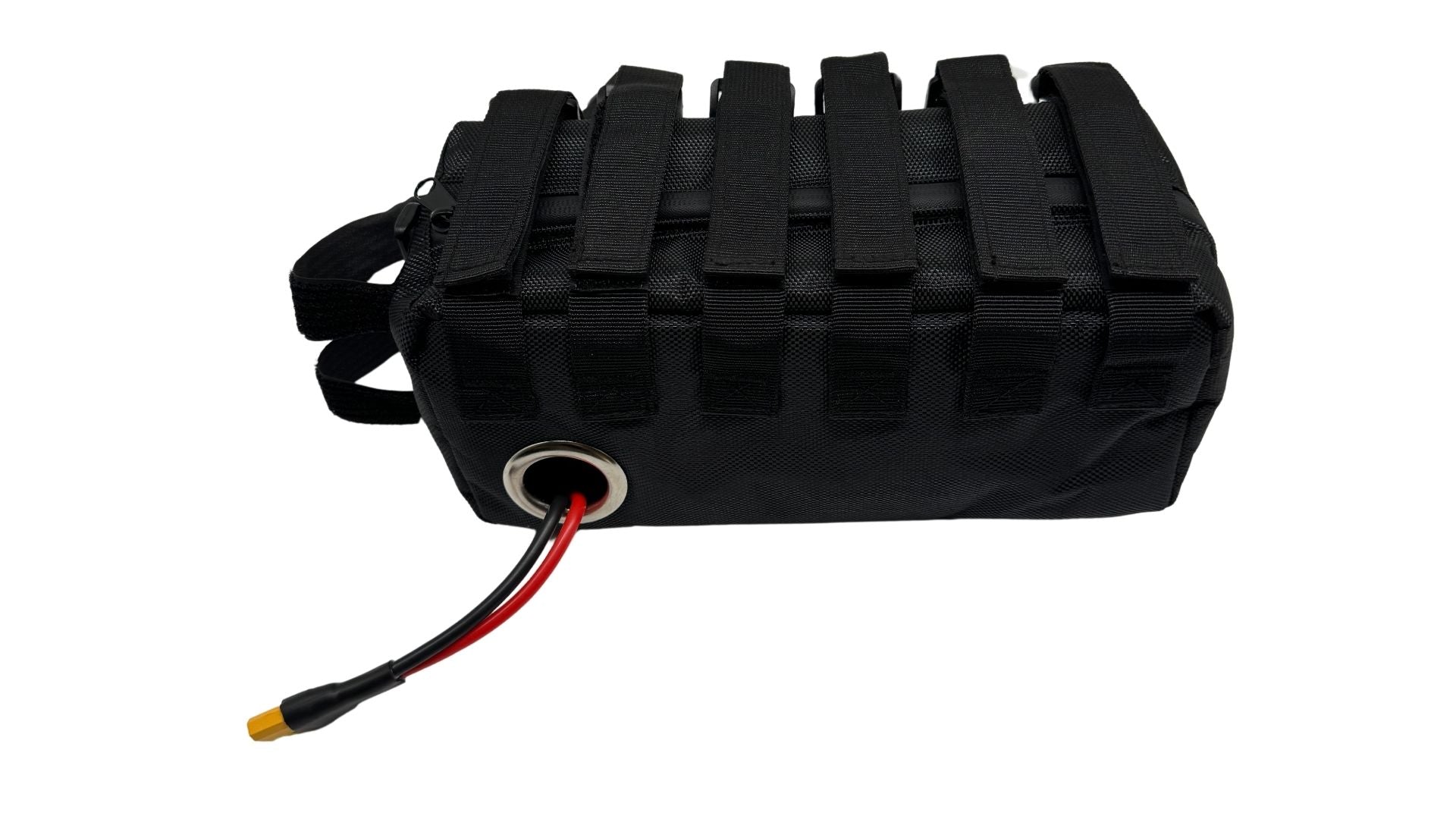

Dimensions: L 230mm - W 92mm - H 85mm, can be placed in any direction - Frame bag to suit available

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

Rectangle shaped battery, to suit a large number of bicycle frames or other applications

These packs can be used for smaller spacers and to save weight amongst many other uses.

• 72 Volt
• 8.4AH / 605 WH
• 4200mAh 21700 Molicel P42A cells
• UN38.3, MSDS
• 20S2P
• Dimensions: L 230mm - W 92mm - H 85mm, can be placed in any direction
• 80A continuous discharge for motors up to 5000w
• XT90 Female Charging Port - 4A Charger optional
• Weight 3.2 KGS
• Discharge cable with XT90 Female connector
• Extra durable black rubber outer casing
• Internal battery pack encased in protective case
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
