160Ah
quick stats
-
Max Discharge Rate (5 seconds) 430A
-
Prismatic cell technology Minimum 4000 cycles for long term reliability
-
Warranty 5 year Australian warranty
-
Safety certifications Including IEC:62619
-
Lightweight at 16kg Equivalent AGM weighs approx. 90kg
The iTECH160X PRO lithium battery sets a new standard. It has been specifically engineered for those seeking a power solution that can withstand whatever you throw at it.
Designed and developed in Australia, for Australia, the iTECH160X PRO has been constructed to thrive in rough climates and conditions – and thanks to its IP67 water and dust-proof rating, it can be mounted nearly anywhere!
The iTECH160X PRO uses A-grade prismatic lithium LiFePO4 cells, which offer considerable advantages over other cell types. Prismatic cells are thinner in profile, deliver higher discharge, have a longer life expectancy, are much lighter and utilise space more efficiently than traditional cell types.
The advanced lithium technology offers a 100% useable 160Ah capacity, allowing for impressive power storage. Not to mention the minute weight of 16kg, which is comparison to an equivalent AGM battery would be 90kg, saving you and your system important weight.

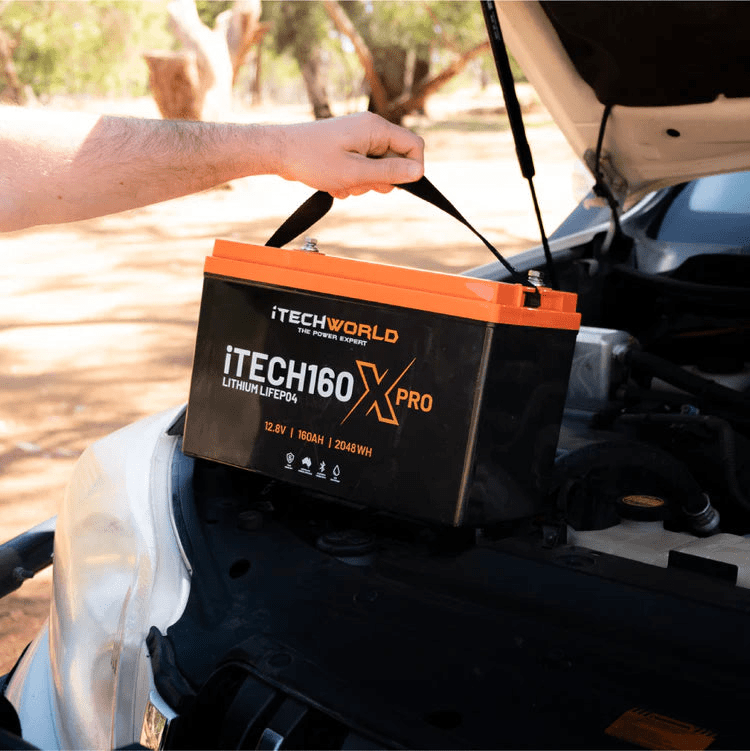

No need to change any systems, equipment, or do any re-wiring. With the iTECH160X PRO, you simply pull out your old heavy AGM batteries, and drop-in your new iTECH160X PRO.

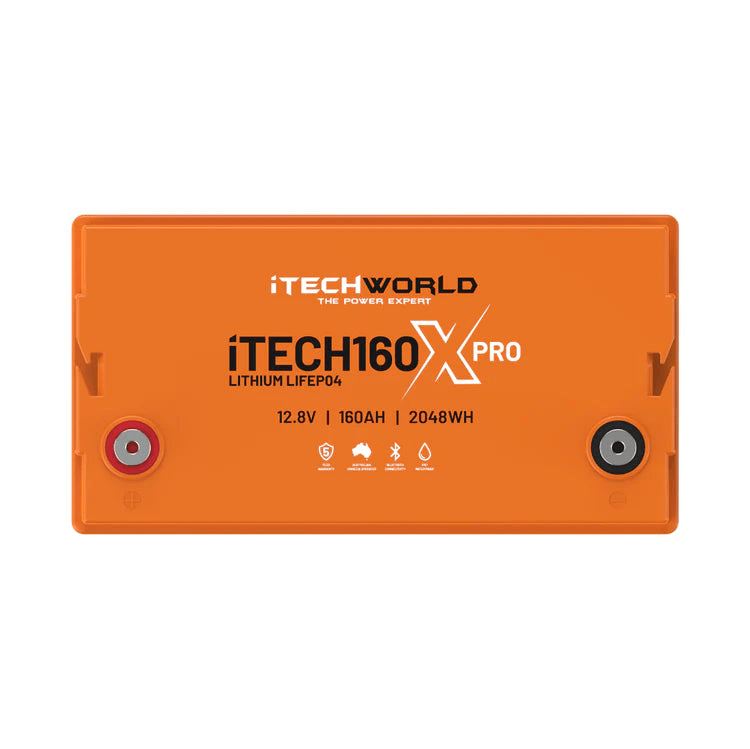

The iTECH160X PRO has been designed and developed to fit the same space as the standard 100Ah AGM batteries so it is a simple drop in replacement for your system, reading dimensions of 330 x 173 x 215mm (230mm including terminals).

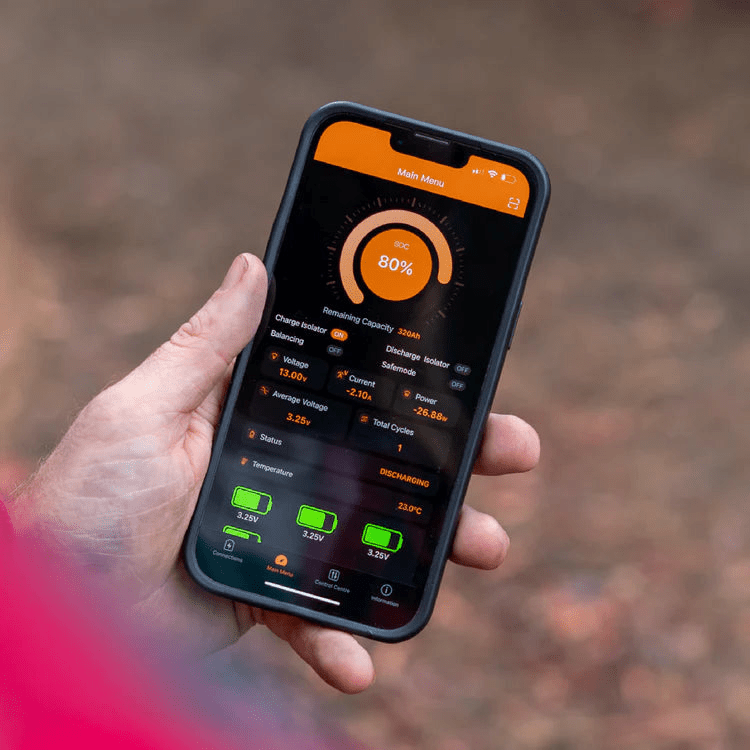

Never second-guess your battery’s health again! The iTECH160X PRO is integrated with full Bluetooth compatibility, allowing you to monitor your battery’s status in real-time via the iTechworld Connect Battery Management app, available through the App Store or the Google Play Store.
You can check your battery’s vitals in real-time and rest easy knowing that it is Australian-certified to IEC:62619 standards.
PACKAGE CONTENTS
-
1 x iTECH160X 160Ah Lithium 12V Battery
- 1 x User Guide
WARRANTY & SUPPORT
The iTECH160X warranty is 5 years (3 years full replacement, 2 years pro-rata).
If your iTechworld battery enters Safe Mode, please follow the instructions HERE
*Storage deep cycle battery only. It cannot be used as a cranking battery.
General |
| Voltage: |
12V |
| Nominal voltage: |
12.8V |
| C20 rating usable Amps: |
160Ah |
| Short circuit protection: |
Yes |
| Optimum temperature range: |
5°C ~ 60°C |
| BMS operational temperature range: |
5°C ~ 80°C |
| Safety protection isolator: |
80°C |
| Recommended charge voltage: |
14.4V |
|
| BMS charge cutoff: |
15V |
| BMS low voltage cutoff: |
8.5-9V |
| Series connection: |
Up to 48V (4 x batteries) |
| Parallel connection: |
Unlimited |
| Life cycles @ 80% depth of discharge: |
5,000+ |
| Life cycles @ 40% depth of discharge: |
10,000+ |
| Continuous Discharge Rate: |
150A |
| Maximum Discharge Rate (5 Seconds): |
430A |
| Dimensions (LxWxH): |
330 x 173 x 215mm |
| Weight: |
16kg |
| Terminal type: |
M8 |
| Case material: |
ABS |
