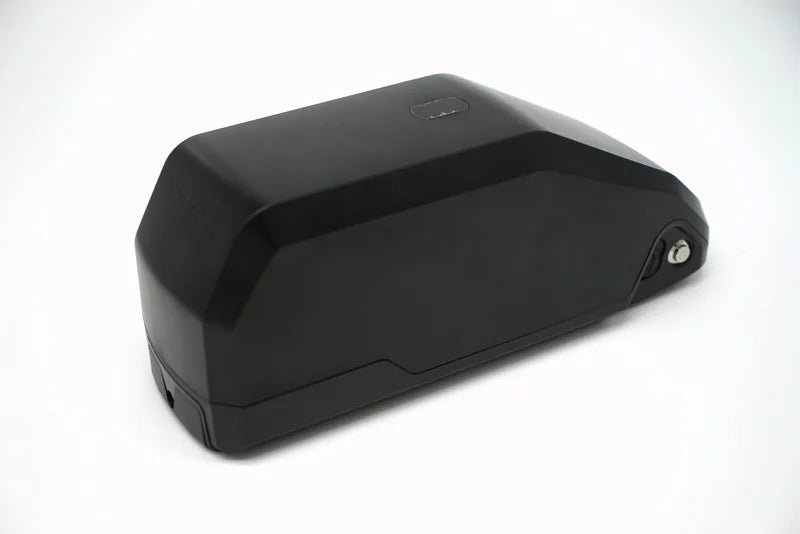

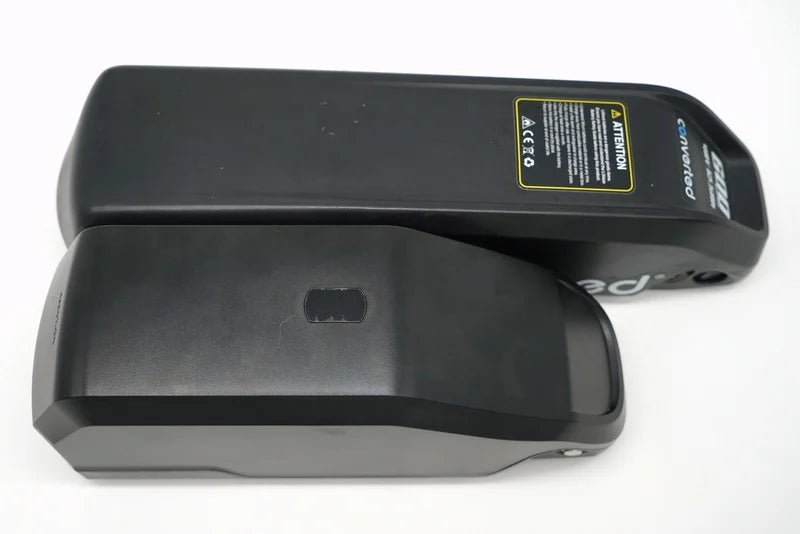

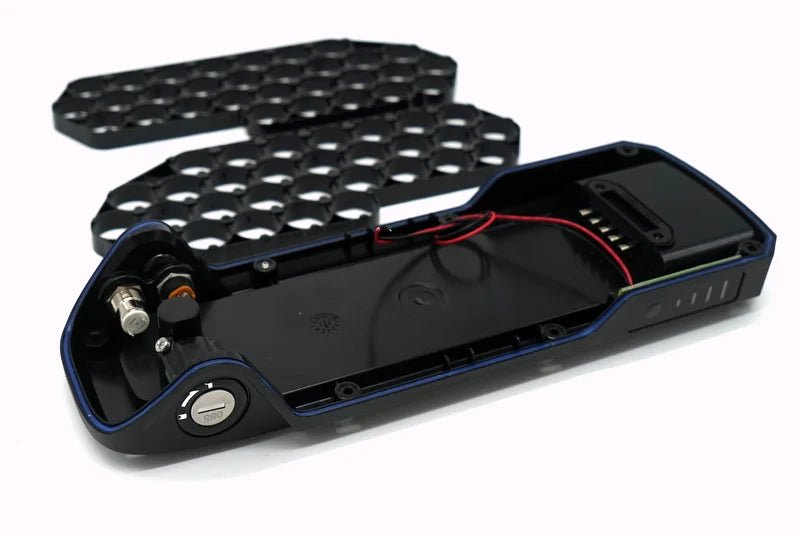

52V 10Ah / 520Wh Downtube Samsung eBike Battery CPWEDGE52-10

52 Volt

10 Ah

520 Wh

High Discharge Samsung 50S 5000mah 21700 Cells

50A Continuous Discharge BMS - For Motors Up To 2500 Watts

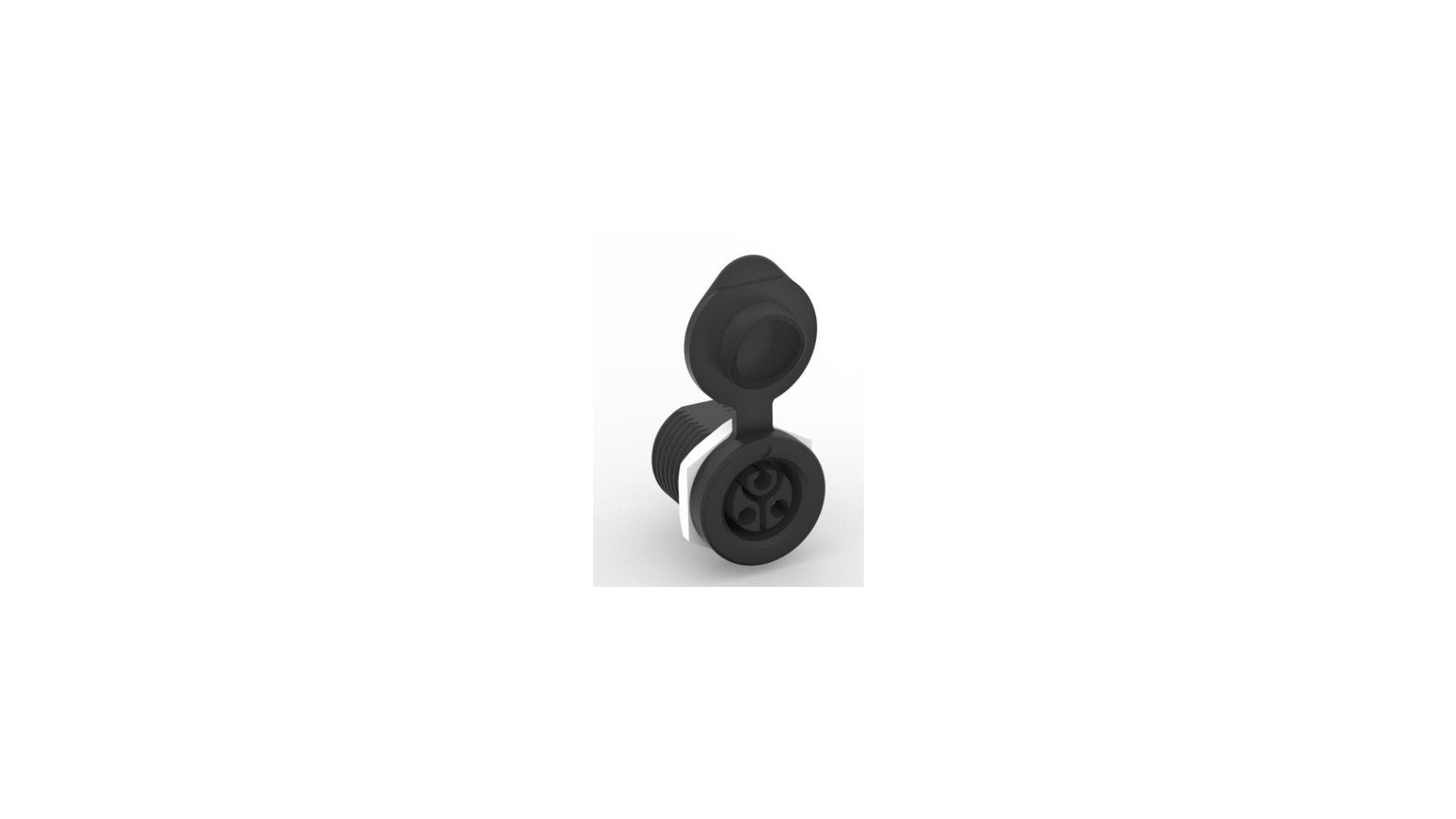

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

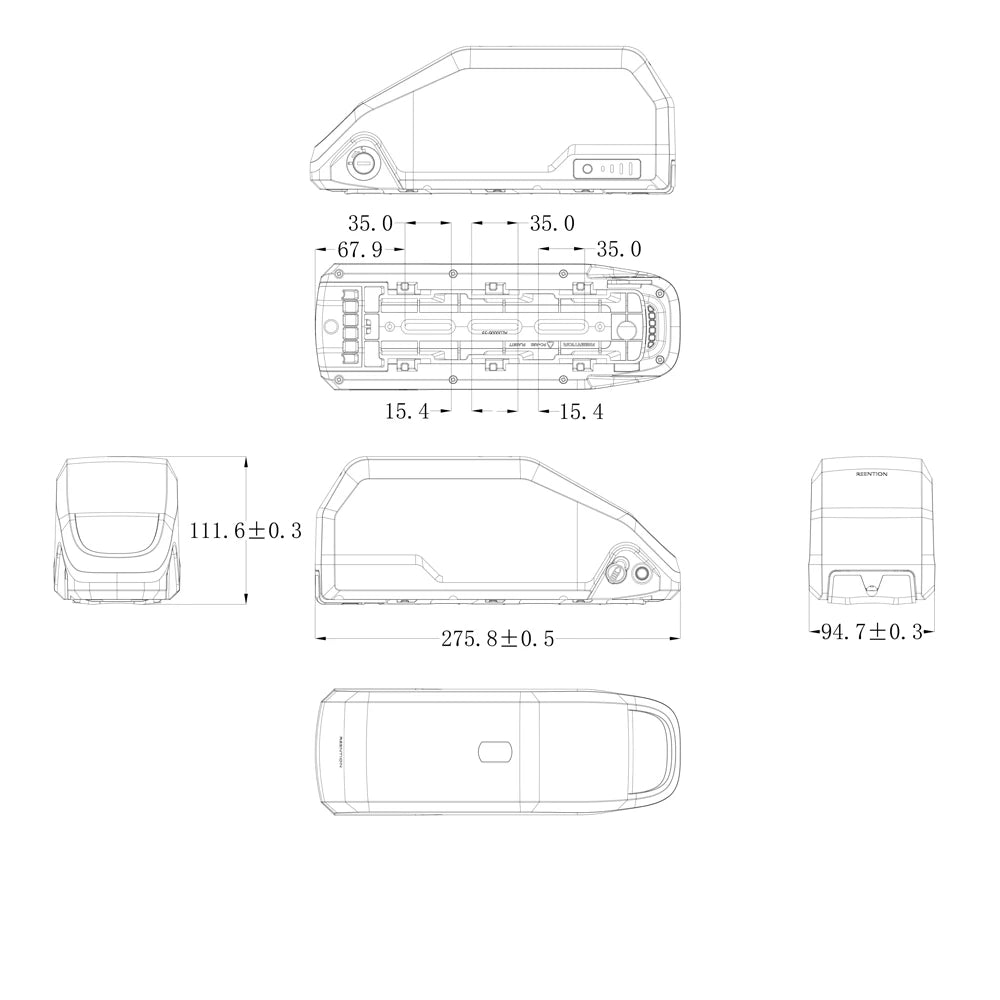

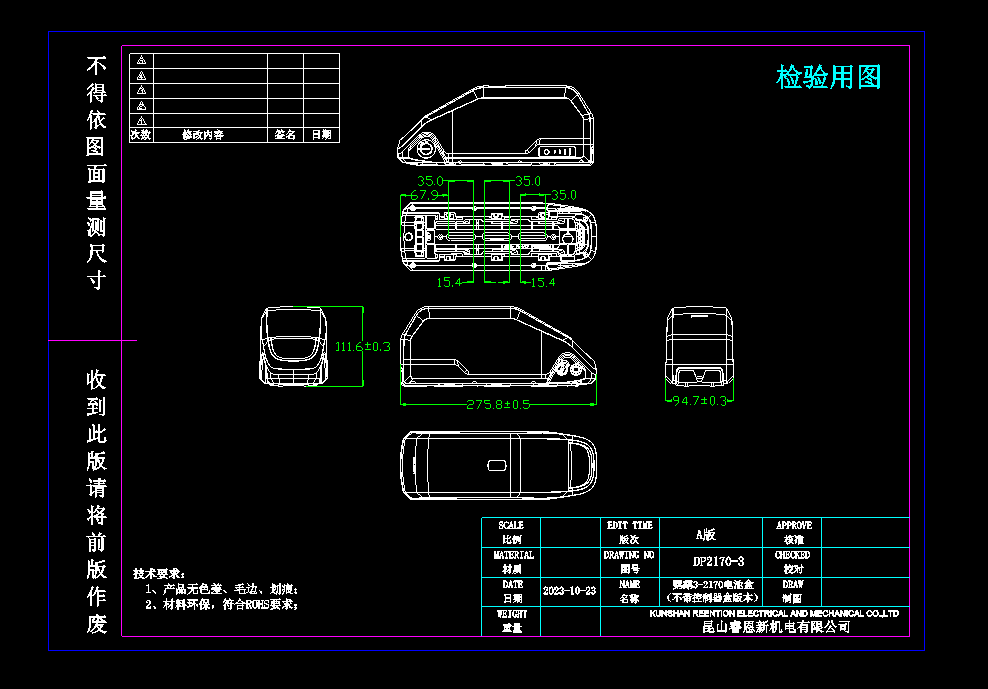

Dimensions: L 279mm - W 89mm - H 107mm

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

• 52 Volts
• 10 Ah
• 520 Wh

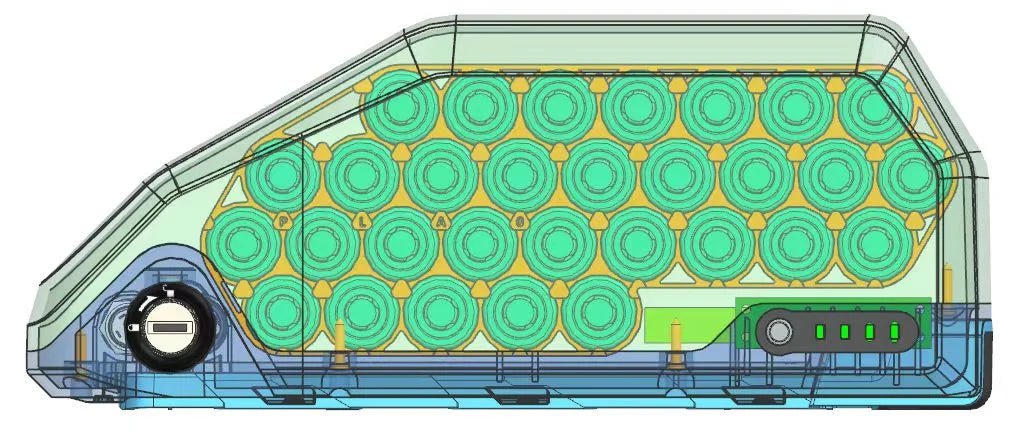

• 14S2P
• Samsung high discharge 50S 21700 cells, tested to EN62133-2-22017
• Dimensions: L 279mm - W 89mm - H 107mm
• ST3 3 pin charger port
• 1-5A, 2A, 3A or 4A battery charger options

• 5A maximum charge input
• 2.9 Kg Including bracket

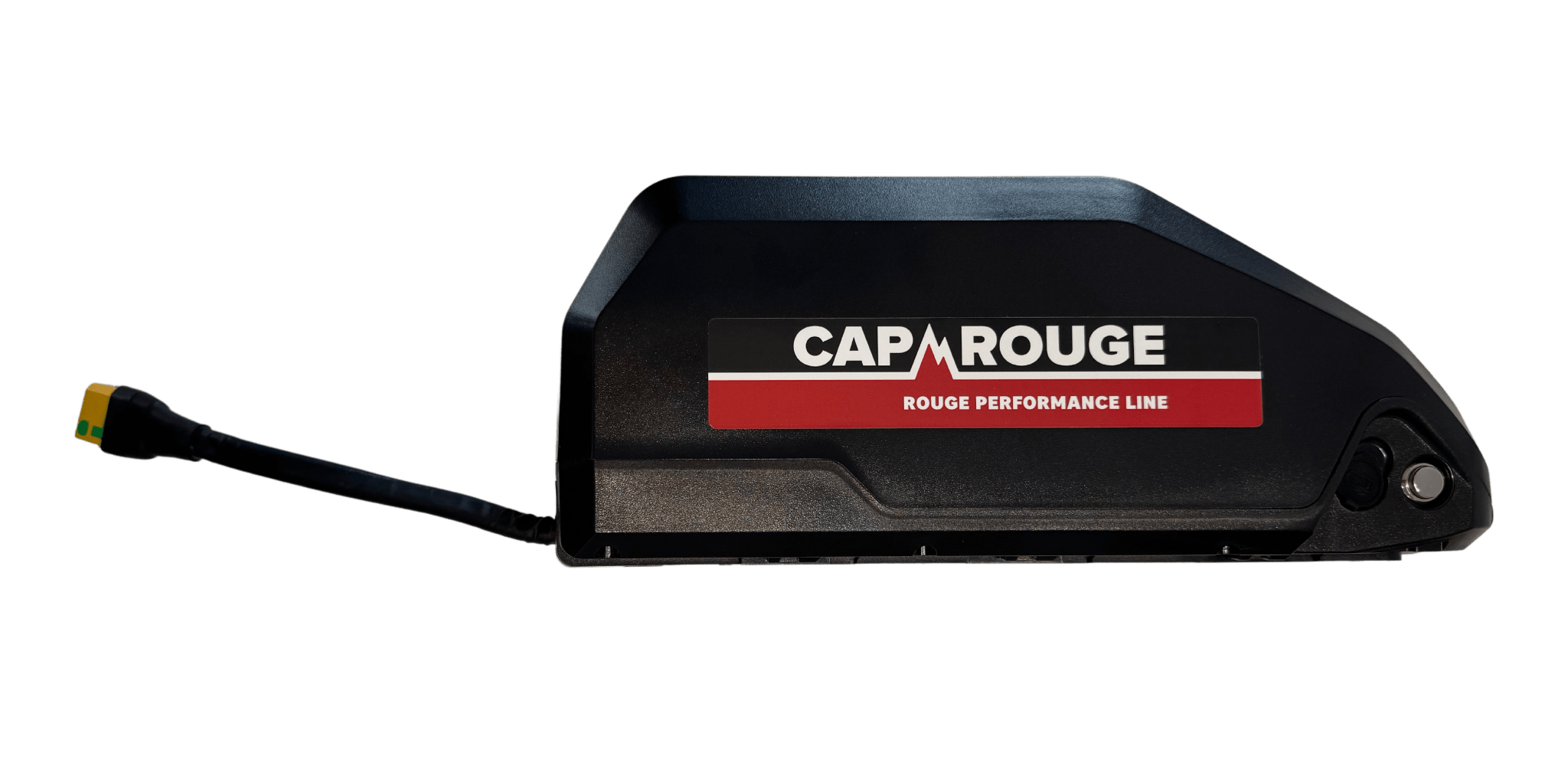

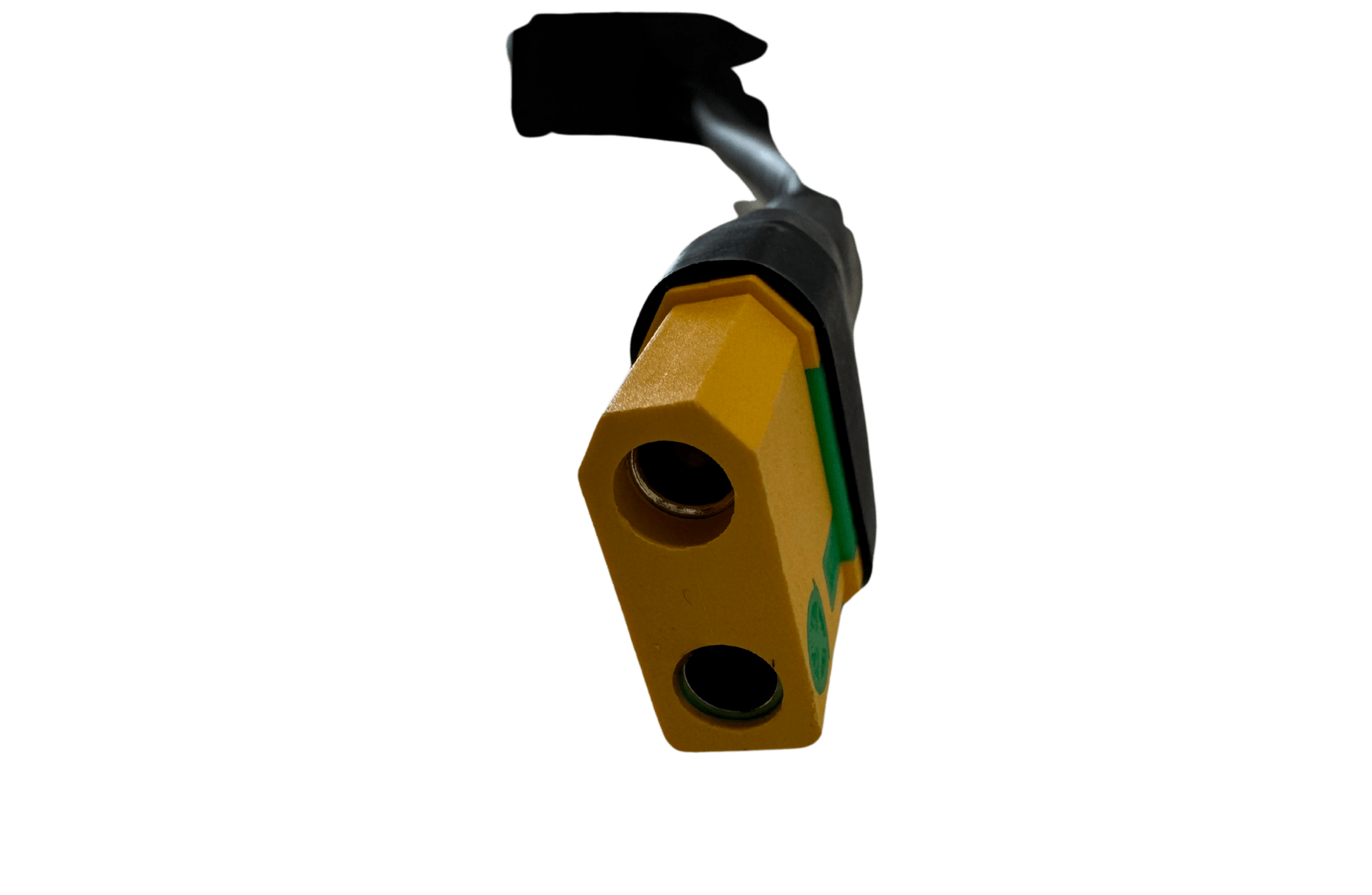

• Discharge cable with XT90 female connector
• 50A Continuous discharge, for motors up to 2500W

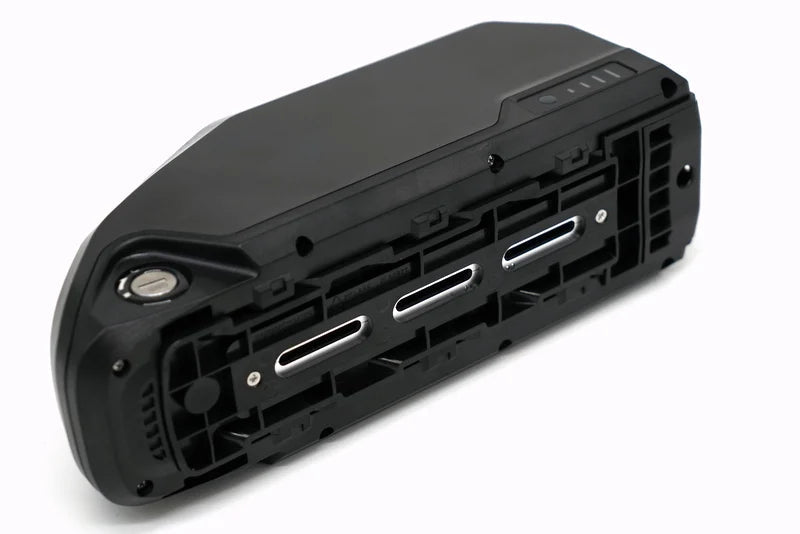

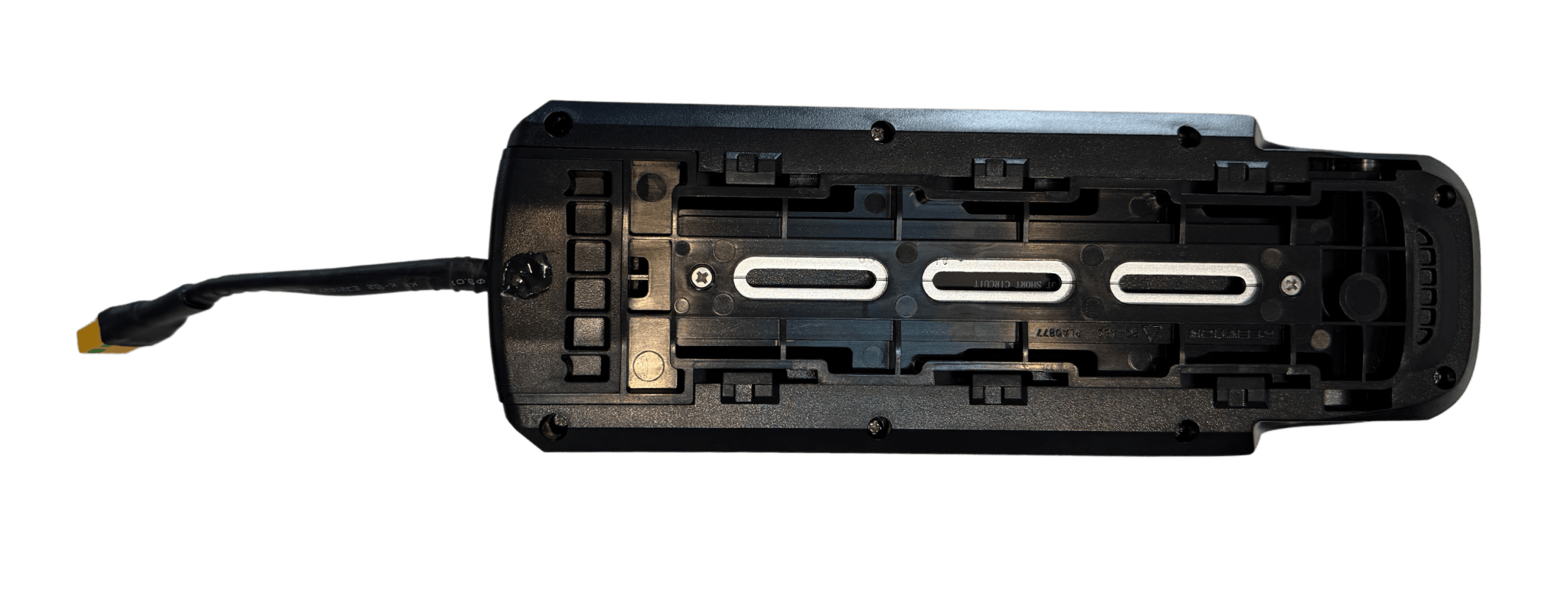

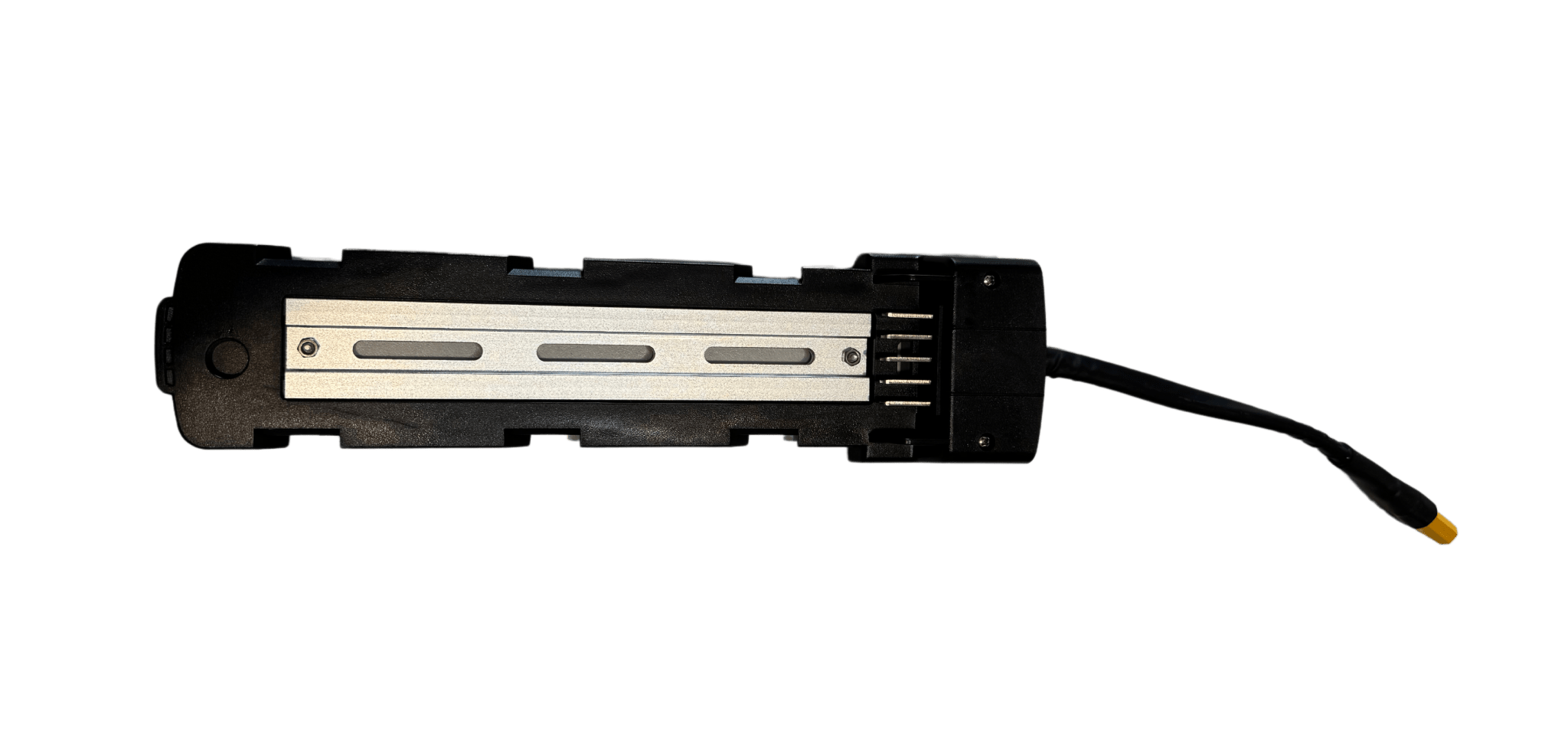

• Battery base bracket included

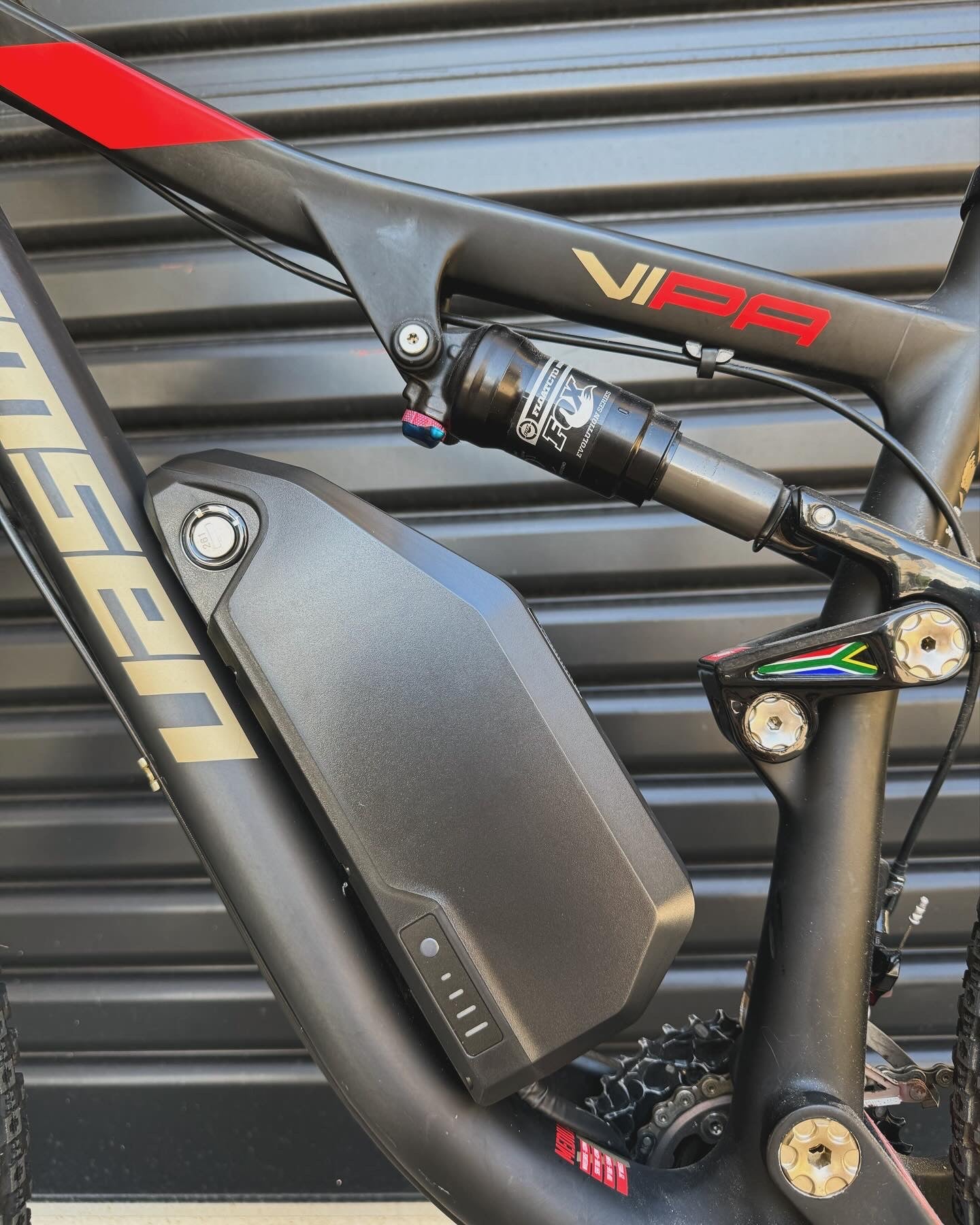

• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
