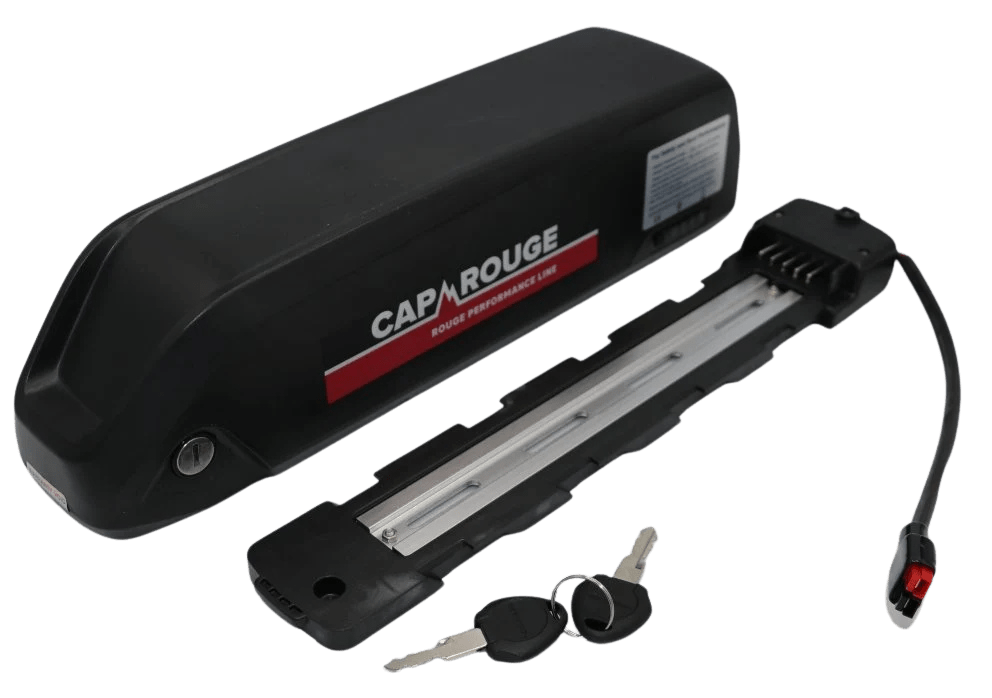

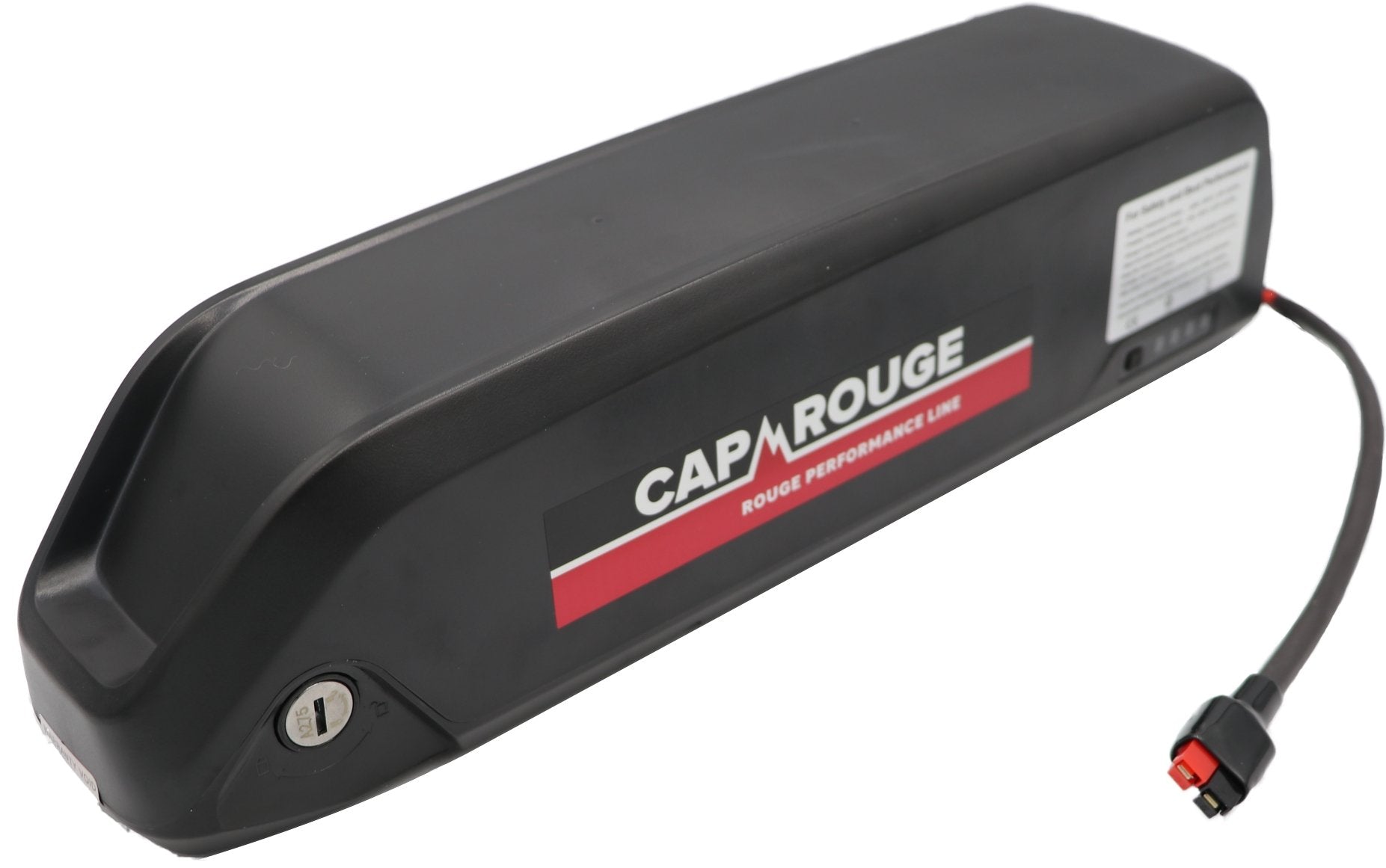

52V 14Ah / 728Wh Downtube Panasonic eBike Battery CPPOLF52-14

52 Volts

14 AH / 728 Wh

Panasonic NCR18650GA Red 18650 Cells

40A Continuous Discharge

2A, 3A or 4A Battery Charger Options

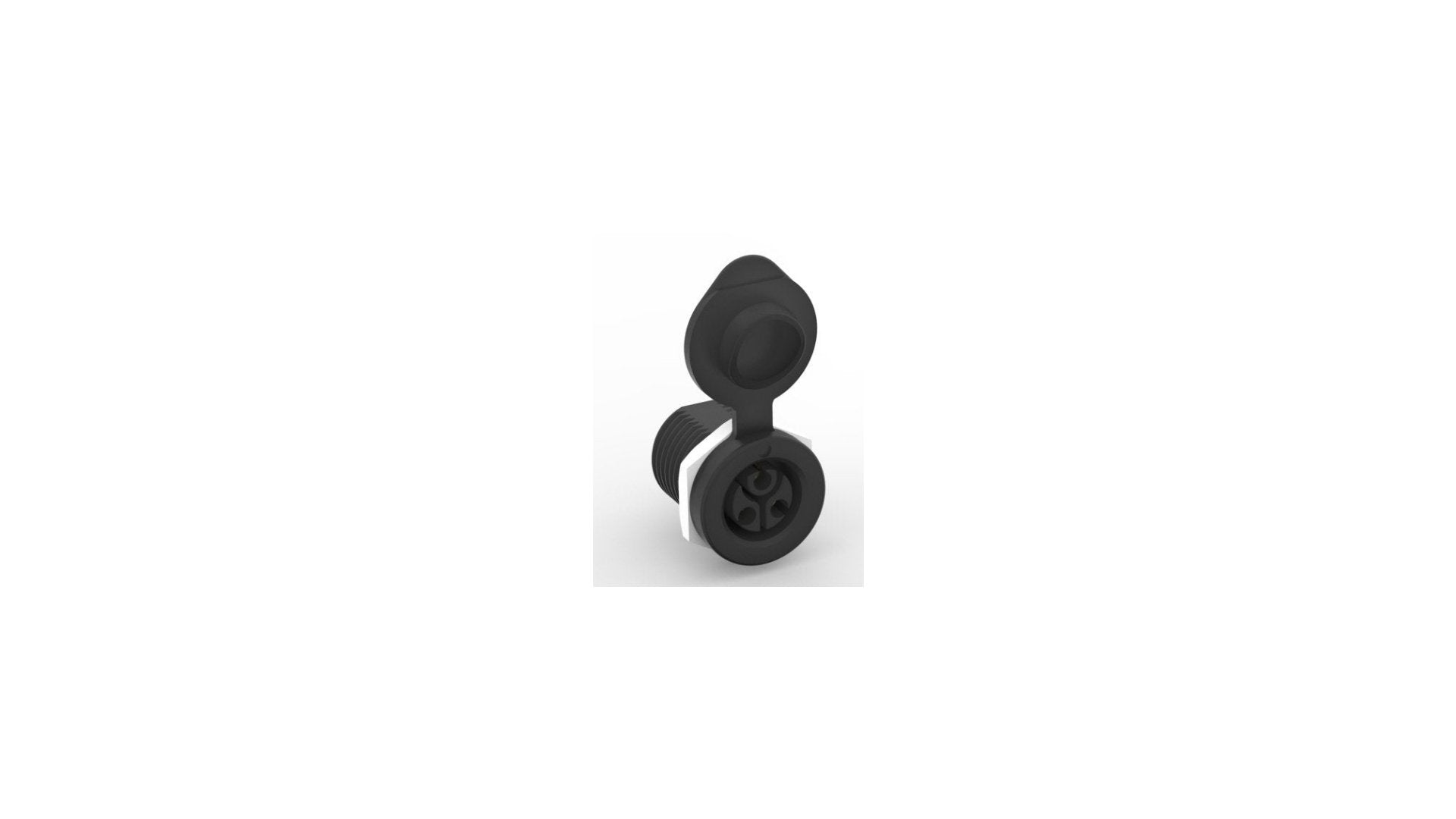

ST3 Charging Port

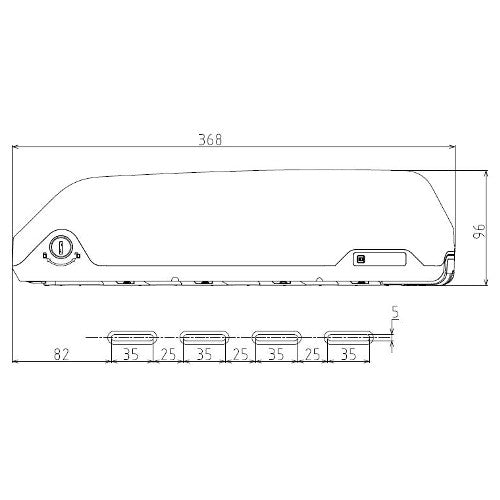

Dimensions: L 368mm - W 90mm - H 96mm

This battery is built in a low profile case, for bikes with restricted access.

DP-5 Polly case, with added fitment options.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1750W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

UN38.8 Certification and MSDS

• 52 Volts
• 14 Ah
• 728 Wh
• 14S4P
• Panasonic NCR18650GA 18650 cells, compliant to 62133-2-2017
• Dimensions: L 368mm - W 90mm - H 96mm
• 3.70kg excluding charger
• 40A continuous discharge
• Suitable for motors up to 1750w
• Discharge cable fitted with micro Anderson connectors
• 2A, 3Aor 4A Battery charger options
• ST3 Charging Port

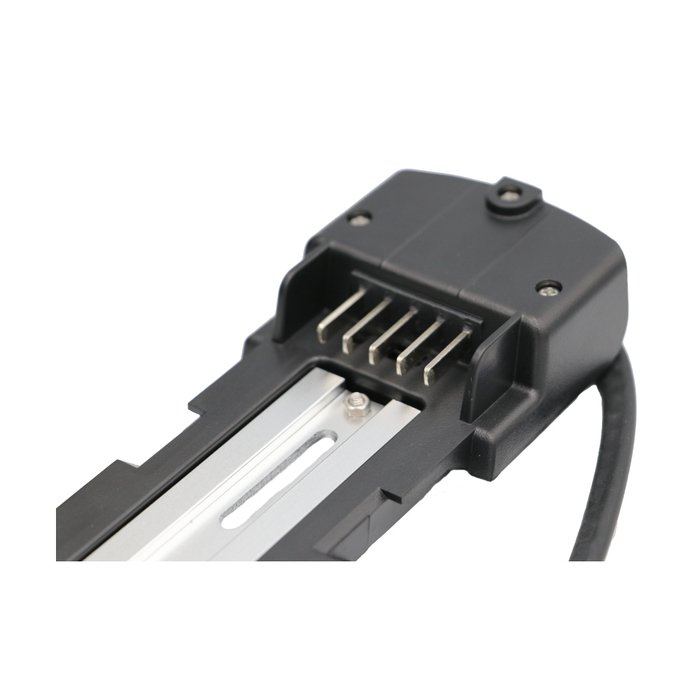

• Battery docking station included
• Battery power indicator
• 2 key included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
