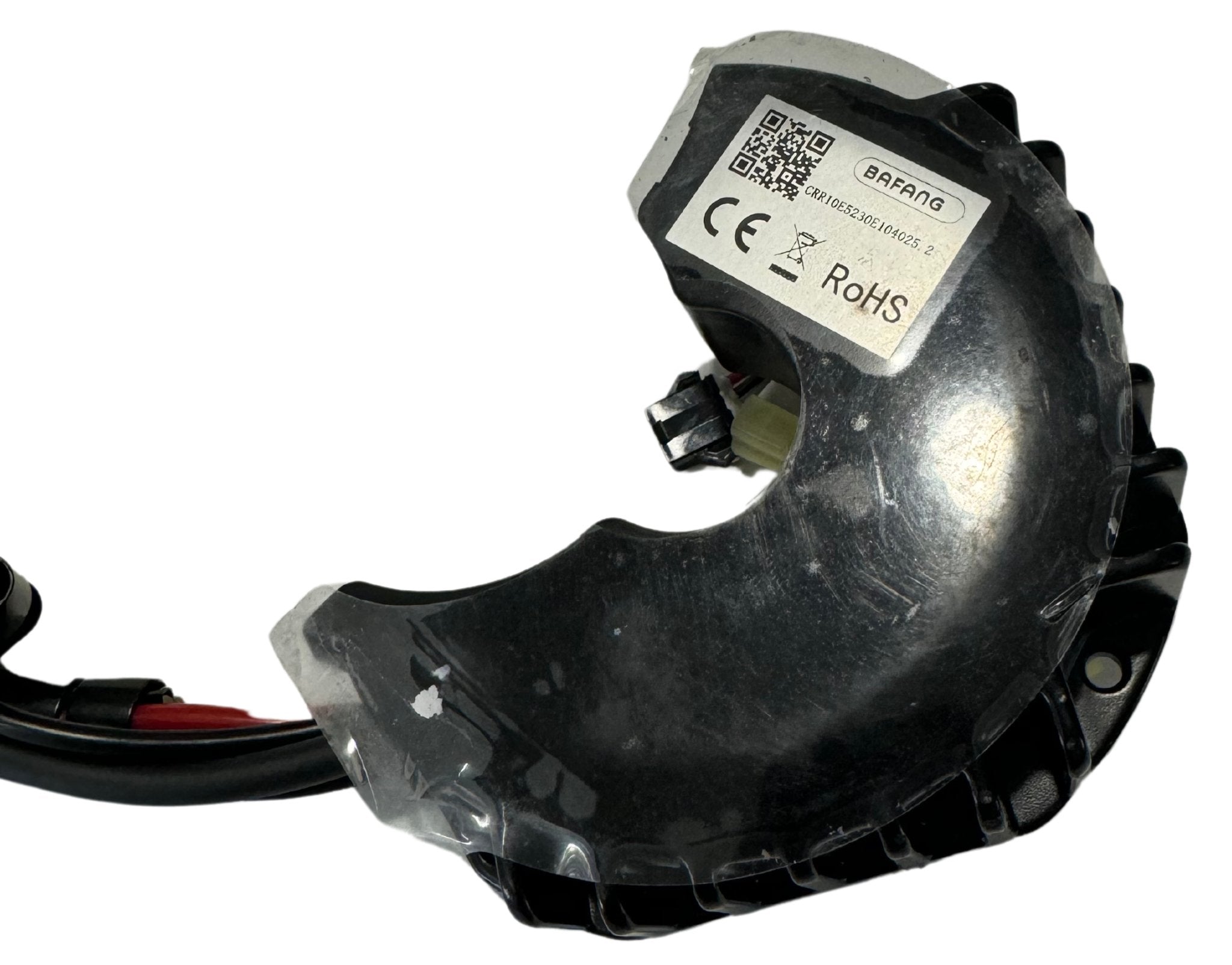

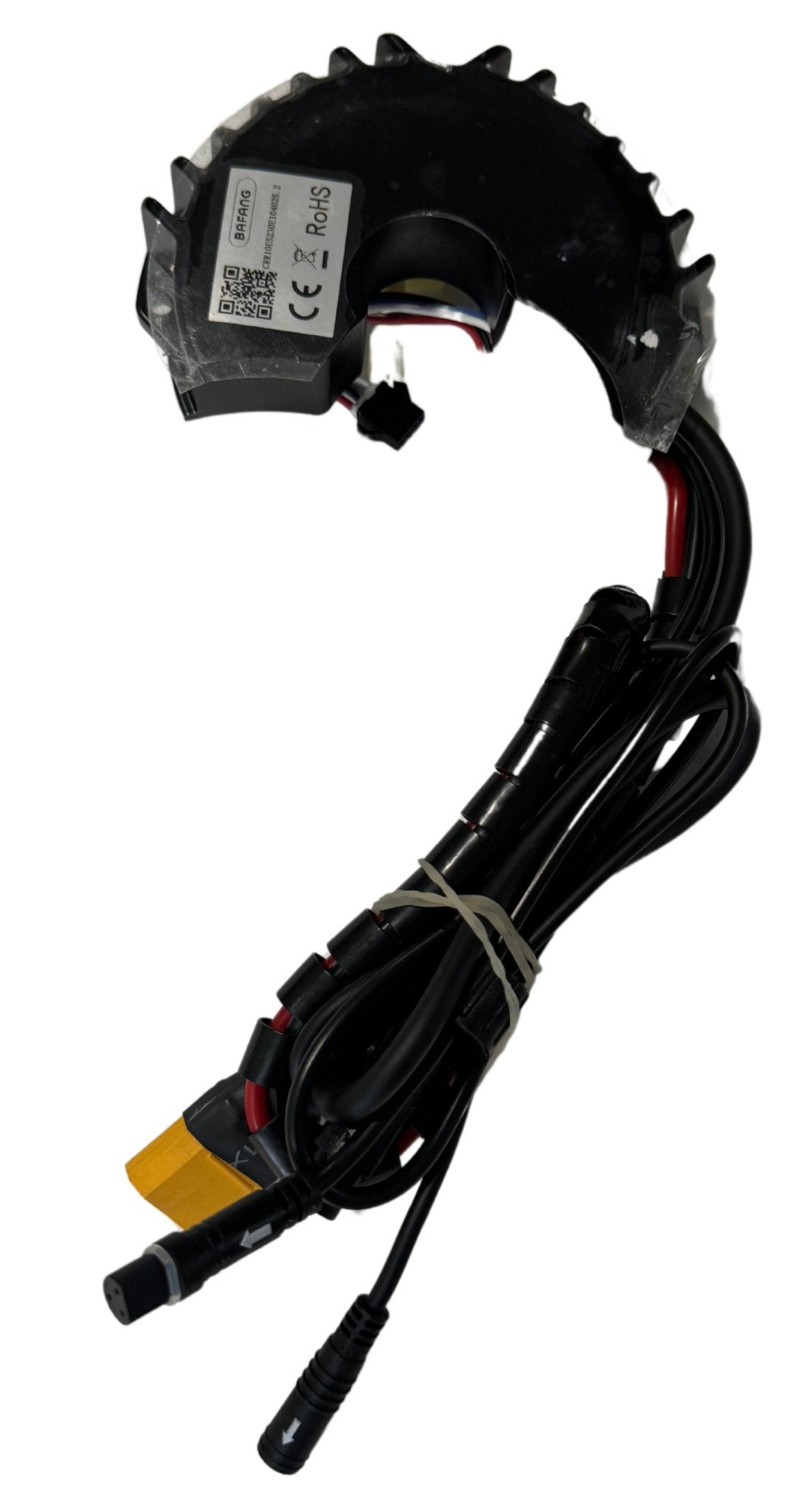

BBSHD/BBS02B 52V 3000W Controller
60A. Shunt Modded Controller
This Controller Has "Ludicrous" Firmware Which Allows For 'Throttle Only' Mode In Pedal Assist 0 - Exclusive To Cap Rouge
60A Modded BBSHD Controller*
Fits BBSHD 1000W and BBS02B 750W Motors
XT90 Male Connector
This BBSHD controller is physically identical to Luna Cycle's Ludicrous V1 controller.
Capable of 60 amps max (originally 30a max pre-mod) Programming cable is recommended and needed to edit parameter settings if required unless an Eggrider Bluetooth display is used.
For reprogramming - Click this link
This controller has "Ludicrous" firmware which allows for 'throttle only' mode in pedal assist 0.
Watts and amps are read x2
For example 5a = 10a, 10a = 20a, 20a = 40a, 30a = 60a, 500w = 1000w, 1000w = 2000w and so on.
This modification increases torque and acceleration. This modification is not for top speed increases (though it will increase speed). Use your gears properly and this controller will last you many miles.
Compatible with Bluetooth Eggrider display, desktop bafang tool and the Speed app for changing parameters.
Compatible with all 48/52v bafang displays.
-NOT FOR NOOBS - FULL DISCLAIMER-
* -NOT FOR NOOBS - FULL DISCLAIMER-
(FOR EXPERIENCED EBIKE DIY'ERS ONLY. MUST HAVE BASIC UNDERSTANDING OF HOW EBIKE CONTROLLERS ARE INSTALLED AND OPERATED. CAP ROUGE TAKE NO RESPONSIBILITY FOR CONTROLLER FAILURE, ERROR CODE 30 OR BLOWN MOTORS DUE TO FAILING TO USE GEARS PROPERLY. YOU MUST HAVE A GEAR SENSOR INSTALLED - NO REFUNDS/RETURNS WILL BE ACCEPTED.
This modification increases torque and acceleration. This modification is not for top speed increases (though it will increase speed). Use your gears properly and this controller will last you many miles.
Compatible with Bluetooth Eggrider display, desktop bafang tool and the Speed app for changing parameters.
Compatible with all 48/52v bafang displays.
*Images for visual purposes only
