Bafang 52V 3000W 60A BBSHD Mid Drive eBike Conversion Kit - Cap Rouge

Bafang 52V 3000W 60A BBSHD Mid Drive eBike Conversion Kit

by Bafang
$1,471.00 - $2,690.00
$1,471.00
$1,471.00 - $2,690.00
$1,471.00

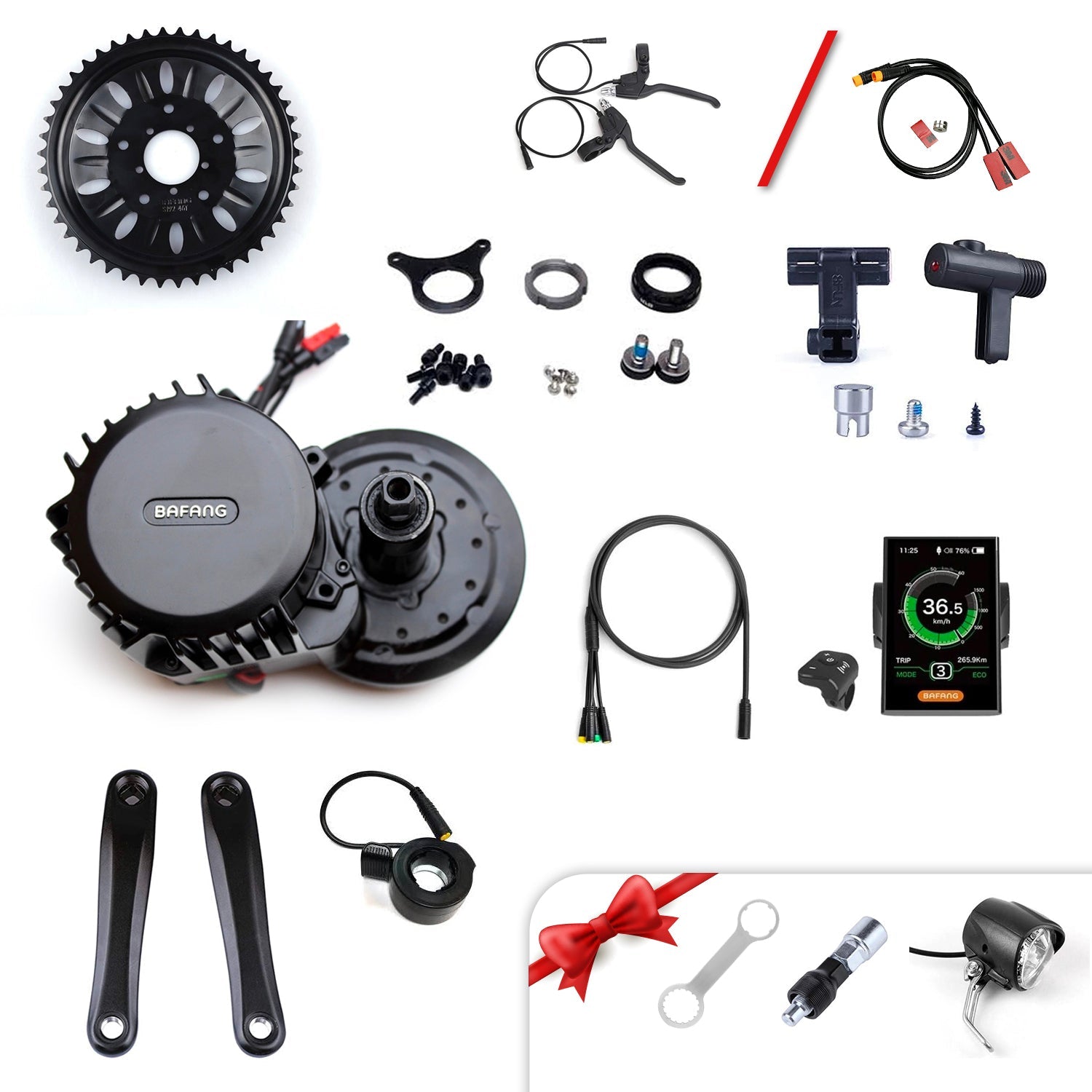

Bafang 52V 3000W BBSHD Mid Drive eBike Conversion Kit With eBike Battery Options

Not For The Faint Hearted!

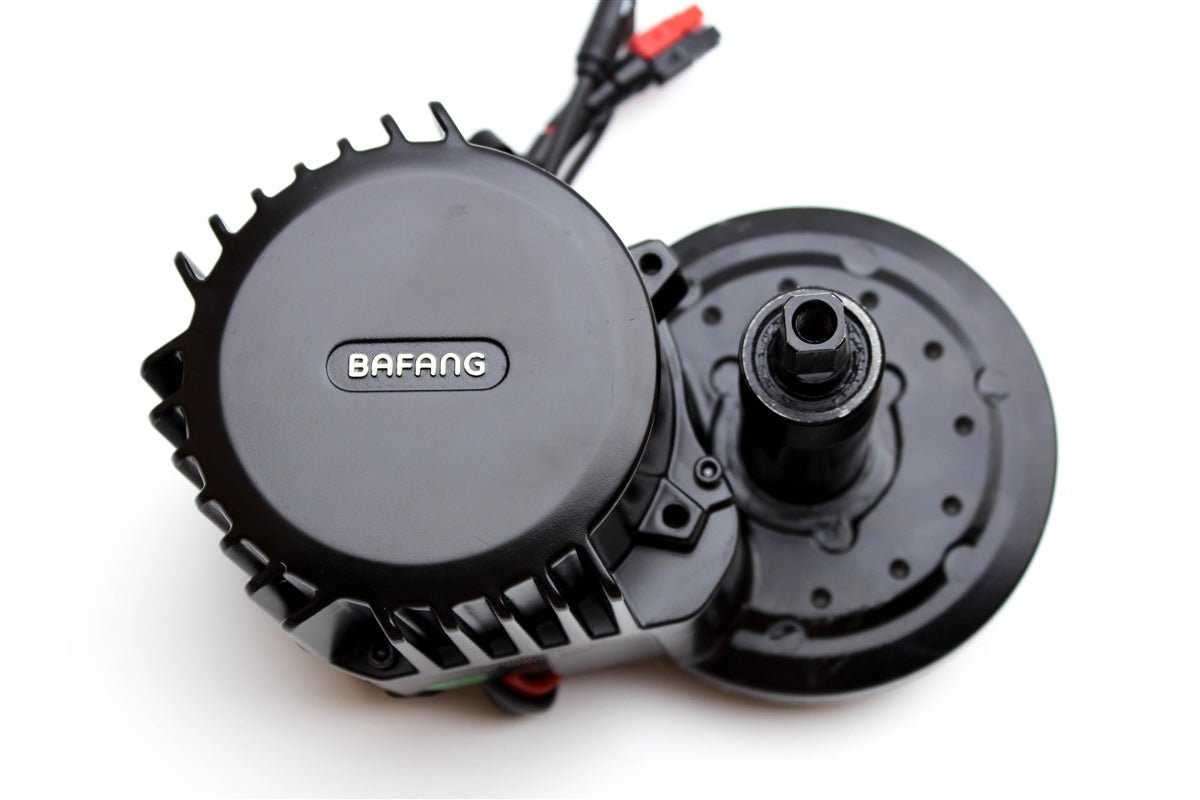

BBSHD 52V 3000W Mid-Motor

60A. Shunt Modded Controller

This Controller Has "Ludicrous" Firmware Which Allows For 'Throttle Only' Mode In Pedal Assist 0 - Exclusive To Cap Rouge*

200Nm + Of Torque

Pedal Assist And/Or Throttle Assist - Or Use Both Simultaneously

Make Your Selection of eBike Battery and eBike Smart Charger From The Drop Down Menus Below

Need Help? Call us 1300 809 840

For More Information On The Battery You Choose, Click Here For 52 Volt Batteries

Alternatively, Scroll To The Bottom Of The Page And Click On Each Of The Individual Battery Models To See Which Battery Works Best For Your eBike Conversion

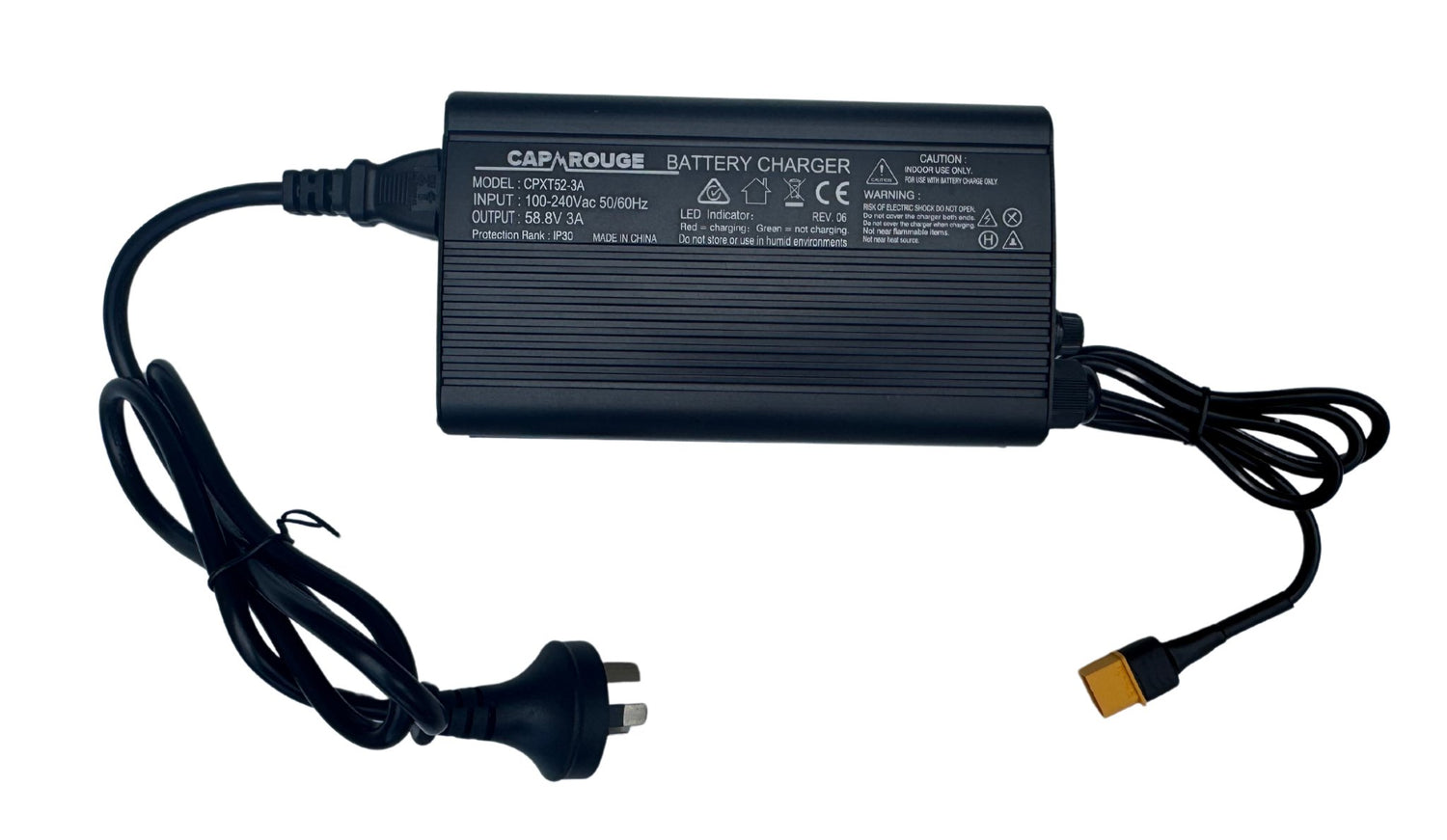

2A, 3A or 4A Battery Charger Options

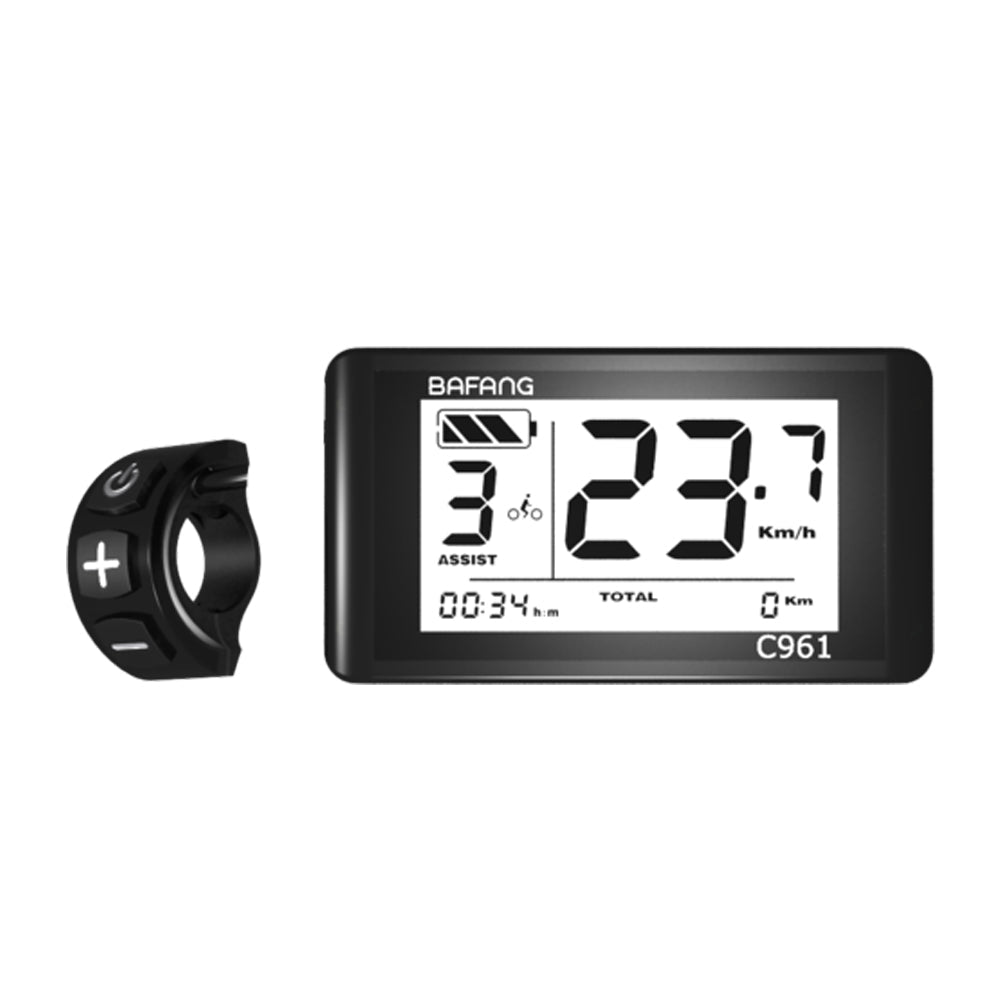

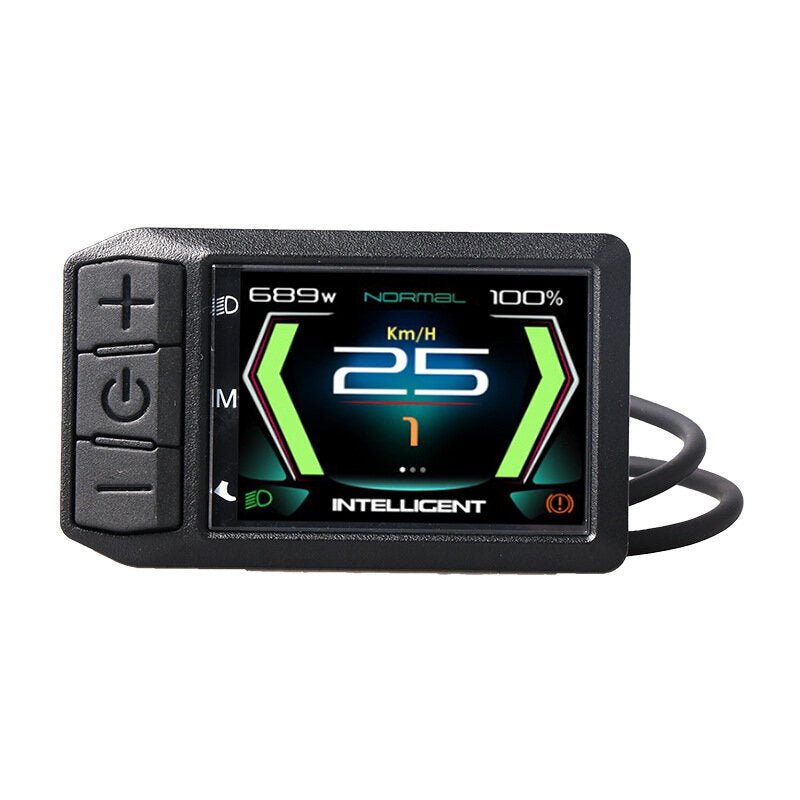

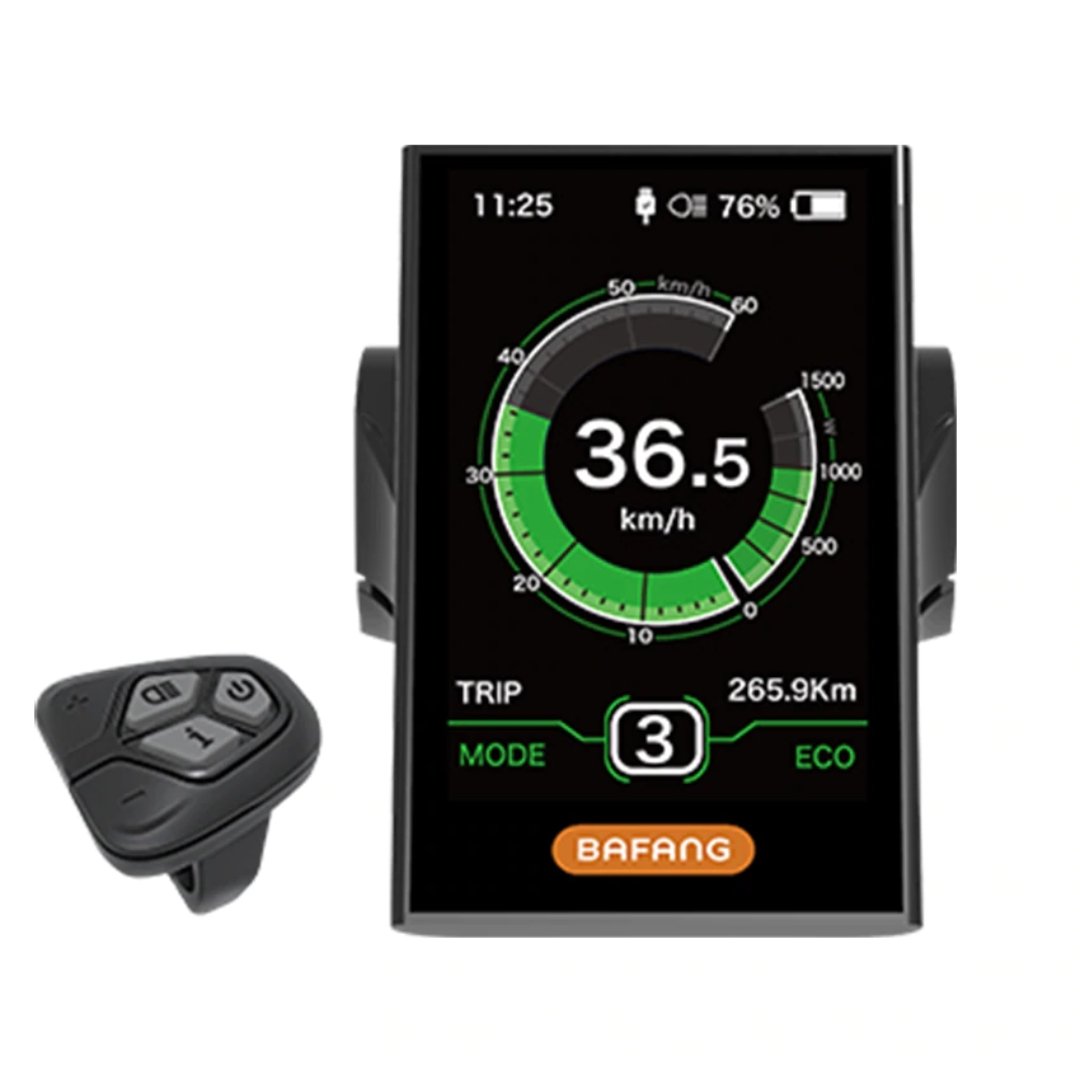

Choice of 9 Different Display Options

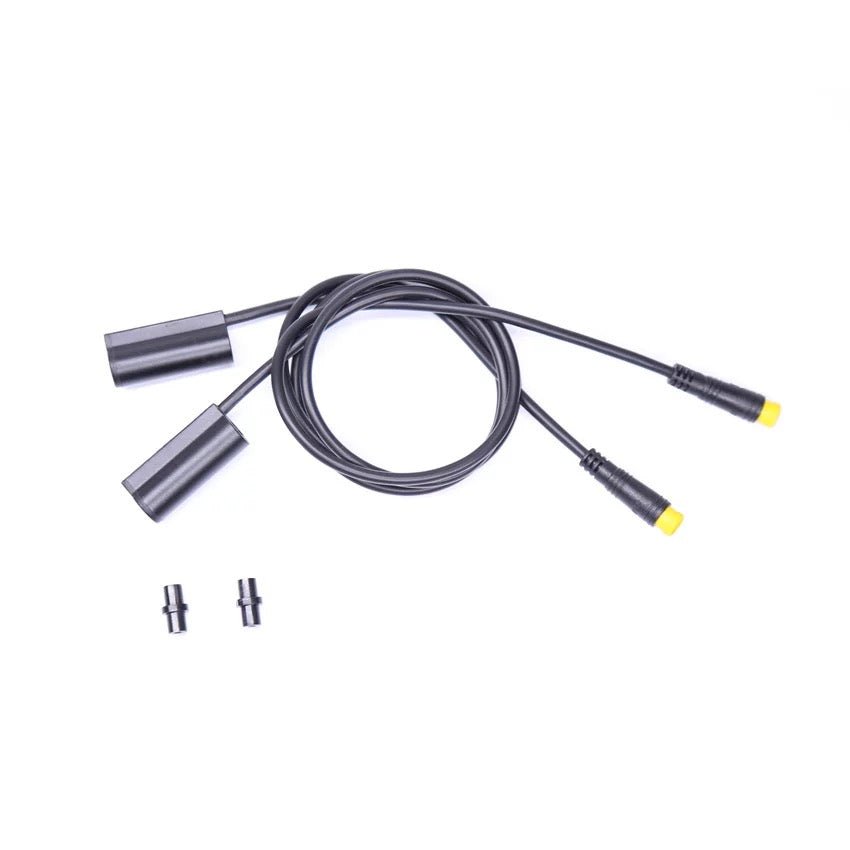

Choose Cable Brake Sensors or Hydraulic Brake Sensors At No Extra Charge

Includes Free Bafang Tool, Crank Puller Tool and Front Light!

Choose Your Bottom Bracket Size

68-73MM

100MM

120MM FAT BIKE

  • 52V 1000W BBSHD Conversion Kit
  • 60A Shunt Modded Ludicrous Controller
  • Choice of 9 Different Displays
  • 200+Nm of Torque

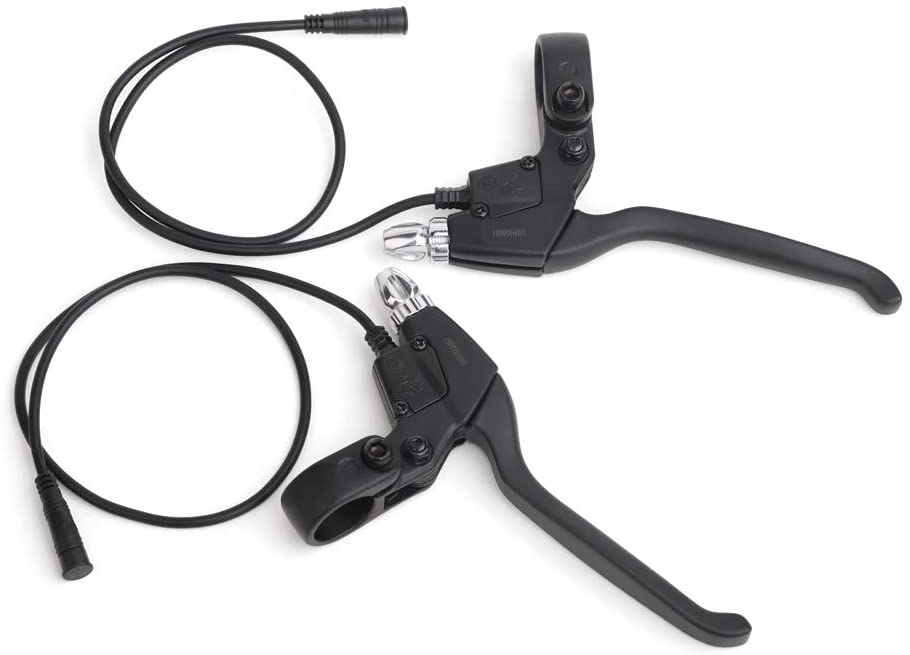

  • Brake Sensor Levers or Hydraulic Brake Sensors
  • 5.85Kg
  • Fits BB 68-73mm, 100mm, 120mm - FAT BIKE

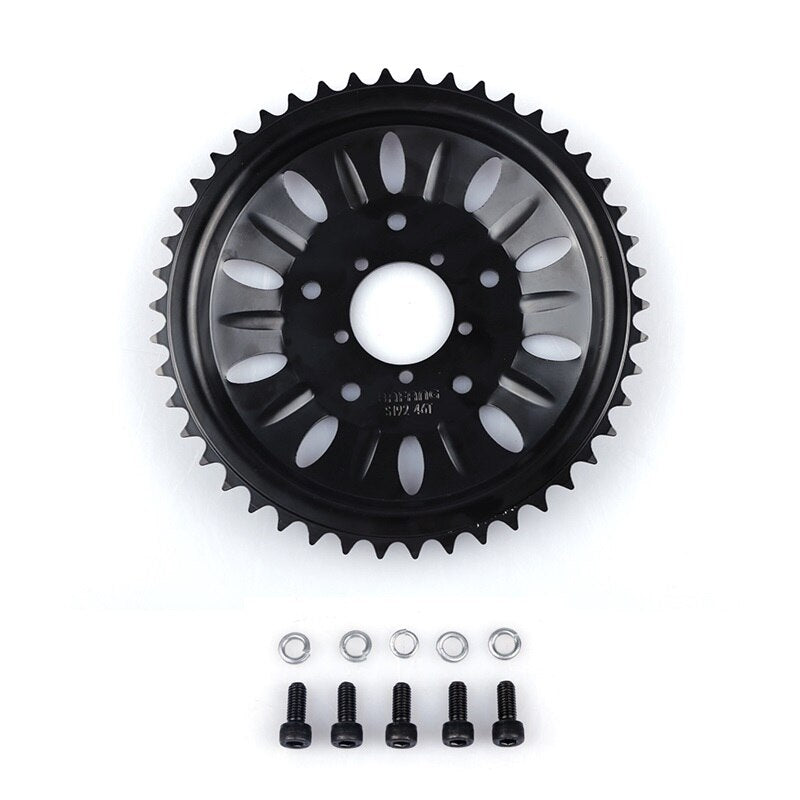

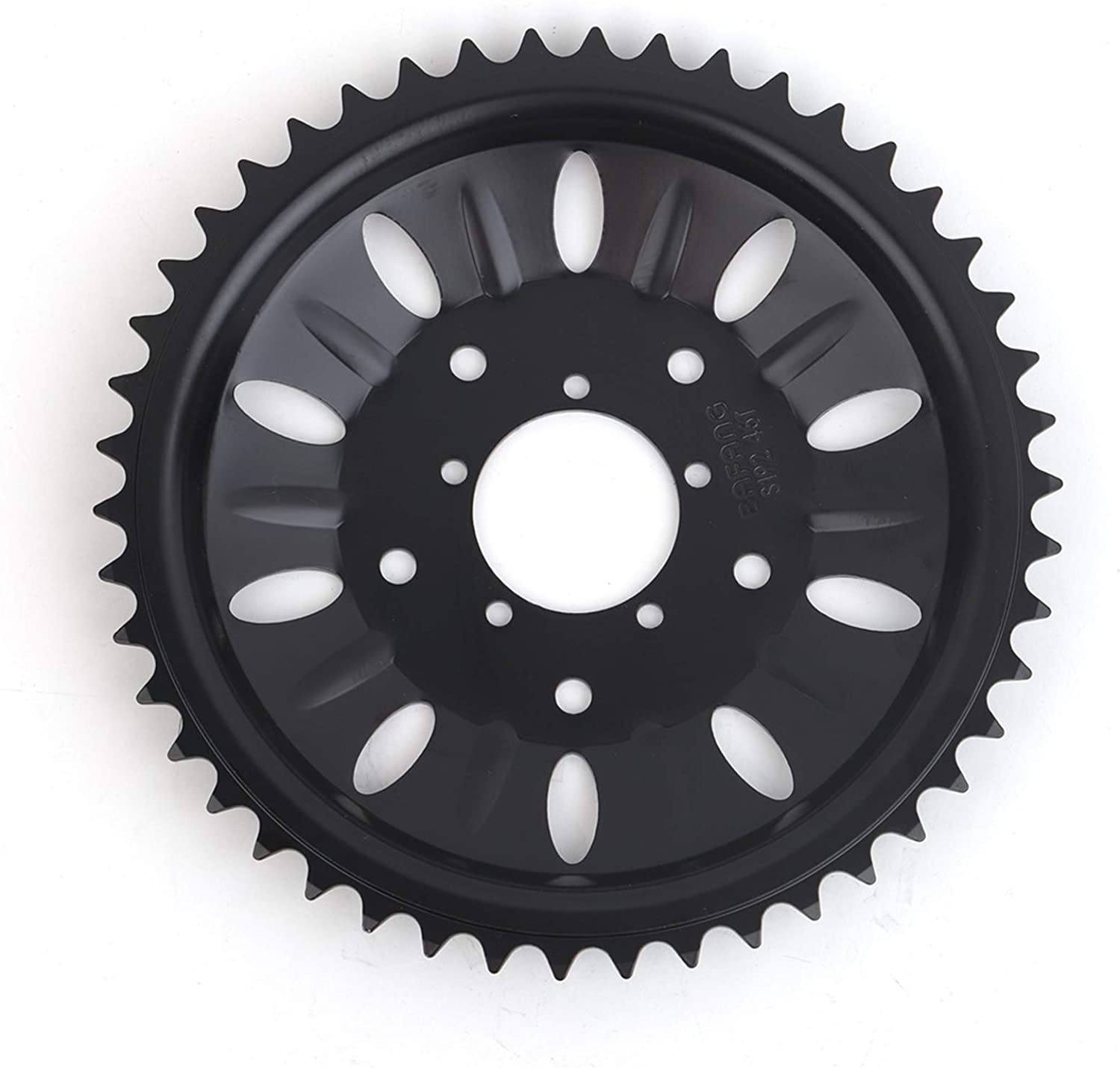

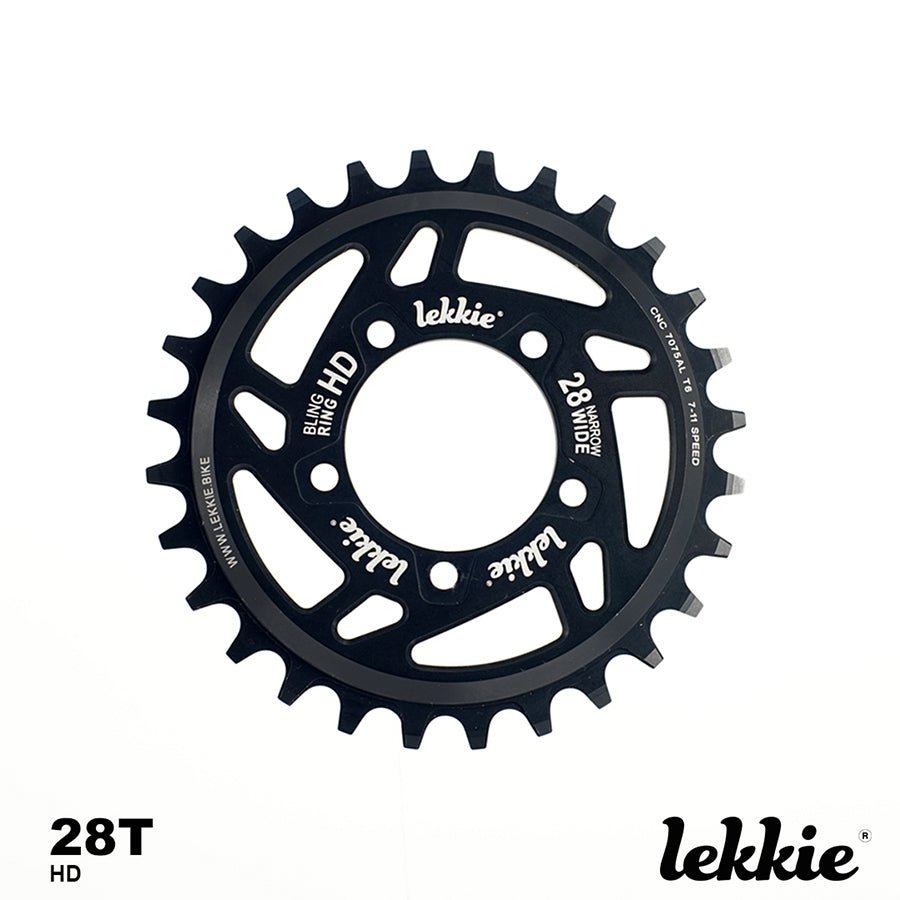

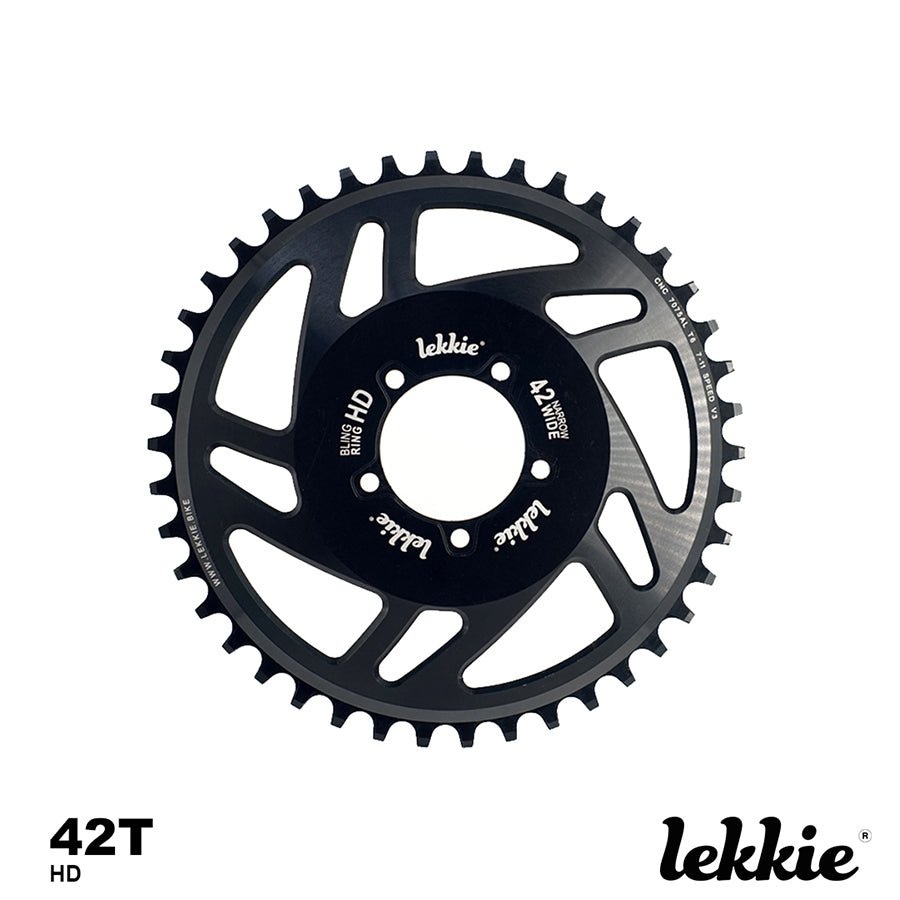

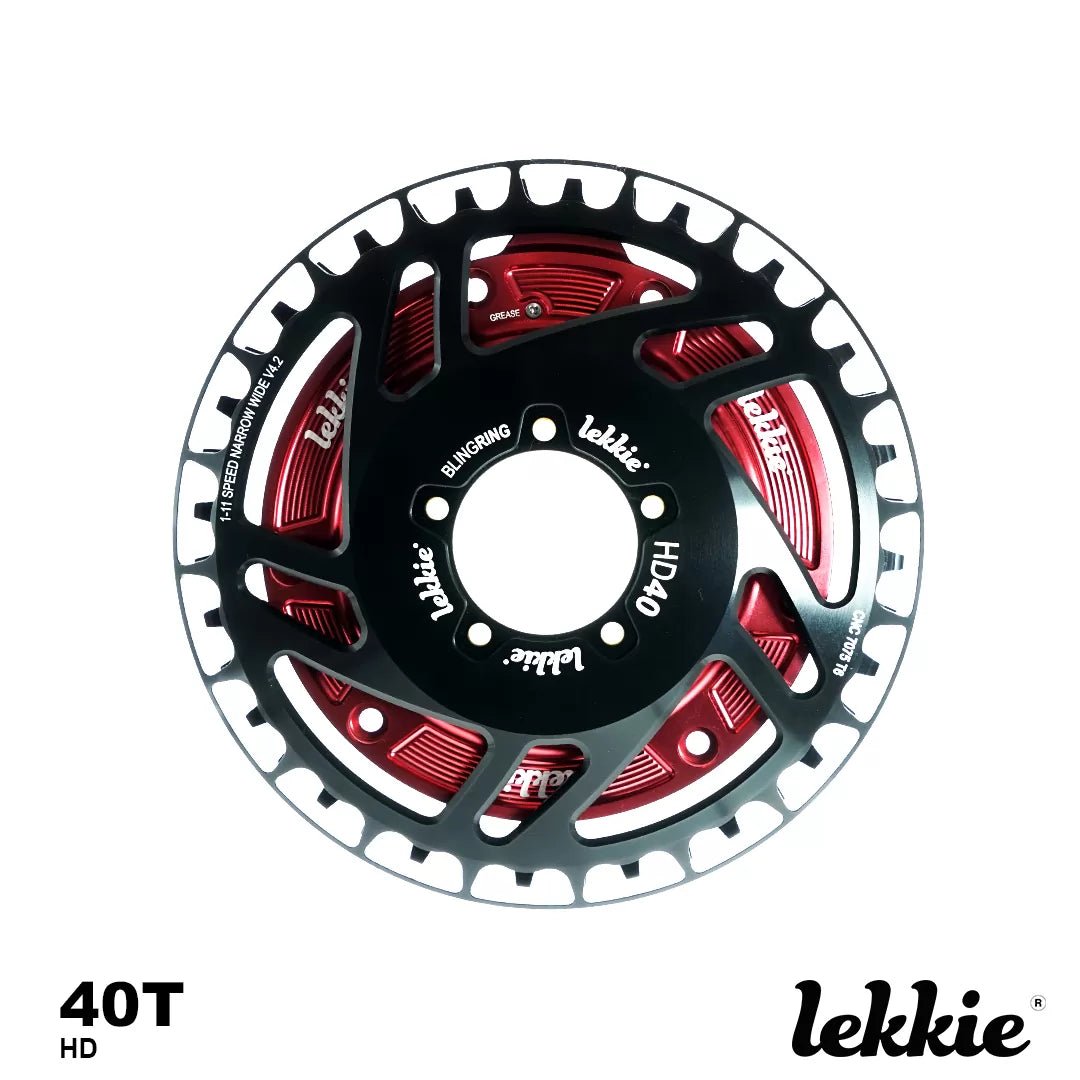

  • Crank Teeth: 28-52T

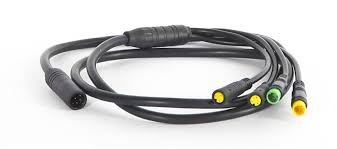

  • Cable:45.mm M8.4 for EB-Bus, 500mm for battery (battery not included)

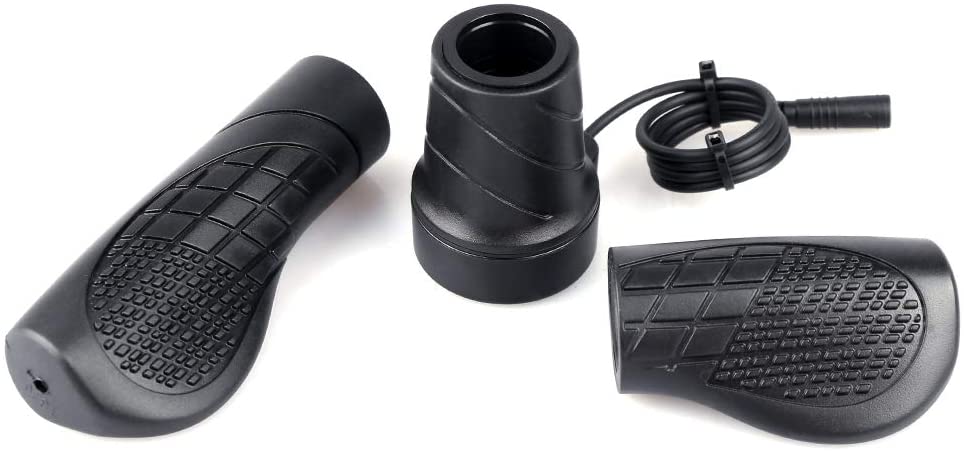

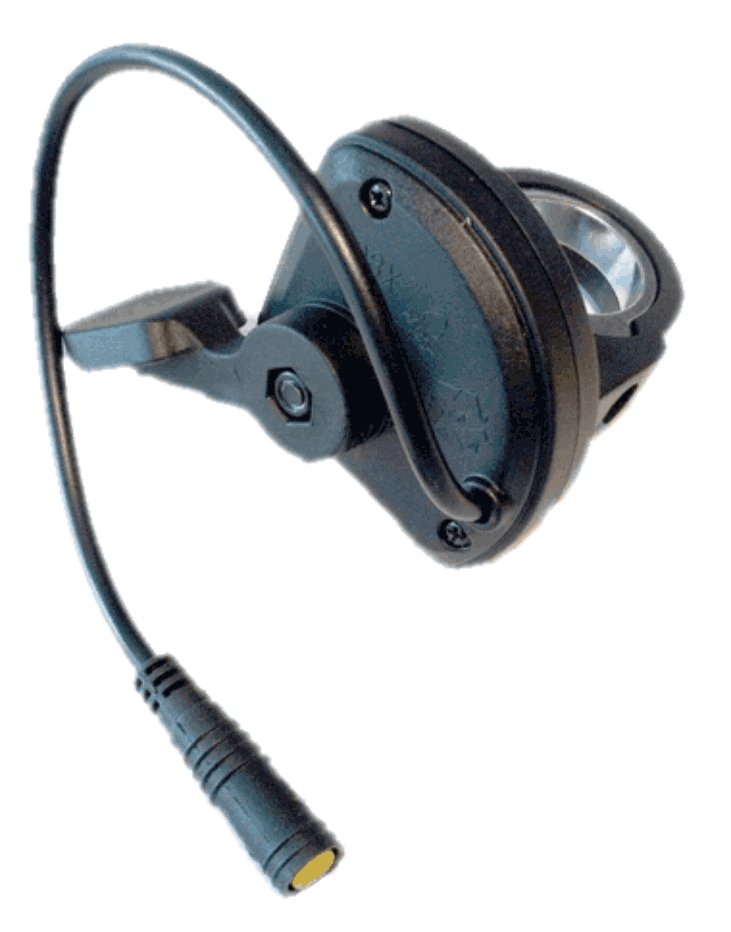

  • Throttle

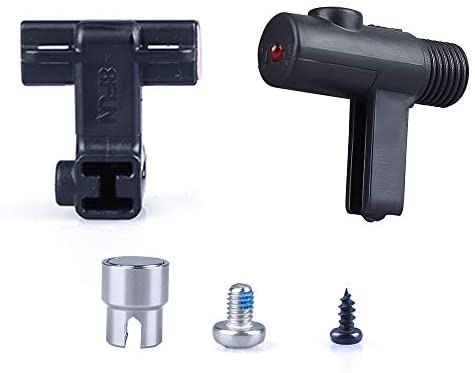

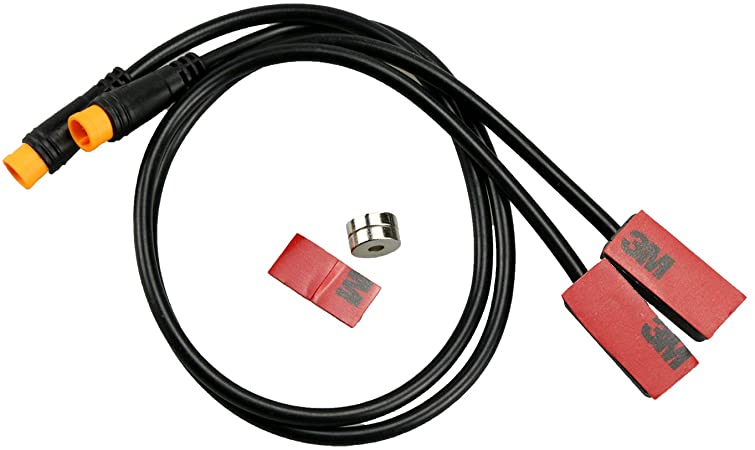

  • Speed Sensor
  • Gear Sensor Function Output - Please select YES to include gear/shift sensor
  • 6V Led Light Function

CLICK BELOW FOR EACH BATTERY OPTION MODEL


52V 8Ah / 416Wh Mini Cube Samsung 40T eBike Battery CPCUBE52-8

52V 12Ah / 624Wh Mini Rectangle Samsung 40T eBike Battery CPREC52-12

52V 15Ah / 780Wh Downtube Samsung eBike Battery CPPOLF52-15

52V 20Ah / 1040Wh Rectangle Samsung eBike Battery CPSQ52-20

52V 17.5Ah / 910WH Downtube Samsung eBike Battery CPPOLF52-17.5

52V 20Ah / 1040Wh Downtube Samsung eBike Battery CPPOLF52-20

52V 25.6AH 1331WH Triangle CHAM eBike Battery CPGTR52-25.6

*60A Modded BBSHD Controller

This BBSHD controller is physically identical to Luna Cycle's Ludicrous V1 controller.

Capable of 60 amps max (originally 30a max pre-mod) recommended max 50a. Programming cable is recommended and needed to edit parameter settings unless an Eggrider Bluetooth display is used.

For reprogramming - Click this link

This controller has "Ludicrous" firmware which allows for 'throttle only' mode in pedal assist 0.

Watts and amps are read x2.

For example 5a = 10a, 10a = 20a, 20a = 40a, 30a = 60a, 500w = 1000w, 1000w = 2000w and so on.

                     -NOT FOR NOOBS - FULL DISCLAIMER-

* -NOT FOR NOOBS - FULL DISCLAIMER-

(FOR EXPERIENCED EBIKE DIY'ERS ONLY. MUST HAVE BASIC UNDERSTANDING OF HOW EBIKE CONTROLLERS ARE INSTALLED AND OPERATED. CAP ROUGE TAKE NO RESPONSIBILITY FOR CONTROLLER FAILURE, ERROR CODE 30 OR BLOWN MOTORS DUE TO FAILING TO USE GEARS PROPERLY. YOU MUST HAVE A GEAR SENSOR INSTALLED - NO REFUNDS/RETURNS WILL BE ACCEPTED.

This modification increases torque and acceleration. This modification is not for top speed increases (though it will increase speed). Use your gears properly and this controller will last you many miles.

Compatible with Bluetooth Eggrider display, desktop bafang tool and the Speed app for changing parameters.

Compatible with all 48/52v bafang displays.

*Images for visual purposes only
