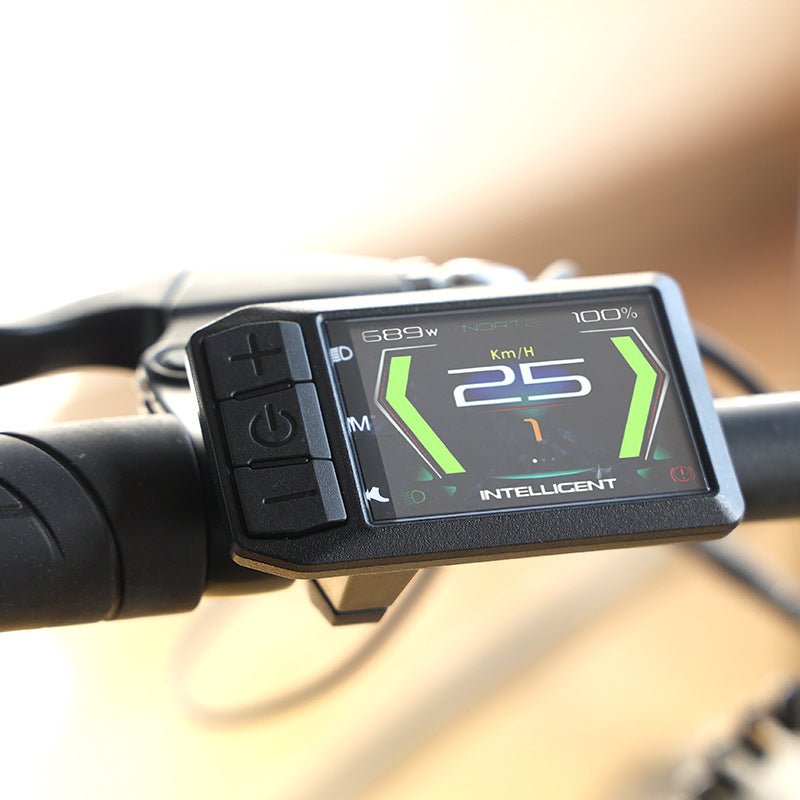

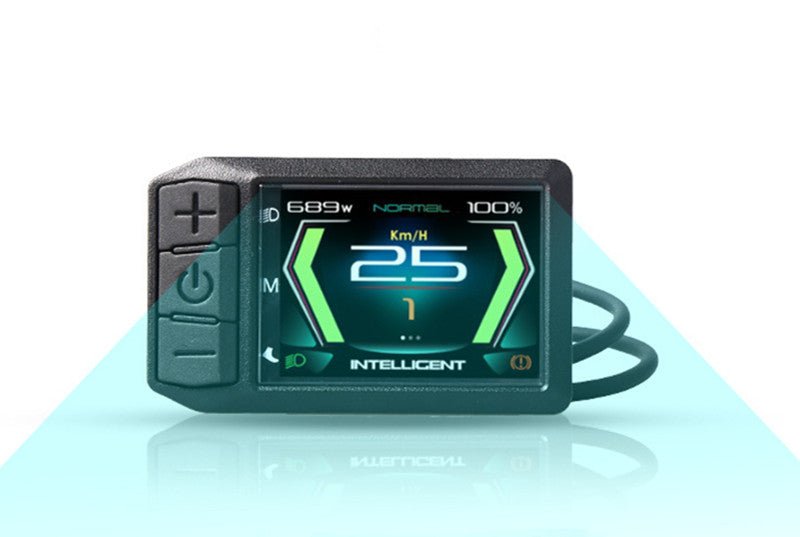

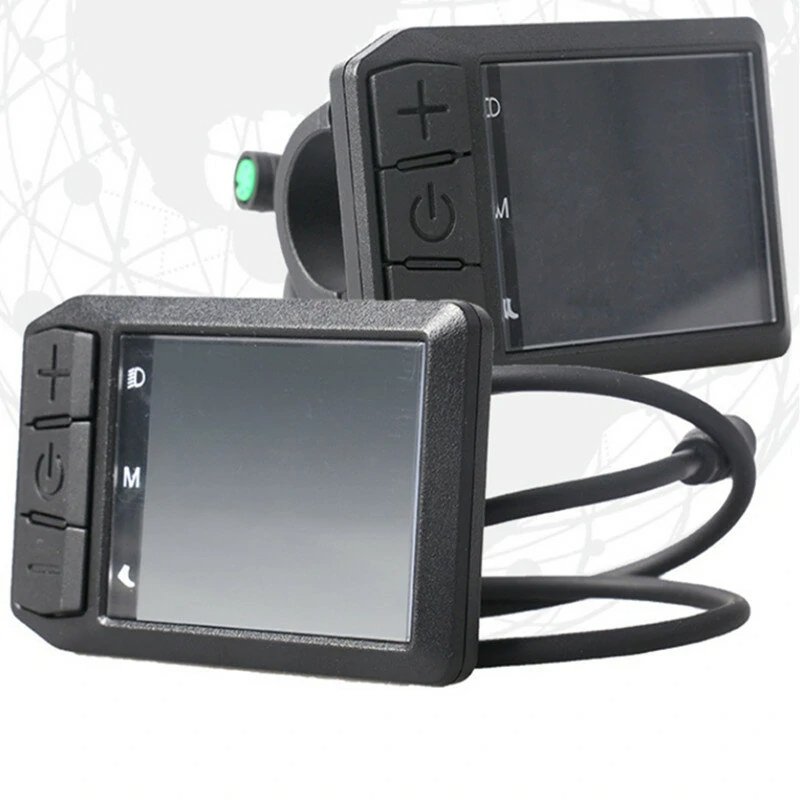

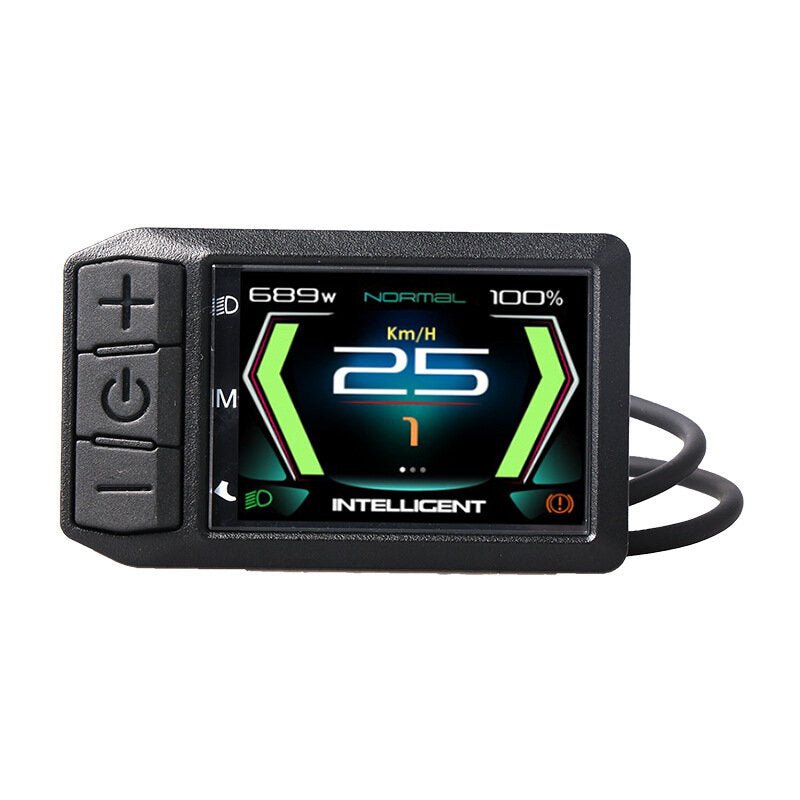

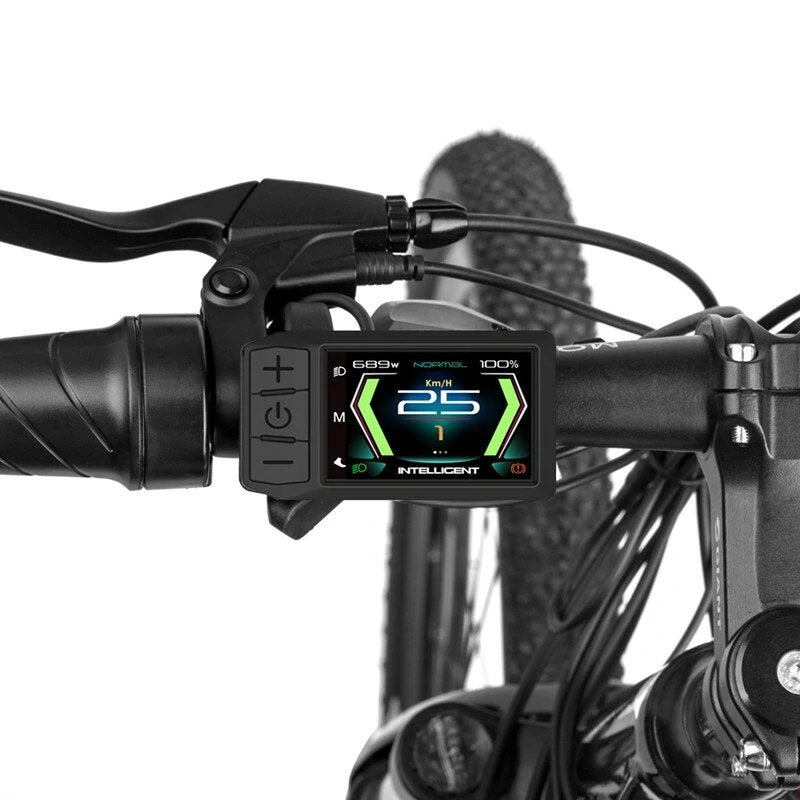

Bafang 600C Display

600C Colour display - 2024 Model UART

Genuine 600C Compact Display suitable for Bafang Mid Motors BBS01B BBS02B BBSHD 8fun Speedometer

600C Brand New 2.4 Inch LCD Electric Bike Display

1. Compared with 500C, advantages: larger volume, interface mode, and the latest system;

2. The real-time battery power display is clear and accurate

3. Color full LCD display and waterproof

4. AVG SPEED, MAX SPEED, SPEED (real time).

5. Total km/mile distance, time, speed and PAS level indicators

6. CE RoHS

• Lighter and smaller than any other colour Bafang display currently available
• Support for any battery voltage from 24v to 52v nominal
• Shows proper voltage level up to 60v

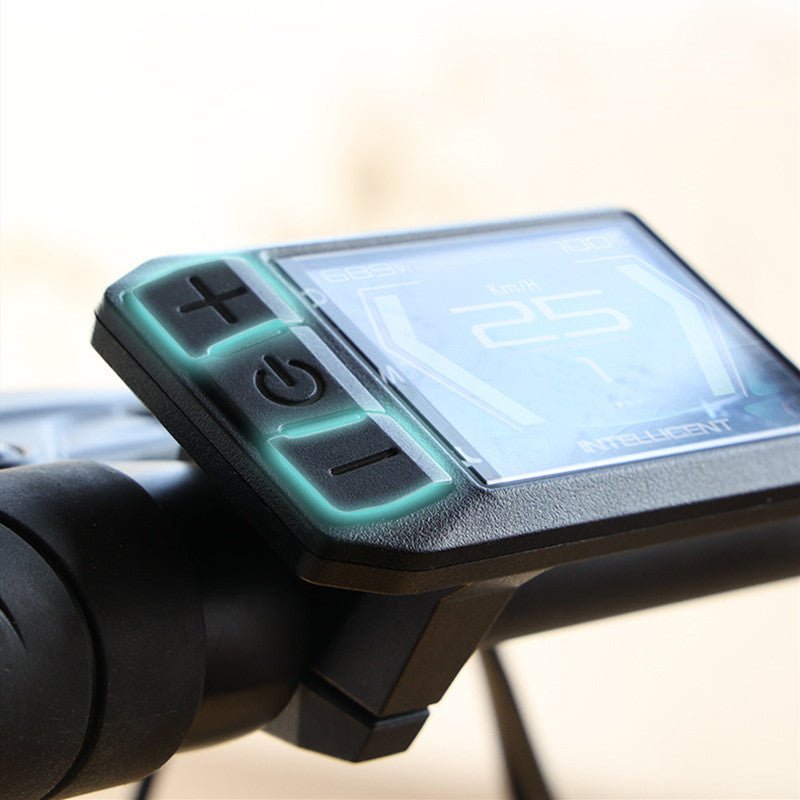

• Haptic feedback (unit vibrates when you press a button)
• Works with any BBSxx drive unit or the Ultra Max

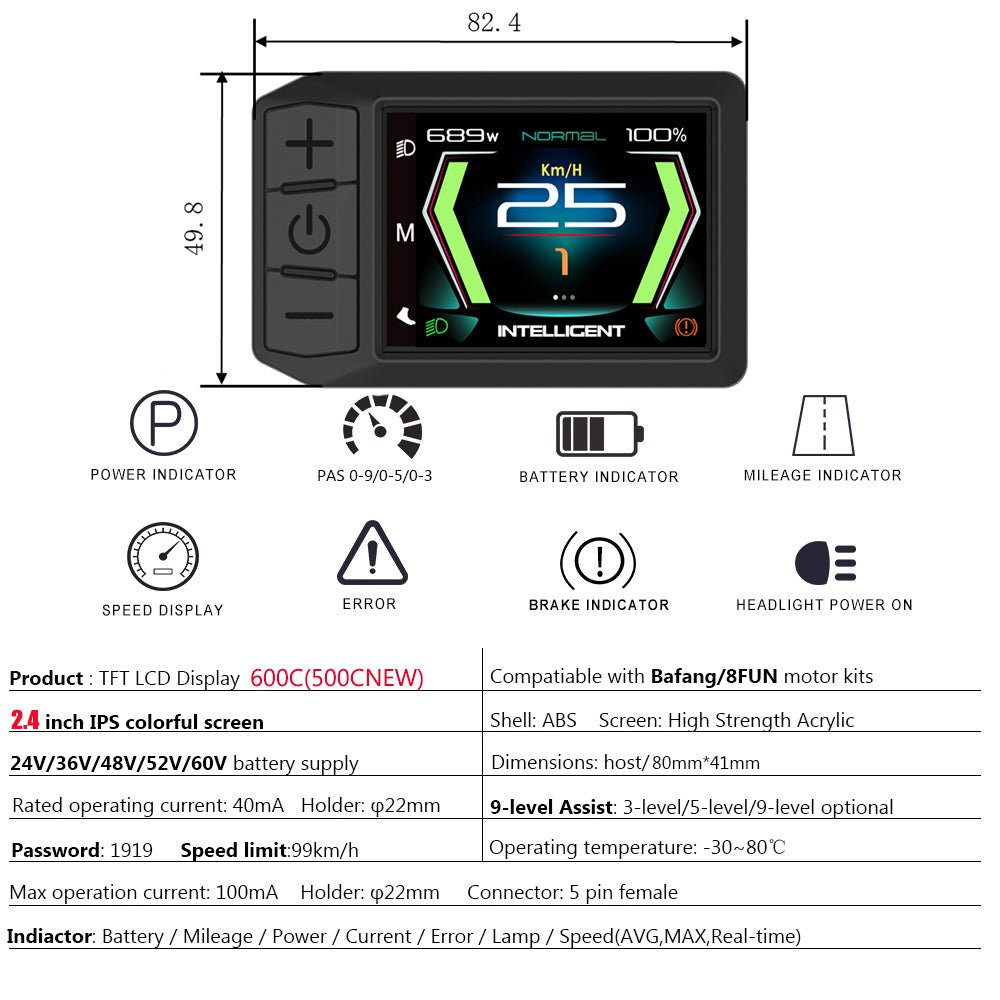

Features:

• 2.4 inch High-contrast IPS colorful dot screen.
• UART Communication Protocol
• Customized Start-Up Logo, dynamic displaying
• Set up Password of Turning on
• Speed display : RT SPEED, MAX SPEED,AVG SPEED,
• KM / Mile : Setting up adjustable according to customers’ habits.
• Mileage : ODO,Trip,Time.Range
• Power indicator
• Error code
• Tests& Certifications IP-Code, IP65
• Certifications CE/EN15194 Rohs
• 24V/36V/48V/60V compatible

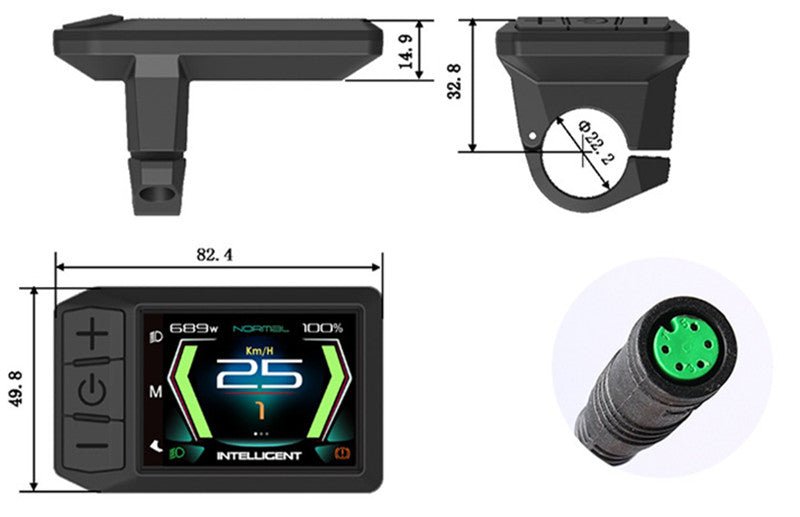

• Dimensions: 110/68/63mm
• Handlebar for Holding: 22.2/25.4/31.8mm

Display Information:

• Current Speed
• Maximum Speed
• Average Speed
• Duration Single Trip
• Distance Single Trip
• Total Distance
• Reset Duration S.T.
• Reset Distance S.T.
• Battery Level
• Error reporting
