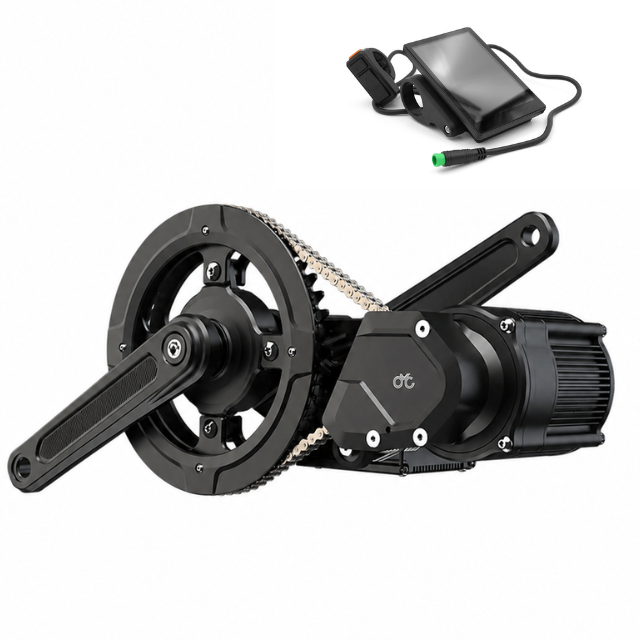

CYC X1 Pro Gen 4 Mid Drive eBike Conversion Kit

Original price $1,991.00 - Original price $1,991.00
Original price
$1,991.00
$1,991.00 - $1,991.00
Current price $1,991.00

2024 CYC X1 Pro Gen 4 Mid Drive Conversion Kit

Australian Stocked

Make Your Selection of eBike Battery and eBike Smart Charger From The Drop Down Menus Below - Need Help? Call us 1300 809 840

For More Information On The Battery You Choose, Click Here For:



  • RATED POWER: 5000W
  • PEAK TORQUE: 250N.m./250N.m.
  • COMPATIBLE: 36V to 72V
  • CHAINRING OPTIONS: 32T & 38T (30-52T with BCD104)
  • BOTTOM BRACKET OPTIONS: 68MM-120MM

High Ground Clearance:
X1 PRO is designed to be used in extreme terrain. Thus a high ground clearance is needed. With traditional BB mounted motor like BBS series, the ground clearance is sacrificed and the motor is usually at the lowest point which is closest to the ground.
​With X1 PRO unique design, it is able to install high up from the ground, especially in the modern bike frame with a curved downtube. You can also choose to install the X1 PRO within the triangular frame (need to mount the controller separately with this option), making the X1 PRO the best machine for E-MTB conversion.

Fits All Common Bottom Brackets:
The Gen 4 X1 PRO fits all standard and fat bike bottom brackets from 68mm to 120mm. It has a special BB92 Version which has a spot on chainline. BB92 Pressfit frame is common in modern mountain bike frame. It is typically very difficult to convert BB92 bike into electric due to the offset chainline. The BB92 is designed to be direct fit and with a perfect chainline of 51mm.
CYC Ride Control:
Pair the CYC Ride Control mobile app with the X-Controller Series and it gives you the ultimate freedom to ride your way. Via Bluetooth connectivity, we have ensured that your ebike experience is now more integrated than ever.
Torque & Cadence Sensors:
X1 PRO comes with a Torque sensor that is used in pedal assist mode. The torque sensor measures how hard and cadence measures how fast you pedal. These are collected and processed together by the controller to provide natural feeling of pedal assist and calculates how much power the motor should output correspondingly. A big bonus is that it also measures and records your own power via the mobile app so you can monitor your exercise rate. You can also customize the proportion of the motor power output in case you want to change the ratio of assist. EMTB mode when using comparable power levels.

36 Volt Batteries

48 Volt Batteries

52 Volt Batteries

2A, 3A or 4A Battery Charger Options

The X1 Pro Gen 4 is a high-powered mid-drive electric bike conversion kit made for extreme power, off-road, & utility use. Rated at 5000W & 250N.m.

Pedal Assist And/Or Throttle Assist - Or Use Both Simultaneously



Specifications:

The package includes everything you need to convert your bike except the

  1. Motor-reduction assembly
  2. 219H chainring-reduction assembly
  3. Bicycle chainring with chainring cover
  4. 219H golden KMC chain
  5. ISIS splined bottom bracket & spindle
  6. 165mm/ 175mm crank arm set
  7. Gen 4 torque sensing freewheel module
  8. CYC X12 controller (5000W)
  9. Built-in bashguard
  10. Waterproof wire harness
  11. Motor hanger
  12. 3, 5, & 7mm spacers for BSA threaded 68/73/83mm version / 2x 2mm spacers for BB92 version
  13. SW102 or DS103 Display (up to 72V)
  14. Thumb throttle/ Half-twist throttle/ Full twist throttle
  15. Magnetic speed sensor
  16. Magnetic brake sensors (optional)
  17. User manual (ecopy) - Click here for user manual


Important - Please see bottom of page for motor power settings for your battery*

CLICK BELOW FOR EACH BATTERY OPTION MODEL

36V 7Ah / 252Wh Micro Bottle Downtube eBike Battery CPMB36-7

36V 10.5Ah / 378Wh Mini Bottle Downtube eBike Battery CPCE36-10.5

36V 14.5Ah / 522Wh Hailong Downtube 4 Pin DMEGC eBike Battery CPHLAQ36-14.5

36V 12Ah / 432Wh Tiger Shark Downtube LG eBike Battery CPWHB36-12

36V 10.4Ah / 374 Wh Multipurpose Samsung eBike Battery CPBOX36-10.4

36V 15Ah / 540Wh Downtube Samsung eBike Battery CPPOLF36-15

36V 16Ah 576Wh Dolphin Dmegc eBike Battery CPDOC36-16

36V 14Ah / 504Wh Side Entry Downtube Samsung eBike Battery CPHLA36-14

36V 20Ah / 720Wh Rectangle Samsung eBike Battery CPSQ36-20

36V 20Ah / 720Wh Downtube Samsung eBike Battery CPPOLF36-20

36V 25Ah / 900Wh Downtube Samsung eBike Battery CPPOLF36-25

CLICK BELOW FOR EACH 48 VOLT BATTERY OPTION MODEL



48V 15Ah / 720Wh Downtube Samsung eBike Battery CPPOLF48-15

48V 15Ah / 720Wh Rear Rack Samsung eBike Battery And Rear Rack CPSR48-15-WR

48V 17.5Ah / 840Wh Downtube Panasonic eBike Battery CPPOLF48-17.5

48V 17.5Ah / 840WH Downtube Tiger Shark Samsung eBike Battery CPWHBF48-17.5

48V 20Ah / 960Wh Rectangle Samsung eBike Battery CPSQ48-20

48V 20Ah / 960Wh Downtube Samsung eBike Battery CPPOLF48-20

48V 20Ah / 960Wh Downtube Samsung eBike Battery CPHLAF48-20



CLICK BELOW FOR EACH 52 VOLT BATTERY OPTION MODEL

52V 8Ah / 416Wh Mini Cube Samsung 40T eBike Battery CPCUBE52-8

52V 12Ah / 624Wh Mini Rectangle Samsung 40T eBike Battery CPREC52-12

52V 15Ah / 780Wh Downtube Samsung eBike Battery CPPOLF52-15

52V 20Ah / 1040Wh Rectangle Samsung eBike Battery CPSQ52-20

52V 17.5Ah / 910WH Downtube Samsung eBike Battery CPPOLF52-17.5

52V 20Ah / 1040Wh Downtube Samsung eBike Battery CPPOLF52-20

52V 25.6AH 1331WH Triangle CHAM eBike Battery CPGTR52-25.6



Maximum Battery Output Settings Must Be Changed In CYC Ride App To The Following:

52V Battery 50A BMS - Motor power must be limited to 2500W

52V Battery 40A BMS - Motor power must be limited to 2000W

52V Battery 30A BMS - Motor Power must be limited to 1500W

48V Battery 50A BMS - Motor power must be limited to 2400W

48V Battery 40A BMS - Motor power must be limited to 1900W

48V Battery 30A BMS - Motor Power must be limited to 1400W

36V Battery 40A BMS - Motor power must be limited to 1400W

36V Battery30A BMS - Motor power must be limited to 1000W

36V Battery 20A BMS - Motor Power must be limited to 700W

*Failure to set power settings correctly through the CYC Ride App may cause damage to your battery and/or motor. Warranties will not be honored in this case.
