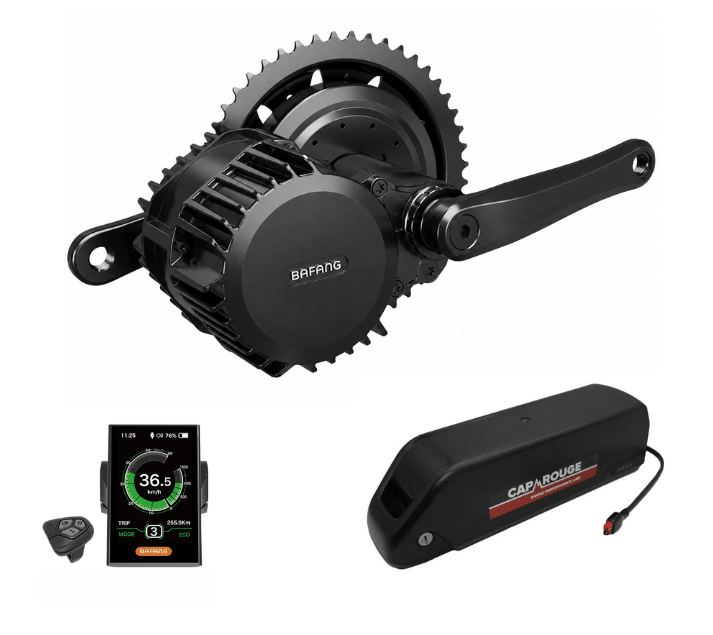

SPECIFICATION:

• 52 Volt
• 1000W
• Bafang BBSHD / BBS03 Motor
• 28A
• Fits 68-73MM Bottom Bracket
• Mounting Kit Included
• 5.85Kg

Please beware of all local rules and road law regulations

Note this is motor only

SPECIFICATIONS:
Core Data

• Display Type: LCD
• Display: Color matrix Display
• Rated Voltage(DCV): 36/43/48/52
• Support Modes: 0-3/0-5/0-9
• Operating Temperature: -20 - 45℃
• Com. Protocol: UART
• Weight (g): 202

Mounting Parameters
6-Level-Support: setting power Levels 0 to 5.
Indication Information

• Current Speed (km/h): Yes
• Maximum Speed (km/h): Yes
• Average Speed (km/h): Yes
• Single Duration Trip: Yes
• Single Distance Trip: Yes
• Total Distance: Yes
• Reset S.T. Duration: Yes
• Reset S.T. Distance: Yes
• Capacity: Yes
• Error Code Display: Yes
• Walk Boost: Yes
• Backlight: Yes
• Light Sensor: Yes

Further Specifications

• Bluetooth: NO/Yes
• USB Charge: 5V 500mA
• Special Function: Keycard optional

Tests & Certifications

• IP: IP X5
• Certifications: CE / EN 15194 / REACH / ROHS

Pair of Bafang brake levers

Works and connects with all Bafang mid-drive systems, to cut power when the brake is applied

Replacement Bafang Main Wiring Harness compatible with the BBS01/BBS02/BBSHD. This is the main cable that connects the motor assembly to the main handlebar components like brakes, throttle, display. This lead is fitted with waterproof connection plugs

Electric bicycle thumb throttle  with Bafang BBS01B, BBS02B and BBSHD kits

Bafang Speed Sensor kit for BBS01/BBS02/BBSHD Bafang Mid-Drive kits

When setting up the speed sensor its important to make sure that the red led light is on when the motor powers up

Shift Sensor / Gear Sensor for Bafang E-Bike BBS01 BBS02 BBSHD Mid Drive Motor Gear Sensor Three Core Waterproof Connector 24CM Cable

FEATURES:

• Reduces wear on your drivetrain components
• Momentarily cuts motor power while shifting
• Attaches to Gear Sensor cable from motor or Brake Cable coming from main wiring harness via Y-splitter cable
• Cable length is 24 cm
• Protects gears from wear and tear from motor
• Provides buttery smooth ride when riding and shifting gears

A necessary complete tool kit for Bafang eBike conversions

INCLUDES:

• Allen Keys 1.5mm 2mm 2.5mm 3mm 4mm 5mm 6mm 8mm
• Crank remover tool
• Bottom bracket remover tool
• Bafang tool
• Chain breaker tool
• T20 Torx tool for speed sensor magnet
• Pedal removal tool
• Cable ties to neaten up the wiring looms

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 52 Volts
• 20 Ah
• 1040 Wh
• 14S4P
• Samsung 50G 21700 cells, tested to EN62133-2-22017
• Dimensions: L 367mm - W 95mm - H 125mm
• 1-5A, 2A, 3A or 4A battery charger options
• ST3 3 pin charger port
• 5A maximum charge input
• 5.05 Kg Including bracket / excluding charger
• Discharge cable with XT90 female connector
• 50A Continuous discharge, for motors up to 2500W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

PROTECTION FUNCTION:

1. Overload
2. Over voltage
3. Over temperature
4. Over current

SPECIFICATION:

• Suitable for 52 volt lithium batteries
• AU Plug
• ST3 Connector
• 58.8V Maximum charging output (suitable for 52 volt lithium batteries only)
• Black case
• Charge light indicating state of charge
• 4A Fast charger
• Smart charger
• Instruction booklet

Pair of Bafang hydraulic brake sensors, for use with most Bafang mid drive conversion kits

6V

Specific to BBS01 and BBS02 Motors

• To space out mid drive motor away from chain stay
• Compatible with BBS01 BBS02 and BBSHD motors, Tongsheng and CYC
• Price is for one (1) spacer 1.5mm

For BBSHD Motors

Bafang 8FUN Mid Motor Kits Mounting Part BBS01B BBS02B BBSHD 68MM 73MM 100MM 120MM Bracket Bottom Installation Screw Nut Gasket

SPECIFICATION:

• Type: Other
• HD BB 120MM For: BBSHD 120MM
• HD BB 100MM For: BBSHD 68MM And 100MM
• Brand Name: BAFANG
• BBS 68/73MM For: BBS01B/BBS02B/BBSHD 68MM
