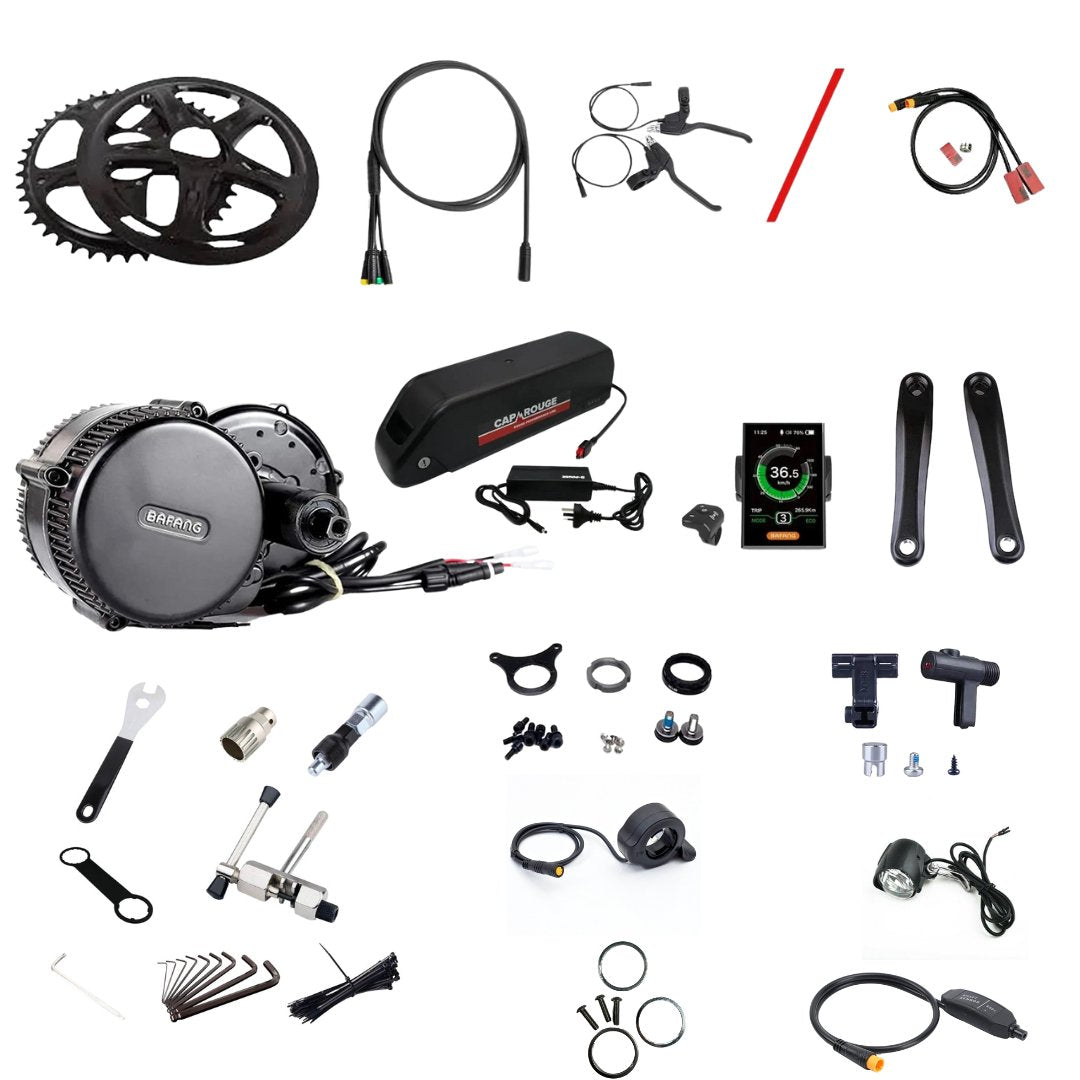

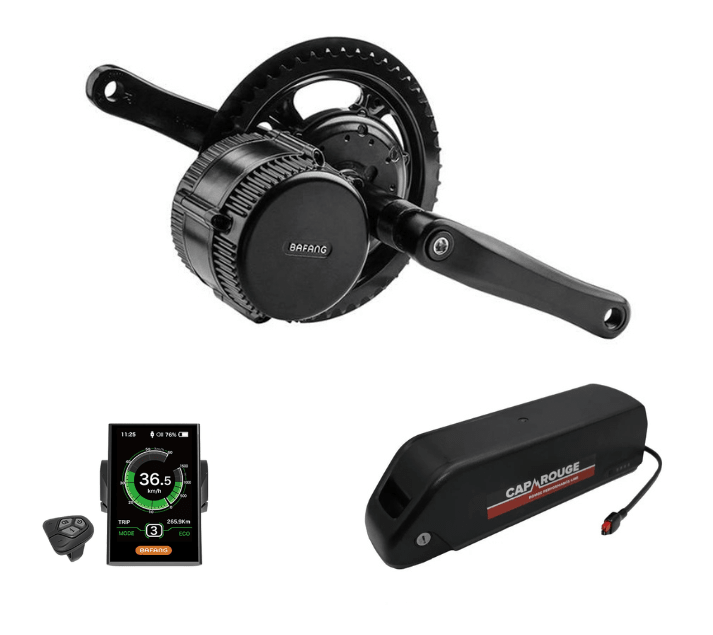

Most Popular - This Is Your Complete Plug and Play eBike Conversion Kit And Samsung Battery Package

Includes: Bafang 48 Volt 750 Watt Mid Drive Motor

48 Volt Samsung 21700 Battery

48 Volt 2A Smart Charger

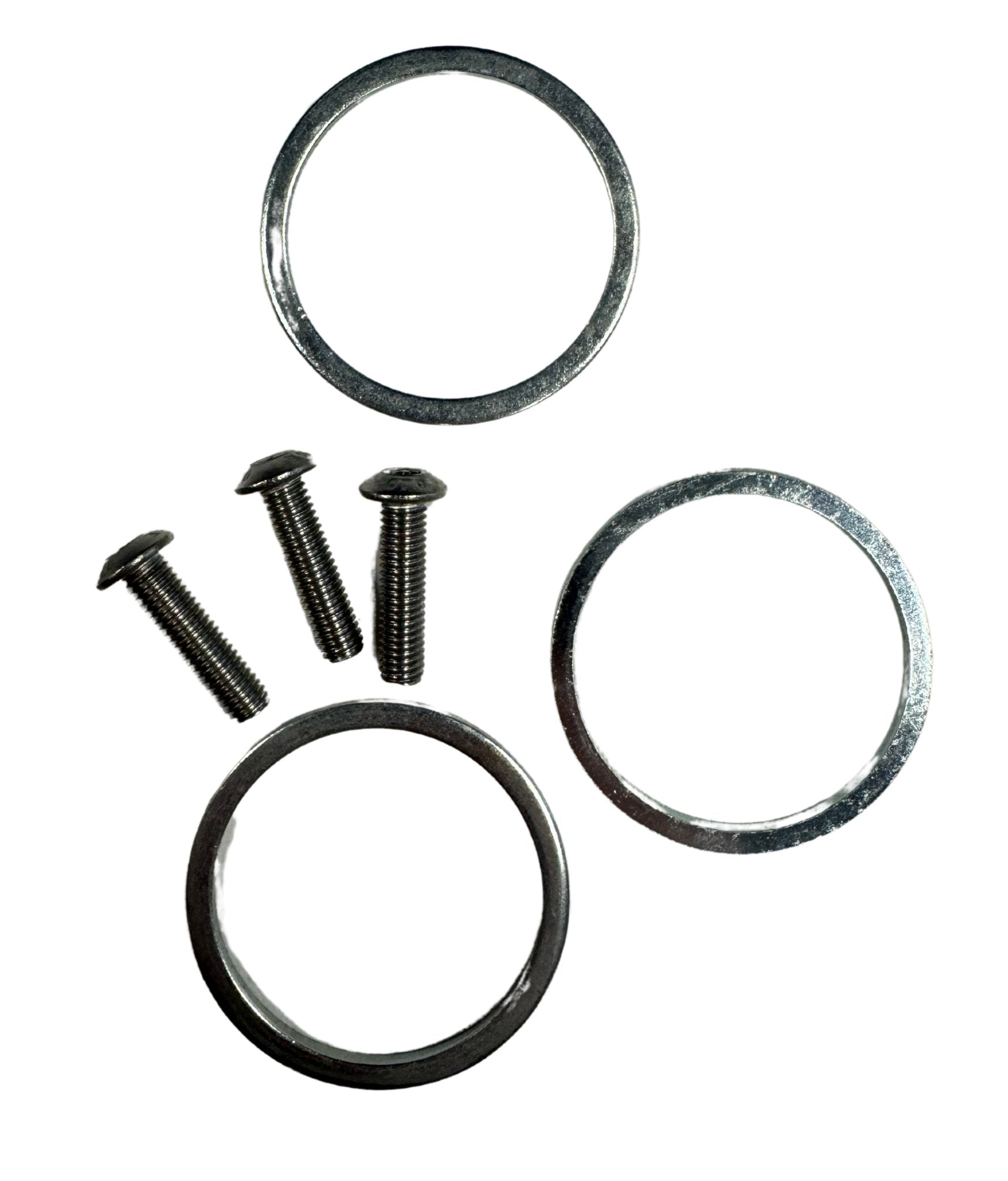

Gear Sensor, Front Light, Motor Spacers

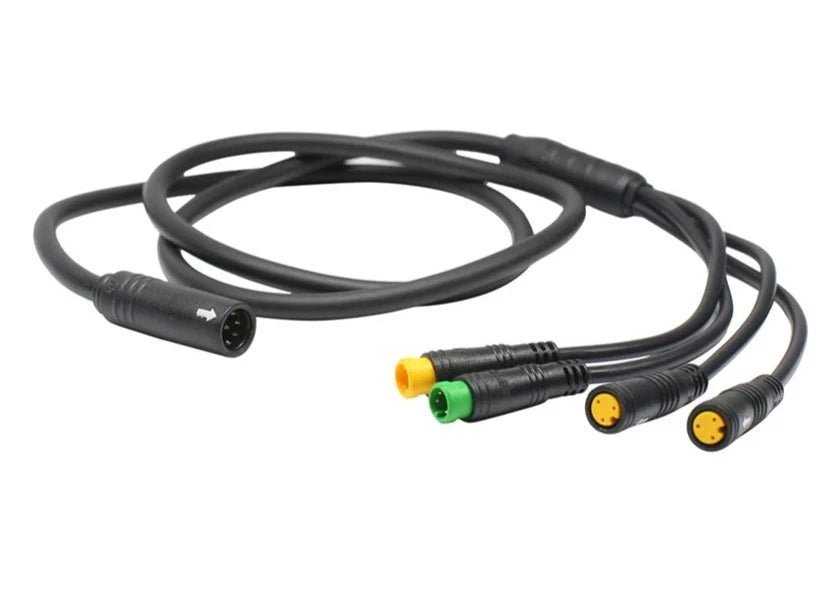

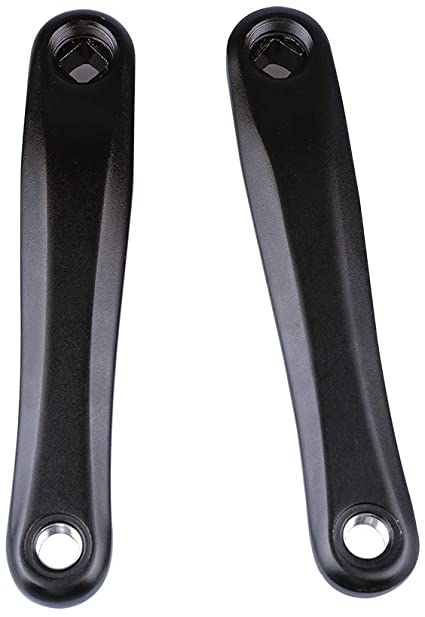

All Plug And Play Wiring, Throttle, Brake Sensors, Cranks

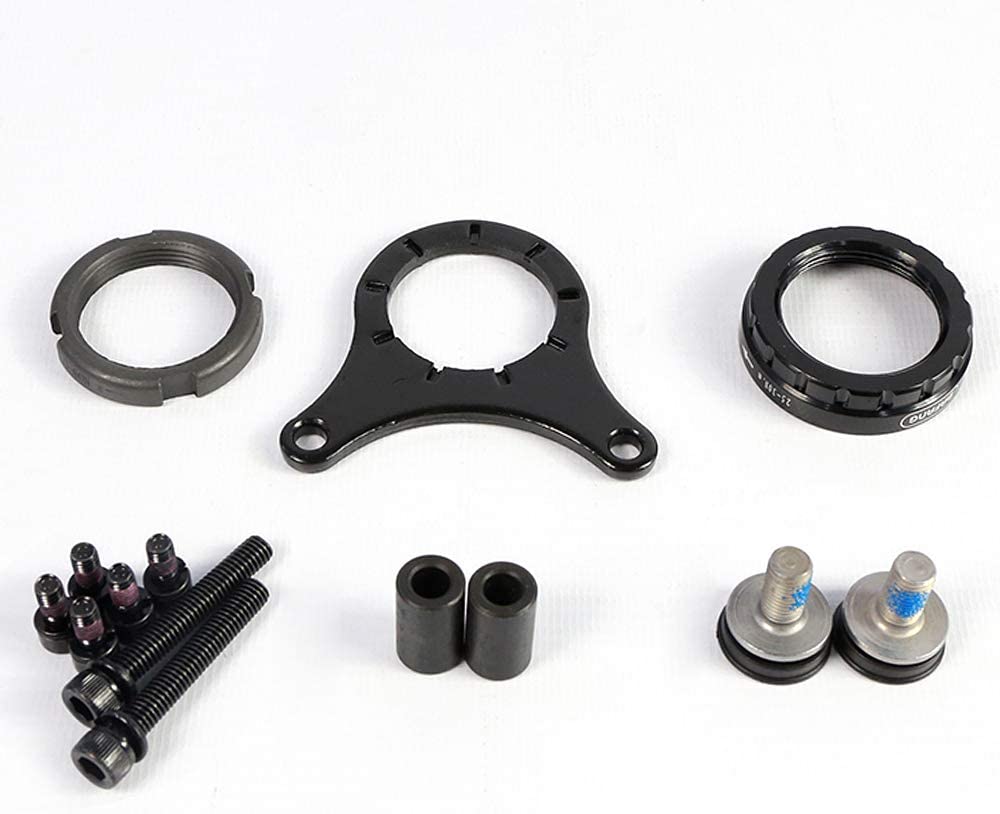

Speed Sensor, Chainring, Mounting Kit

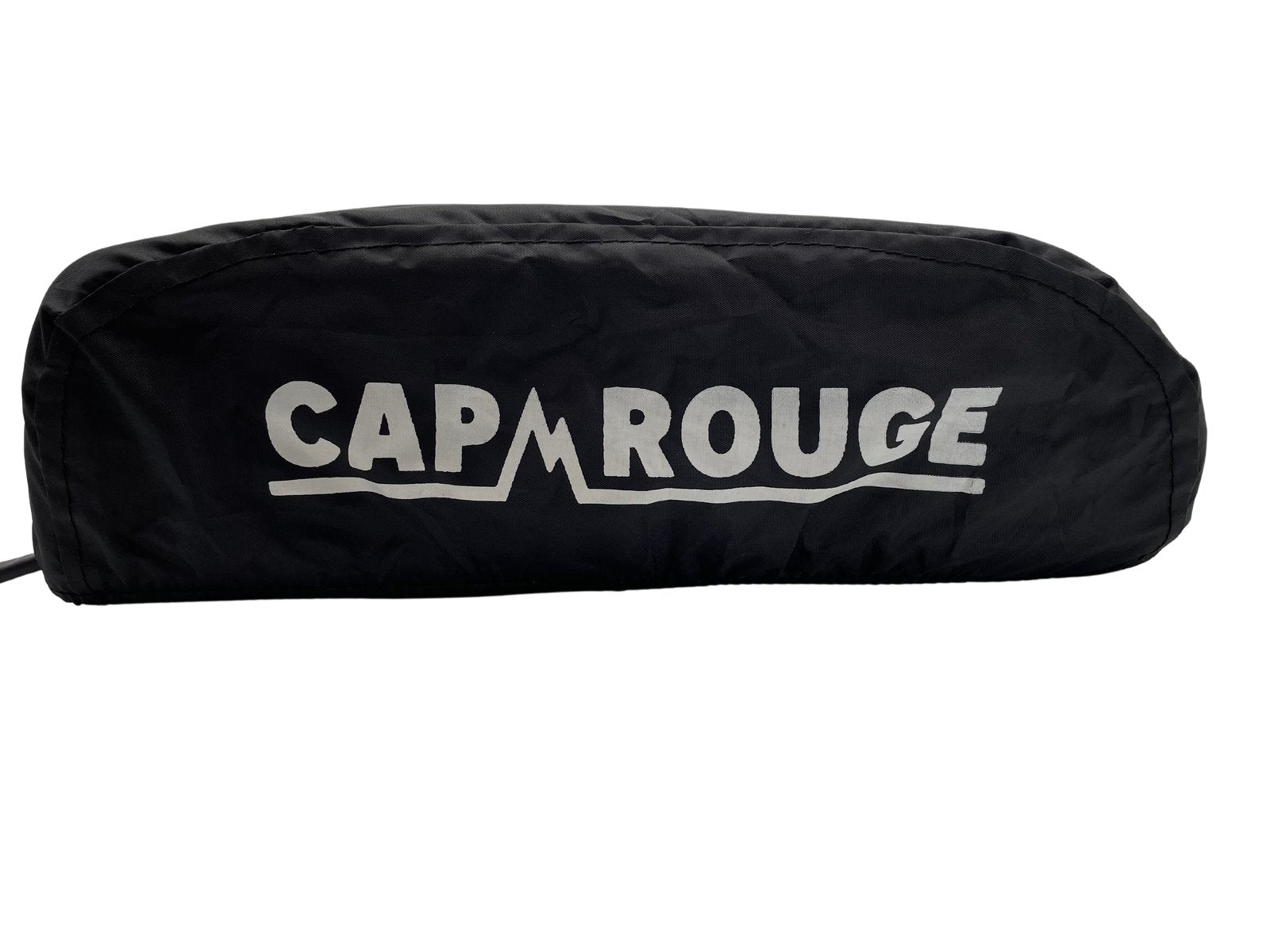

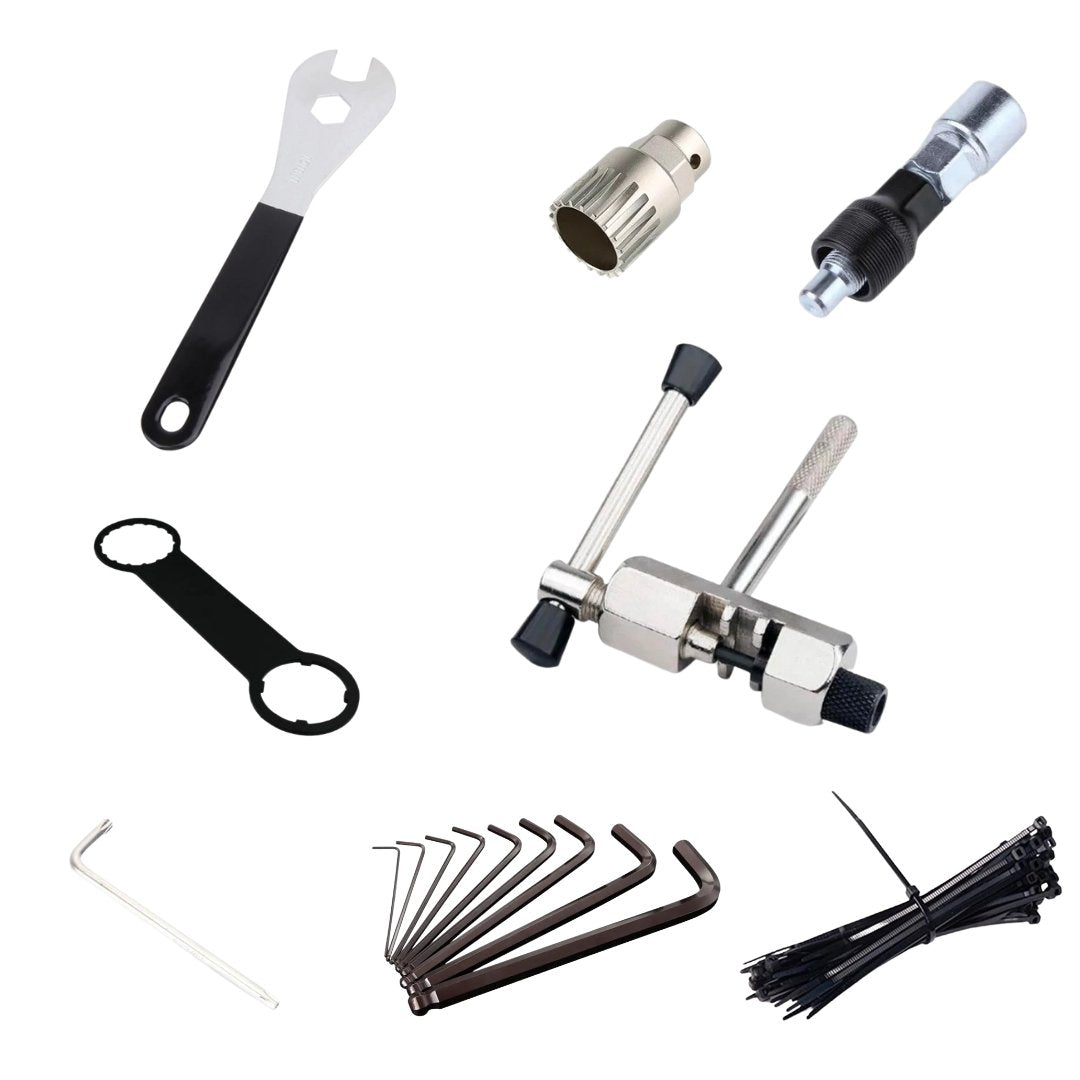

Waterproof Battery Cover, Accessories, Installation Tool Kit And Instructions

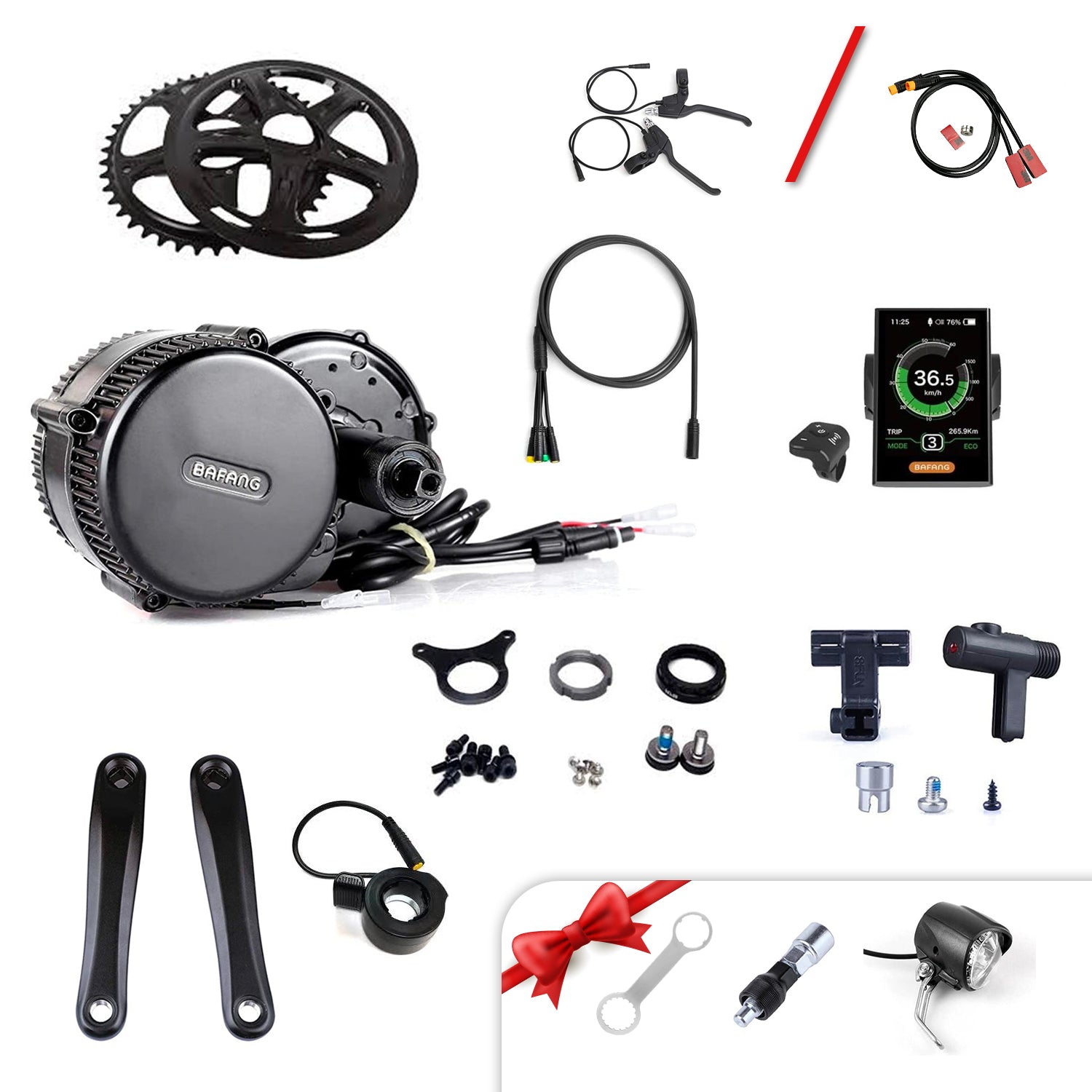

Bafang 48V 750W Mid Drive eBike Conversion

48V 750W Mid-Motor

120Nm Torque

Pedal Assist And/Or Throttle Assist - or Use Both Simultaneously

Certified* Samsung 48 Volt 15AH Battery and 2A Charger  Up To 50 KM Of Range, Flat Ground, 20-25 Kmh Average

*Cap Rouge Supply The Most Powerful And Safest Certified Batteries in Australia And Worldwide

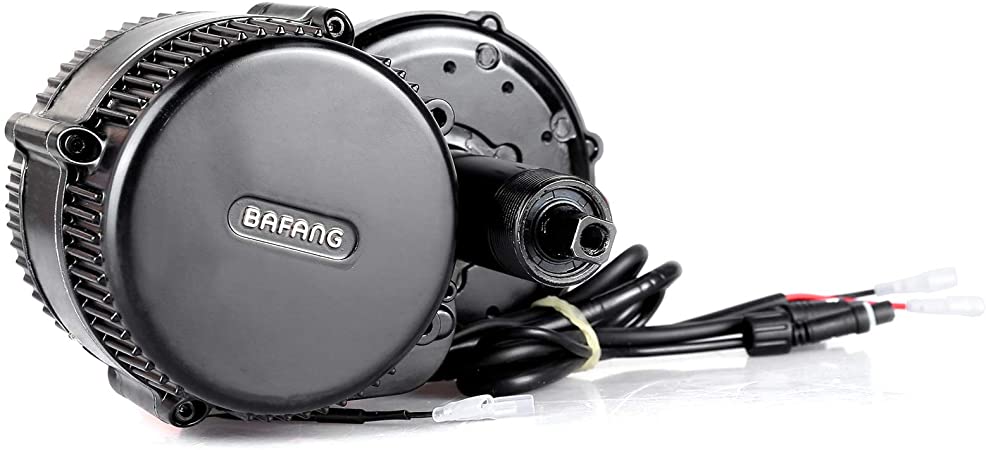

Bafang Mid Drive Motor Specifications:

Fits 68-73MM Bottom Bracket

• 48v 750w BBS02B Conversion Kit

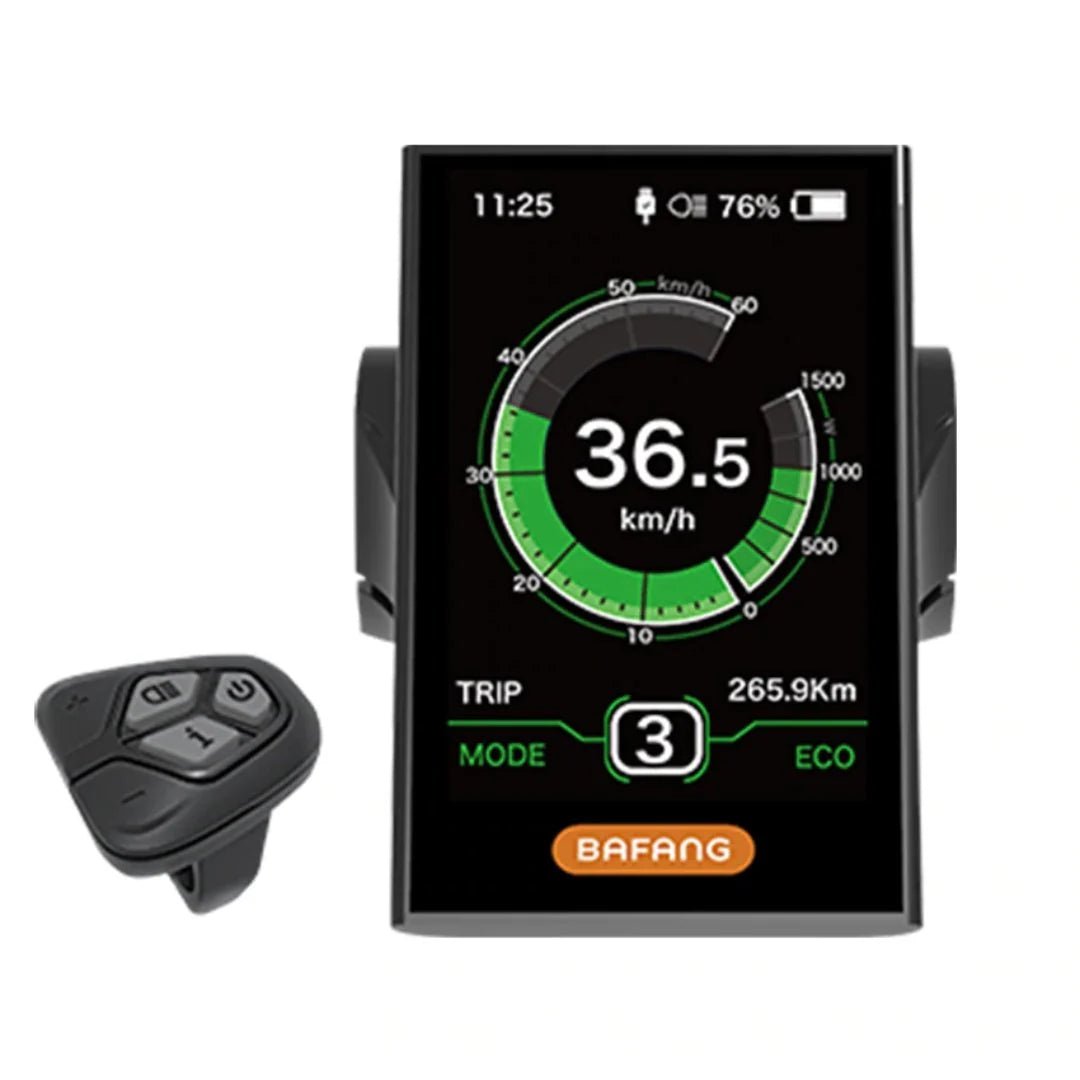

• DPC18 Display
• 120Nm of Torque

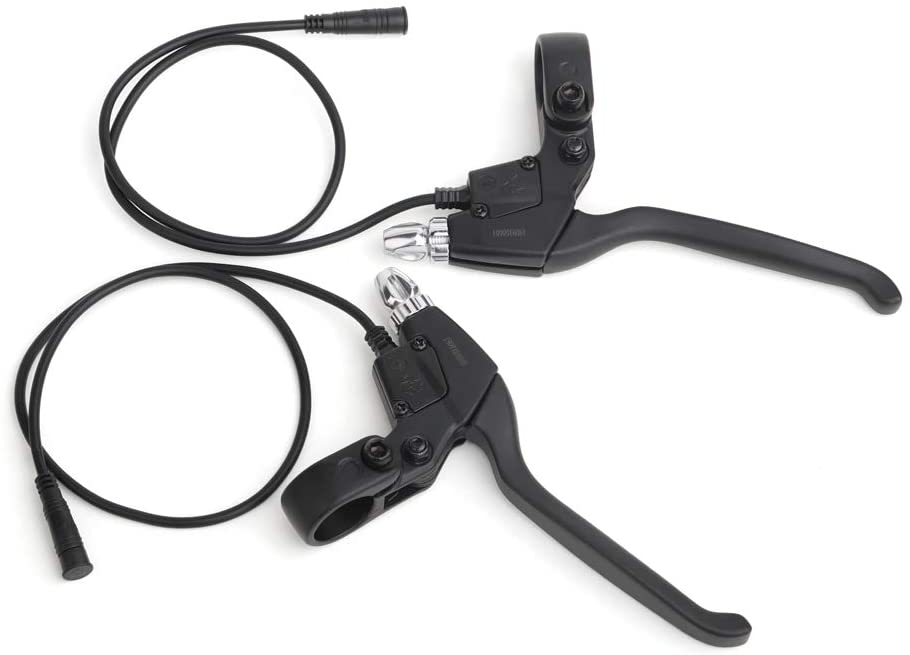

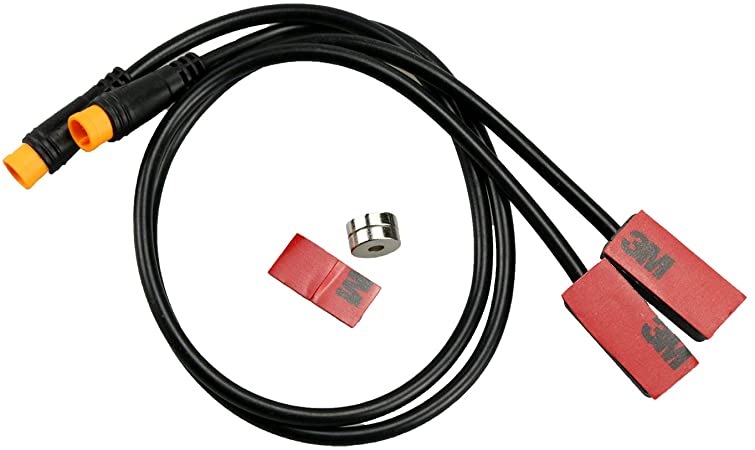

• Cable Brake Sensors or Hydraulic Brake Sensors
• 3.8 Kg

• Axle size: 68-73mm

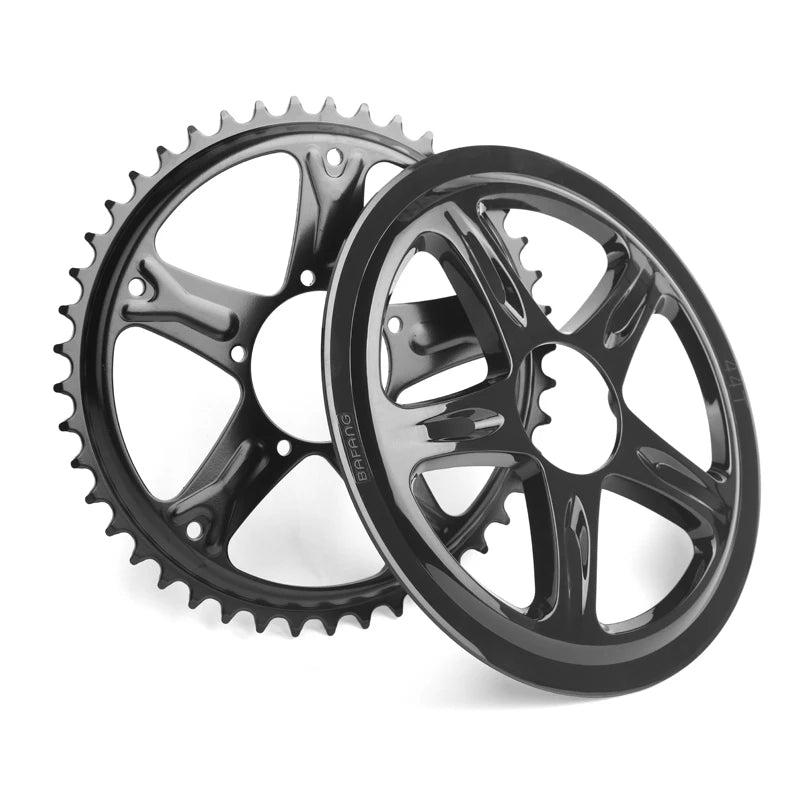

• Crank  Teeth:  44T Chainring
• Cable:45.mm M8.4 for EB-Bus, 500mm for battery

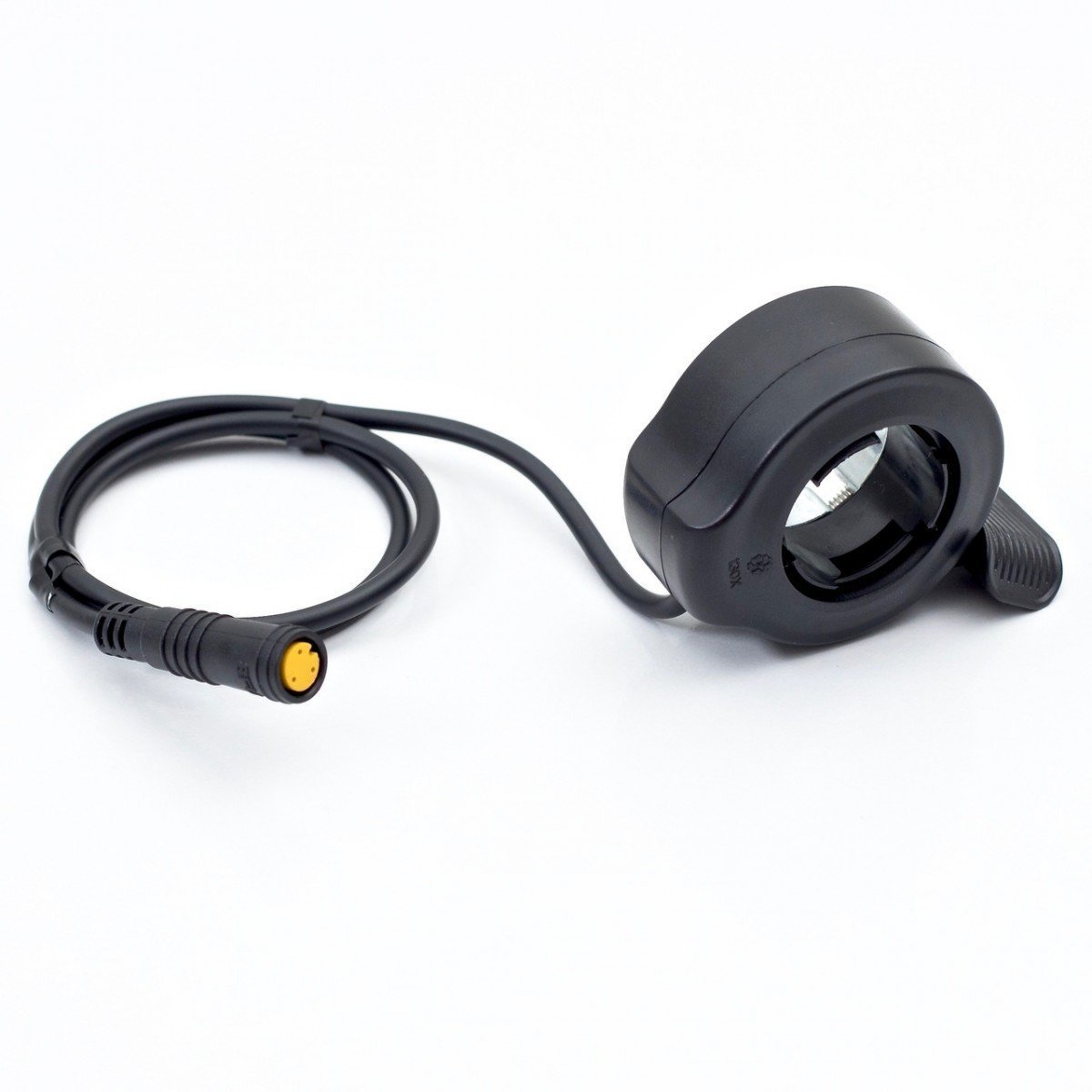

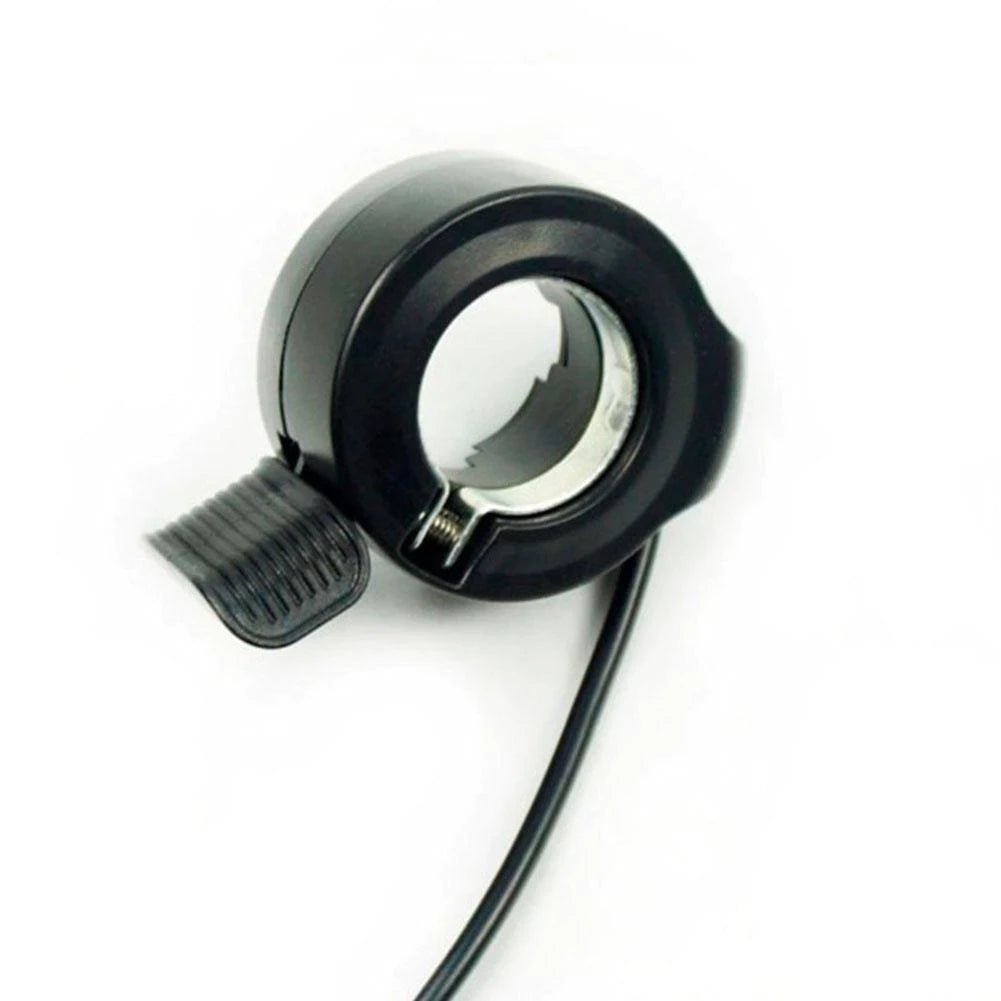

• Throttle
• Speed Sensor

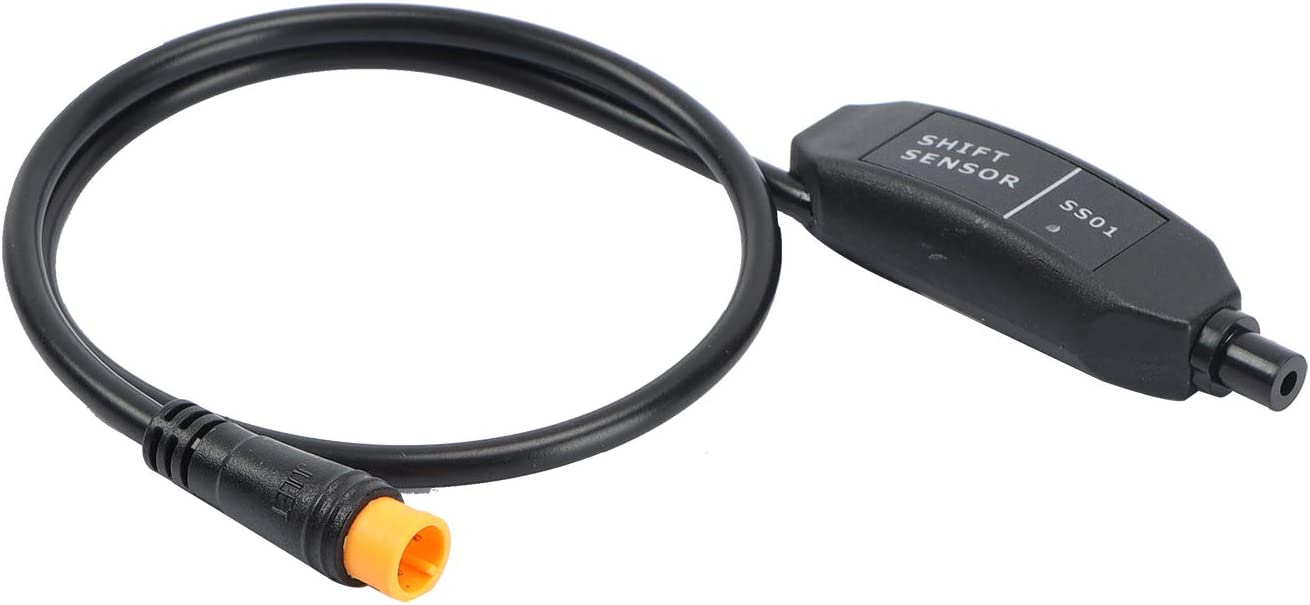

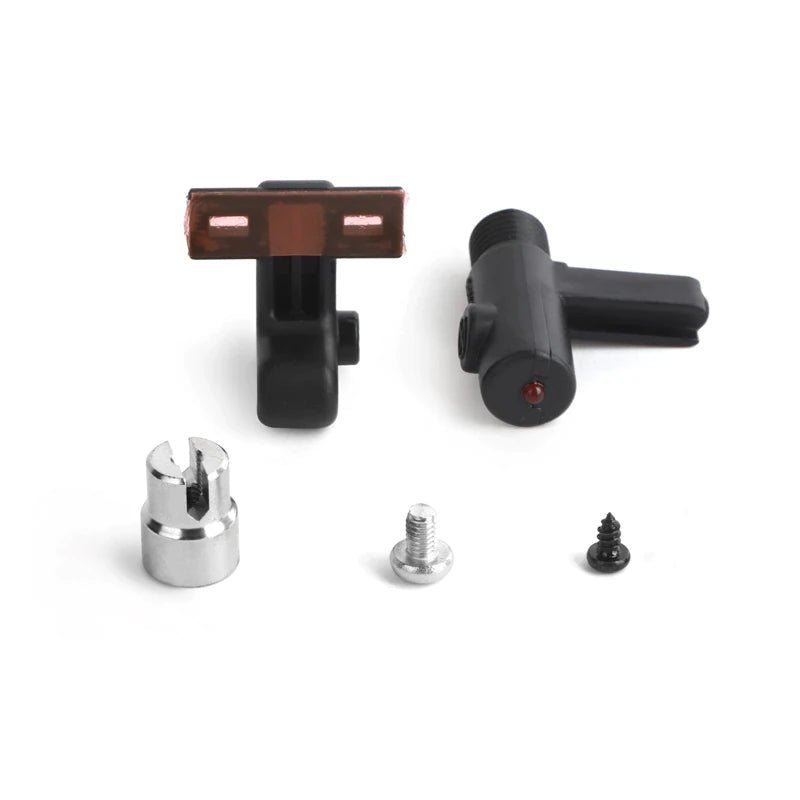

• Gear/Shift Sensor

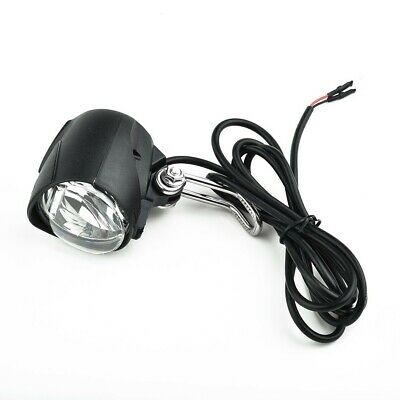

• 6V Led Light Function

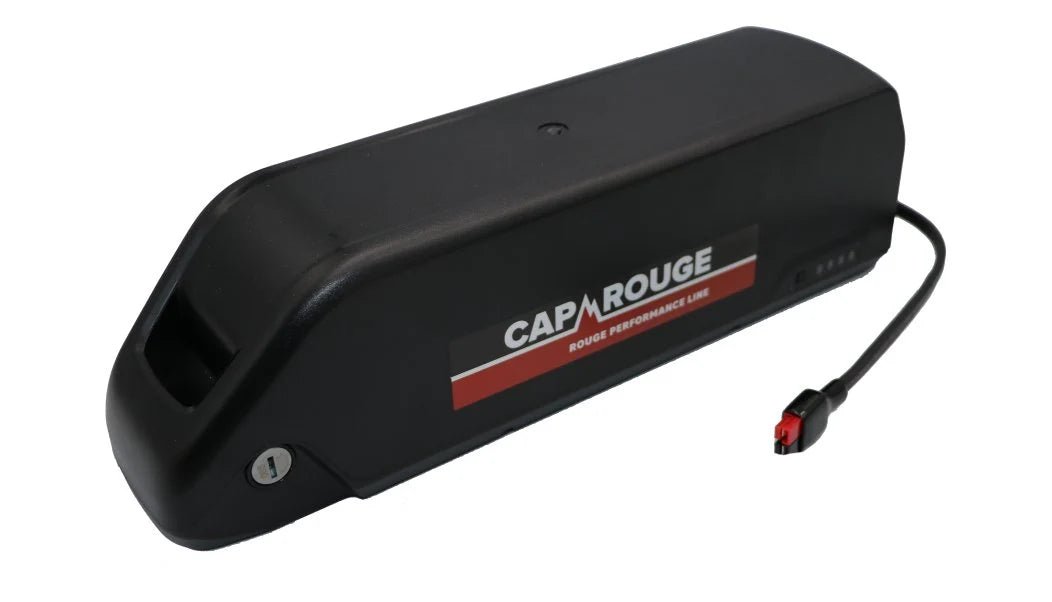

48V 15Ah / 720Wh Downtube Samsung eBike Battery CPPOLF48-15 Specifications:

48 Volt

15 AH

720 Wh

Samsung 50G 5000mah 21700 Cells

40A Continuous Discharge BMS - For Motors Up To 1800 Watts

2A Battery Charger

Removable Branding

Reention DP-21700-4 Casing

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Dimensions: L 367mm - W 95mm - H 98mm

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1800W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 48 Volts
• 15 Ah
• 720 Wh
• Dimensions: L 367mm - W 95mm - H 98mm
• 13S3P
• Samsung 50G 21700 5000mAh cells, tested to EN62133-2-22017
• 3.95kg, including bracket / excluding charger
• 40A continuous discharge, for motors up to 1800W
• Discharge cable with micro Anderson connector

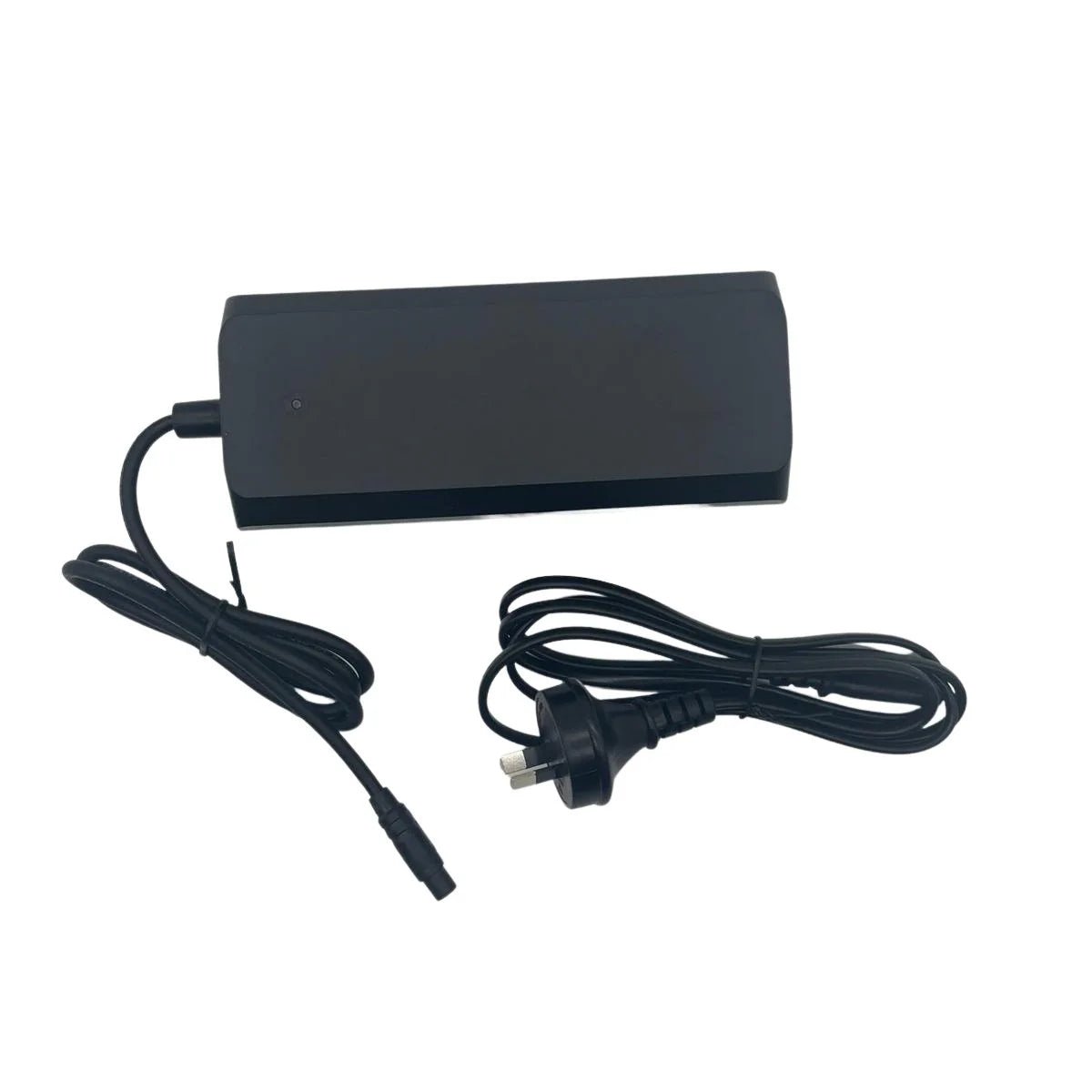

• 2A Battery charger
• ST3 3 pin charging Port
• 5A maximum charge input

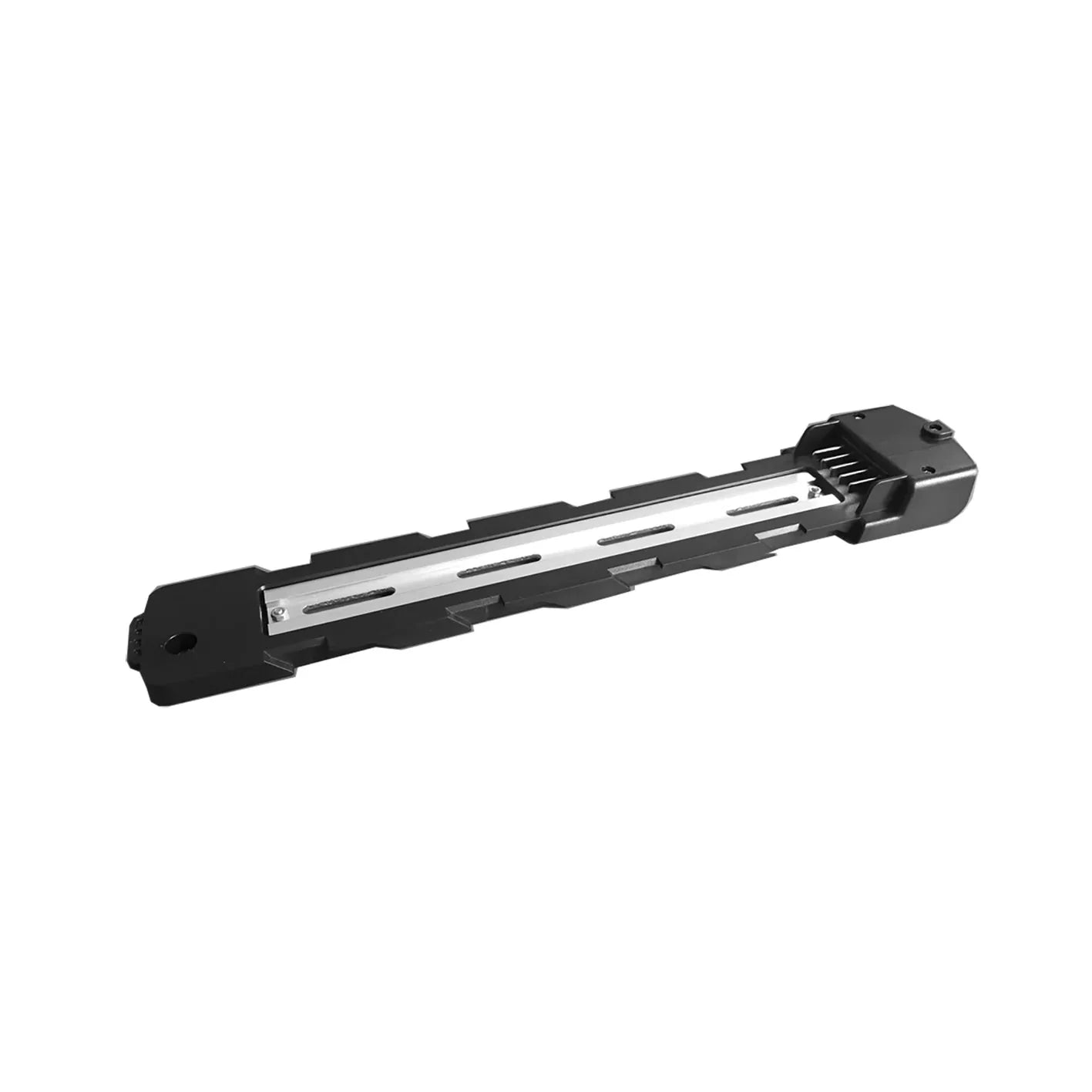

• Battery base bracket included
• Battery power indicator
• 2 keys included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

 *Images for visual purposes only
