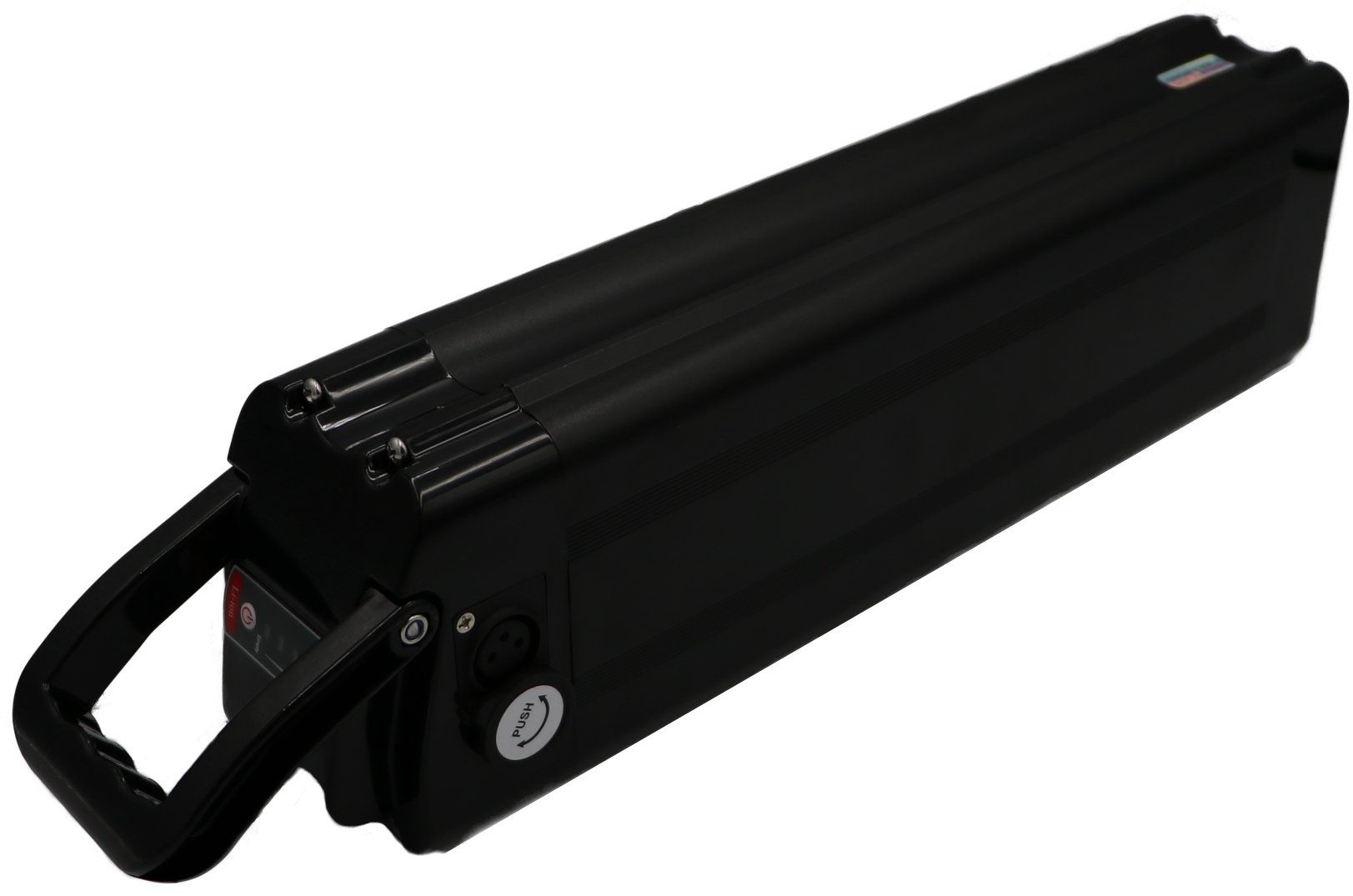

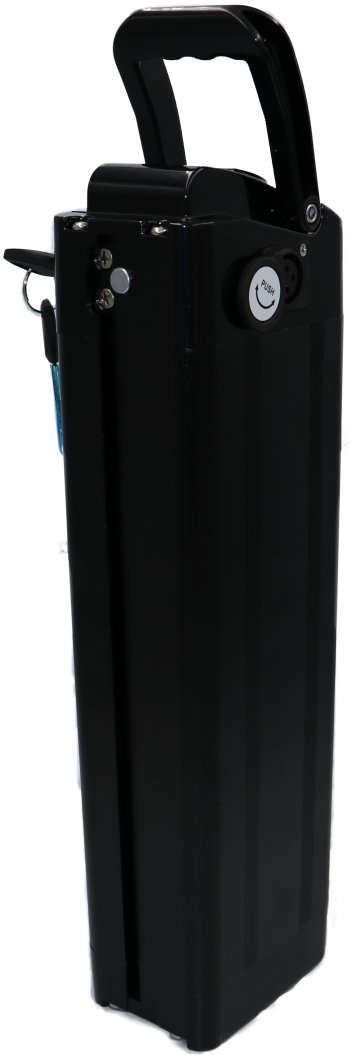

36V 13Ah / 468 Wh Silver Fish Style DLG eBike Battery CPSIADG36-13

36 Volt

13AH / 464 W

DMEGC 18650 Cells

2A or 3A Battery Charger Options

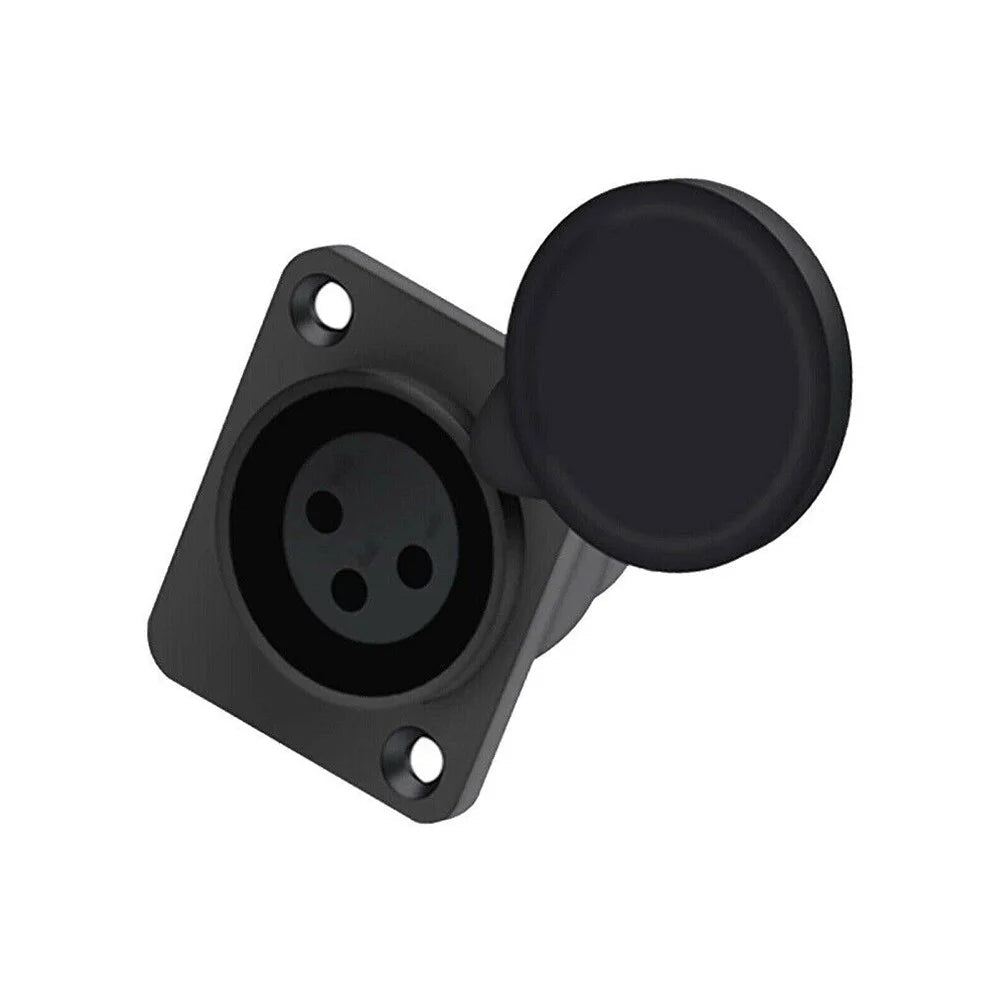

XLR 3 Pin Charging Port

Silverfish Battery - Black

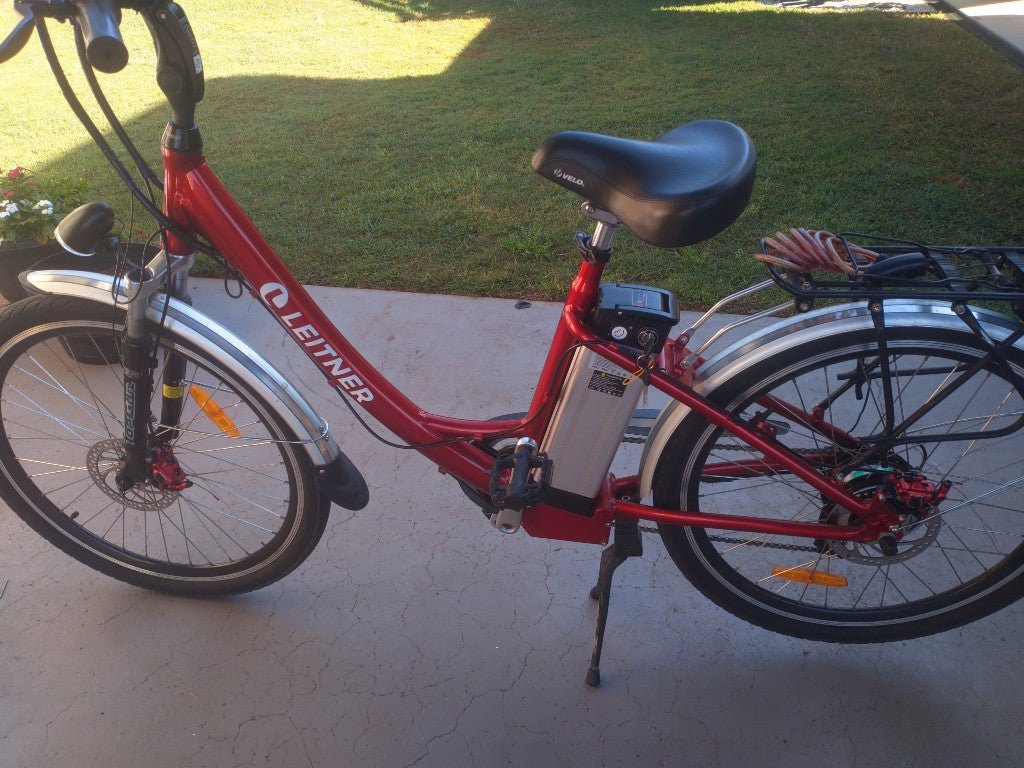

Fits Leitner bikes amongst many others

Removable Branding

UN38.3 Certification and MSDS

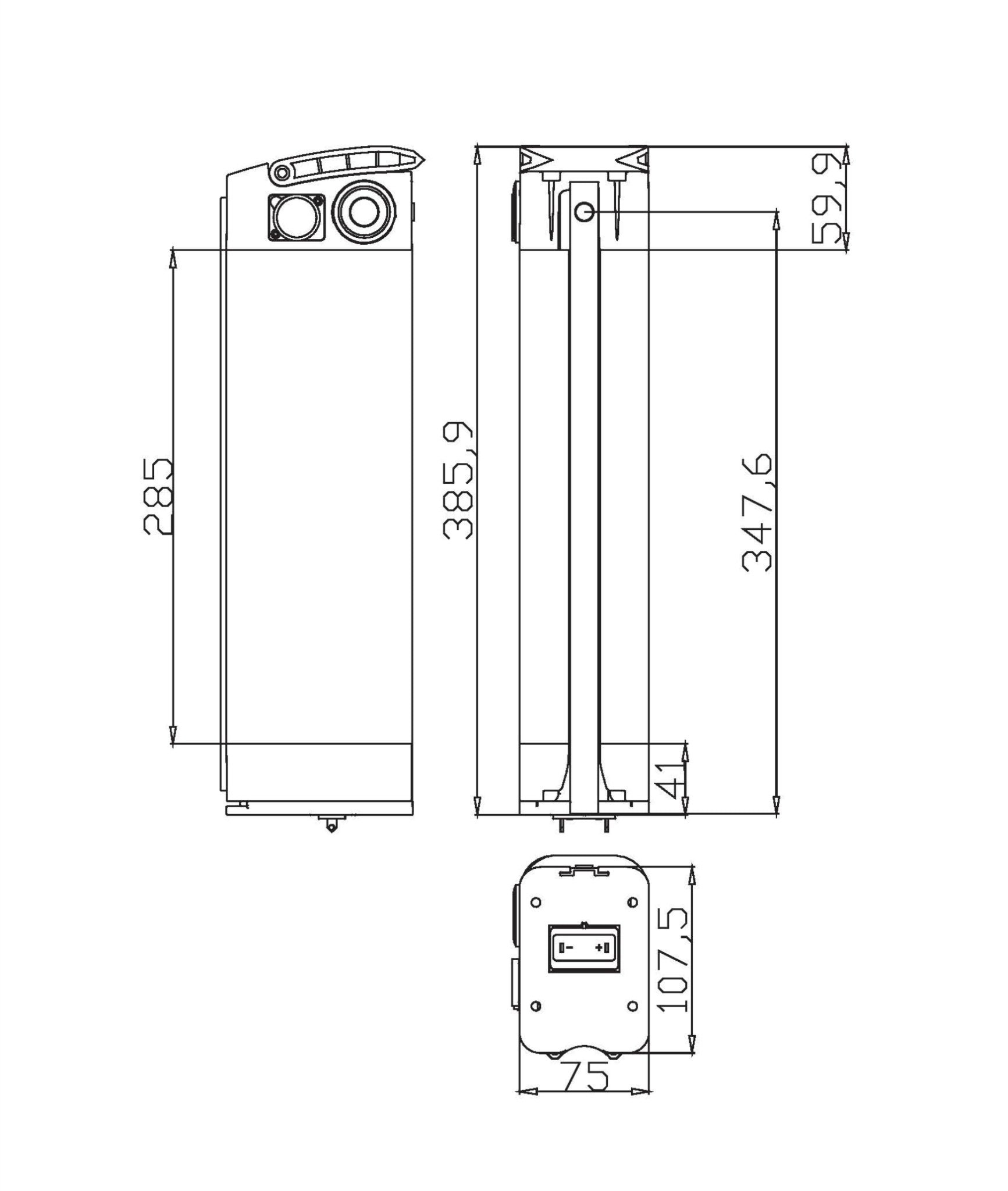

Dimensions: L 385mm - W 110mm - H 75mm

High quality, long life battery built using 18650 cells

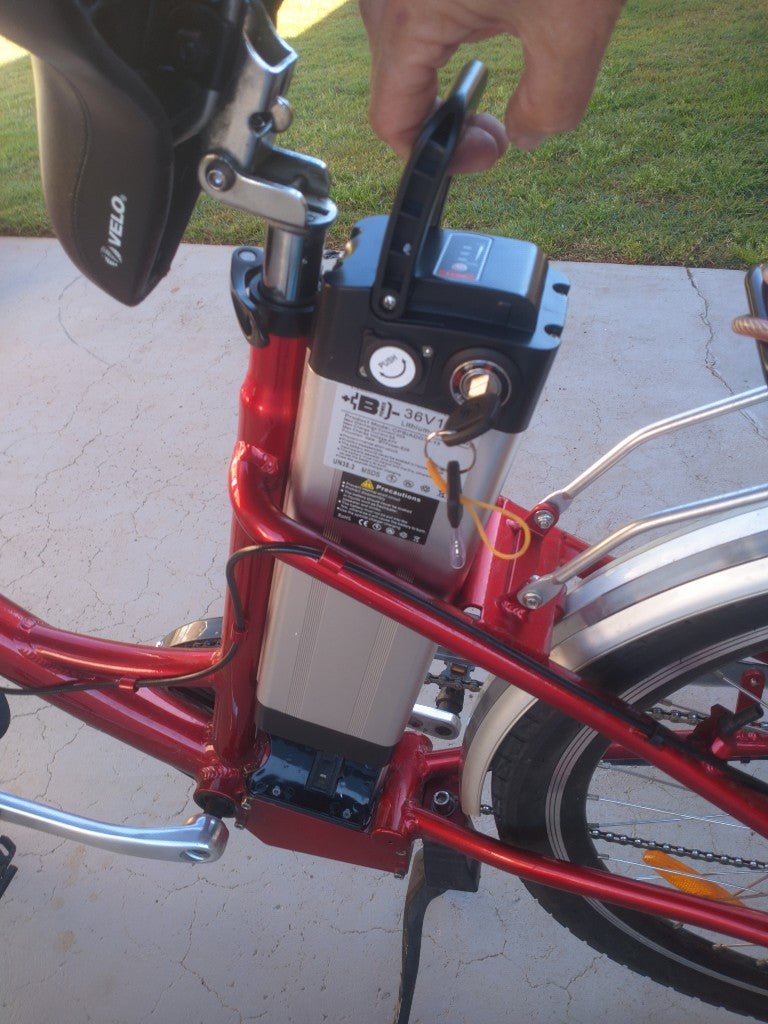

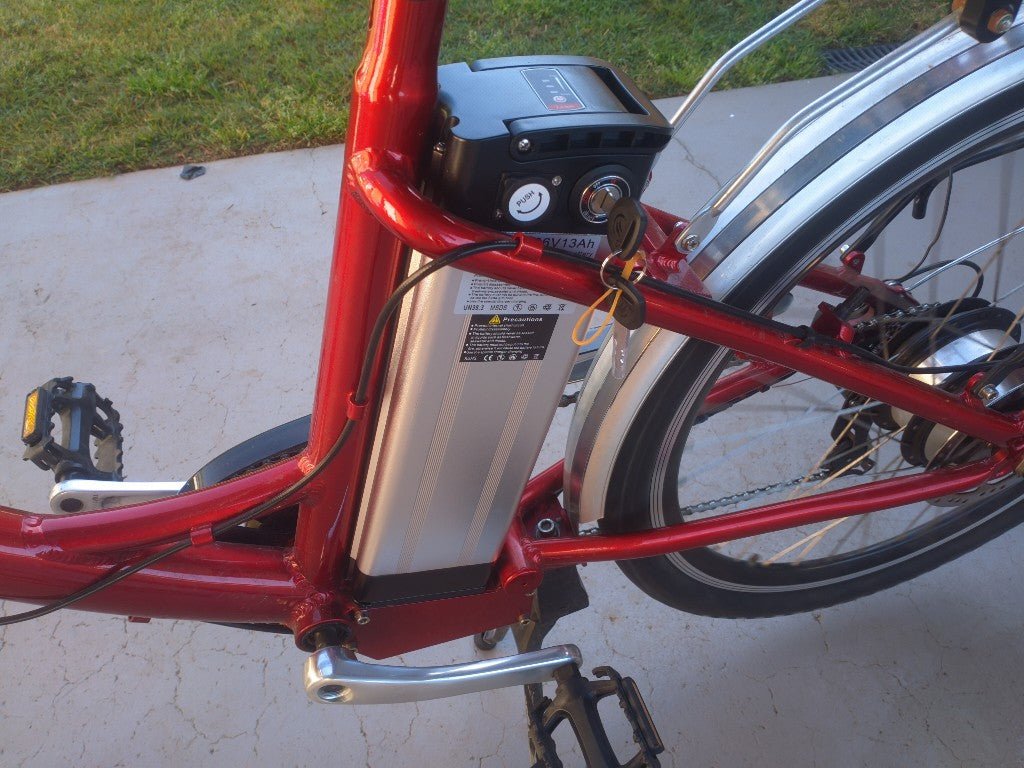

Popular silverfish battery, this battery normally runs down behind the seat of the bike. This battery is also able to be mounted in a range of locations, using the mounting bracket bracket supplied with the battery.

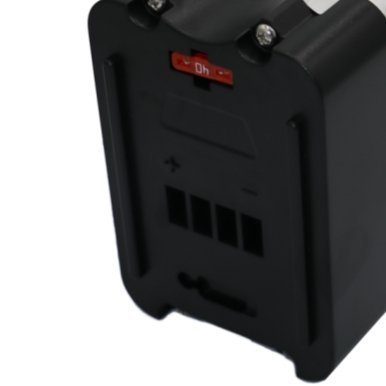

Note, this battery discharge is from the opposite end to the handle, or where the four pins outlet are located.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

Please make sure the + and - are in the same location as your current battery before ordering.

• 36V
• 13 Ah
• 468 Wh
• Dimensions: L 385mm - W 110mm - H 75mm

• DMEGC 18650 cells, tested to EN62133-2-22017
• 3.2 Kg weight of battery, excluding charger
• XLR 3 Pin charging port
• 2A or 3A Battery charger options

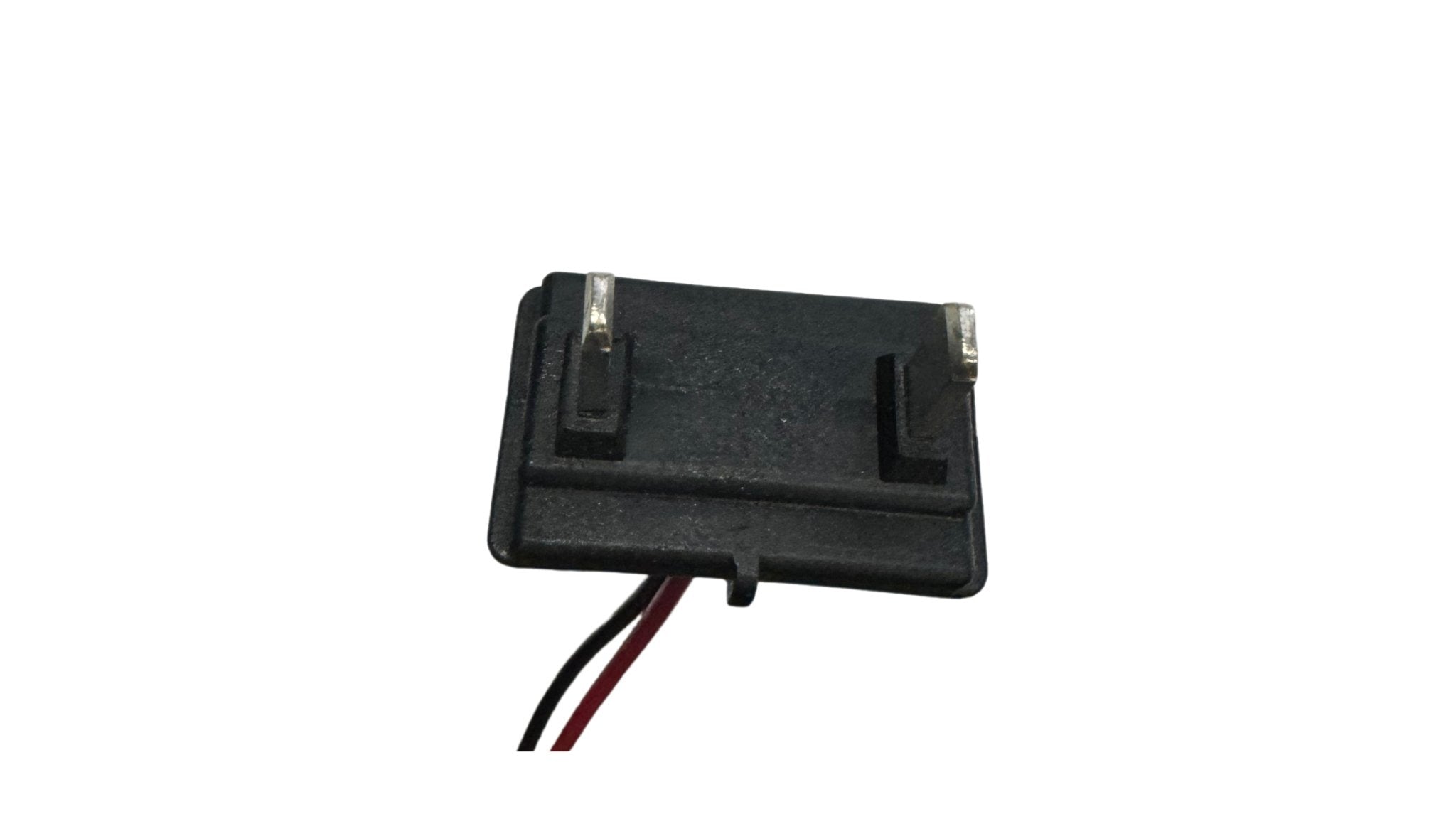

• Discharge cable, if required to replace your old or damaged cable
• Continuous discharge 25A
• 2 Keys

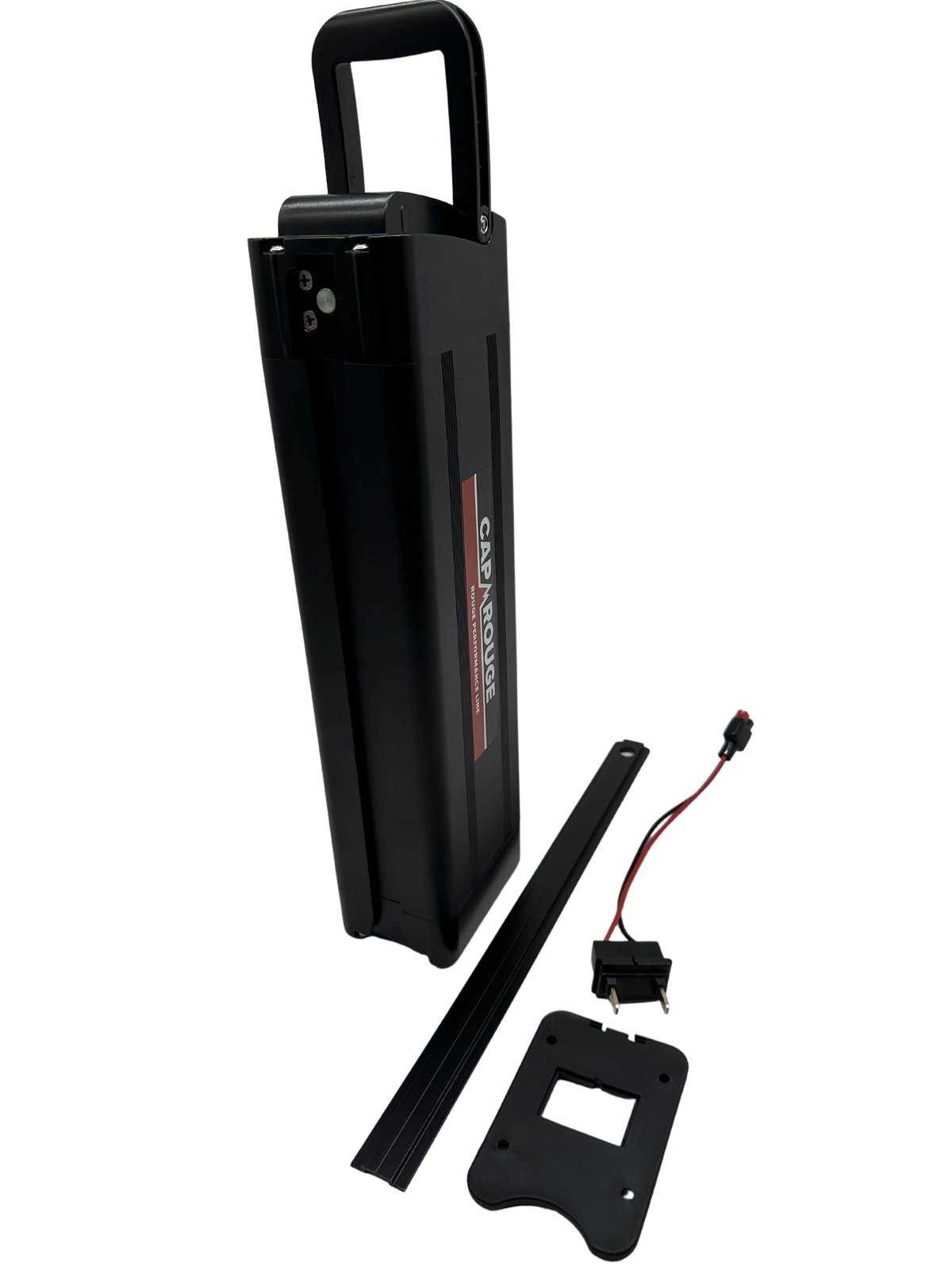

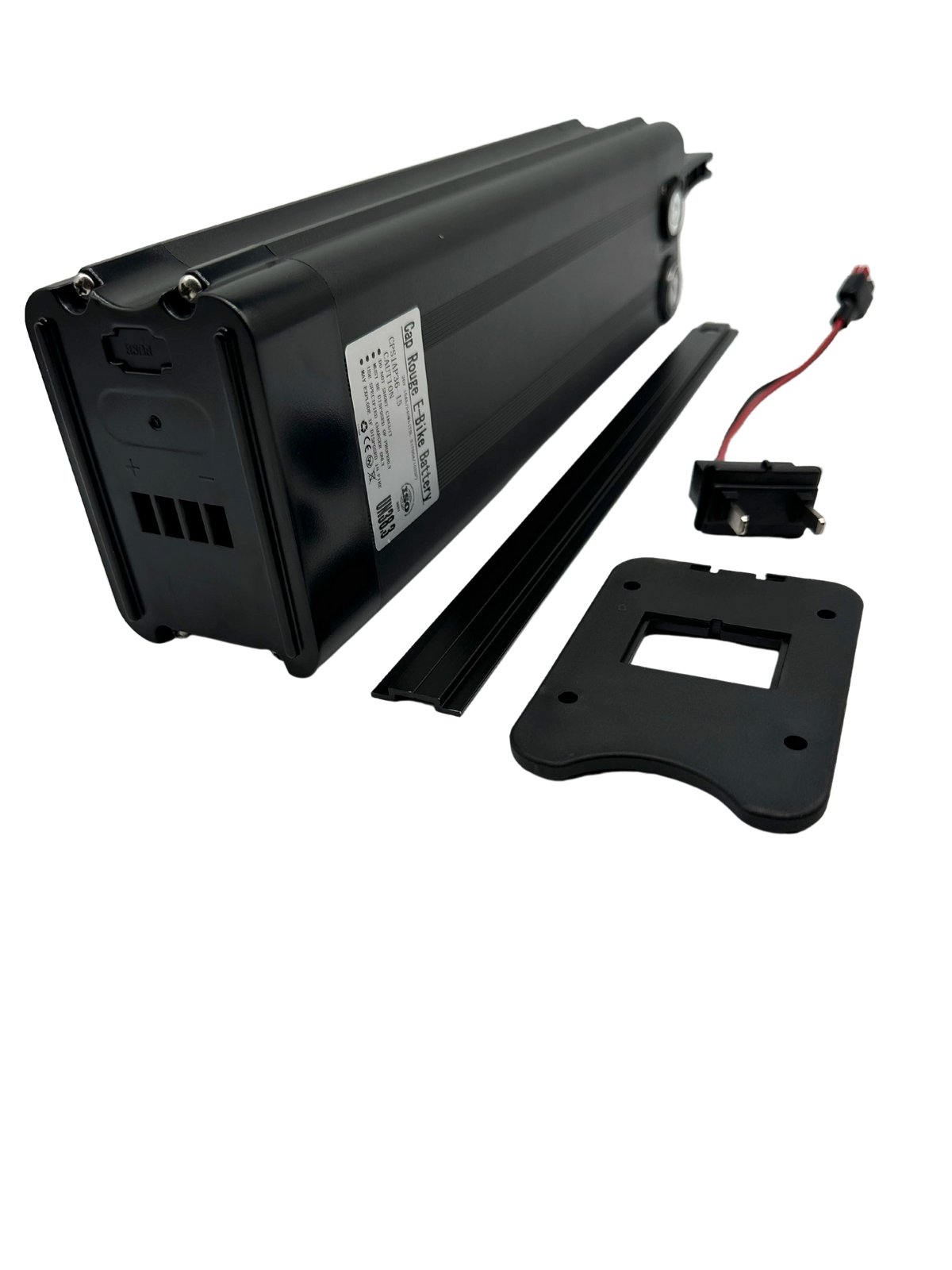

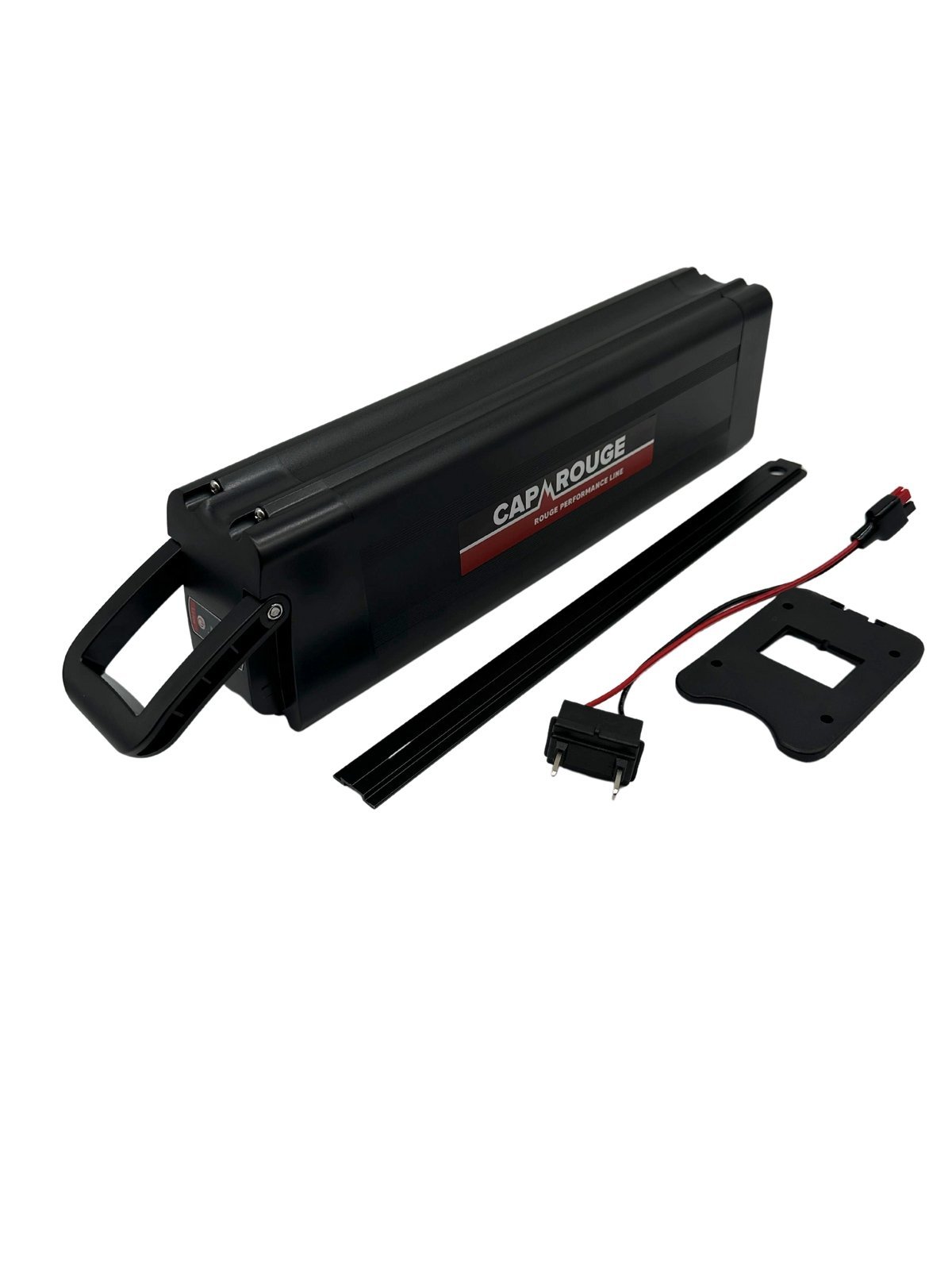

• Slider and mounting frame to connect to bike
• Battery Management System (BMS) Managing

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
