120Ah
quick stats
-
Maximum discharge rate (5 seconds)430A
-
Prismatic cell technology Minimum 4000 cycles for long term reliability
-
Warranty 5 year Australian Warranty
-
Safety certifications Including IEC:62619
-
Lightweight at 12.5kg Equivalent AGM weighs approx. 70kg

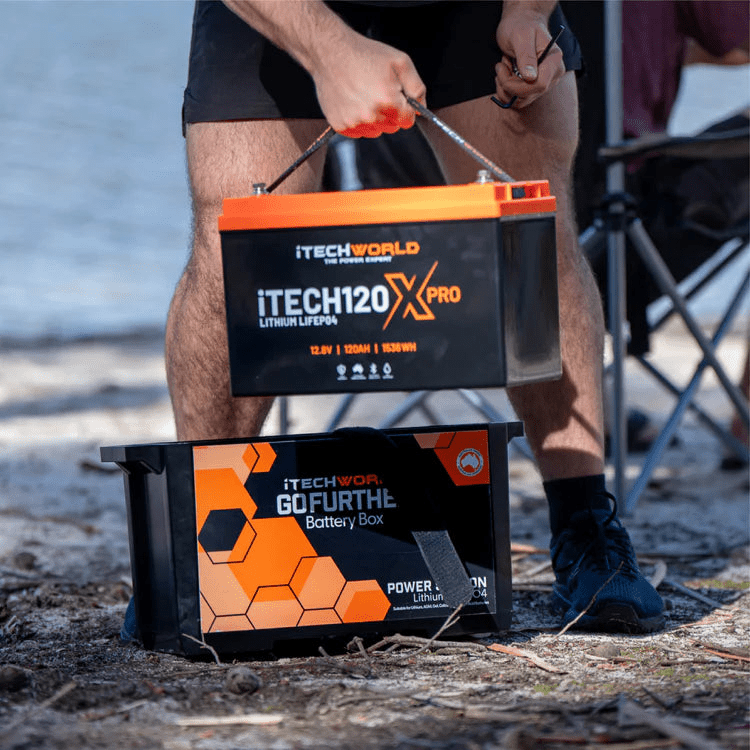

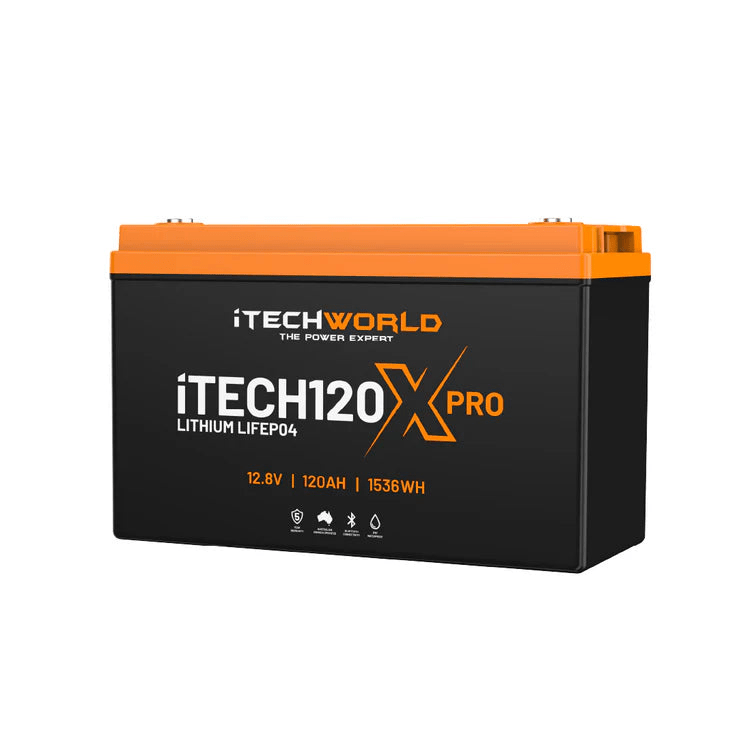

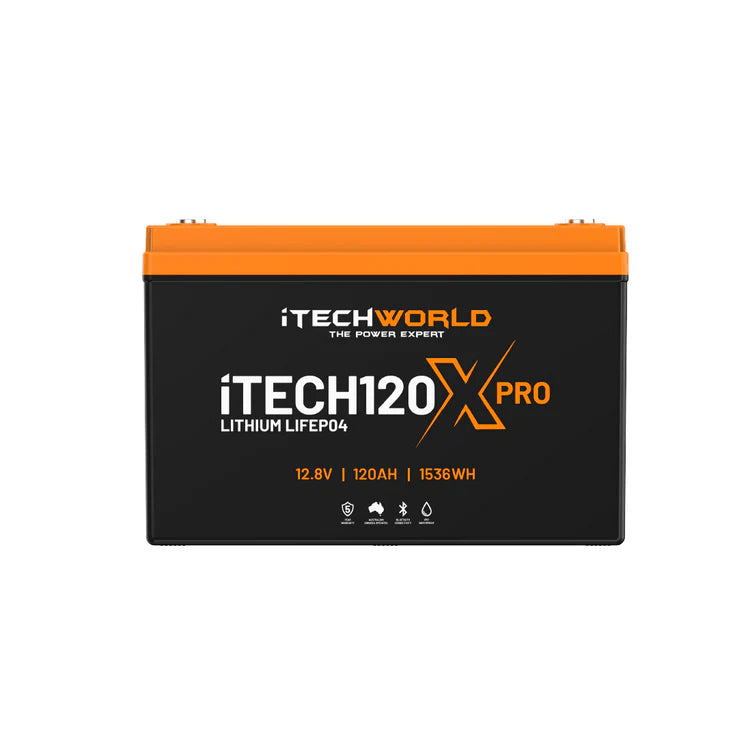

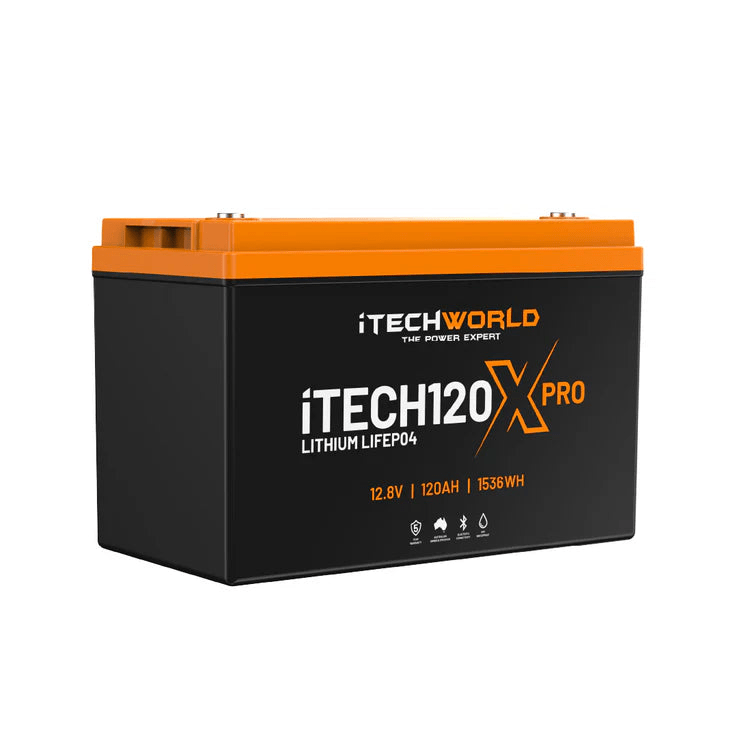

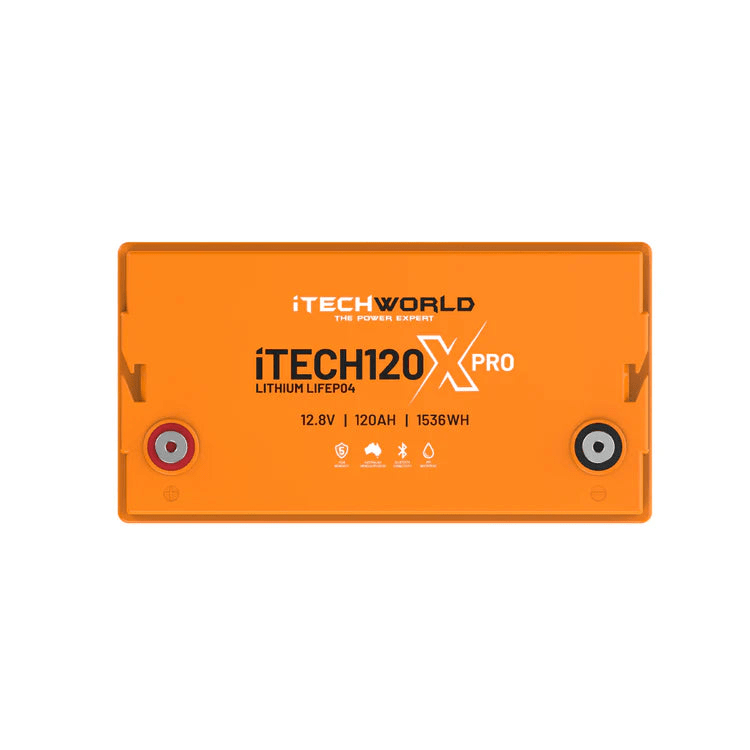

The new and improved iTECH120X PRO 120Ah Lithium Deep Cycle Battery with Bluetooth: a lightweight, 100% usable capacity solution with Bluetooth monitoring, IP67 waterproofing, and a 5-year Australian warranty.
The iTECH120X PRO is a true drop-in replacement for your existing system. This means no changing of systems, chargers or equipment is required in most cases. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH120X PRO.
The iTECH120X PRO features a fully 100% useable capacity, allowing the full 120Ah to be drawn from the iTECH120X PRO. Our redesign of the new iTECH120X PRO includes an all-new patent pending prismatic cell type, as well as an all-new supercharged BMS allowing for less cell degradation and a longer lifespan with high current use.
The iTECH120X PRO with bluetooth utilises the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology. To super-charge the iTECH120X PRO’s performance, we have equipped it with a new Battery Management System (BMS) specially programmed by iTechworld engineers to auto cell-balance and squeeze every ounce of performance from this deep cycle battery.
Built for the tough Australian environment, the iTECH120X PRO is IP67 Waterproof rated, allowing for the battery to be submerged under 1 metre of water for up to 30 minutes - perfect for marine applications or outside caravan storage boxes. The iTECH120X PRO utilises the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology; the iTECH120X PRO is also suitable for under-bonnet applications.

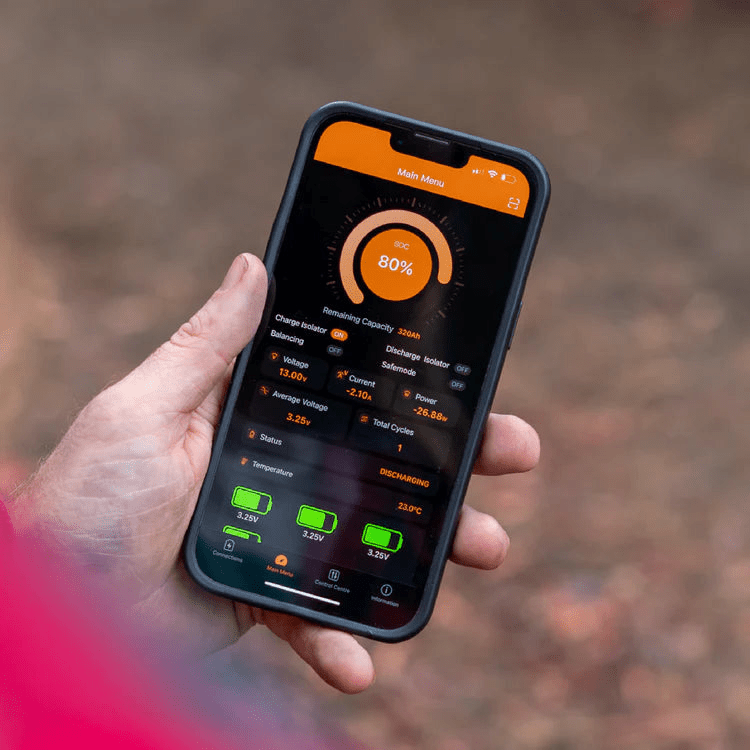

Never guess your battery's health again. The iTECH120X PRO Lithium Battery now comes integrated with Bluetooth compatibility to monitor your battery's status via the iTechworld app. Download the iTechworld app on the App Store or Google Play Store.
PACKAGE CONTENTS
-
1x iTECH120X PRO with Bluetooth 120Ah Lithium 12v Battery
-
1x User Guide
WARRANTY & SUPPORT
The iTECH120X PRO with Bluetooth warranty is 5 years (3 years full replacement 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.
If your iTechworld battery enters safe mode, please follow the instructions HERE
General |
| Dimensions (LxWxH): |
330 x 173 x 215mm |
| Weight: |
13.2kg |
| Voltage: |
12V |
| Nominal voltage: |
12.8V |
| C20 rating usable Amps: |
120Ah |
| Short circuit protection: |
Yes |
| Optimum temperature range: |
5°C ~ 60°C |
| BMS operational temperature range: |
5°C ~ 80°C |
| Safety protection isolator: |
80°C |
| Recommended charge voltage: |
14.4V |
|
| BMS charge cutoff: |
15V |
| BMS low voltage cutoff: |
10.5V |
| Series connection: |
Up to 48V (4 x batteries) |
| Parallel connection: |
Unlimited |
| Life cycles @ 80% depth of discharge: |
5,000+ |
| Life cycles @ 40% depth of discharge: |
10,000+ |
| Continuous Discharge Rate: |
150A |
| Maximum Discharge Rate (5 Seconds): |
430A |
| Terminal type: |
M8 |
| Case material: |
ABS |
