105Ah
quick stats
-
Max Discharge Rate (5 seconds): 430A
-
Warranty: 5 year Australian warranty
-
Safety certifications: Including IEC:62619
-
Lightweight at 10kg: Equivalent AGM weighs approx. 60kg
The iTECH120X lithium battery has over 10 years of design and development in Australia. Our Australian engineers have spent countless hours building and testing what we believe to be the highest-quality lithium battery available on the market today.
Our technology now allows an unlimited number of new iTECH120X to be connected in parallel. You can make a battery any size you wish by connecting as many iTECH120X lithium batteries together to make a 12v MEGA battery of any size. The latest operating system allows a series connection of 4 lithium batteries for 48V applications.

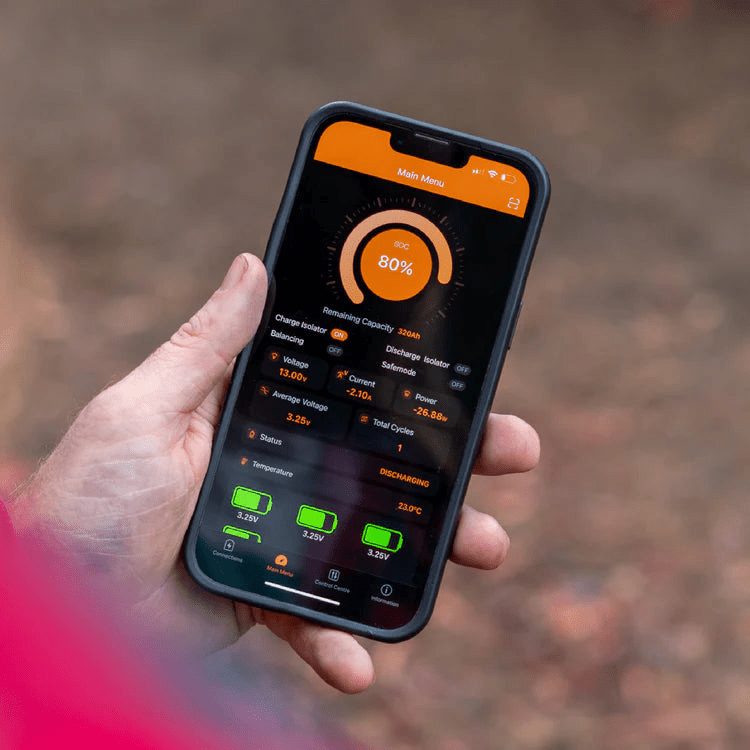

Never guess your batteries health again. The iTECH120X Lithium Battery now comes with integrated with Bluetooth compatibility to monitor your batteries status via the iTechworld app. Download the iTechworld app on the App Store. Google Play app coming soon.
iTechworld has been designing and developing Lithium Batteries for over 10 years, constantly improving and testing our designs. The iTechworld Lithium Batteries are Australian standard certified to IEC:62619 to create the safest and highest-quality lithium batteries available in the Australian market.
No changing of systems, equipment, or extensive re-wiring is required in most cases. You simply pull your old heavy AGM batteries out and put the new lightweight iTECH120X in. The iTECH120X is the only true drop-in upgrade for your existing batteries.
Utilising our latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology, the iTECH120X is the toughest deep cycle battery iTechworld has ever built.
The iTECH120X is entirely water and dust sealed. Boasting an IP67 rating, this battery can be fully submerged in 1m deep water for up to 30 minutes and has the highest level of dust protection available. No other lithium batteries can match that in Australia today.
In order to super-charge the iTECH120X’s performance, we have equipped it with a new Battery Management System (BMS) specially programmed by iTechworld engineers to auto cell-balance and squeeze every ounce of performance from this deep cycle battery.
As a testament to the toughness and performance of our iTECH120X lithium batteries, we have backed them up with a full 5-year Australian warranty (3 years full replacement, 2 years pro-rata).
PACKAGE CONTENTS
-
1 x iTECH120X 105Ah Lithium 12v Battery
- 1 x User Guide
WARRANTY & SUPPORT
The iTECH120X warranty is 5 years (3 years full replacement 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.
If your iTechworld battery enters safe mode, please follow the instructions HERE
General |
| Dimensions (LxWxH): |
255 x 170 x 215mm (225mm H including terminals) |
| Weight: |
10kg |
| Voltage: |
12V |
| Nominal voltage: |
12.8V |
| C20 rating usable Amps: |
105Ah |
| Short circuit protection: |
Yes |
| Optimum temperature range: |
5°C ~ 60°C |
| BMS operational temperature range: |
5°C ~ 80°C |
| Safety protection isolator: |
80°C |
| Recommended charge voltage: |
14.4V |
|
| BMS charge cutoff: |
15V |
| BMS low voltage cutoff: |
10.5V |
| Series connection: |
Up to 48V (4 x batteries) |
| Parallel connection: |
Unlimited |
| Life cycles @ 80% depth of discharge: |
5,000+ |
| Life cycles @ 40% depth of discharge: |
10,000+ |
| Continuous Discharge Rate: |
150A |
| Maximum Discharge Rate (5 Seconds): |
430A |
| Terminal type: |
M8 |
| Case material: |
ABS |
