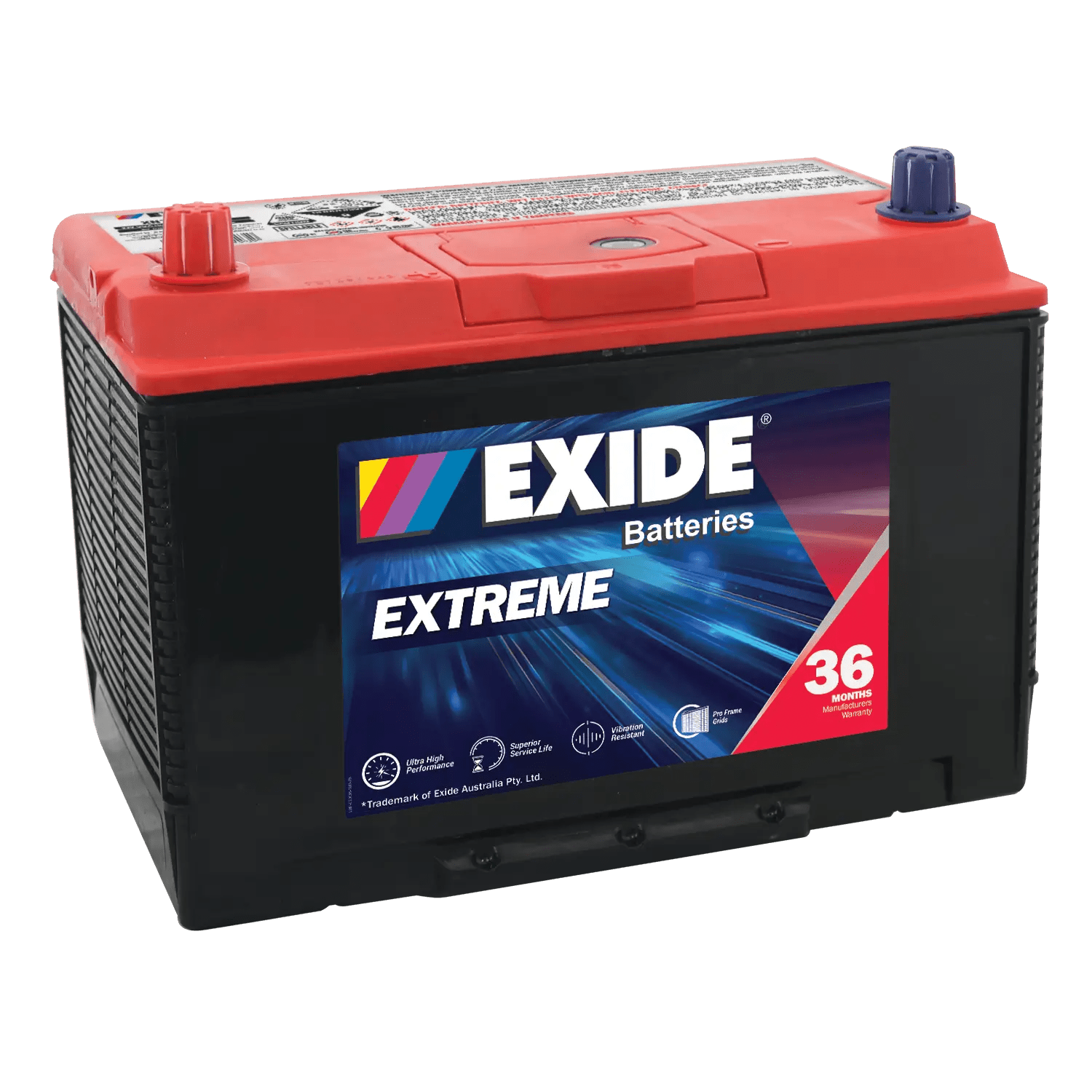

XN70ZZMF – Built for reliability and endurance, this battery delivers ultra high performance and a longer service life. Its vibration-resistant design ensures durability under tough conditions, while advanced pro frame grids provide superior strength and consistent power. Perfect for demanding applications, it keeps your vehicle or equipment running smoothly, day after day.
Product Specifications
| Battery Type |
SUV/4WD/LIGHT COMMERCIAL RANGE |
| Technology |
SMF CAL |
| Voltage |
12 |
| Capacity (AH, 20HR) |
95 |
| Cold Cranking Amps (CCA, SAE) |
830 |
| Reserve Capacity (RC, min) |
185 |
Physical Dimensions & Weight
| Size |
N70 |
| Length (mm) |
305 |
| Width (mm) |
173 |
| Height (mm) |
203 |
| Total Height (mm) |
224 |
| Approximate Weight (kg) |
22.6 |
Fitment & Installation
| Assembly |
D |
| Terminal/Post Type |
STD |
| Ledge |
FL |
Maintenance & Usability
| Accessibility |
TS |
| Electrolyte Indicator (HYDRO) |
YES |
Warranty & Coverage
| Private Use Warranty (Months) |
36 |
| Commercial Use Warranty (Months) |
18 |
Datasheet
Abbreviations
| AP |
Automotive Post |
CV |
Central Venting |
| CT |
Centered Terminal |
DFA |
Dual Fit Aligned Terminals |
| DFP |
Dual Fit Parallel Terminals |
DST |
Dual System Terminals |
| DT |
Automotive Post & Stud |
DWNT |
Dual Wingnut |
| EL |
End Ledge |
ELPT |
Embedded Low Profile |
| EUTR |
Embedded Universal/Reverse |
F1 |
F1 Terminal |
| F1-F2 |
F1/F2 Terminal |
F2 |
F2 Terminal |
| F3 |
F3 Terminal |
F3W |
F3W Terminal |
| F5 |
F5 Terminal |
F8 |
F8 Terminal |
| F9 |
F9 Terminal |
F10 |
F10 Terminal |
| F10M8 |
F1 Terminal (1.25mmx15mm Stud I) |
F11 |
F11 Terminal |
| F11M6 |
F11 Terminal (6mm/8mm Insert) |
F12 |
F12 Terminal |
| F12M8 |
F12 Terminal (1.25mmx15mm Stud I) |
F13 |
F13 Terminal |
| F14M8 |
F14 Terminal (1.25mmx15mm Stud I) |
F14 |
F14 Terminal |
| F18 |
F18 Terminal |
F22 |
F22 Terminal |
| FL |
Front Ledge |
FDH |
Fold Down Handles |
| HE |
Hydrometer Eye |
M6 |
M6 |
| M8-DT |
Automotive Post & Stud (1.25mmx15mm Stud I) |
M8 |
1.25mmx15mm Stud I |
| OLT |
Offset Lug Terminal |
PT |
Pencil Terminal |
| RT |
Recessed Terminal |
RPH |
Rope Handles |
| RTH |
Retractable Handles |
STD |
Standard Terminal |
| ST |
Side Terminal |
TS |
Top Stud Terminal |
| UT |
Universal |
WNT |
Wingnut |
Battery Assemblies
| A (6 Volts) |
 |
| C (12 Volts) |
 |
| D (12 Volts) |
 |
| E (12 Volts) |
 |
| F (12 Volts) |
 |
| G (12 Volts) |
 |
| H (12 Volts) |
 |
