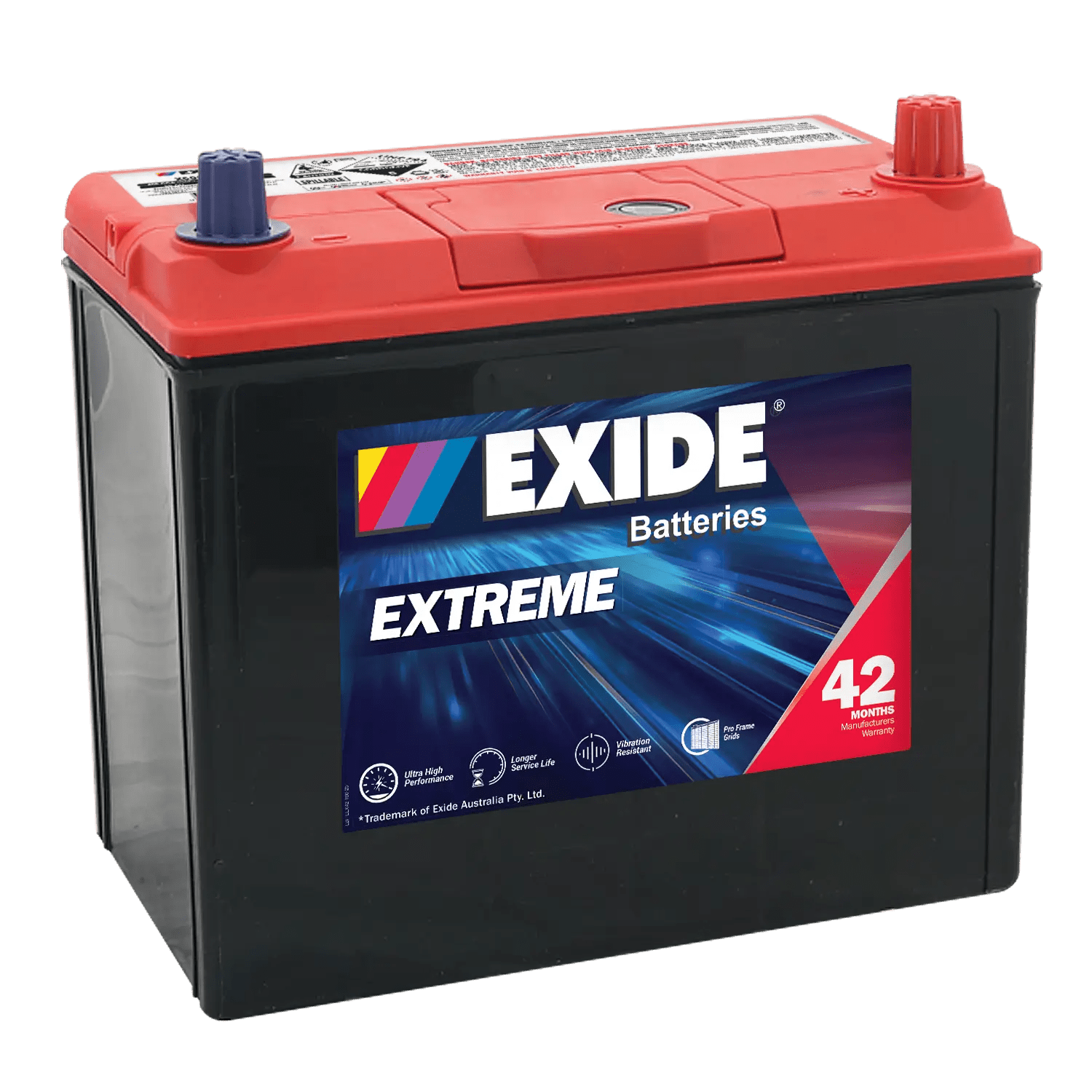

The Exide Extreme X60CPMF is a 12V Conventional Sealed Maintenance-Free battery with 480CCA (SAE), 90min RC (Reserve Capacity) and 56Ah (20hr). It’s designed for Passenger vehicles, and carries a 42-month warranty for private use and a 12-month warranty for commercial use.
Product Specifications
| Battery Type |
PASSENGER VEHICLE RANGE |
| Technology |
SMF CAL |
| Voltage |
12 |
| Capacity (AH, 20HR) |
56 |
| Cold Cranking Amps (CCA, SAE) |
480 |
| Reserve Capacity (RC, min) |
90 |
Physical Dimensions & Weight
| Size |
NS60 |
| Length (mm) |
236 |
| Width (mm) |
128 |
| Height (mm) |
199 |
| Total Height (mm) |
221 |
| Approximate Weight (kg) |
13.0 |
Fitment & Installation
| Assembly |
C |
| Terminal/Post Type |
PT |
| Ledge |
NL |
Maintenance & Usability
| Accessibility |
TS |
| Electrolyte Indicator (HYDRO) |
YES |
Warranty & Coverage
| Private Use Warranty (Months) |
42 |
| Commercial Use Warranty (Months) |
12 |
Datasheet
Abbreviations
| AP |
Automotive Post |
CV |
Central Venting |
| CT |
Centered Terminal |
DFA |
Dual Fit Aligned Terminals |
| DFP |
Dual Fit Parallel Terminals |
DST |
Dual System Terminals |
| DT |
Automotive Post & Stud |
DWNT |
Dual Wingnut |
| EL |
End Ledge |
ELPT |
Embedded Low Profile |
| EUTR |
Embedded Universal/Reverse |
F1 |
F1 Terminal |
| F1-F2 |
F1/F2 Terminal |
F2 |
F2 Terminal |
| F3 |
F3 Terminal |
F3W |
F3W Terminal |
| F5 |
F5 Terminal |
F8 |
F8 Terminal |
| F9 |
F9 Terminal |
F10 |
F10 Terminal |
| F10M8 |
F1 Terminal (1.25mmx15mm Stud I) |
F11 |
F11 Terminal |
| F11M6 |
F11 Terminal (6mm/8mm Insert) |
F12 |
F12 Terminal |
| F12M8 |
F12 Terminal (1.25mmx15mm Stud I) |
F13 |
F13 Terminal |
| F14M8 |
F14 Terminal (1.25mmx15mm Stud I) |
F14 |
F14 Terminal |
| F18 |
F18 Terminal |
F22 |
F22 Terminal |
| FL |
Front Ledge |
FDH |
Fold Down Handles |
| HE |
Hydrometer Eye |
M6 |
M6 |
| M8-DT |
Automotive Post & Stud (1.25mmx15mm Stud I) |
M8 |
1.25mmx15mm Stud I |
| OLT |
Offset Lug Terminal |
PT |
Pencil Terminal |
| RT |
Recessed Terminal |
RPH |
Rope Handles |
| RTH |
Retractable Handles |
STD |
Standard Terminal |
| ST |
Side Terminal |
TS |
Top Stud Terminal |
| UT |
Universal |
WNT |
Wingnut |
Battery Assemblies
| A (6 Volts) |
 |
| C (12 Volts) |
 |
| D (12 Volts) |
 |
| E (12 Volts) |
 |
| F (12 Volts) |
 |
| G (12 Volts) |
 |
| H (12 Volts) |
 |
