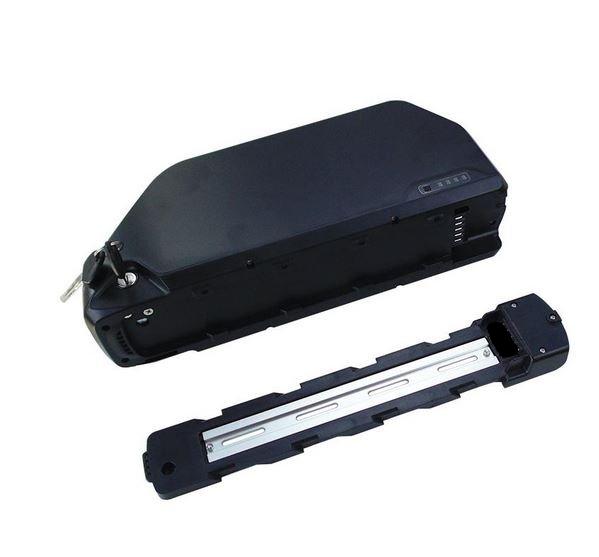

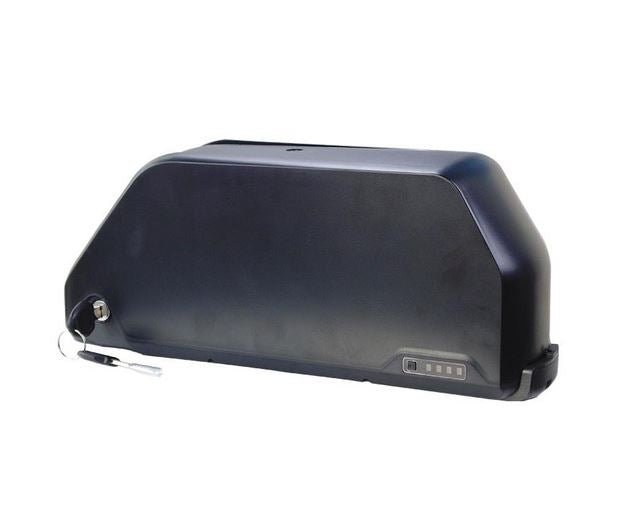

48V 25Ah / 1200Wh Downtube Samsung eBike Battery CPPOLF48-25

48 Volt

25 Ah

1200 Wh

Samsung 50G 5000mah 21700 Cells

50A Continuous Discharge BMS - For Motors Up To 2400 Watts

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

Reention DP-21700-5 Casing

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Dimensions: L  367mm - W 95mm - H 150mm

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2400W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

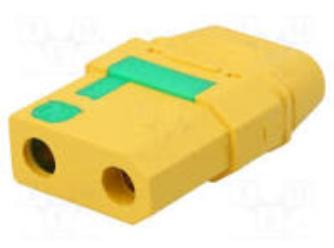

XT90 Spark proof connector instructions here

• 48 Volts
• 25 Ah
• 1200 Wh
• 13S5P
• Samsung 50G 21700 cells, tested to EN62133-2-22017

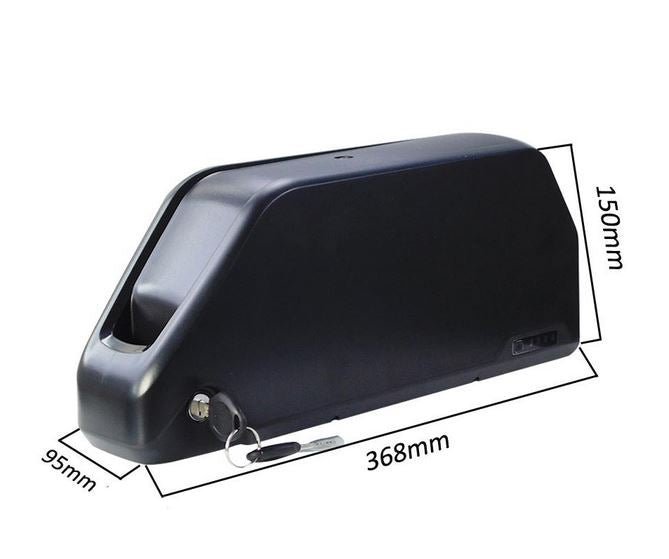

• Dimensions: L  367mm - W 95mm - H 150mm
• 2A, 3A, 4A or 1-5A variable battery charger options

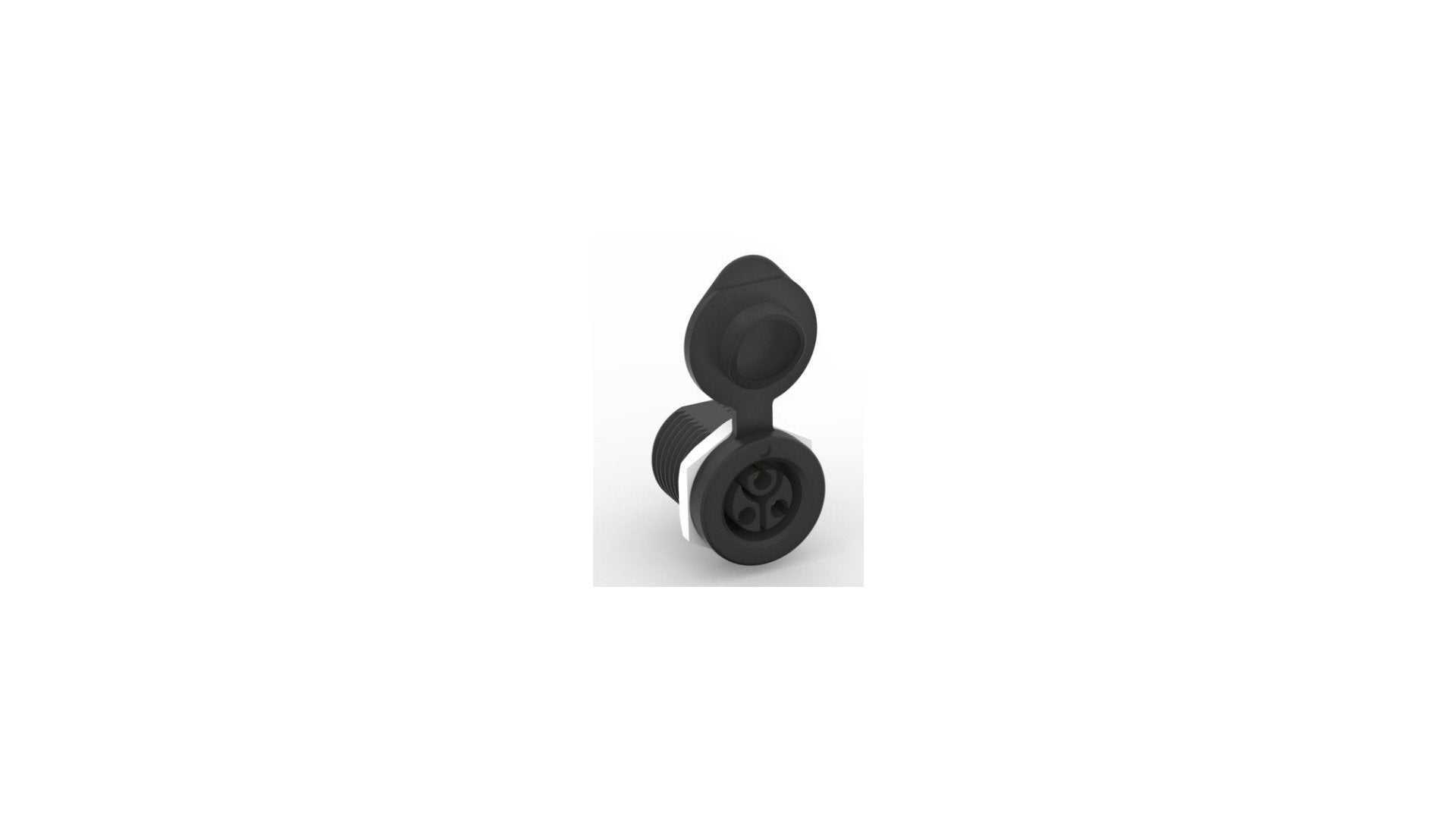

• ST3 3 pin charging port
• 5A maximum charging input
• 5.95 Kg Including bracket / excluding charger

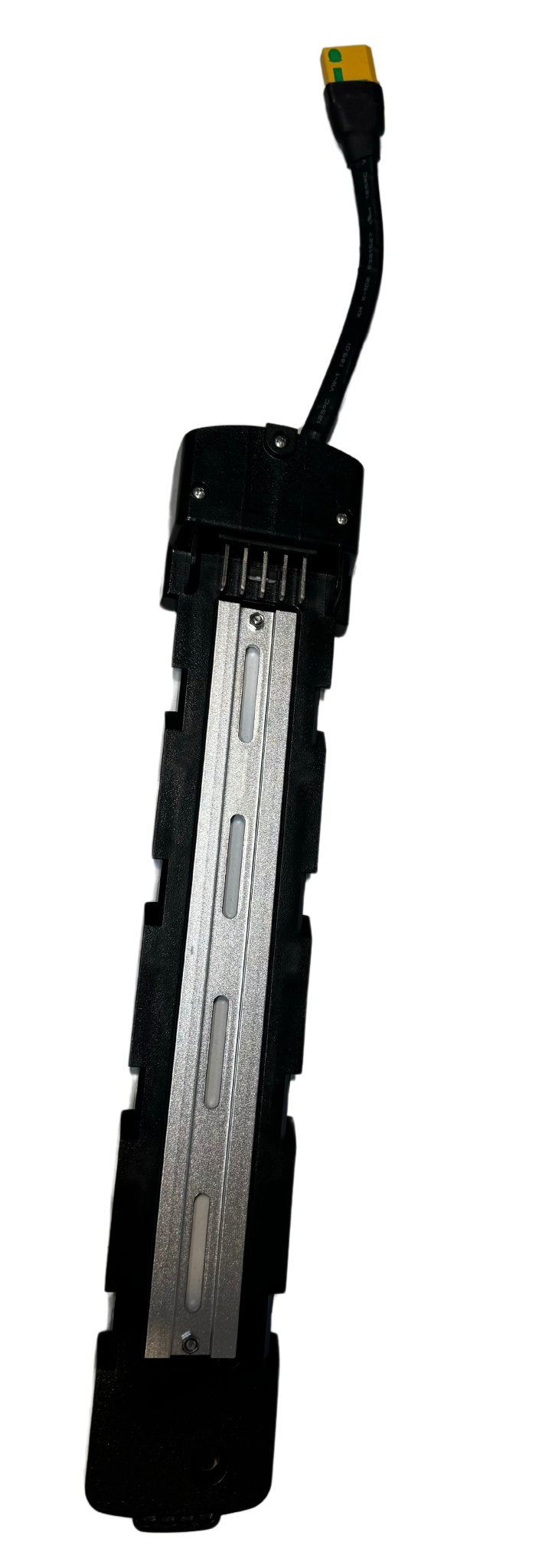

• Discharge cable with micro XT90 female connector
• 50A Continuous discharge, for motors up to 2300W

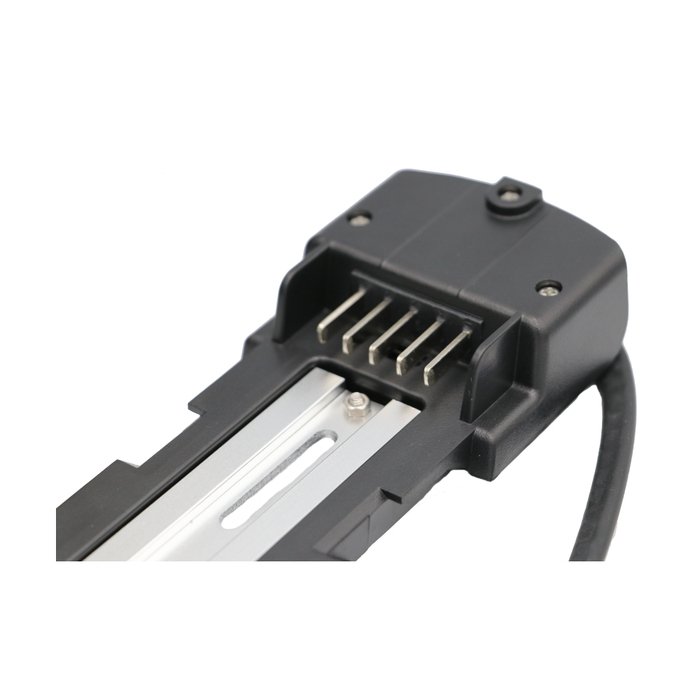

• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

*Images for visual purposes only
