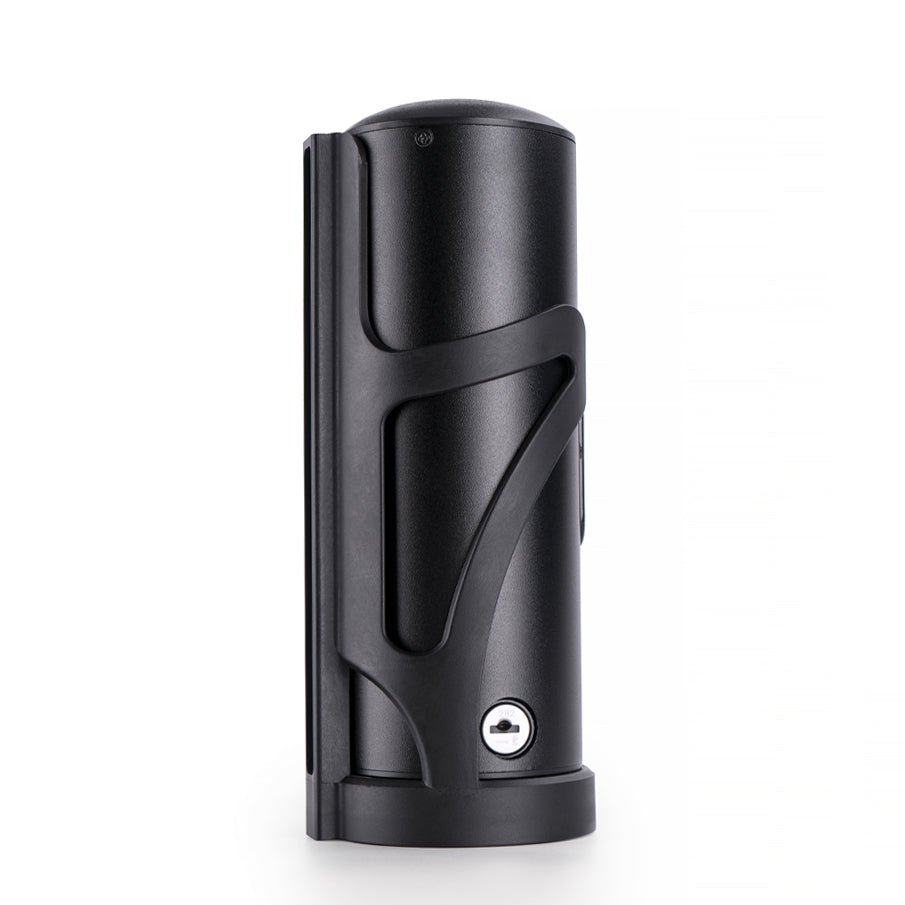

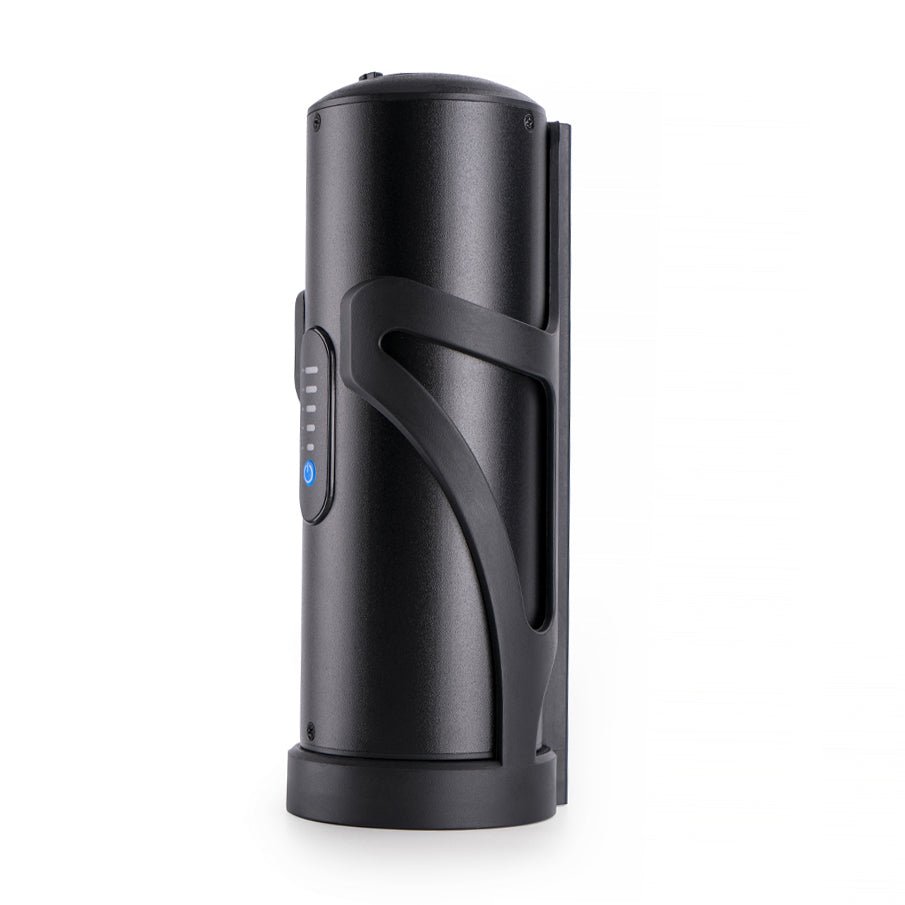

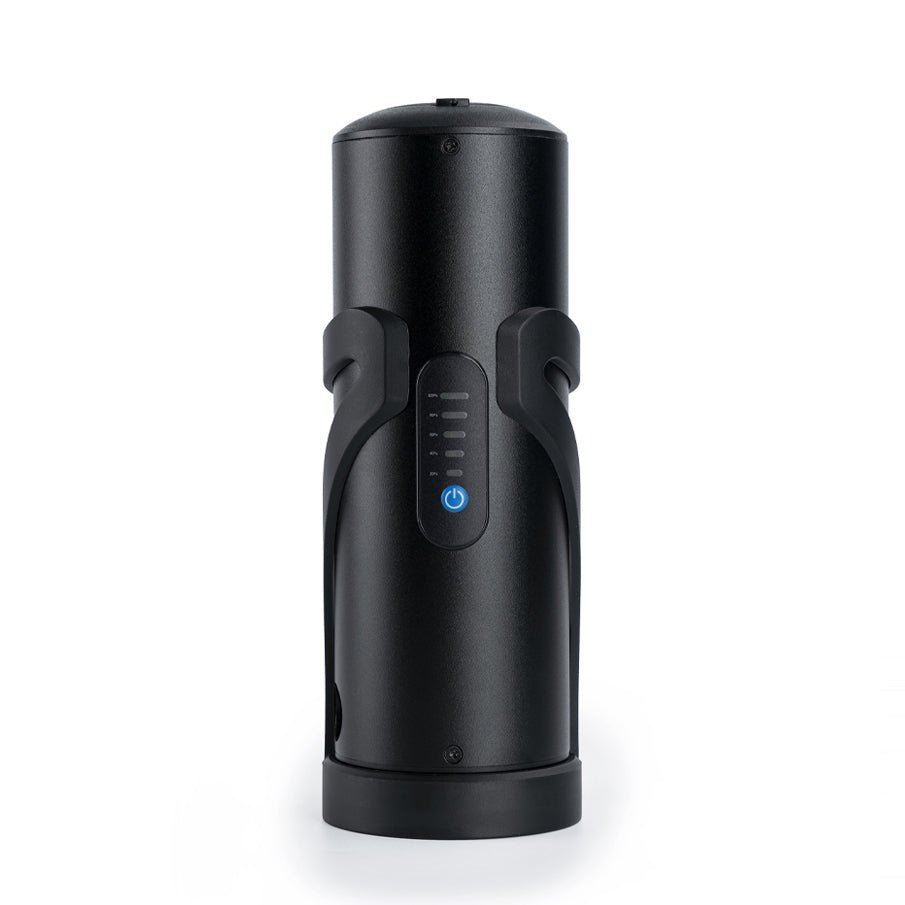

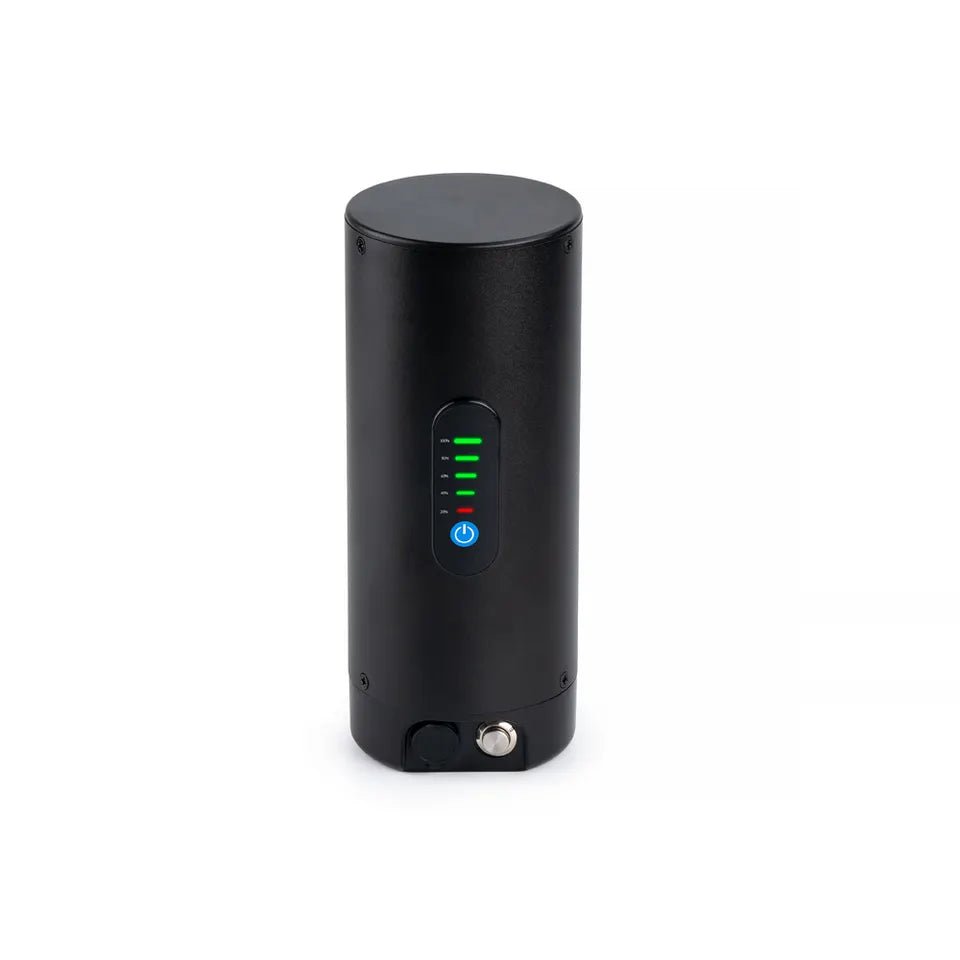

36V 7Ah / 252Wh Micro Bottle Downtube eBike Battery CPMB36-7

36 Volt

7 Ah / 252 Wh

Micro Bottle Style Battery -

Dimension: L 188mm - W 77mm - H 77mm

Samsung 35E 18650 Cells

20A BMS

2A or 3A Battery Charger Options

ST3 Charging Port

This Super small quality built bottle style battery is custom built for Cap Rouge with high quality Samsung Cells.

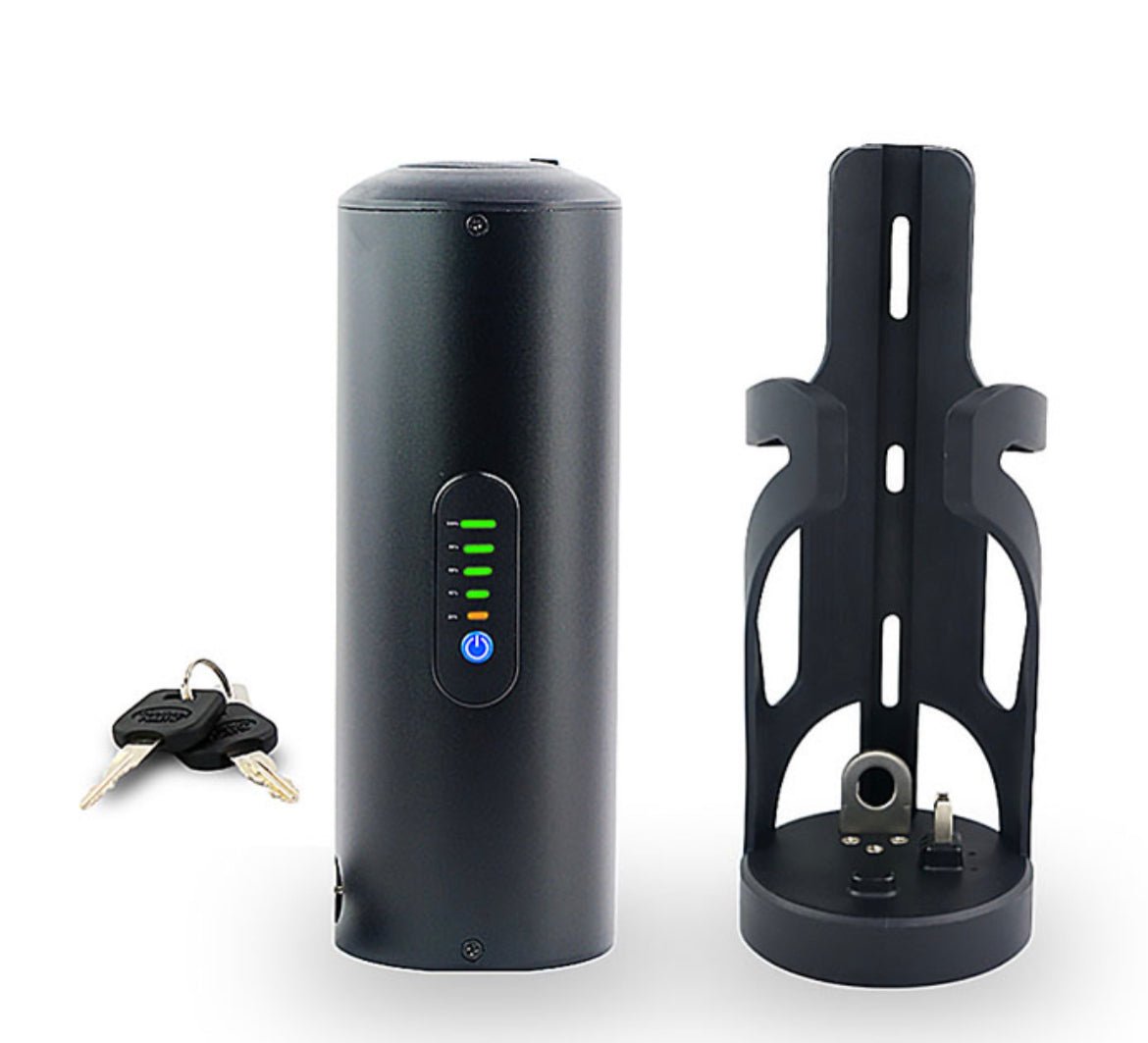

Complete battery kit, comes with docking station, can fit on all bikes to the down tube.

This battery is ideal for new build bikes, or for replacing obsoleted batteries. Comes with discharge cable fitted with popular micro Anderson connectors.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017, beware as many Australian suppliers do not mention the brand of cell used

• 36 Volts

• 7 Ah
• 252 Wh
• Dimension: L 188mm - W 77mm - H 77mm
• 1.65 Kg weight of battery, Including bracket, excluding charger
• Samsung 35E 3500mAh 18650 cells
• Stocked and shipped from Australia

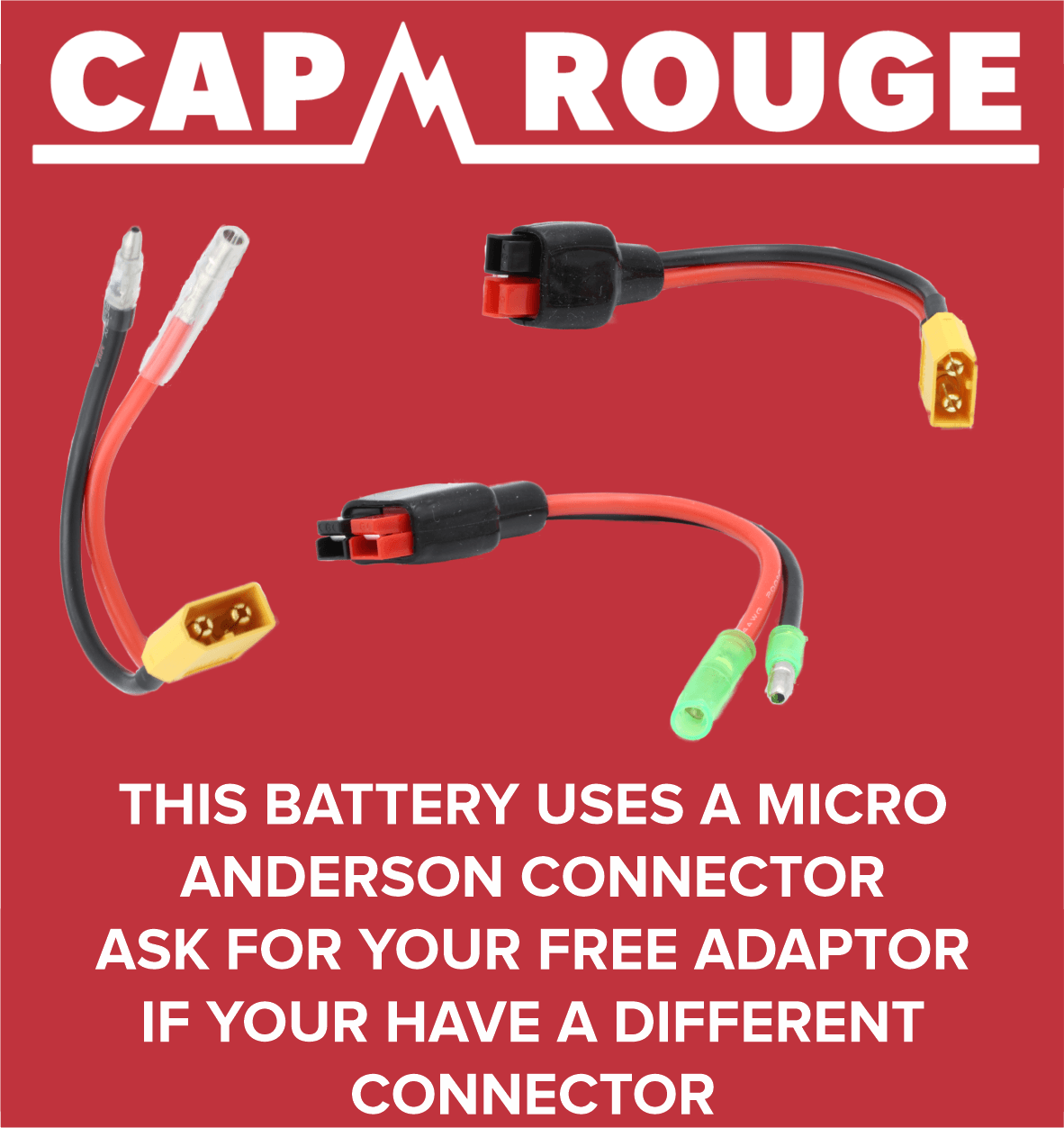

• Discharge cable with Micro Anderson connector
• 2A or 3A Battery charger options
• ST3 Charging Port
• Continuous discharge 20A
• 2 Keys included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
