36V 10.4Ah / 374 Wh Multipurpose Samsung eBike Battery CPBOX36-10.4

36 Volt

10.4 AH

374 Wh

Samsung Cells 29E 18650 Cells

30A Continuous Discharge BMS - For Motors Up To 950 Watts

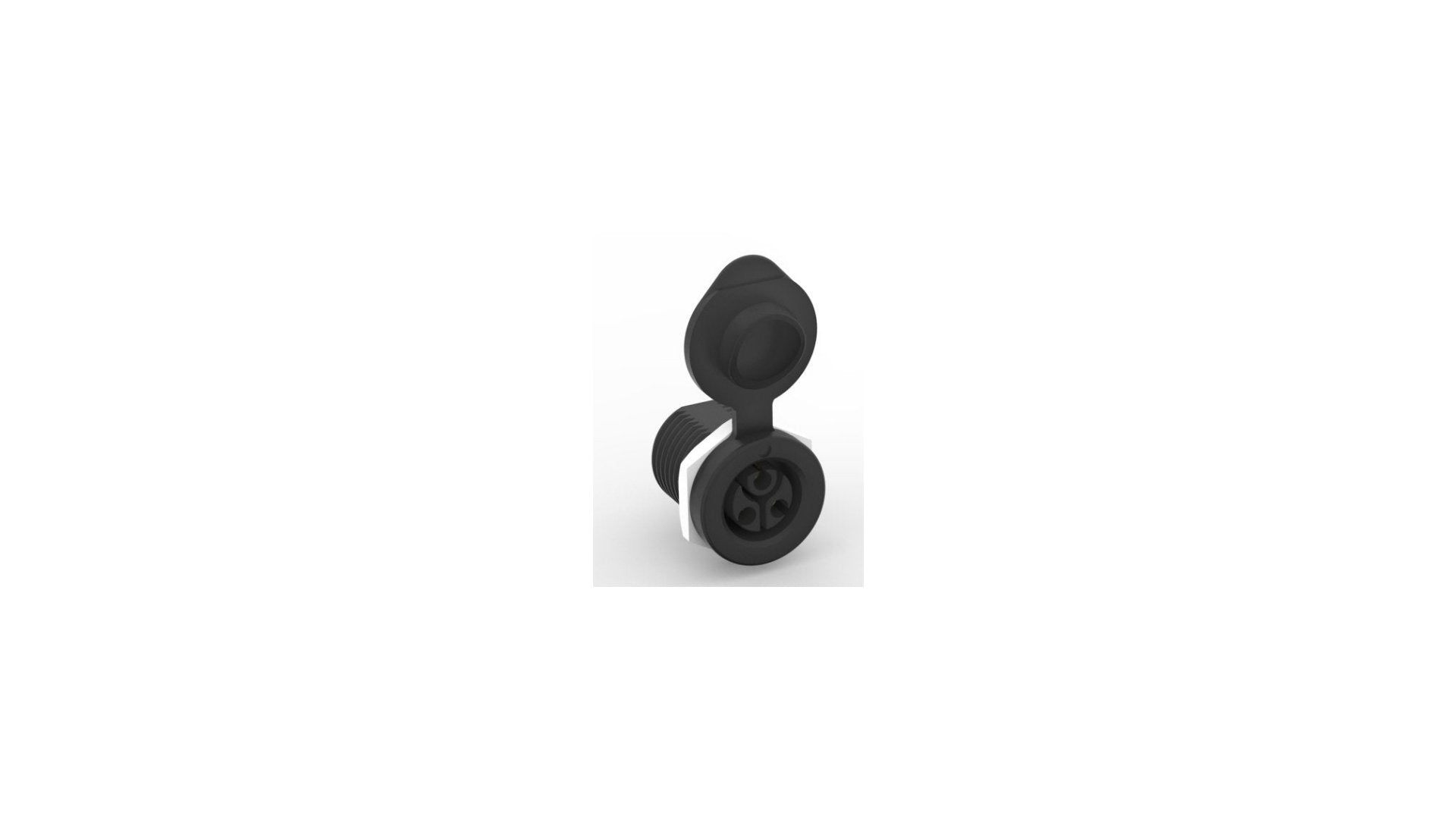

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

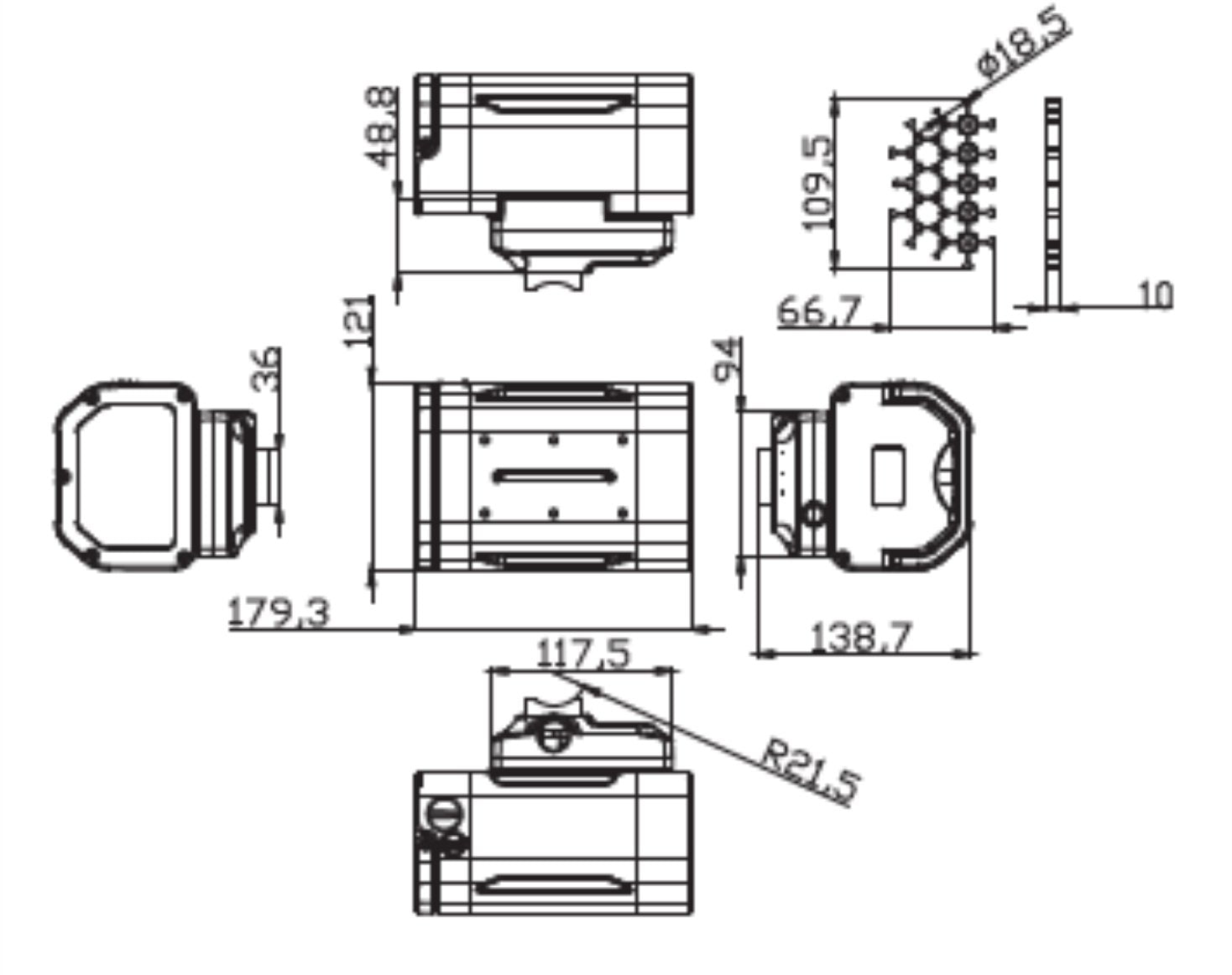

Dimensions: L 179mm - W 121mm - H 138mm (including bracket) refer to images

This battery also fits:

ECO-GO Electric Folding Bike

This battery is made to fit in a range of location, under the seat on the seat post, on bike frame, excellent for three wheeler etc.

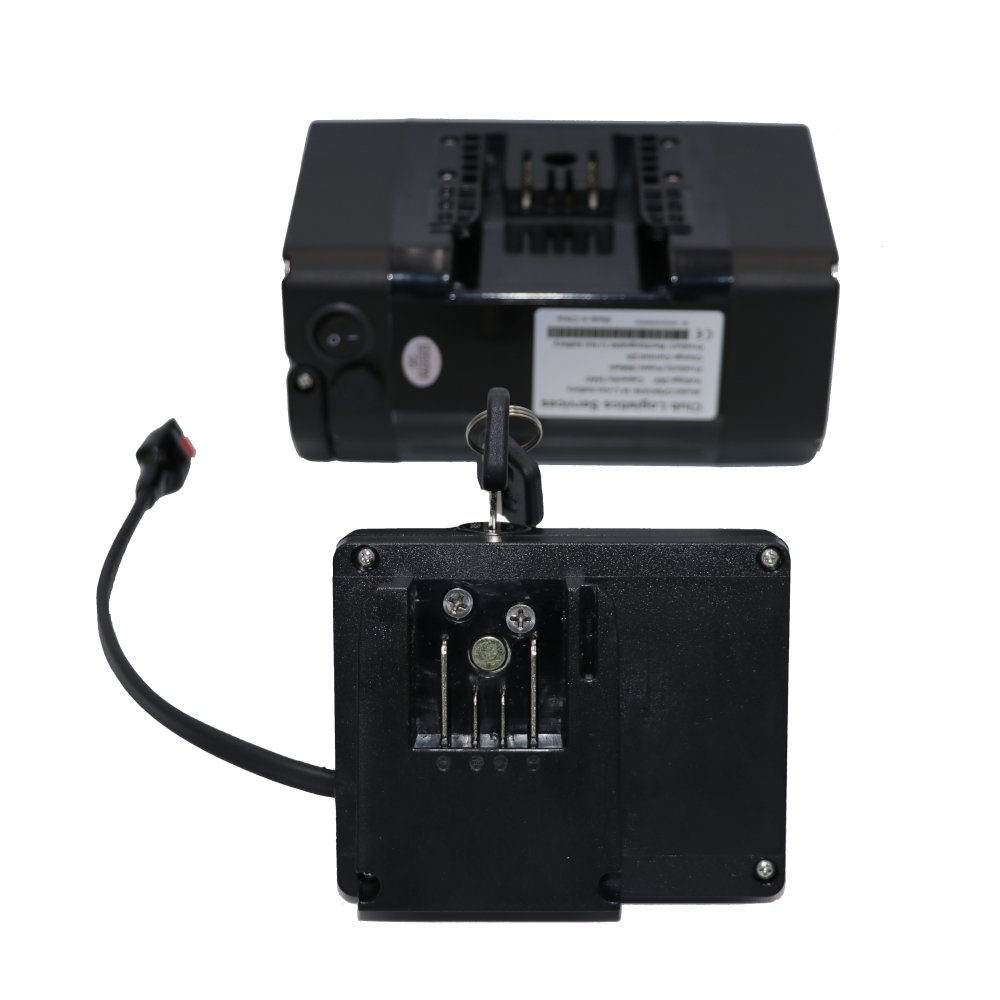

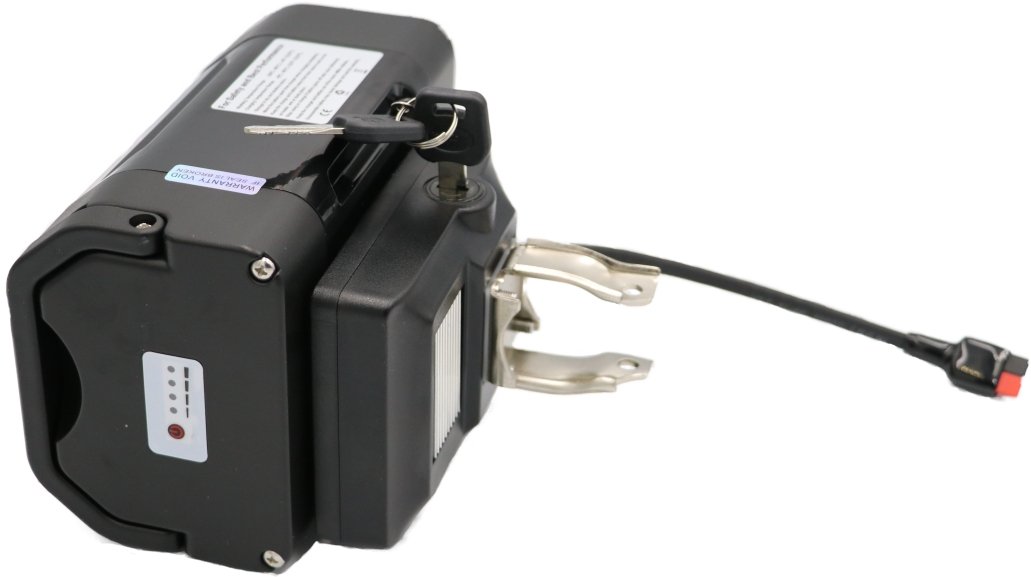

Your kit includes battery pack and mounting bracket

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 950W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 36 volts

• 10.4 Ah
• 374 Wh
• 10S3P
• Weight 2.30KG Excluding Charger
• Dimensions: L 179mm - W 121mm - H 138mm (Including bracket) refer to images
• 30A continuous discharge for motors upto 950W
• Samsung 29E cells, tested to EN62133-2-22017
• ST3 3 pin charging port
• 1-5A, 2A, 3A or 4A Battery charger options
• 5A maximum charge input
• 2 Keys included

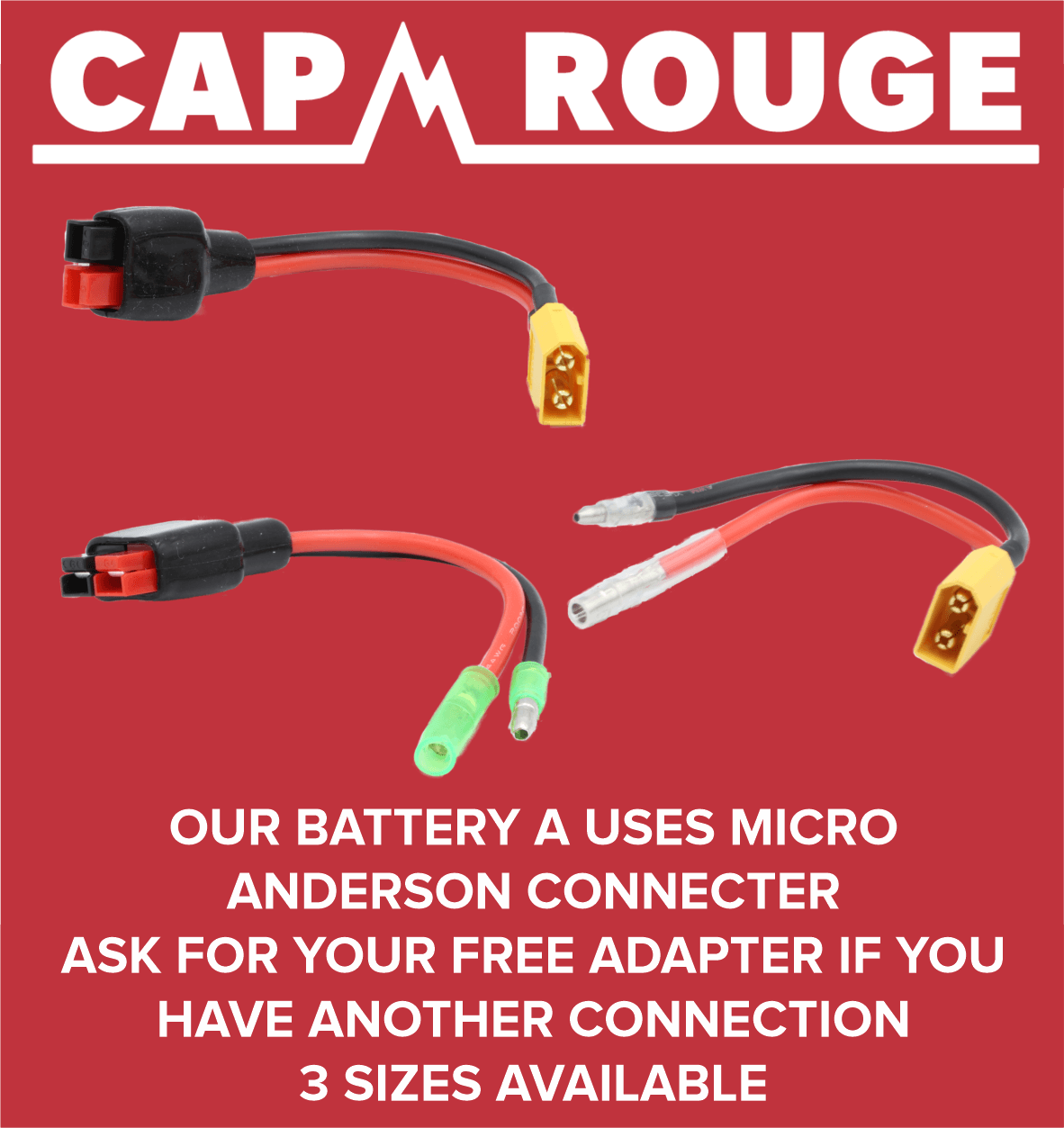

• Discharge cable with Micro Anderson connector
• Battery Management System (BMS) Managing

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
