Lekkie BB86/92 Bafang Adapter
EASY, SIMPLE, LIFESAVER.
Press Fit adapter – 41mm inner diameter.

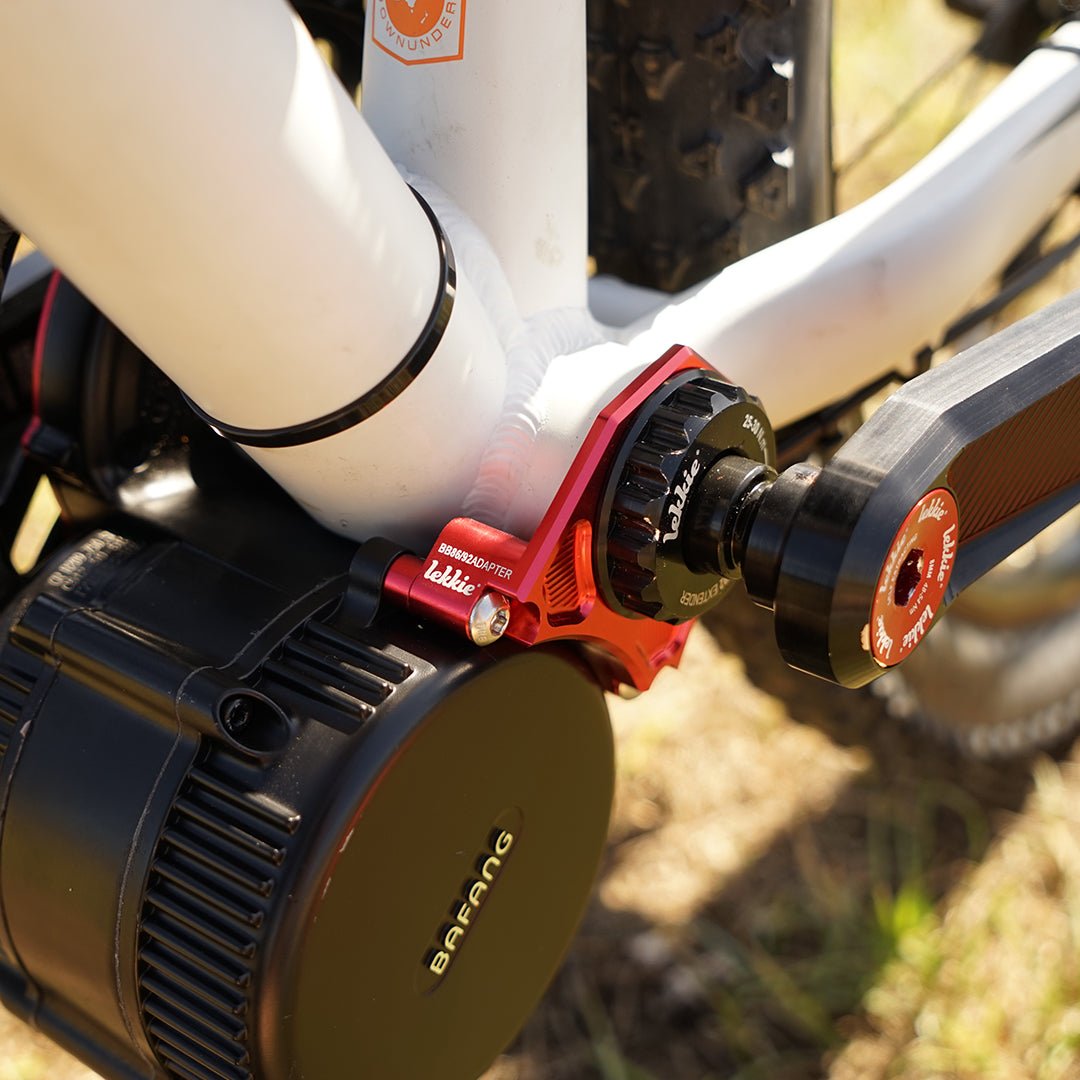

If your frame has a BB86 or BB92 bottom bracket, a standard Bafang BBS motor will not fit. The Lekkie BB86/92 Bafang Adapter makes it possible, and looks bling in doing so.
User manual click here https://www.lekkie.tech/wp-content/uploads/2020/04/BB92-Adaptor-User-Guide.pdf
Finally you can electrify those rad bikes with press-fit bottom brackets! No longer are the bike’s bottom bracket size dictating if it can or can’t be converted.

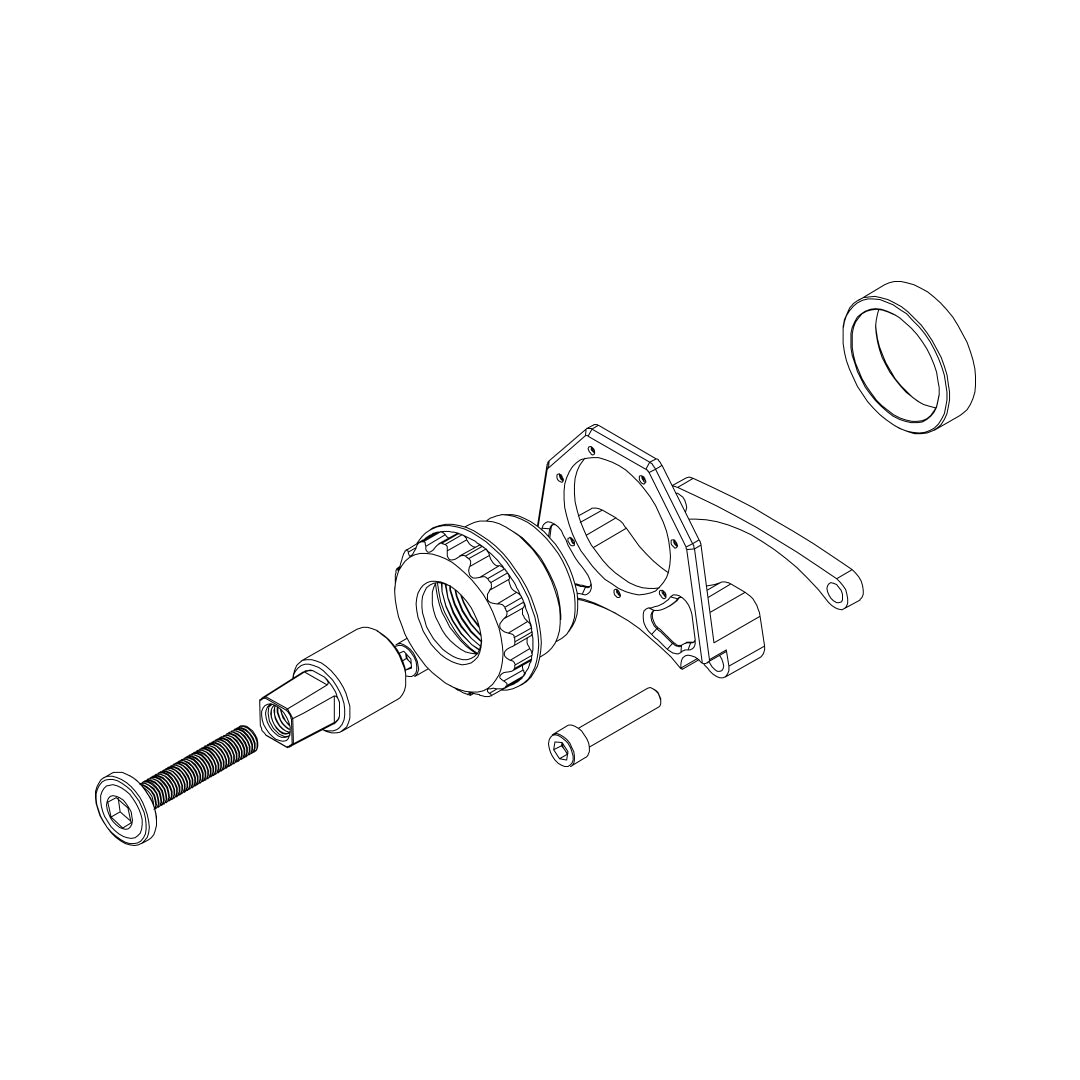

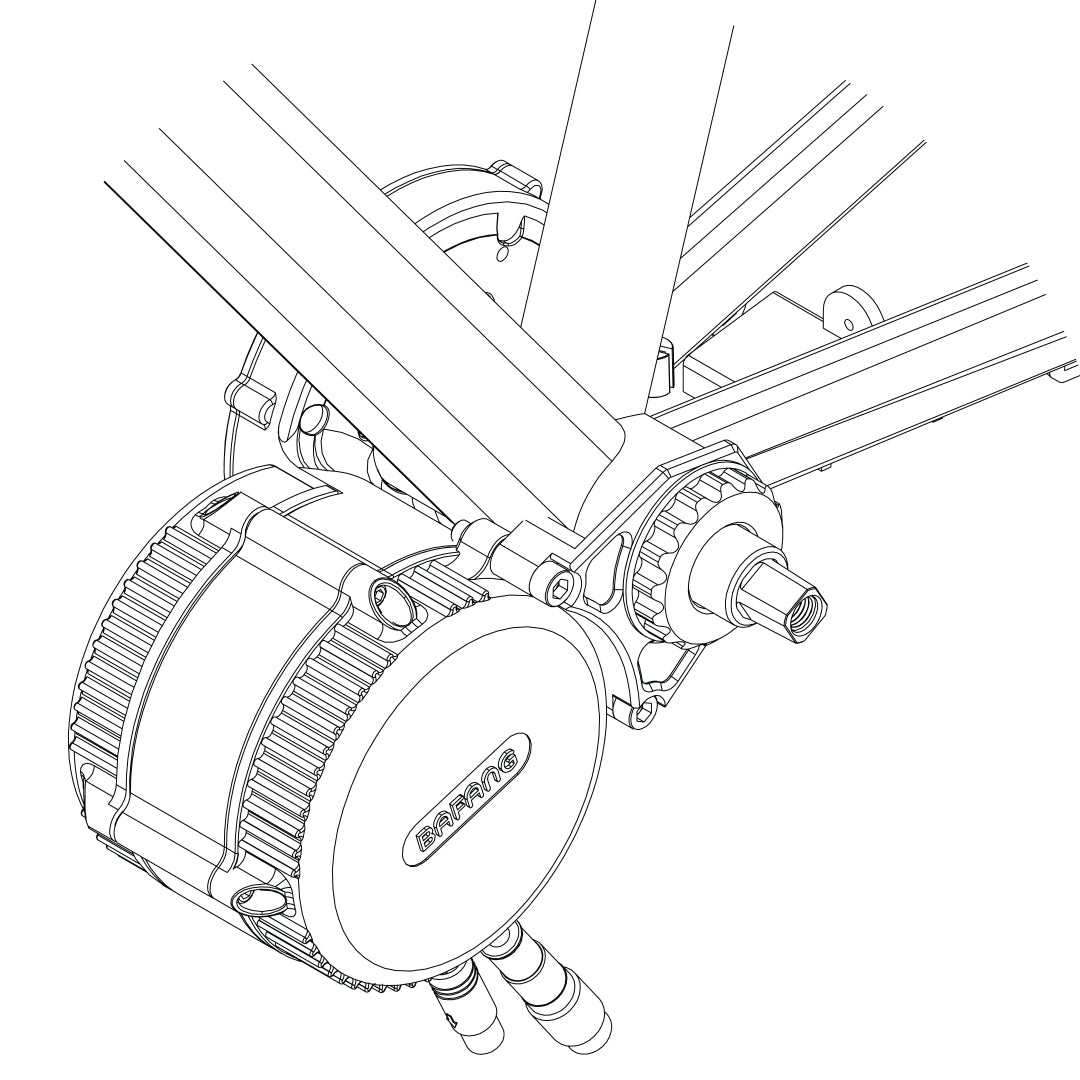

We designed the BB86/92 Adapter set to allow a 68mm Bafang motor to fit a BB86/BB92 bottom bracket (inner diameter 41mm) frame without having to modify or disassemble your motor.
This will only work with frame with 41mm inner diameter BB.
Note: This adapter is designed to work with frames with a BB frame tube outer diameter of less than 47mm ideally (48mm will work but motor will space out 2mm). Carbon frames often have a thick layer of carbon and the motor can’t fit. From our experience we have found frames with ISG chain guide mounts may require some modification as these mounts can interfere with motor clearance. Feel free to contact us before purchasing this if you are unsure.
Designed in New Zealand in true Lekkie style to be the premium choice!
Make sure you check the User/install Guide before install.

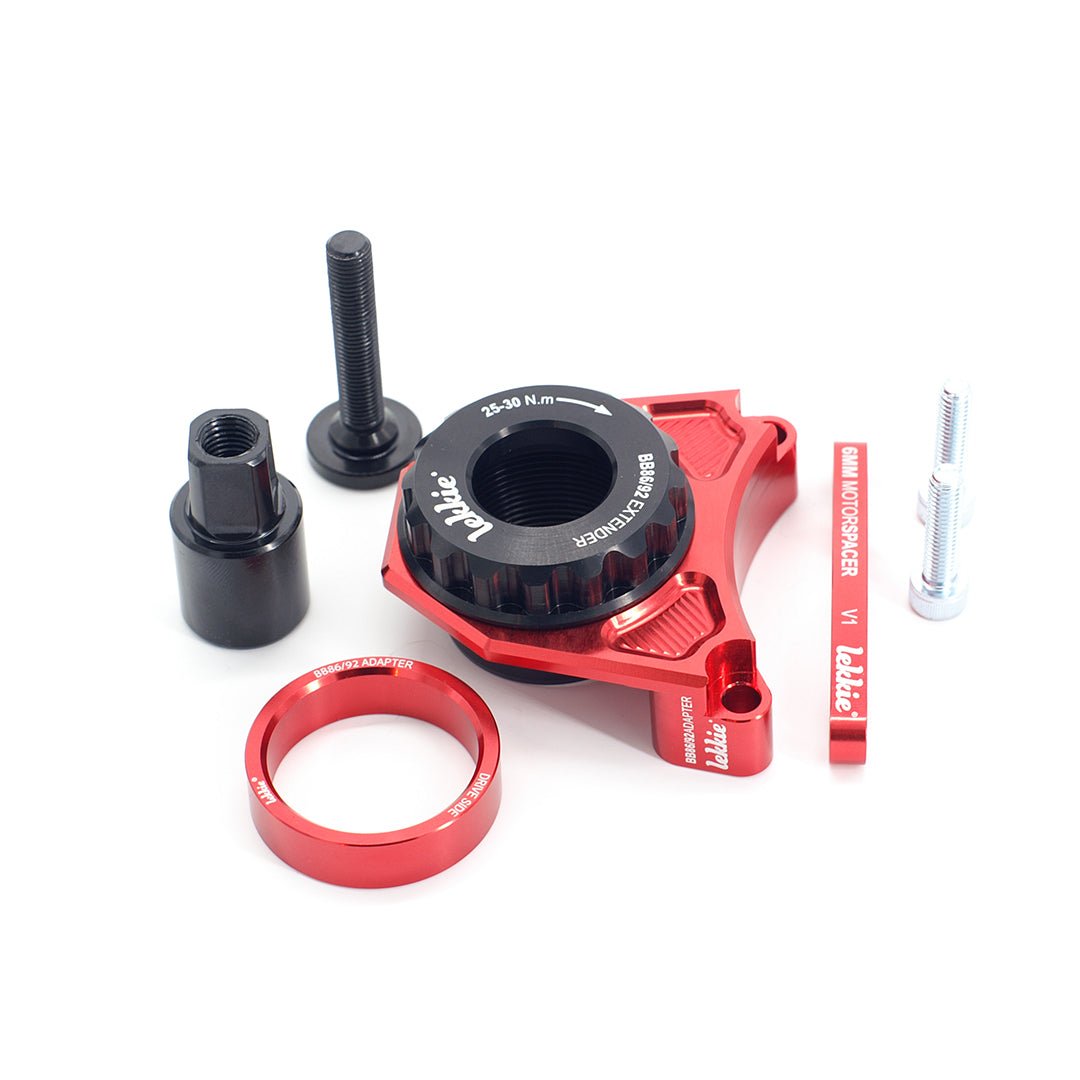

|Material||6061 T6 Aluminum, CNC machined, hardened steel axle extension|
|Finish||Anodized Black with Red plate|
|Frame Compatibility||41mm inner diameter (BB86/92), no larger than 48mm outer, 86 or 92mm wide|
|Version||1 Released 2020|
