EcoStore PRO 628Ah 12V LiFePO4 Battery - (REPT Cells & JBD Bluetooth BMS)
DESCRIPTION
Introducing the EcoStore Pro 628Ah
Developed from decades of innovation and tested in real-world conditions, the EcoStore Slimline Pro 628 isn't just an upgrade—it's a significant advancement in lithium battery technology. Compared to traditional Li-ion batteries, the ESPRO628 has enhanced energy density, improved safety, faster charging times, a longer lifespan, and its compact design ensures easy integration into a variety of systems. These features make the EcoStore Pro 628 the top choice for critical applications where performance and dependability are paramount.
Power with peace of mind
Our EcoStore Pro 628 features Grade A REPT prismatic cell technology and a robust 300A Software-Controlled JBD Battery Management System. This setup enhances safety and provides comprehensive protection against common battery issues such as overcharging, overdischarging, overheating, or short circuits. With this battery, you can expect stellar performance and durability, even in tough conditions.
SPECIFICATIONS
Type of Battery: Lithium-Iron Phosphate (LiFePO4)
Standard Voltage: 12.8V
Usable Capacity: 628Ah (8038Wh)
Cycle Life: 6000 @ 80% DoD
Charging Cut-Off Voltage: 14.8±0.2V
Discharge Cut-Off Voltage: 9.0±0.2V
Over-Charge Recovery Voltage: 14±0.2V or Discharge ≥ 2A
Over-Discharge Recovery Voltage: 10.8±0.2V or Charge ≥ 2A
Max. Continous Charging: Current 300A (1C)
Max. Continous Discharging: Current 300A (1C)
Peak Discharge Rate (1.5s): 1240±250A (4C+)
Battery Pack Assembly Method: 4S2P
Cell Type: REPT Grade A 3.2V 314Ah LFP Prismatic Cell
BMS Brand: JBD Smart 300A-S Programmable BMS
Charging Type: CC/CV
Charging Temperature: -10 ~ 65°C
Discharging Temperature: -20 ~ 75°C
Charging Temp Protection: ≥65±5℃
Discharging Temp Protection: ≥75±5℃
Maximum Battery Connectivity: Unlimited in Parallel/Four in Series
Input/Output Port Type: M10
Recommended Maximum Tightening Torque: 10.5 Nm

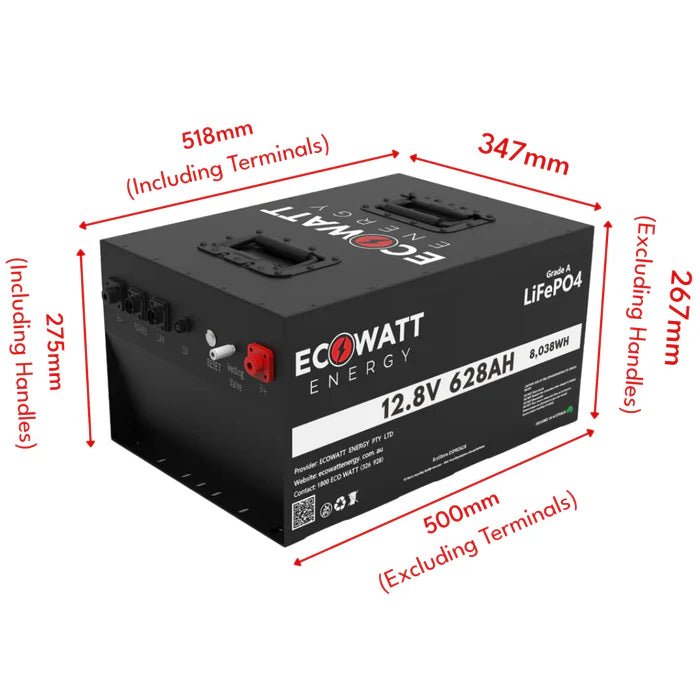

Dimensions: 518mmx347mmx275mm
Weight: 65KG
Case Material: Stainless Steel
Ip Rating: IP67
Fuctionalities:
- CANBUS/RS485 (Victron)
- BMS Protection Reset Switch
- BMS Bypass Charging
- Venting Hole and Kit included for easy AS 3001.2 compliance
Certifications: IEC62619/UL1642A/UN38.3/ROHS
Warranty: 5 Year Full Replacement Warranty
Bluetooth BMS: Yes, via EcoWatt Energy Connect app
FAQ
What is an A-Grade Cell?
An A-Grade Cell refers to a battery cell that meets the highest standards of quality and performance. These cells are rigorously tested and graded based on their capacity, voltage, and overall reliability. At EcoWatt, we meticulously select only the highest quality A-Grade Cells to ensure superior cycle life, consistent performance, longer lifespan, and greater safety compared to lower-grade cells, making them the top choice for premium battery products.
How do I use the Bluetooth Monitoring Feature?
To use the Bluetooth Monitoring Feature, first download the EcoWatt Energy Connect app from the Apple App Store or Google Play Store. Then, open the app, connect to your battery, and start monitoring.
My Charger says the battery is fully charged, but the app is not showing 100% charge, why?
Sometimes, the State of Charge (SOC) display on the app may not be fully accurate until the battery has gone through a few full charge and discharge cycles. The BMS needs time to 'learn' the battery’s parameters and adjust accordingly before the Bluetooth monitoring provides precise readings.
What are your Recommended Charger/Shunt Settings?
-
Charged voltage: 14v
-
Bulk charging voltage: 14.2v
-
Float voltage: 13.5v
-
Storage voltage: 13.3v
-
Discharge floor: 10%
-
Tail current: 1%
-
Peukert exponent: 1.01
-
Charge efficiency factor: 99%
-
Current threshold: 0.1A
-
Charge detection and Time to go averaging period: These can remain unchanged
Can I use the EcoStore PRO 628 under the bonnet?
No, it is not recommended to use the EcoStore Pro 628 under the bonnet. We advise against using our LiFePO4 batteries for under bonnet applications due to their lower thermal tolerance compared to other battery types, such as lead-acid or AGM. The engine compartment can reach high temperatures, particularly in demanding conditions or during extended use, which can degrade the battery's performance, lifespan, and safety.
How do I connect to the Cerbo GX with CANbus?
To connect your ESPRO628 or ESPRO24V314 battery to a Victron Cerbo GX via CANbus, use the supplied Ethernet cable and plug one end into the battery’s CAN port. Plug the other end into either the VE.Can 1 or VE.Can 2 port on the Cerbo GX.
Once connected, go to Settings > Services on the Cerbo GX.
For VE.Can 1, select VE.Can Port, then choose CAN-bus BMS (500 kbit/s).
For VE.Can 2, select BMS-Can Port, then choose CAN-bus BMS (500 kbit/s).
Once configured, the Cerbo GX should detect the battery and display the available BMS information.
ACCESSORIES COMPATIBILITY / RECOMMENDATIONS
1. AC-DC Chargers / Inverter-Chargers
These devices allow your system to draw from AC mains (shore power, generator, grid) and convert to DC to charge your batteries
Recommended Models:
Victron MultiPlus / MultiPlus II inverter/charger series
Victron Blue Smart series
support custom charging profiles for lithium (LiFePO4) and allow easy monitoring and updates via the VictronConnect app.
2. DC-DC Converters / Chargers
DC-DC chargers are used mainly when you want to safely charge your battery bank from another DC source (for instance, from an alternator).
Recommended Models:
Victron Orion‑Tr Smart Series DC‑DC Charger
Victron Orion‑XS Series DC‑DC Charger
These are excellent if you have a “start battery + house battery” separation
3. MPPT (Maximum Power Point Tracking) Solar Charge Controllers
MPPT controllers extract the maximum power from solar PV panels, converting varying panel voltages into optimal charging currents for the battery.
Recommended Models:
Victron SmartSolar MPPT Series - Bluetooth Compatible
Victron BlueSolar MPPT Series - Need Separate Bluetooth Dongle.
4. Shunt / Battery Monitoring
A shunt-based battery monitor can be used to measure state-of-charge, energy used, and input/output flows.
Recommended Model:
Victron SmartShunt - small, accurate, Bluetooth-enabled
