48V 20Ah / 960Wh Downtube Samsung eBike Battery CPPOLC48 - 20 - Cap Rouge

48V 20Ah / 960Wh Downtube Samsung eBike Battery CPPOLC48-20

by Cap Rouge
$791.00 - $791.00
$791.00
$791.00 - $791.00
$791.00

48 Volt

20 AH

960 Wh

Samsung 50G 5000mah 21700 Cells

50A Continuous Discharge BMS - For Motors Up To 2300 Watts

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

Reention DP-21700-5C Casing

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Dimensions: L  367mm - W 95mm - H 125mm

Battery Case Model - Reention DP-21700-5C - Same cradle/bracket used for DP-4C, DP-5C, DP-6C, DP-7C, DP-9C

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2300W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used



  • 48 Volts
  • 20 Ah
  • 960 Wh
  • 13S4P
  • Battery case model - Reention DP-21700-5C - Same cradle/bracket used for DP-4C, DP-5C, DP-6C, DP-7C, DP-9C

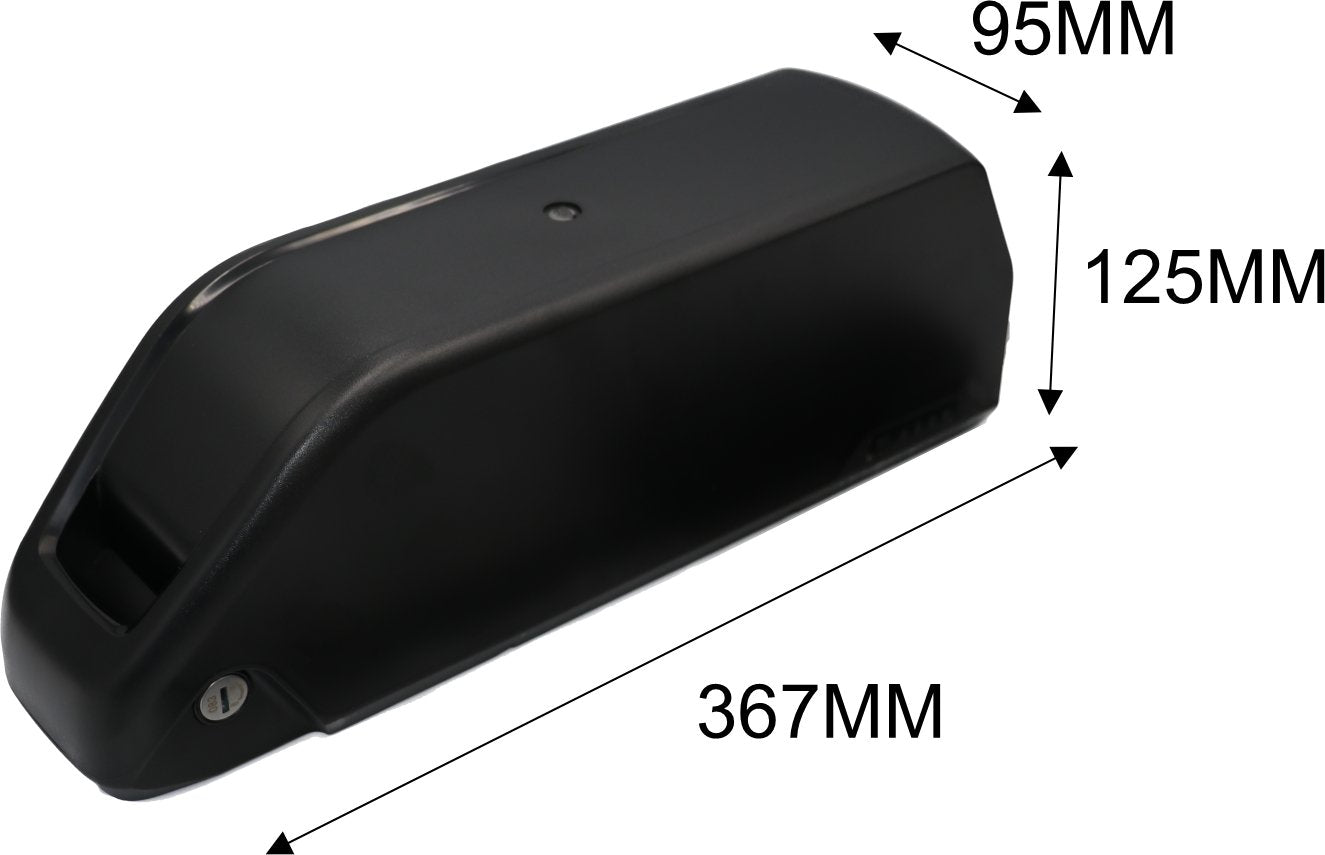

  • Dimensions: L 367mm - W 95mm - H 125mm
  • 13S4P
  • Samsung 50G 21700 5000mAh cells
  • 4.95kg, including bracket / excluding charger
  • 50A continuous discharge, for motors up to 2300W
  • 1-5A, 2A, 3A, 4A or 1-5 variable battery charger options

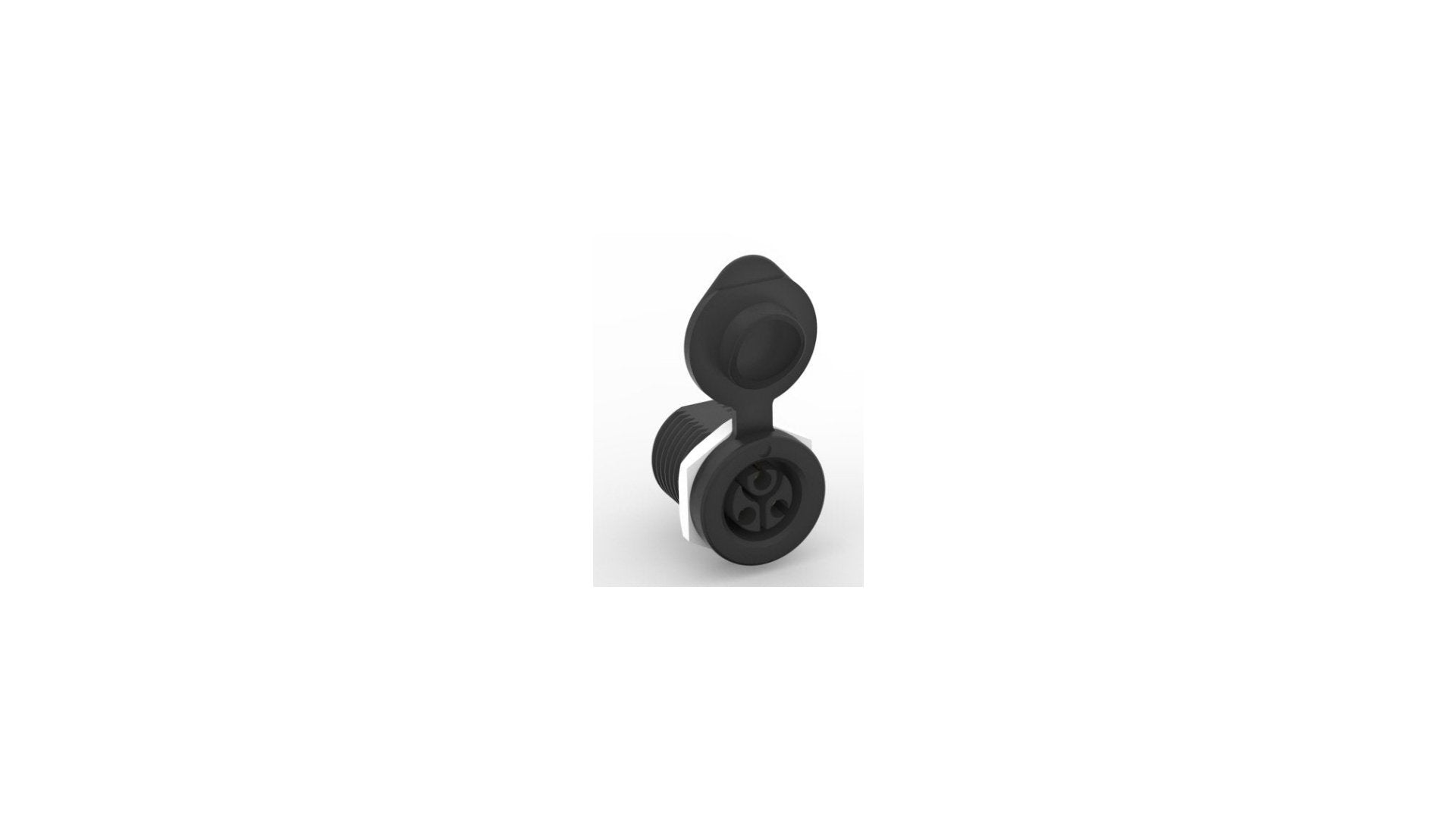

  • ST3 3 pin charging port
  • 5A maximum charge input
  • Discharge cable with micro Anderson connector

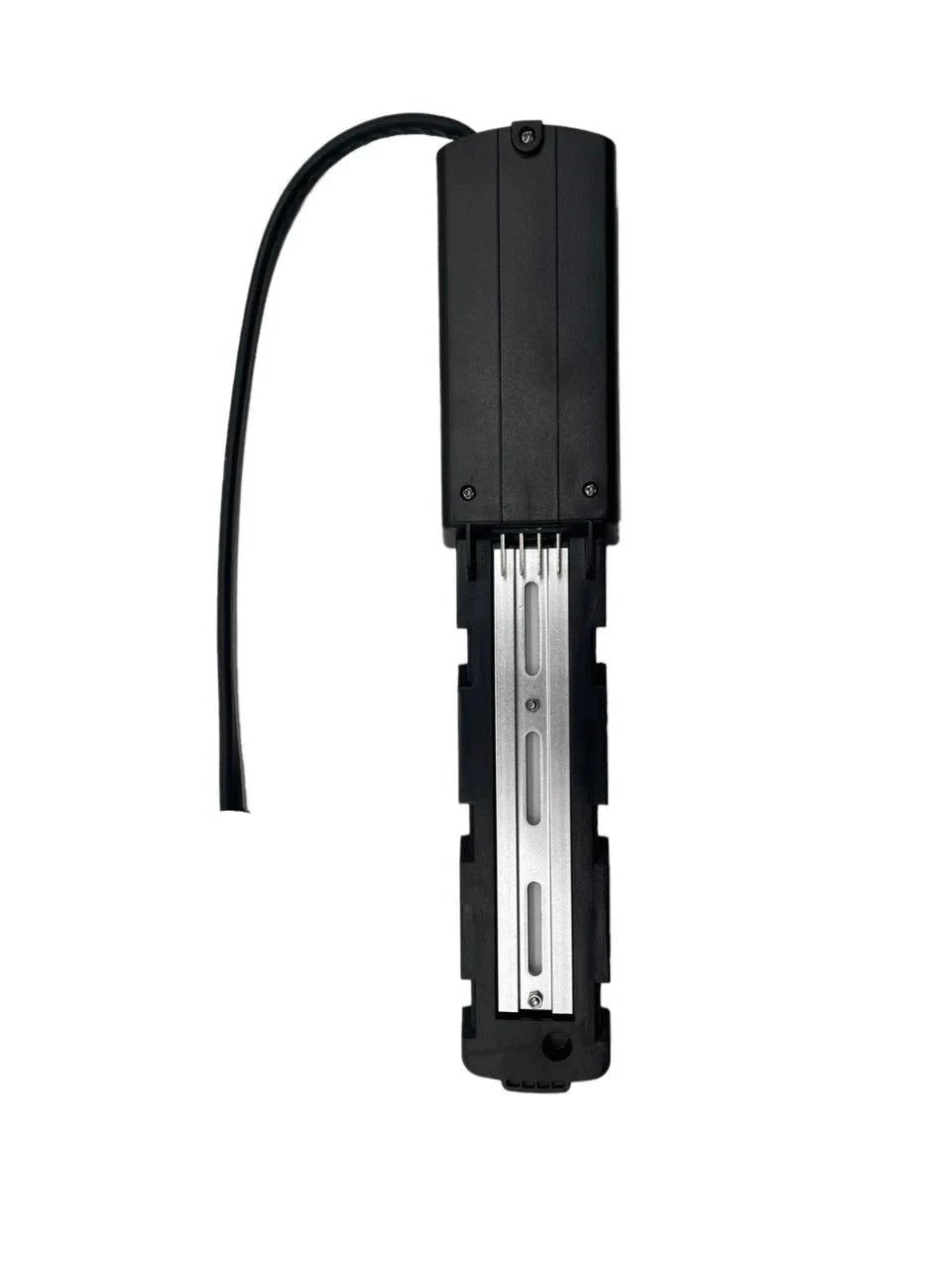

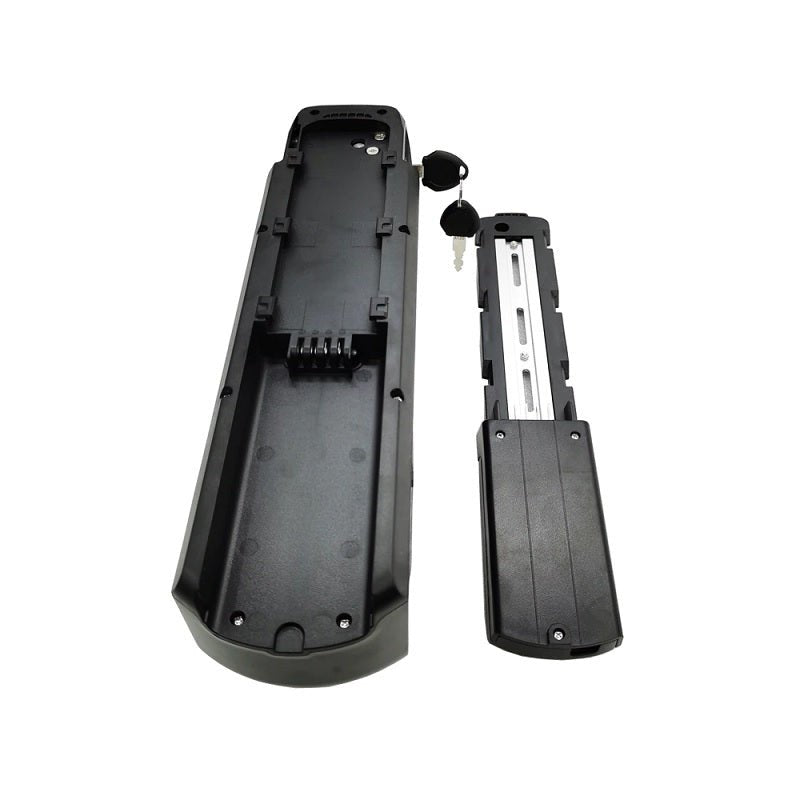

  • Battery cradle/bracket included
  • Battery power indicator
  • 2 keys included
  • Battery Management System (BMS)
  1. Charging voltage
  2. Balance voltage for single cell
  3. Current consumption
  4. Maximal continuous charging current
  5. Maximal continuous Discharging current
  6. Over charge Protection
  7. Over discharge protection
  8. Over current protection
  9. Short protection
  10. Resistance Protection
