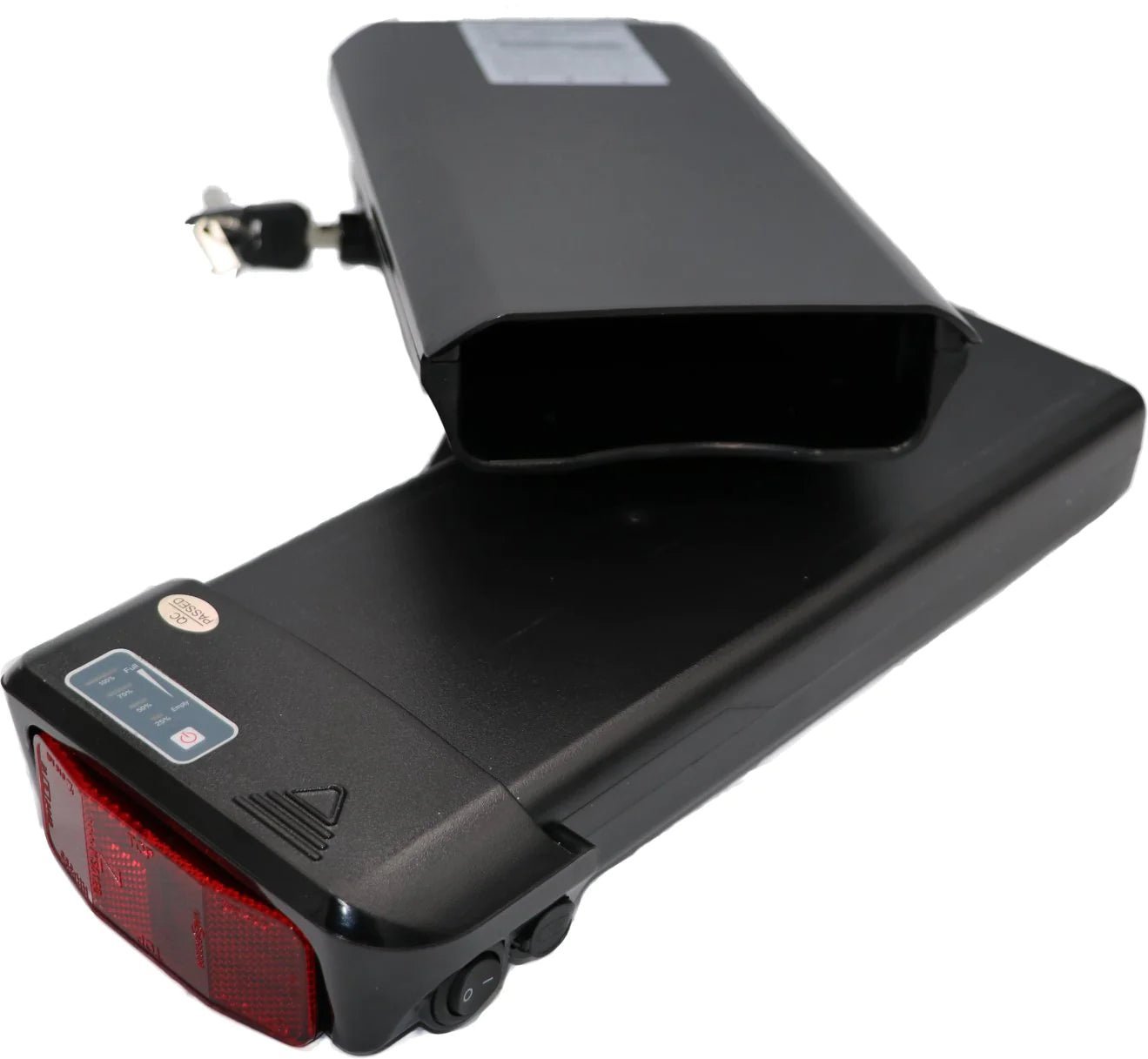

36V 14Ah / 504Wh Rear Rack Samsung eBike Battery With Rack CPSSE36-14-WR - Cap Rouge

36V 14Ah / 504Wh Rear Rack Samsung eBike Battery With Rack CPSSE36-14-WR

by Cap Rouge
$641.00 - $641.00
$641.00
$641.00 - $641.00
$641.00

36 Volt

14 Ah

504 Wh

Samsung 35E 18650 Li-ion Cells

25A Continuous Discharge BMS - For motors Up To 850 Watts

High Quality Rear Rack Battery

2A, 3A, 4A or 1-5 Variable Battery Charger Options

ST3 3 Pin Charging Port

Removable Branding

UN38.3 Certification and MSDS

SSE027 Case

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

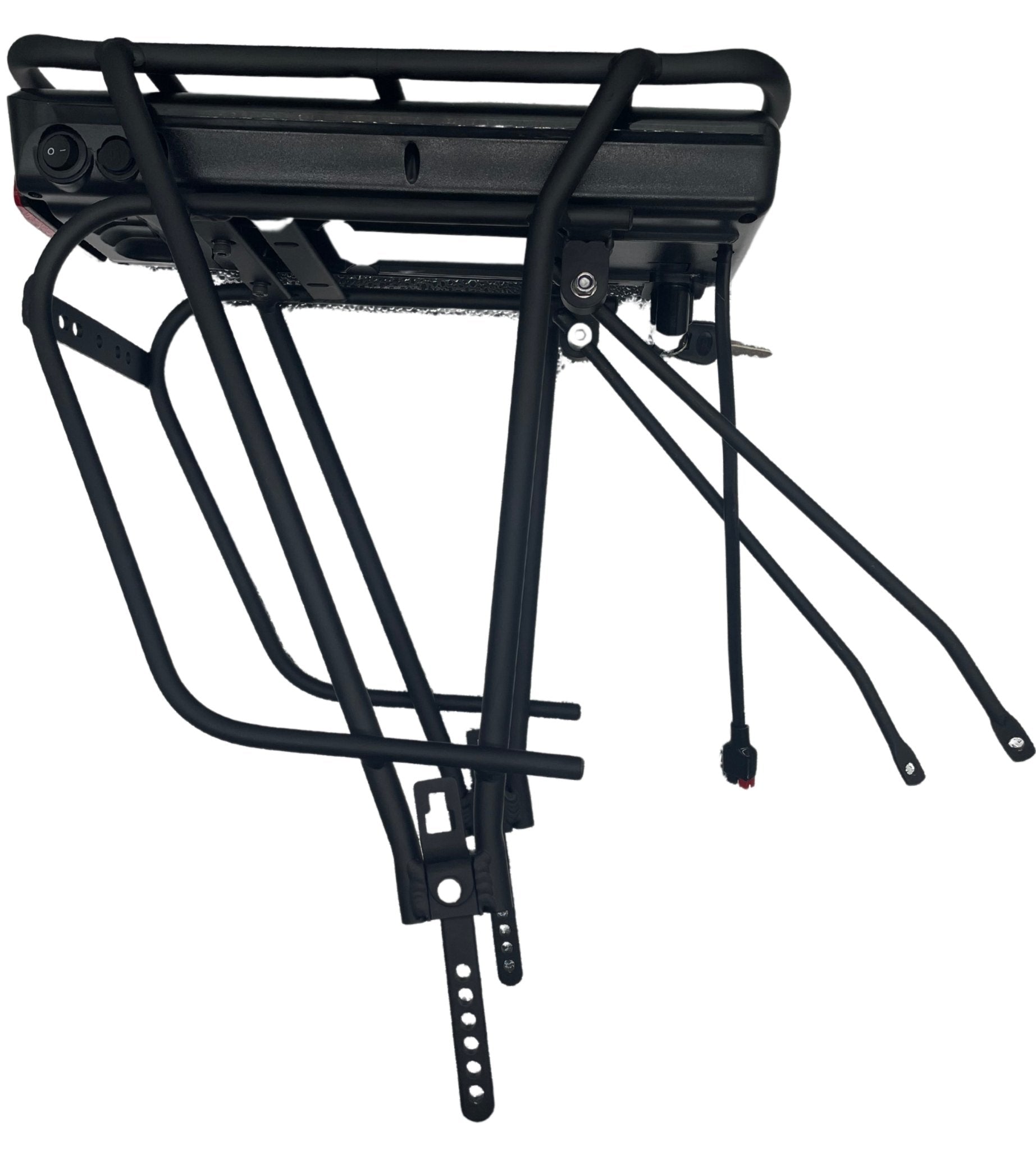

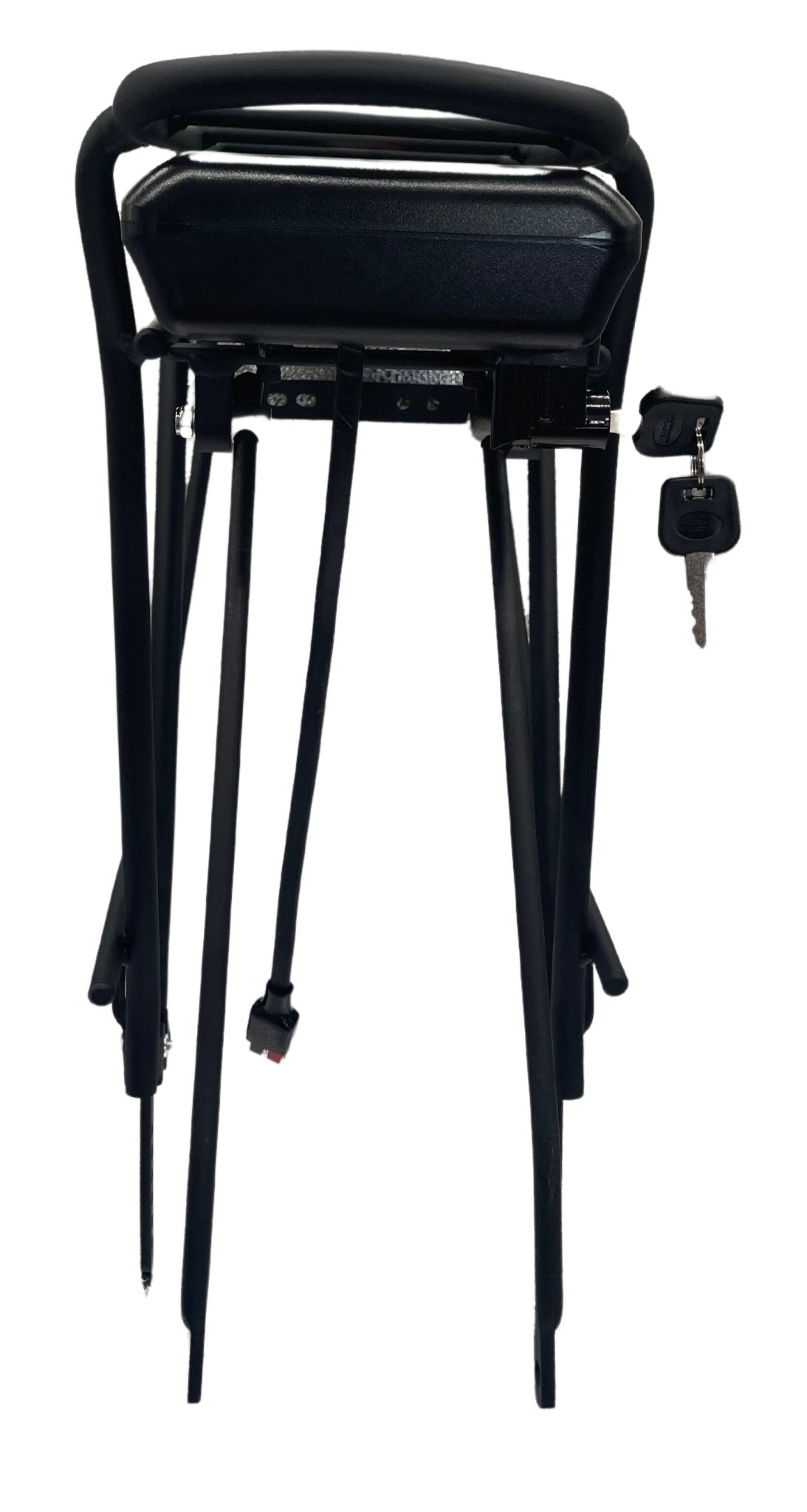

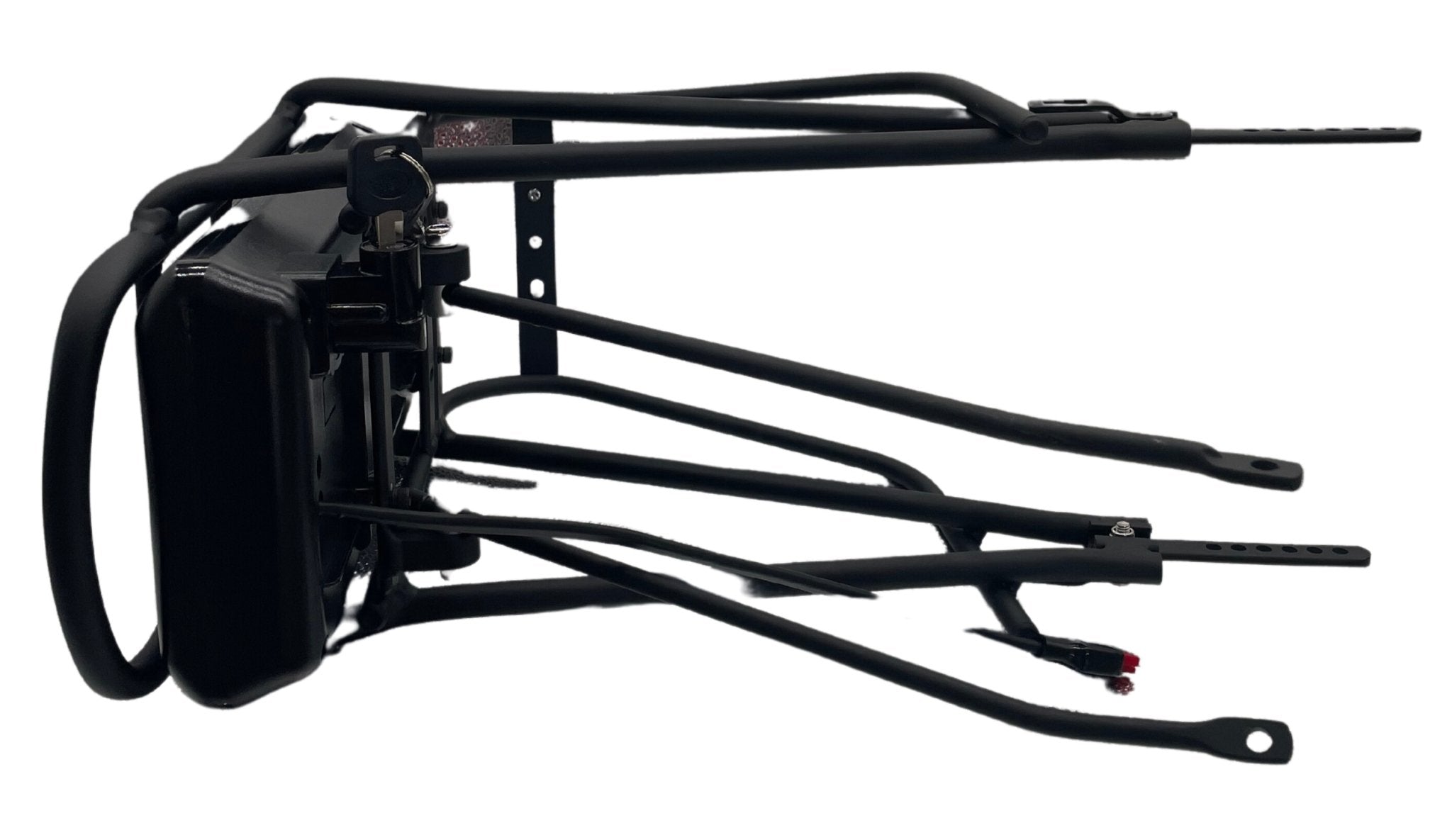

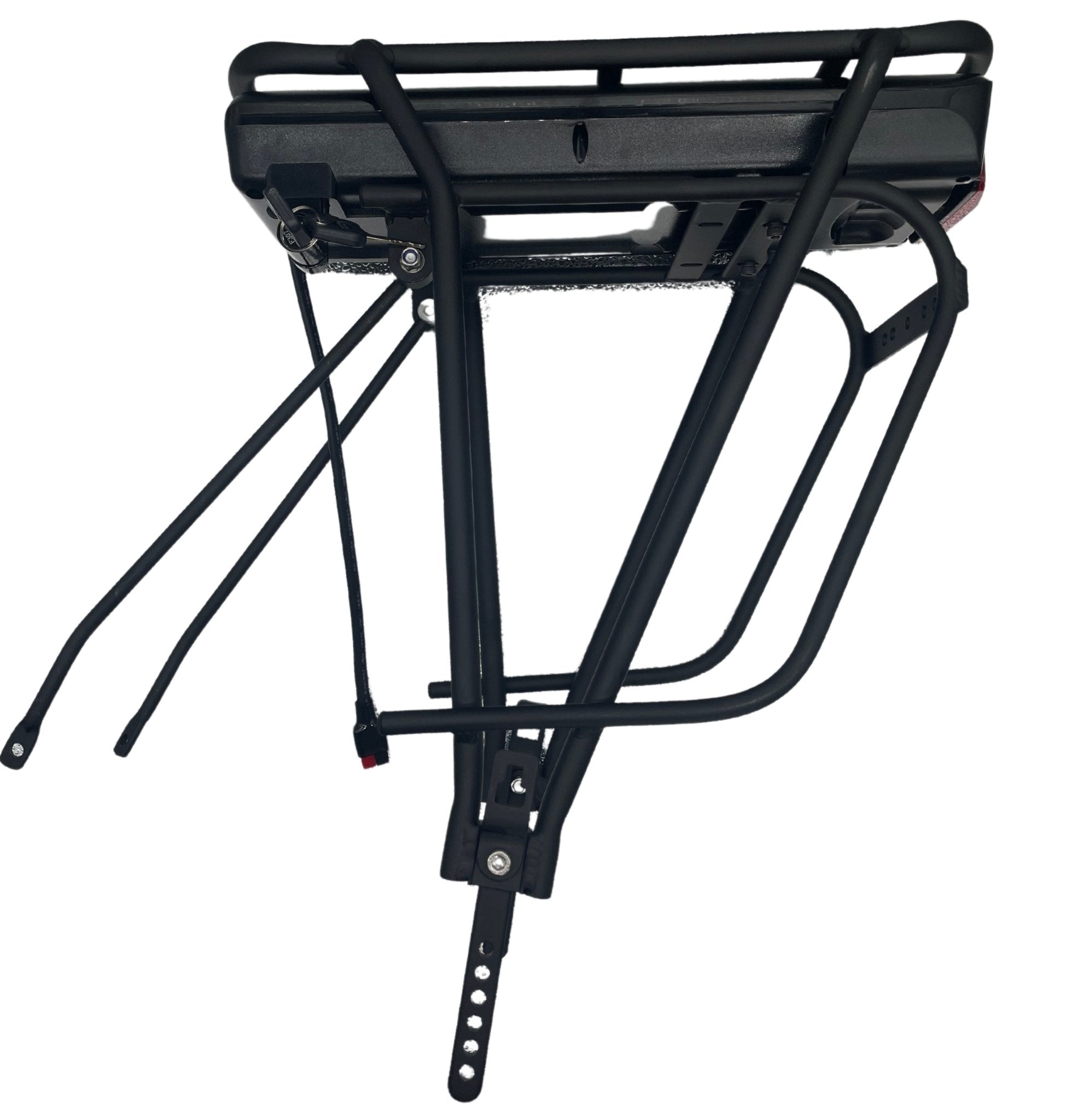

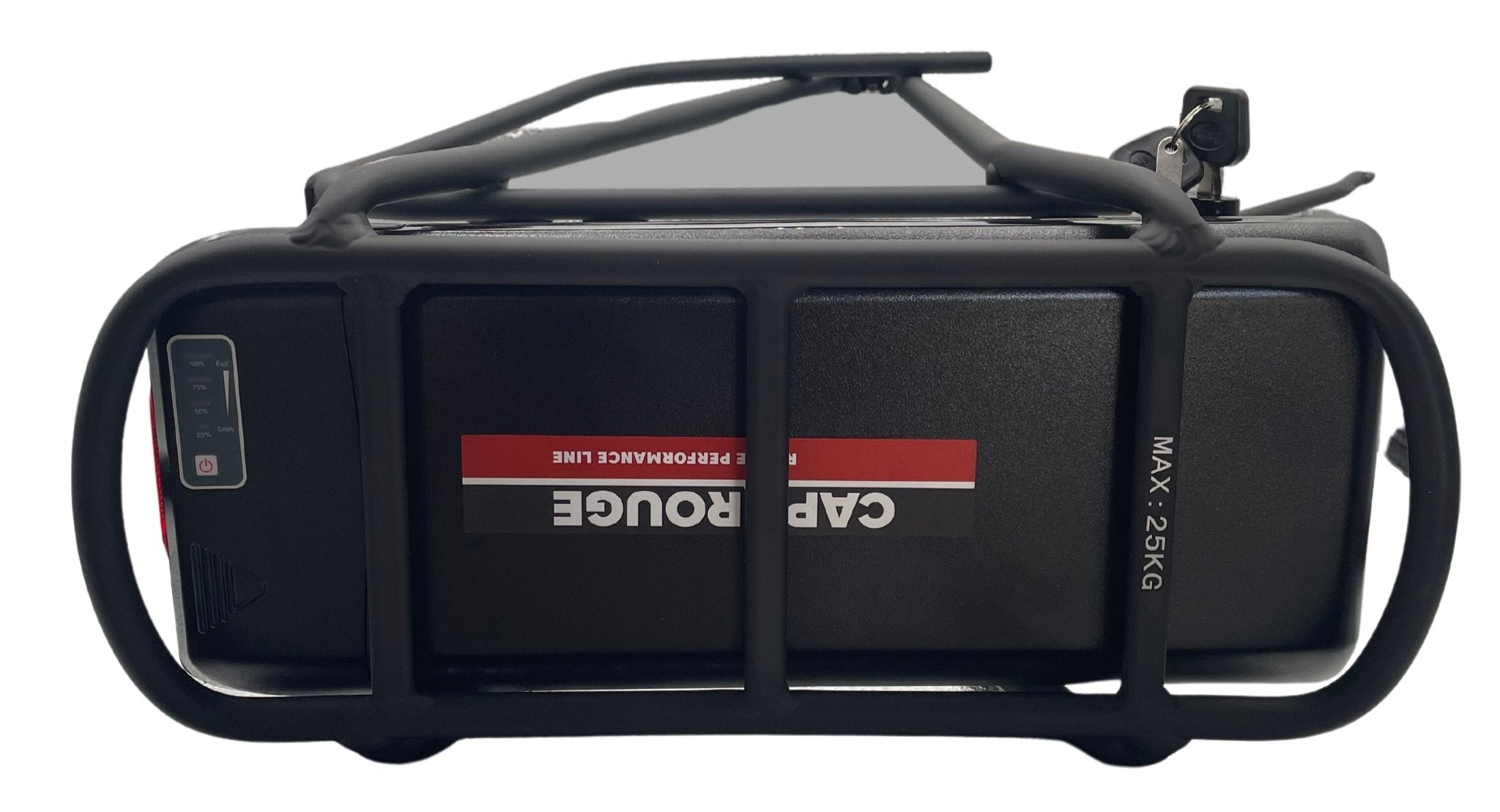

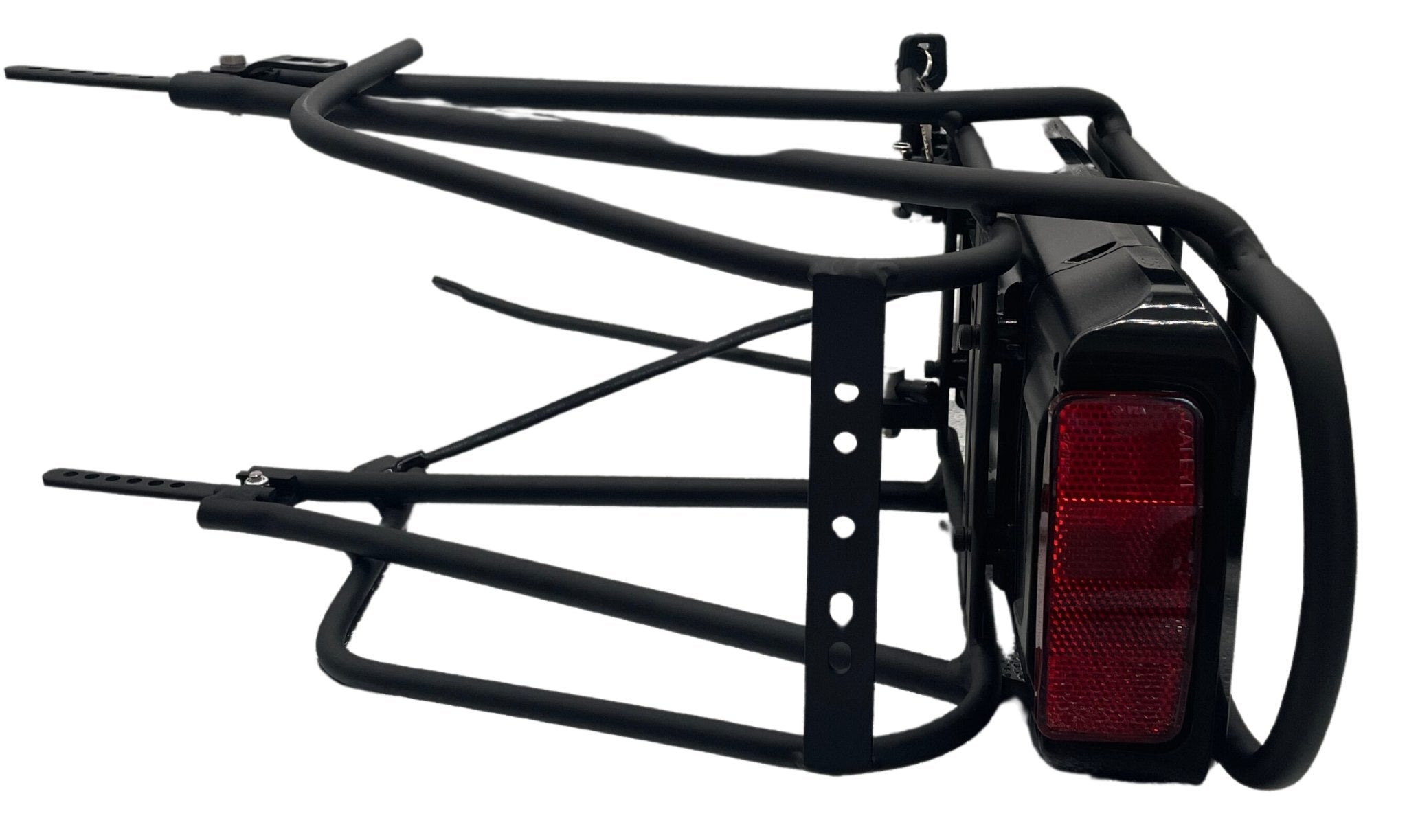

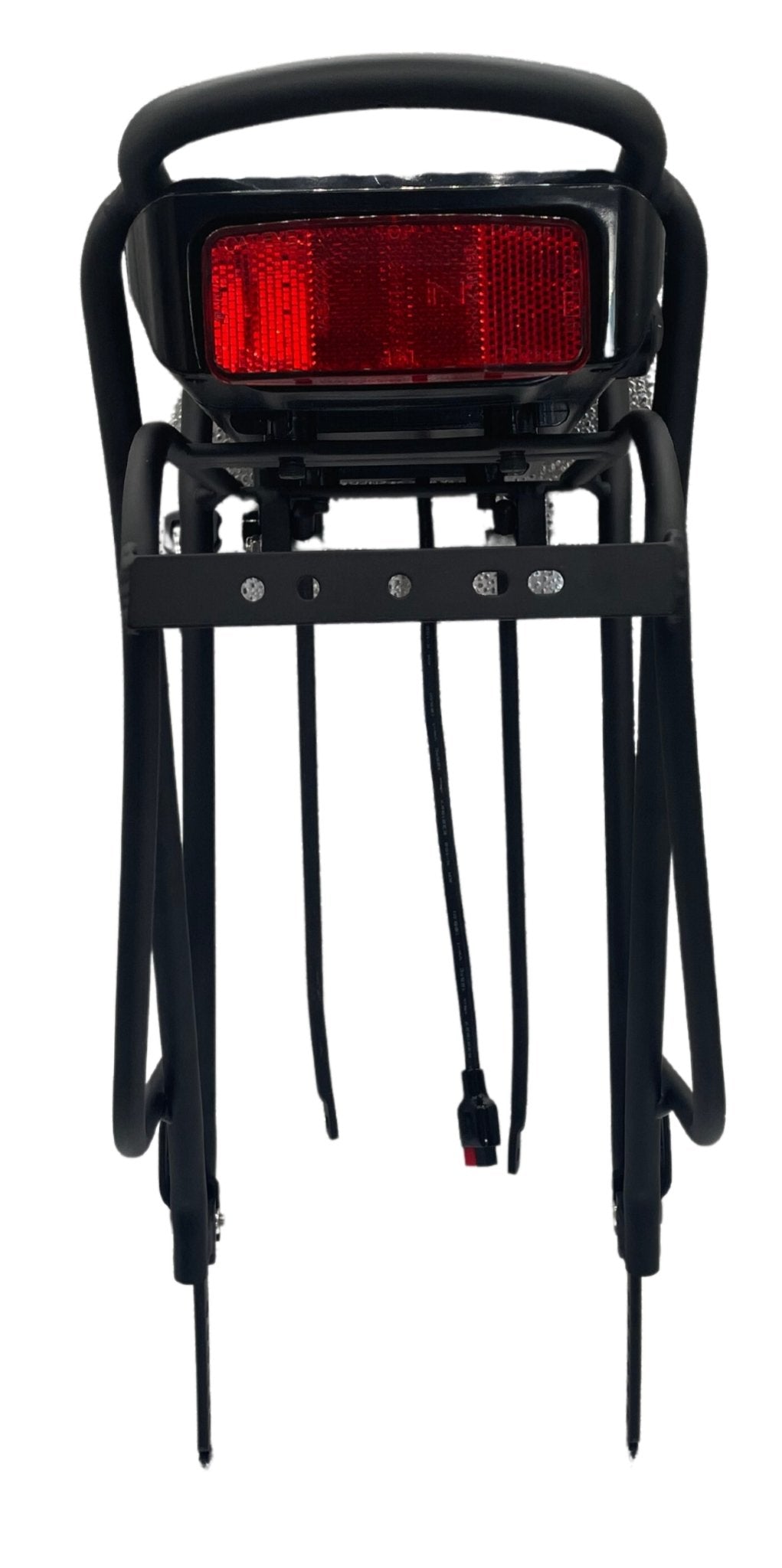

Rear Rack Battery With Rear Rack

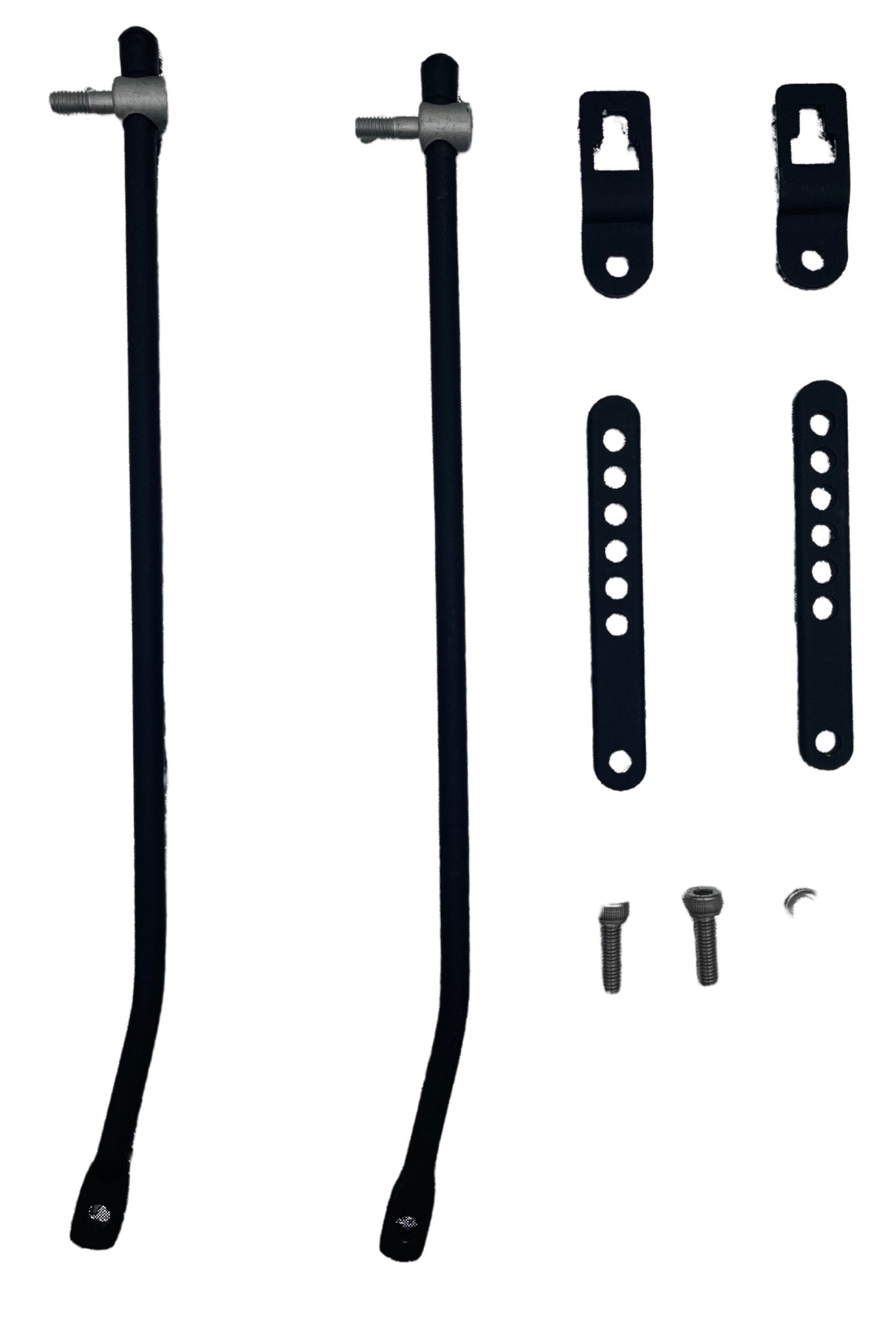

Rear Rack And Mounting Hardware Included

(Height adjustable for wheel size)

Rack and Battery Dimensions 390mm Long x 180mm Wide x 385mm Not including Adjustable Leg length

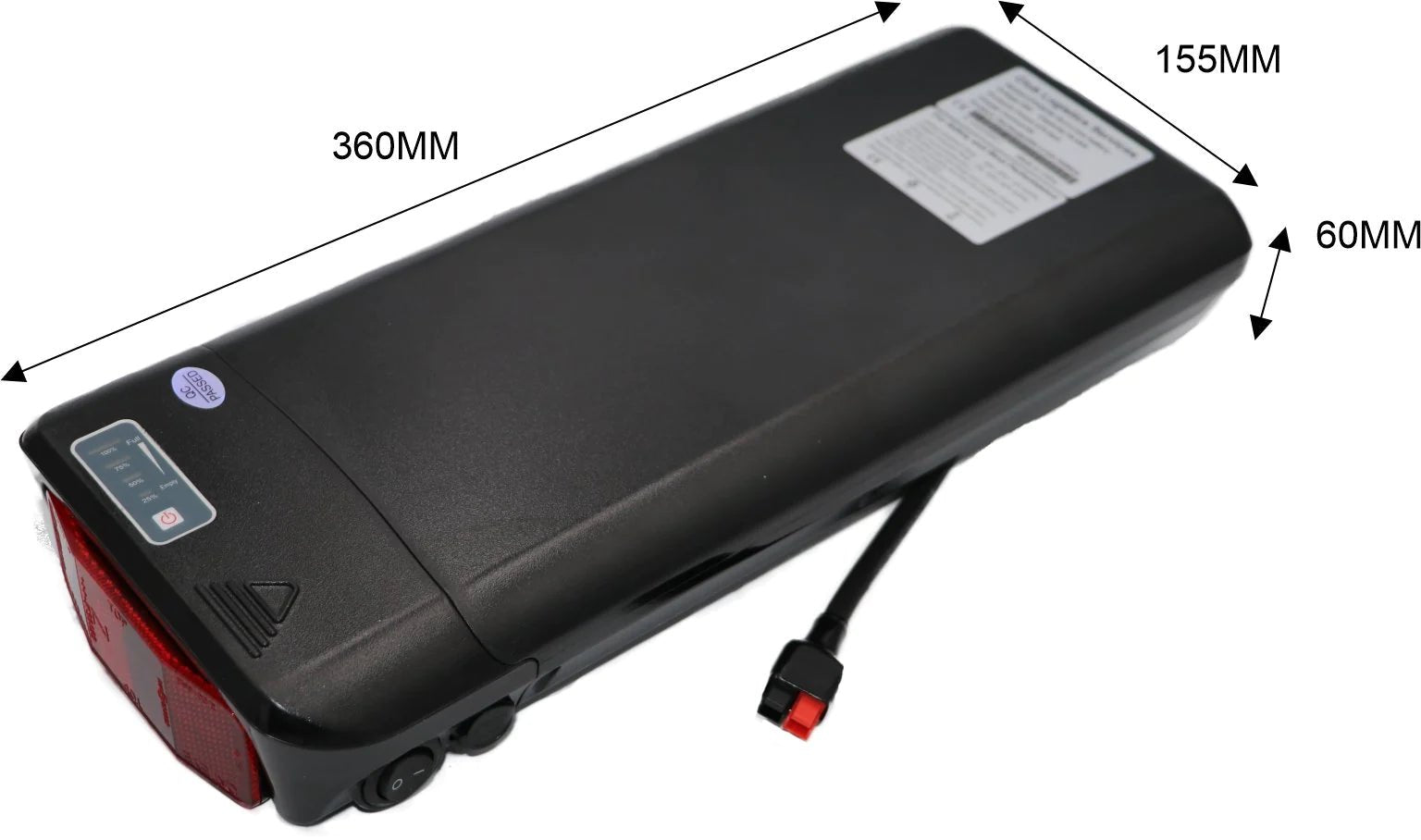

Battery Dimensions: L 360mm - W 155mm - H 60mm

Adjustable Rack - Fit's 26", 27.5", 28", 29", 700C Bikes With Common 135mm Dropout

Your battery includes everything you need to replace your current, or install a new rear rack battery. These are normally fitted to the rear rack of the bike

Popular SSE-027 battery, fits a wide range of imported bicycles, or can be used to fit a new battery on your rear rack. Coming with battery pack, battery retaining bracket and charger

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 850W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

  • 36V
  • 14 Ah
  • 504 Wh
  • 13S4P
  • Dimensions: L 360mm - W 155mm - H 60 mm
  • Samsung 35E cells, tested to EN62133-2-22017
  • Weight 3.15 kg
  • ST3 3 pin charging port
  • 1-5A, 2A, 3A or 4A Battery charger options
  • 5A maximum charge current
  • Keys with docking station included

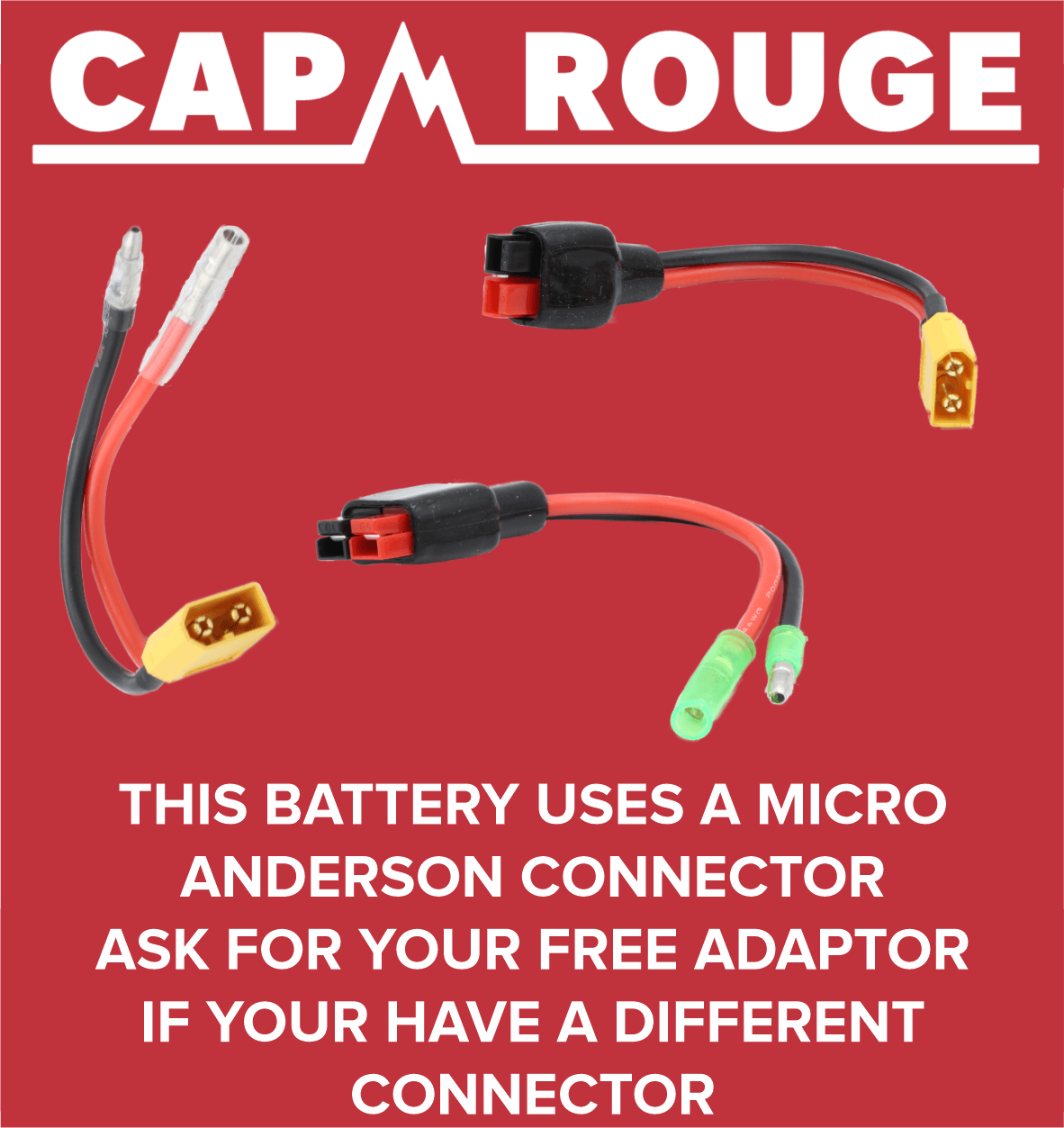

  • Discharge cable with Micro Anderson connector
  • Continuous discharge 25A
  • Battery Management System (BMS) Managing
  1. Charging voltage
  2. Balance voltage for single cell
  3. Current consumption
  4. Maximal continuous charging current
  5. Maximal continuous Discharging current
  6. Over charge Protection
  7. Over discharge protection
  8. Over current protection
  9. Short protection
  10. Resistance Protection
