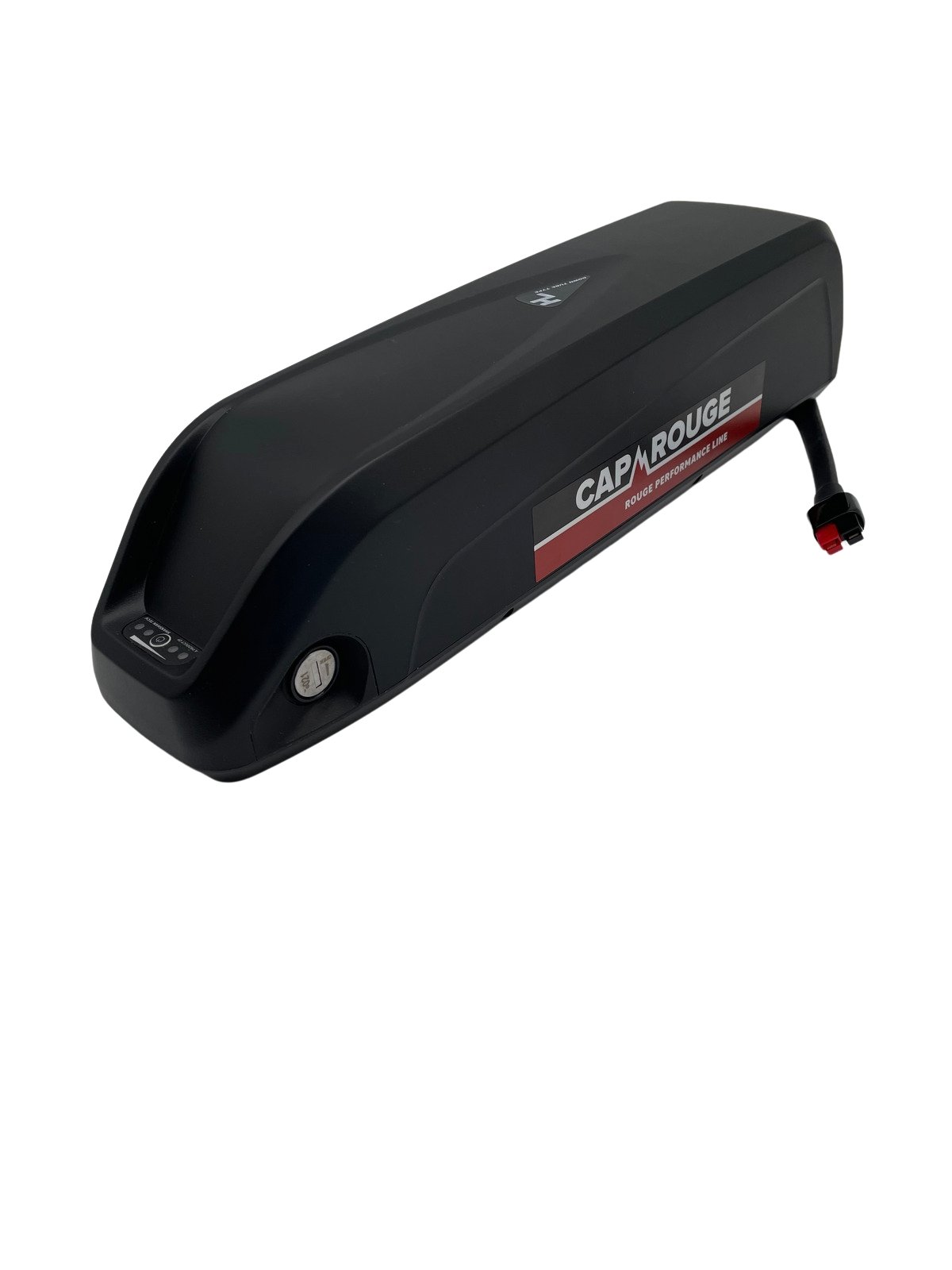

36V 14.5Ah / 522Wh Hailong Downtube 4 Pin DMEGC eBike Battery CPHLAQ36-14.5

36 Volts

14.5 Ah

522 Wh

DMEGC 18650 2900mah Cells

40A Continuous Discharge BMS - For Motors Up To 1300 Watts

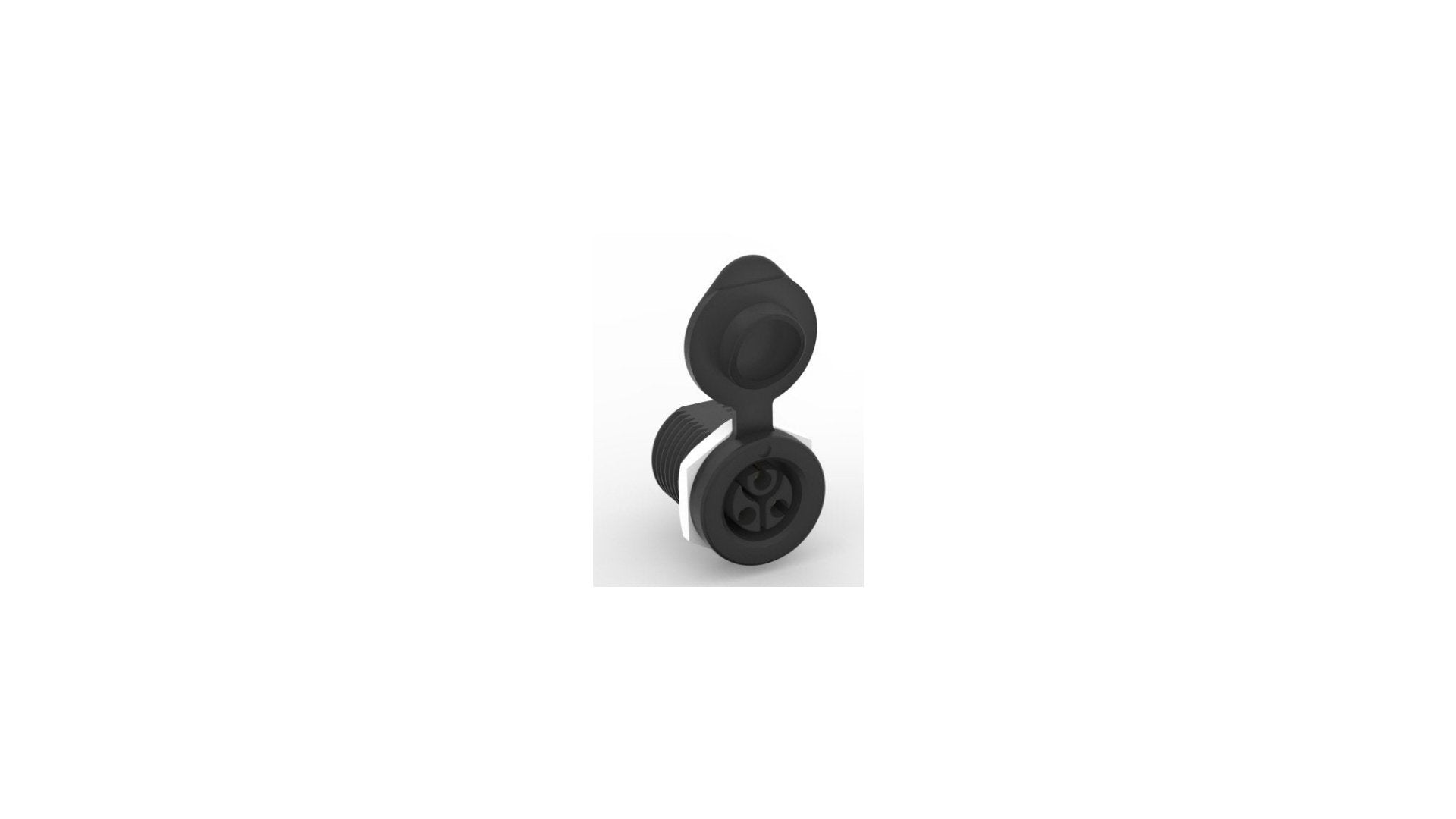

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A or 4A Battery Charger Options

Removable Branding

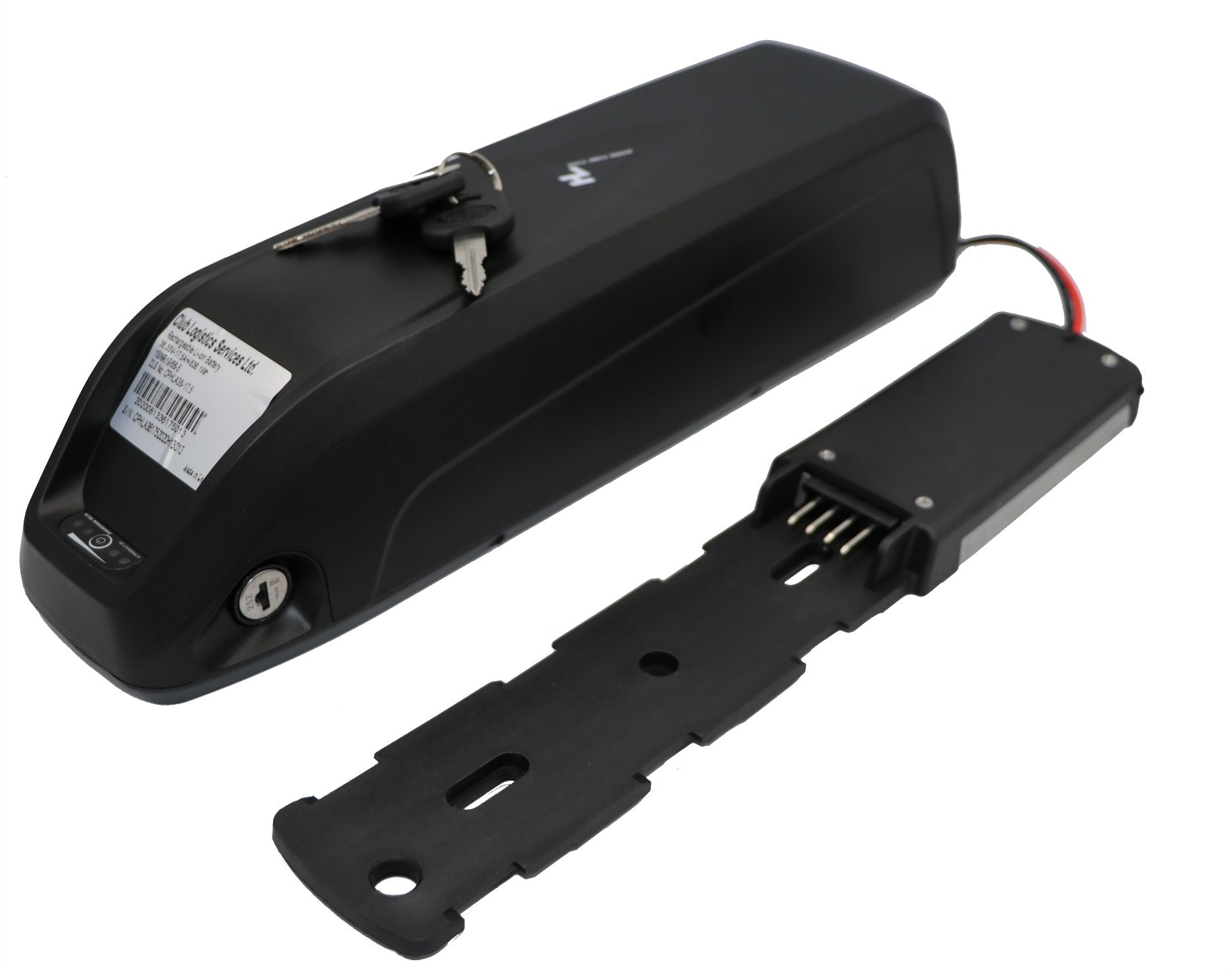

Hailong 01 Casing - 4 Pin Model

UN38.8 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Also fits Michael Blast Greaser earlier models

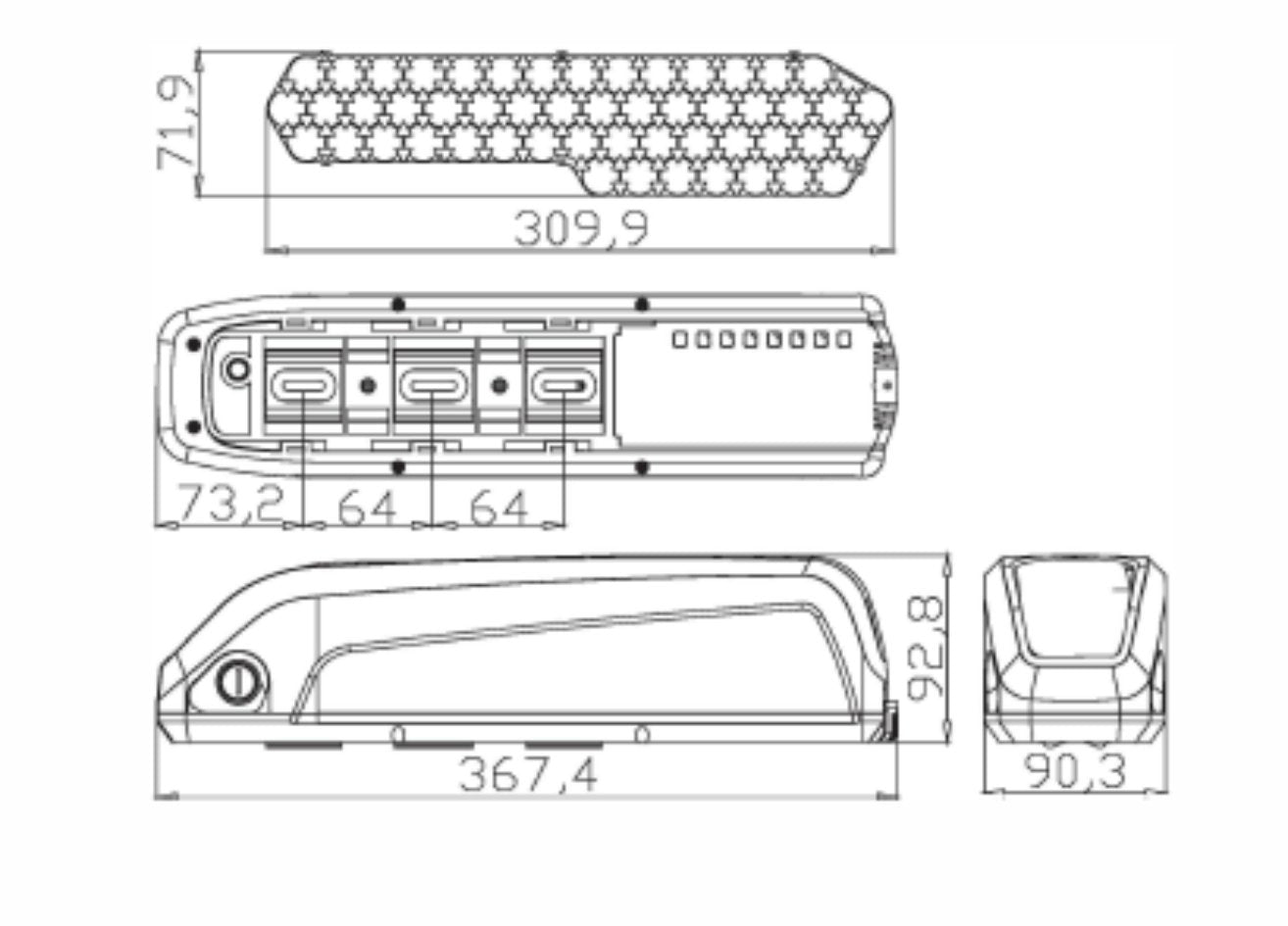

Dimensions: L 367mm - W 90mm - H 92mm

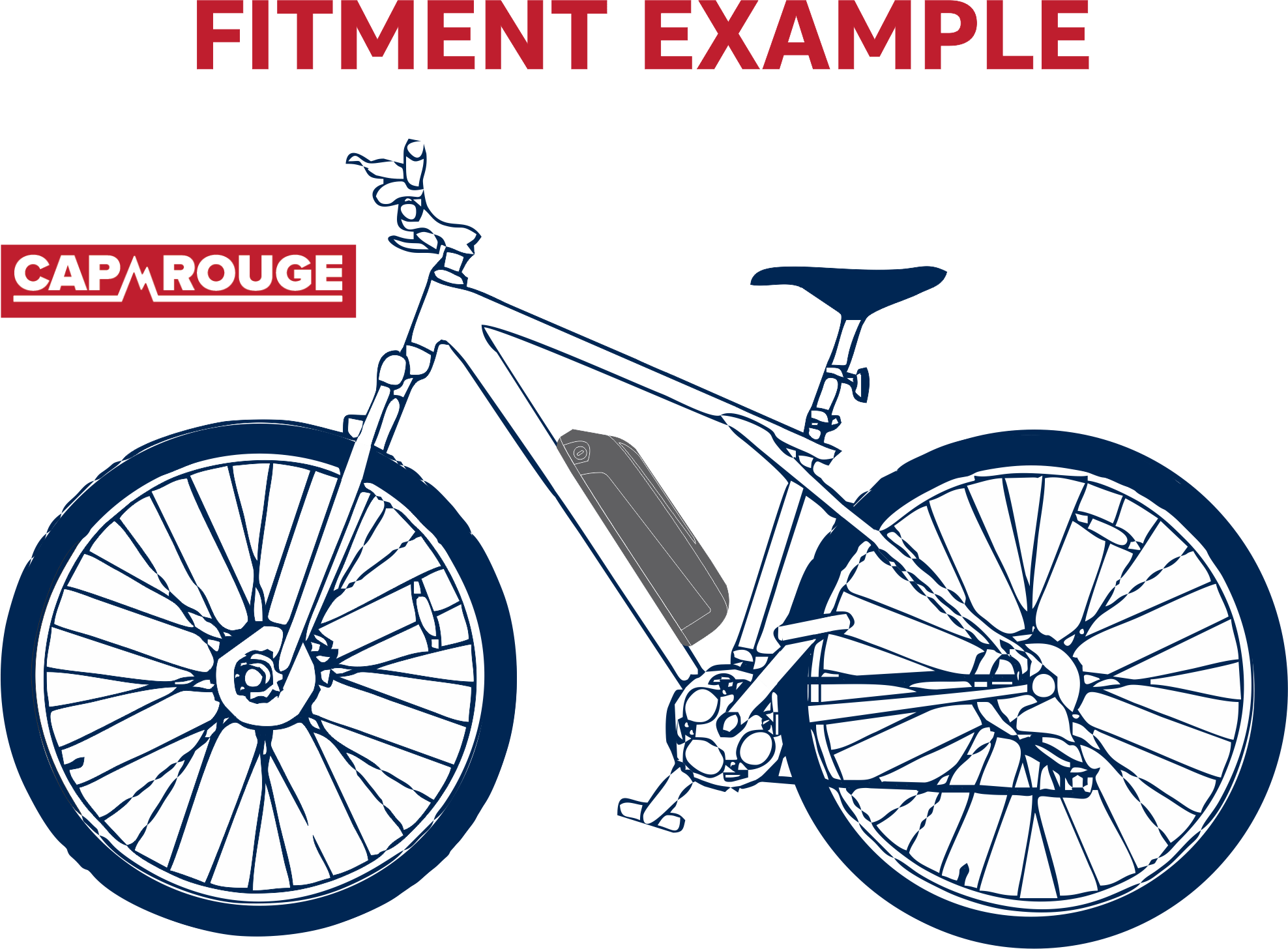

Hailong 01 battery, fits a broad range of bikes including:

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1300W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 36V

• 14.5 AH
• 522Wh
• DMEGC 2900 Mah cells, tested to IEC62133
• Dimensions: L 367mm - W 90mm - H 92mm including mounting bracket
• Weight 3.3Kg Excluding Charger
• 4 Pin model
• 2A, 3A or 4A Battery charger options
• ST3 3 Pin charging port

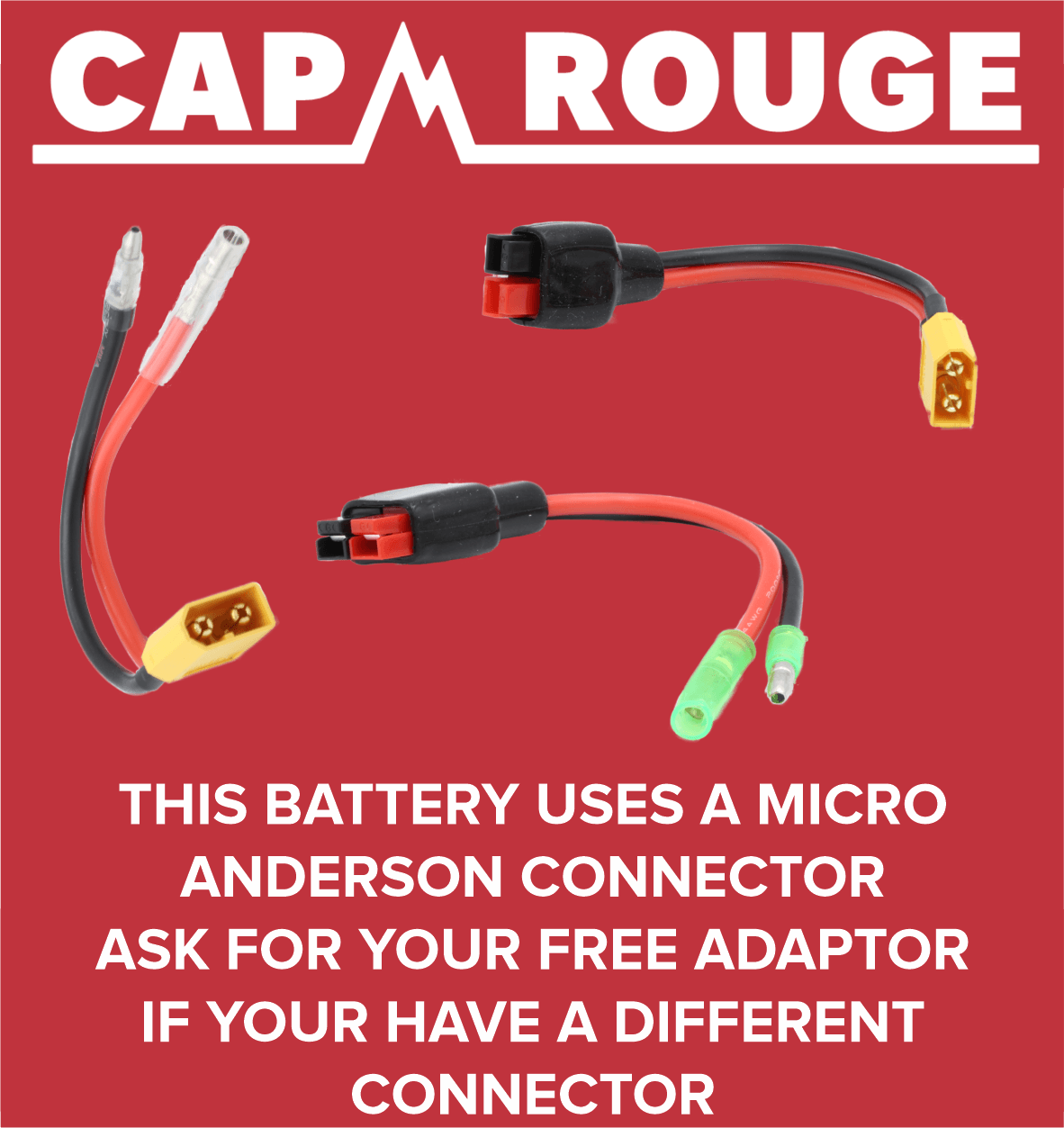

• Discharge cable with Micro Anderson connector

• 5A maximum charge input

• Keys with docking station
• 40A Continuous discharge - For motors upto 1300W
• Battery Management System (BMS) Managing

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
