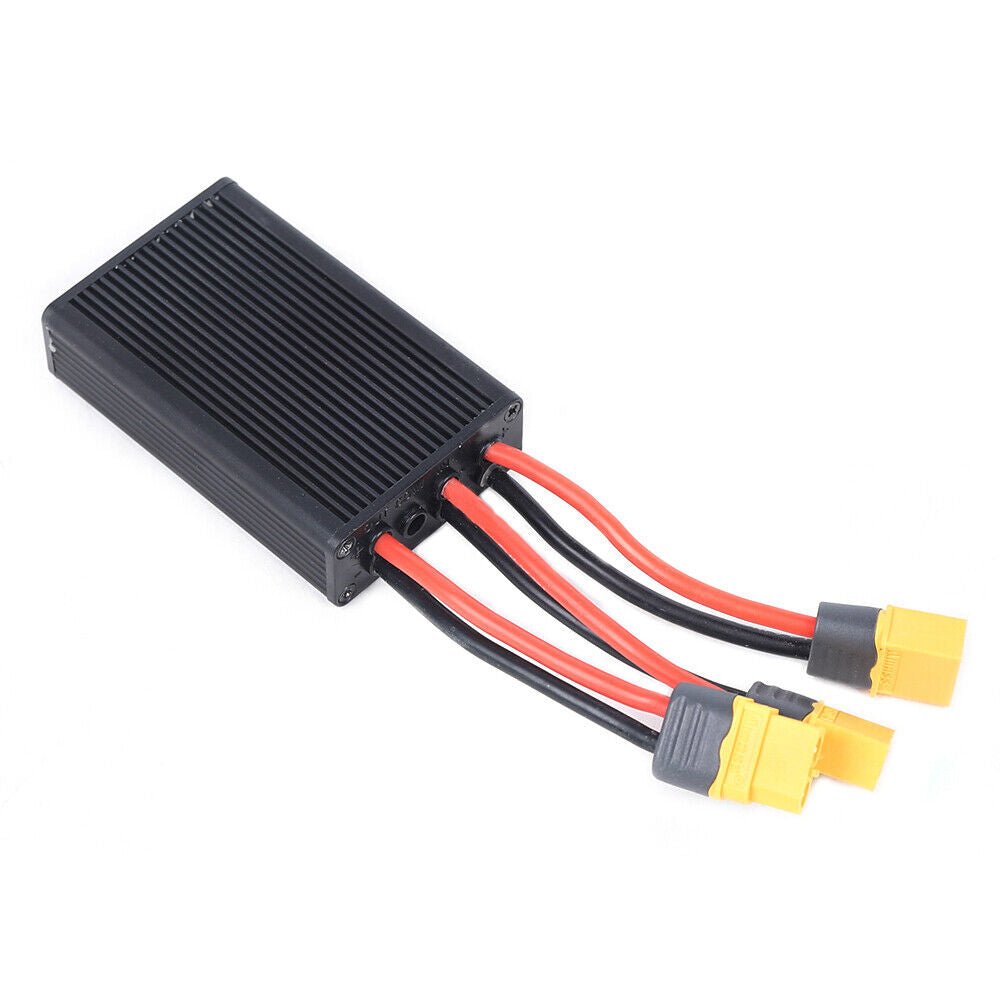

24V/36V/48V/52V/60V/72V Dual Battery Connector / Splitter XT60
Specifications:
1.Dual battery converter Min 24V to MAX 72V 40AH*2
2.Output/Input wire Length 90mm XT60
3.Size 70mm*45mm*18mm
Input XT60 Male
Output XT60 Female
*100% brand new and high quality
*Made of high quality material, durable and practical to use
*Electric Bicycle Ebike Dual Battery Connection Adapter Switcher Module Increase Battery Capacity

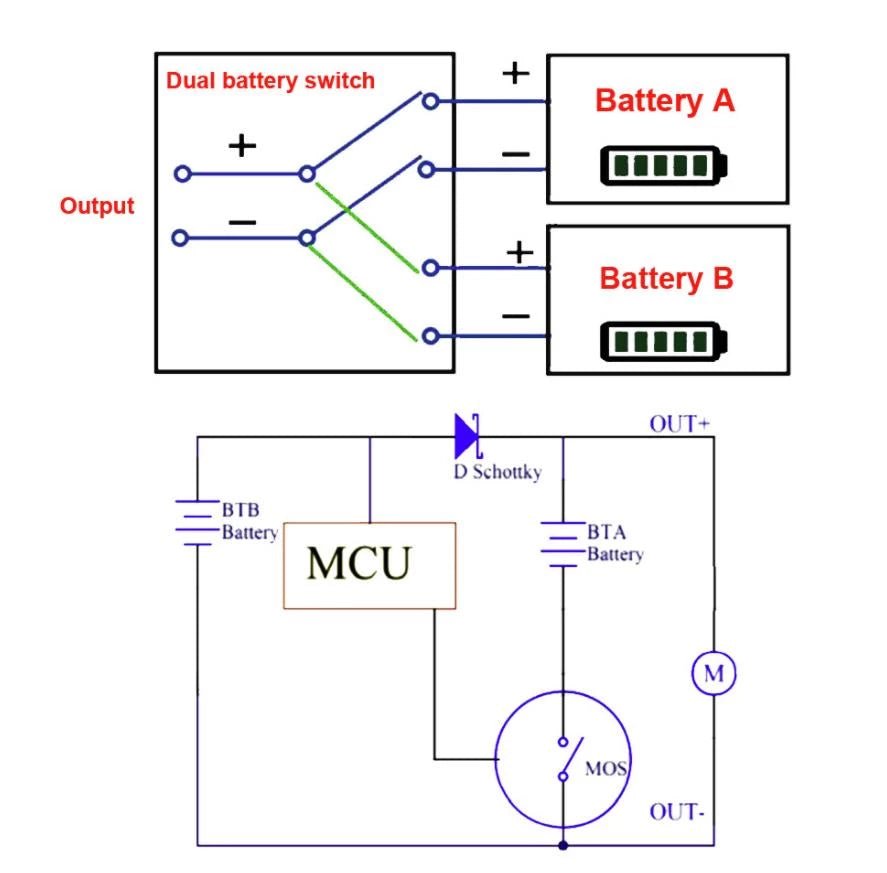

*The Dual batteries connected in parallel for additional capacity and range, and the switcher can manage the two batteries on your bike. It will detect the voltage of the two batteries in real time. When one battery is exhausted during riding, it will automatically switch from one battery to the other, again for you Powered by the electric bicycle, or support two batteries to simultaneously supply power to your electric bicycle intelligently and balancedly.
*Do not confuse the positive and negative connectors on the dual battery switch. Make sure that the power of both batteries is turned off before connecting.
*Both batteries must have the same voltage
*Suitable for maximum 40A (x2 batteries @40A)
*The two battery's voltage need to be the same, and the battery's capacity can be different
Specification:
*Material: Aluminum alloy
*Color: Black (As Pictures Show)
*Weight: About 130g
*Voltage:(40A)20V~72V,(100A)20-60V
*40A version:7*4.5*1.8 cm 130g
Package Includes:
1 x Dual Battery Connection Adapter
