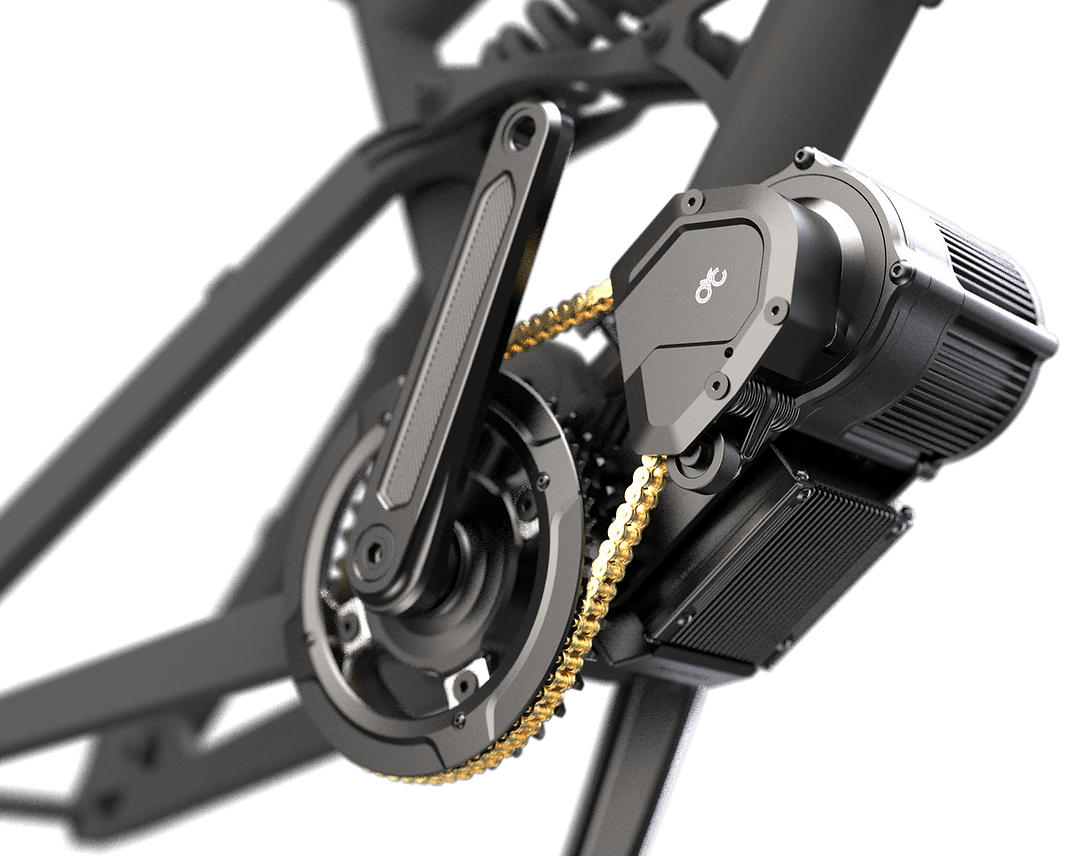

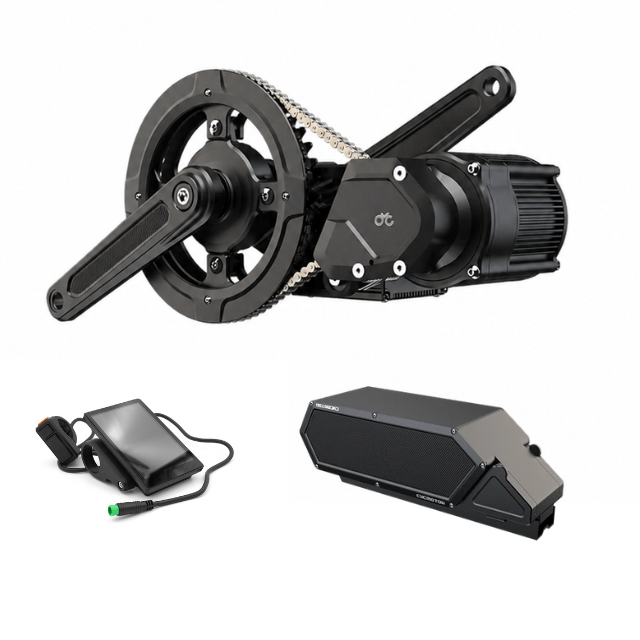

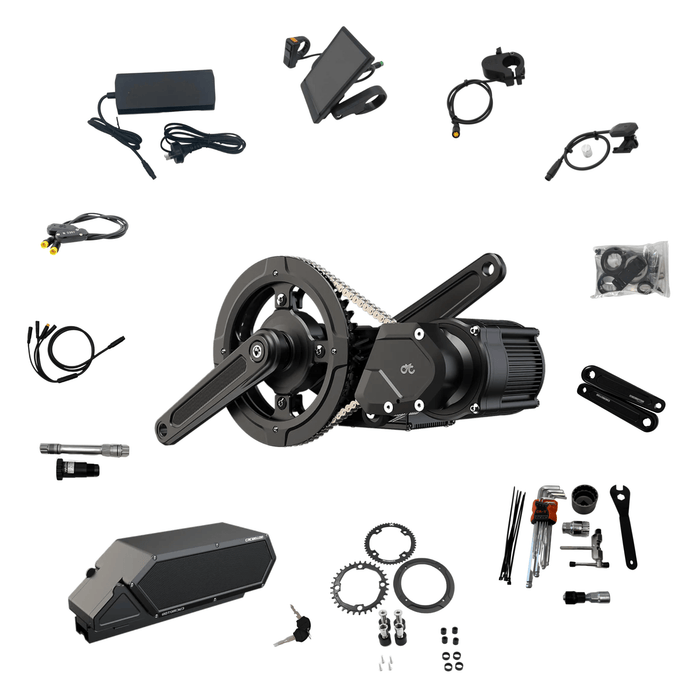

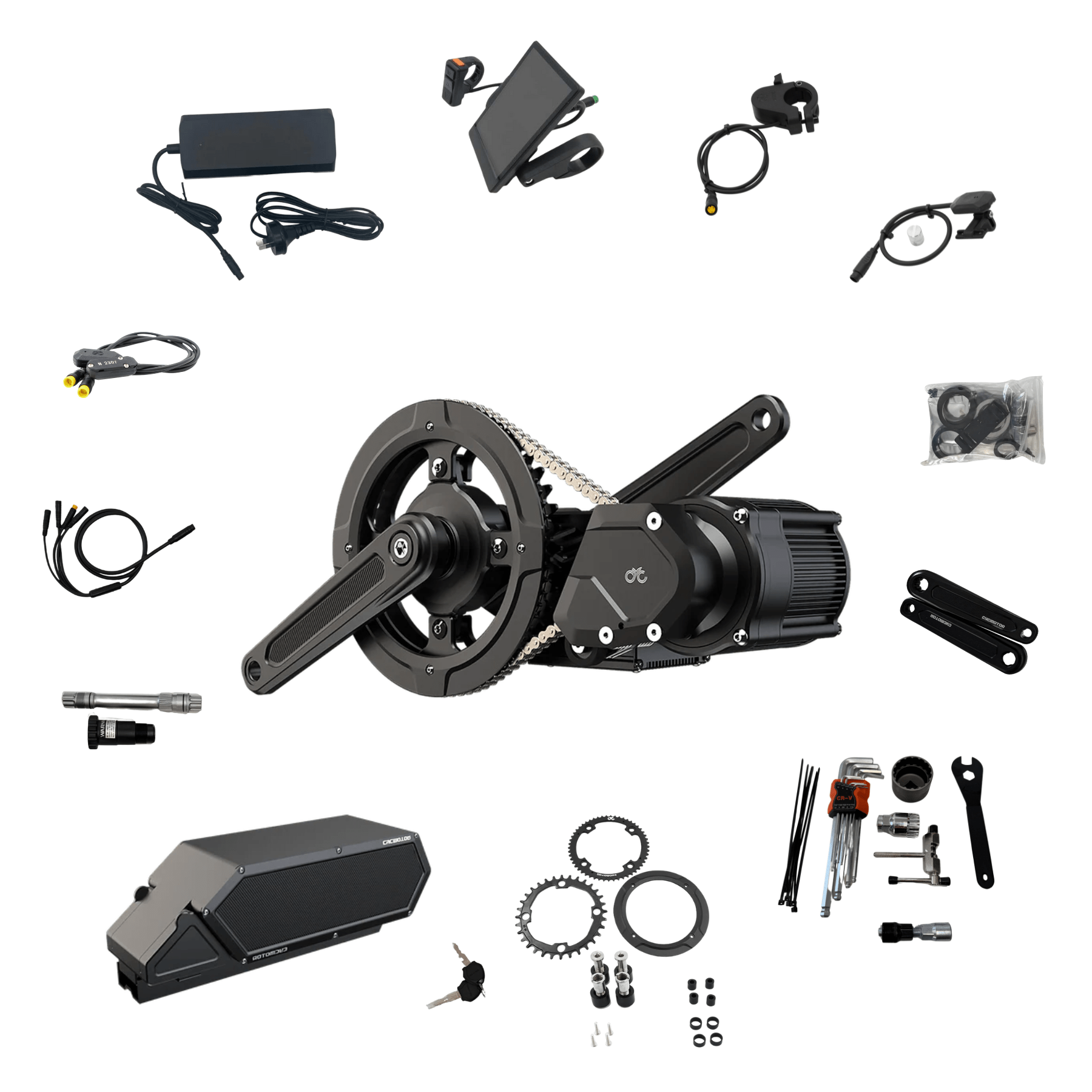

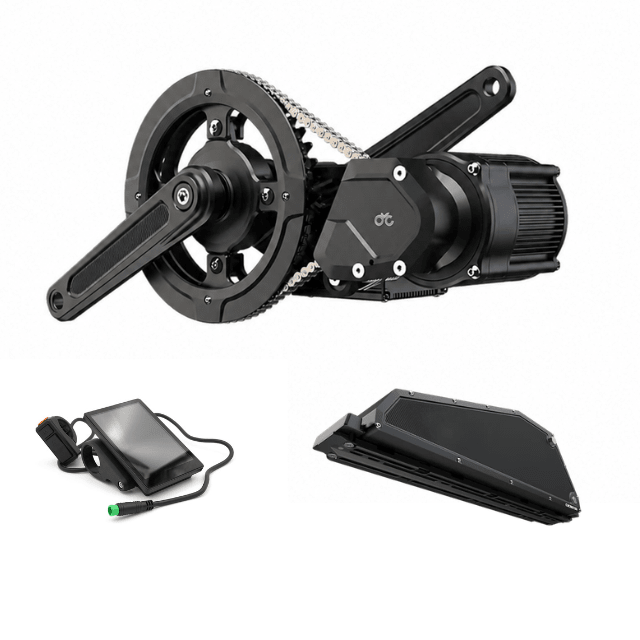

CYC X1 Pro Gen 4 Mid Drive eBike Conversion Kit With CYC Battery + Charger

The SW102 display with CYC specific firmware is integrated with the controller and the CYC Ride Control mobile app. It's convenient formfactor leaves you with plenty of space on your handlebars. Plug-n-play ready.

INCLUDES:

• SW102 display

SPECIFICATIONS:

• Nominal Voltage = 36-72V
• Waterproof = IP65
• Controller Compatibility = X6P, X6, & X12
• Operating temperature = -20°C to 60°C
• Screen specification = 1.3”OLED（64*128pixels）

The DS103 display with CYC specific firmware is integrated with the controller and the CYC Ride Control mobile app. It's easy-to-read formfactor gives you all the stats you'll need on the go. Plug-n-play ready.

INCLUDES:

• DS103 display - Suitable for Photon, Stealth, X1 Pro

SPECIFICATIONS:

• Nominal Voltage = 36-72V
• Waterproof = IP65
• Controller Compatibility = X6P, X6, & X12
• Operating temperature = -20°C to 60°C
• Screen specification = 3.5” colored TFT (480*320pixels)

INCLUDES:

• 1x universal thumb throttle

SPECIFICATIONS:

• Left or right side handlebar mounting
• Compatibility = X1 Pro Gen 3, X1 Stealth Gen 3, & Photon

INCLUDES:

• Half twist throttle and matching grip
• Compatible with X1 Pro Gen 2 & X1 Stealth Gen 1 kits

CONNECTOR: Julet

INCLUDES:

• 1x full twist throttle and matching grip

MOTOR COMPATIBILITY:

• X1 Pro and X1 Stealth

CONTROLLERS COMPATIBILITY:

• BAC855
• BAC2000
• X6
• X12

Introducing the Pacemaker Electric Bike Throttle, a precision-engineered accessory designed exclusively for electric bikes and motorbikes. With over five years in development, this product is a testament to Lekkie’s commitment to quality and innovation.

The throttle’s design ensures a comfortable fit under your bike’s shifters, allowing for seamless gear changes while enjoying the smooth control of a quality CNC full twist throttle. For added safety, a blue LED indicator alerts you when the throttle system is active.

One of the standout features of the Pacemaker electric bike throttle is its easy replaceable grips. The throttle comes fitted with our long lasting firm (grey) grips which are easily interchangeable with our soft compound (black) replacement sets. The grips have been designed to endure impacts and bike drops thanks to a full plastic end cap, ensuring the throttle continues to function even after intense rides.

Your Pacemaker ebike throttle set comes complete with a matching left lock-on grip, maintaining the style and quality of your bike or motorbike components. All components are electrically sealed for optimal performance in all weather conditions. Both throttle and grip are lock-on for easy installation and no slipping grips when the going gets wet.

Transform your Bafang motor systems, Surron, Talaria electric motorbikes, or any other electric mobility application requiring a twist throttle with this exceptional upgrade.

At Lekkie, we take pride in delivering only the most exceptional, robust, and stylish products. Accept nothing less.

SPECIFICATIONS:

• Compatibility: Most E-bike kit motors fitted with 3 wire throttle systems. other systems with 5V DC input and 1-4.2V Signal.
• Material: 6061 T6 Aluminum, CNC machined. Plastic/Rubber Grip
• Finish: Anodized Black
• Frame Compatibility: Fits 22.2mm OD bars.
• Weight: 152g as pair.
• Version: 1 Released 2024

INCLUDES:

• 2x magnetic brake sensors
• 2x magnets

Installation guide provided upon request (eCopy).

Not compatible with X1 Pro Gen 1.

The ISIS crank arm set is a 5 degrees off-set & made to be paired with the Gen 3 & Photon kits. Ride with confidence knowing that your cranks won't give in even in extreme terrains.

Includes: Left & Right side crank arm

SPECIFICATIONS:

• Material = 7075-t6 aluminium
• Compatibility = X1 Pro Gen 3, X1 Stealth Gen 3, & Photon

The ISIS crank arm set is a 5 degrees off-set & made to be paired with the Gen 3 & Photon kits. Ride with confidence knowing that your cranks won't give in even in extreme terrains.

Includes: Left & Right side crank arm

SPECIFICATIONS:

• Material = 7075-t6 aluminium
• Compatibility = X1 Pro Gen 3, X1 Stealth Gen 3, & Photon

The CYC eBike Headlights are ideal for night rides. With high and low beam lights, you can ride comfortably in lowlight situations.

INCLUDES:

• eBike low & high beam headlights
• 2x mounting sets for each light
• Bolts & hex keys needed

Watch the installation video here>>

SPECIFICATION:

• Connector = XT-90 male & female connector
• Compatibility = X1 Stealth, X1 Pro, & Photon kits
• Power consuption = 18W per bulb
• Supported Voltages = 36V to 72V nominal voltages

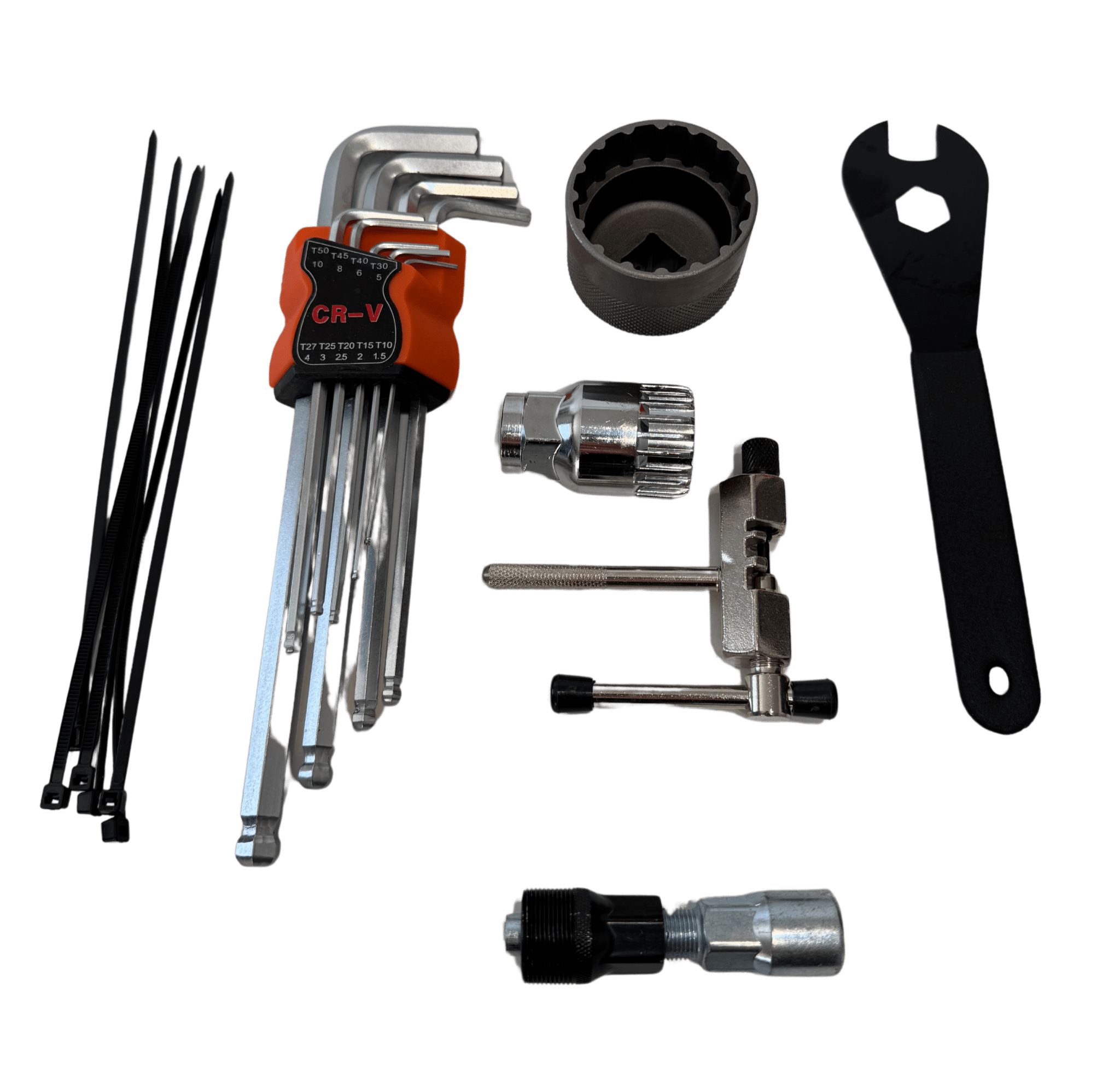

A necessary complete tool kit for CYC Motor eBike conversions

INCLUDES:

• Allen Keys 1.5mm 2mm 2.5mm 3mm 4mm 5mm 6mm 8mm
• Crank remover tool
• Bottom bracket remover tool
• Lock Ring / BB Cup 16 Notch Tool
• Chain breaker tool
• Pedal removal tool
• Cable ties to neaten up the wiring looms

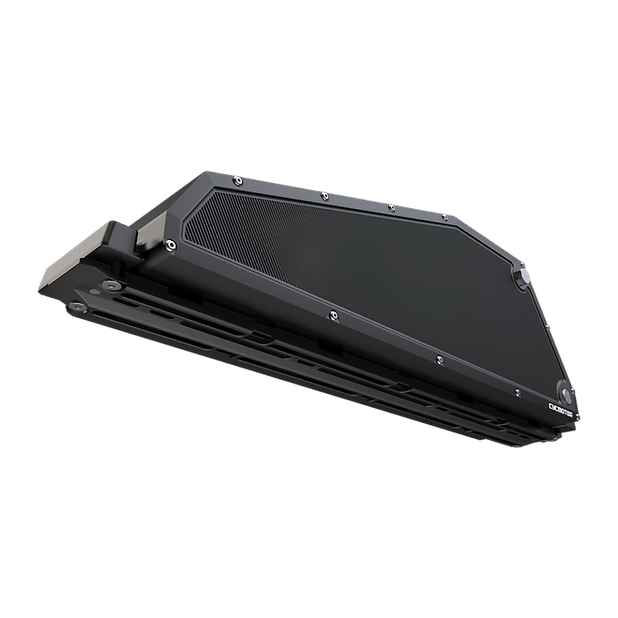

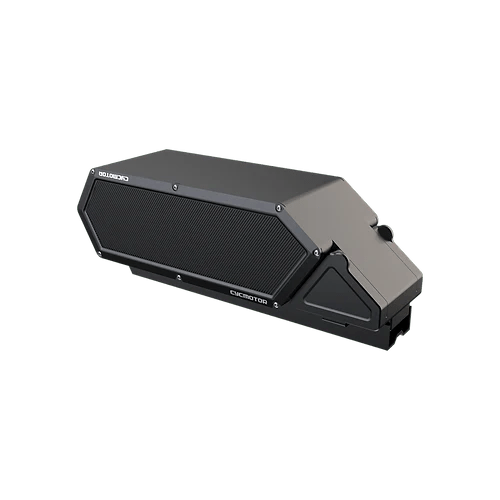

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1800W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 48 Volts
• 15 Ah
• 720 Wh
• Dimensions: L 367mm - W 95mm - H 98mm
• 13S3P
• Samsung 50G 21700 5000mAh cells, tested to EN62133-2-22017
• 3.95kg, including bracket / excluding charger
• 40A continuous discharge, for motors up to 1800W
• Discharge cable with micro Anderson connector
• 1-5A, 2A, 3A, or 4A Battery charger options
• ST3 3 pin charging Port
• 5A maximum charge input
• Battery base bracket included
• Battery power indicator
• 2 keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

High quality, long life battery built using 21700 cells. This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 52 Volts
• 10 Ah
• 520 Wh
• 14S2P
• Samsung high discharge 50S 21700 cells, tested to EN62133-2-22017
• Dimensions: L 279mm - W 89mm - H 107mm
• ST3 3 pin charger port
• 1-5A, 2A, 3A or 4A battery charger options
• 5A maximum charge input
• 2.9 Kg Including bracket
• Discharge cable with XT90 female connector
• 50A Continuous discharge, for motors up to 2500W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

This battery is completely new to our range. Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 52V
• 26.4 AH
• 1373 Wh
• 14S8P
• EVE 3300Mah cells, tested to EN62133-2-22017
• 1-5A 2A, 3A or 4A Battery Battery charger options
• ST3 3 Pin charging Port
• 5A maximum charge input
• Overall Dimensions: L 380mm - W 76mm - H 215mm
• Weight 6.55 KG Excluding Charger
• 4 mounting slots to connect to bike frame
• Output XT90 Female
• Discharge cable with micro Anderson connectors
• 50A BMS continuous discharge, suitable for motors up to 2500w
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 4800W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 60 Volts
• 20 Ah
• 1200 Wh
• 16S4P
• Samsung 50S 21700 cells, tested to EN62133-2-22017
• Dimensions: L 367mm - W 95mm - H 125mm
• 5A battery charger option
• XT60 Charger port
• 10A maximum charge input
• DP-21700-7 Reention case - Not interchangeable with other Reention DP casings
• 5.90 Kg Including bracket / excluding charger
• XT90 female discharge connector direct from battery
• 80A Continuous discharge, for motors up to 4800W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

PROTECTION FUNCTION:

1. Overload
2. Over voltage
3. Over temperature
4. Over current

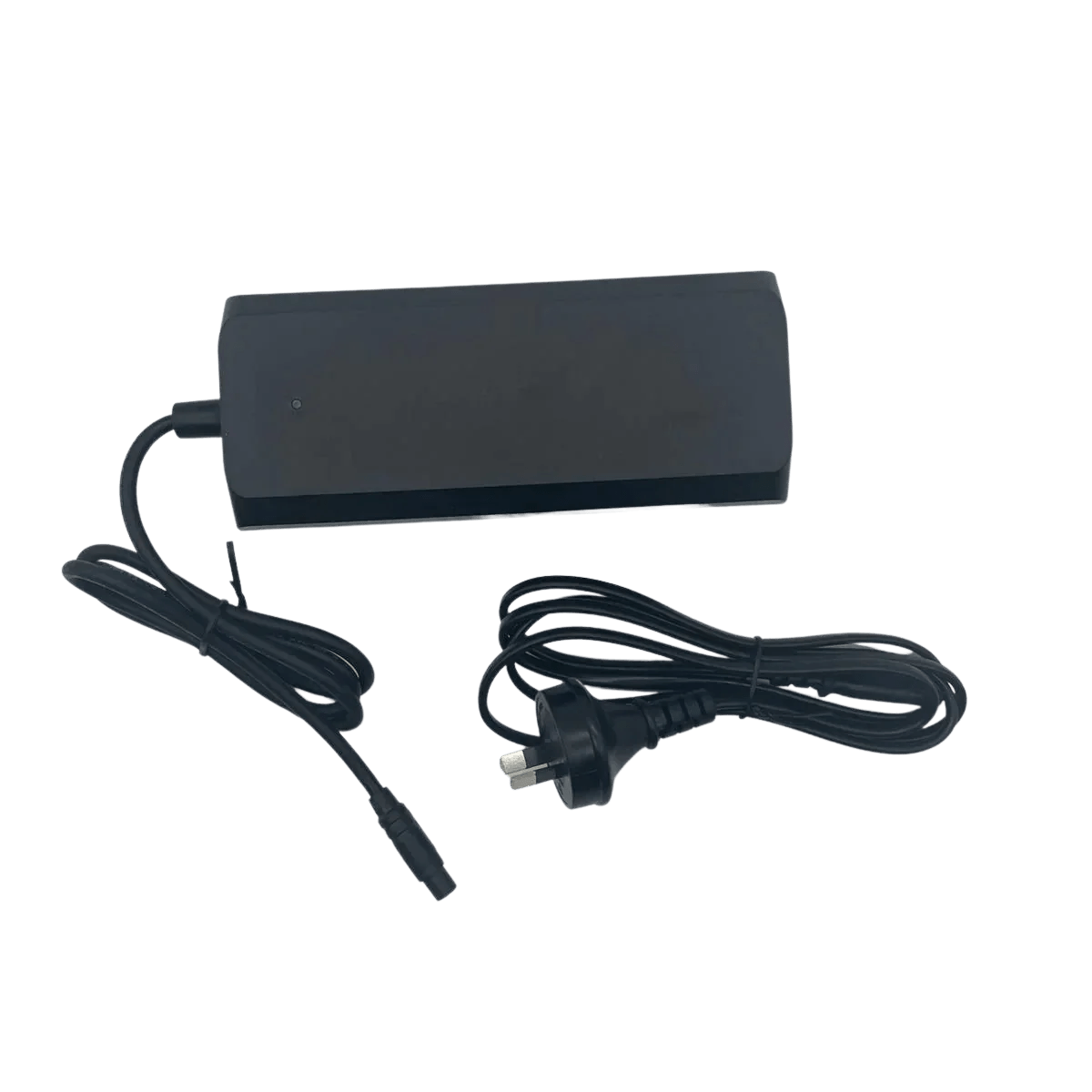

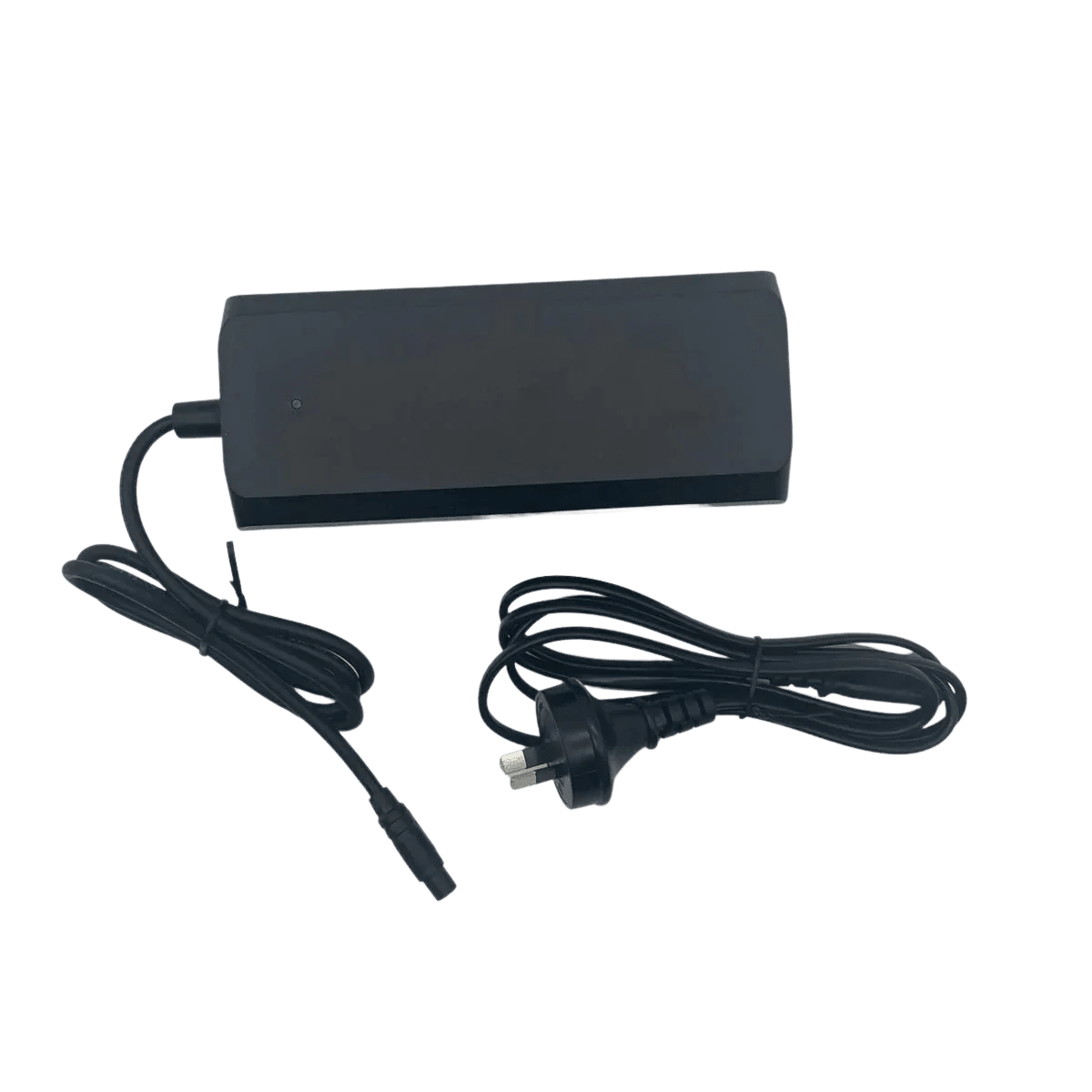

SPECIFICATION:

• Suitable for 48 volt lithium batteries
• ST3 3 pin connector
• AU plug
• 54.6V Maximum charging output (suitable for 48 volt lithium batteries only)
• Black case
• Charge light indicating state of charge
• 2A
• Smart charger
• Instruction booklet

PROTECTION FUNCTION:

1. Overload
2. Over voltage
3. Over temperature
4. Over current

SPECIFICATION:

• Suitable for 48 volt lithium batteries
• AU Plug
• ST3 Connector
• 54.6V Maximum charging output (suitable for 48 volt lithium batteries only)
• Black case
• Charge light indicating state of charge
• 3A Fast charger
• Smart charger
• Instruction booked

PROTECTION FUNCTION:

1. Overload
2. Over voltage
3. Over temperature
4. Over current

SPECIFICATION:

• Suitable for 48 volt lithium batteries
• AU Plug
• ST3 3 pin connector
• 54.6V Maximum charging output (suitable for 48 volt lithium batteries only)
• Black case
• Charge light indicating state of charge
• 4A Fast charger
• Smart charger
• Instruction booklet

The best charger available for Lithium-Ion batteries. With this Cap Rouge smart charger, you can select both the charge limit and power output for your batteries. This allows you to both protect the battery's charge cycles by keeping it within safe ranges (80/90/100%) and to trickle charge or speed charge depending on your needs.

FEATURES:

• 110-240 Volt AU input
• Charge voltage 54.6v for 48v (13S) lithium-ion batteries
• AC Plug: Australia
• ​DC Charge connector: XT60 Male with optional adapters for different battery charge ports
• Charge Limit: Selectable 80/90/100%
• ​Power Output: Selectable 1-5 amps
• External fuse
• Power on/off switch
• Smart Charger

Protection function:

1. Overload
2. Over voltage
3. Over temperature
4. Over current
5. Reverse polarity

PROTECTION FUNCTION:

1. Overload
2. Over voltage
3. Over temperature
4. Over current

SPECIFICATION:

• Suitable for 52 volt lithium batteries
• AU Plug
• ST3 3 pin connector
• 58.8V Maximum charging output (suitable for 52 volt lithium batteries only)
• Black case
• Charge light indicating state of charge
• 2A
• Smart charger
• Instruction booklet

PROTECTION FUNCTION:

1. Overload
2. Over voltage
3. Over temperature
4. Over current

SPECIFICATION:

• Suitable for 52 volt lithium batteries
• AU Plug
• ST3 Connector
• 58.8V Maximum charging output (suitable for 52 volt lithium batteries only)
• Black case
• Charge light indicating state of charge
• 4A Fast charger
• Smart charger
• Instruction booklet

FEATURES:

• Suitable for 52 Volt Batteries
• AU Plug
• XT60 Male Connector
• 58.8V Maximum charging output (suitable for 52 volt lithium batteries only)
• Black case
• Charge light indicating state of charge
• 5A
• 110-240 Volt AU input
• Charge voltage 58.8v for 52v (14S) lithium-ion batteries
• AC Plug: Australia
• DC Charge connector: XT60 Male with optional adapters for different battery charge ports
• ​Power Output: Selectable 5 amps
• External fuse
• Power on/off switch
• Smart Charger

PROTECTION FUNCTION:

1. Overload
2. Over voltage
3. Over temperature
4. Over current Reverse polarity

FEATURES:

• Suitable for 60 Volt Batteries
• AU Plug
• Over charge/discharge cut off sensors
• Over temperature cut off sensors
• RCM Australian approved charger
• Smart charger
• XT60 Male Connector
• 67.3V Maximum charging output (suitable for 60 volt lithium batteries only)
• Silver case
• Charge light indicating state of charge
• 5A
