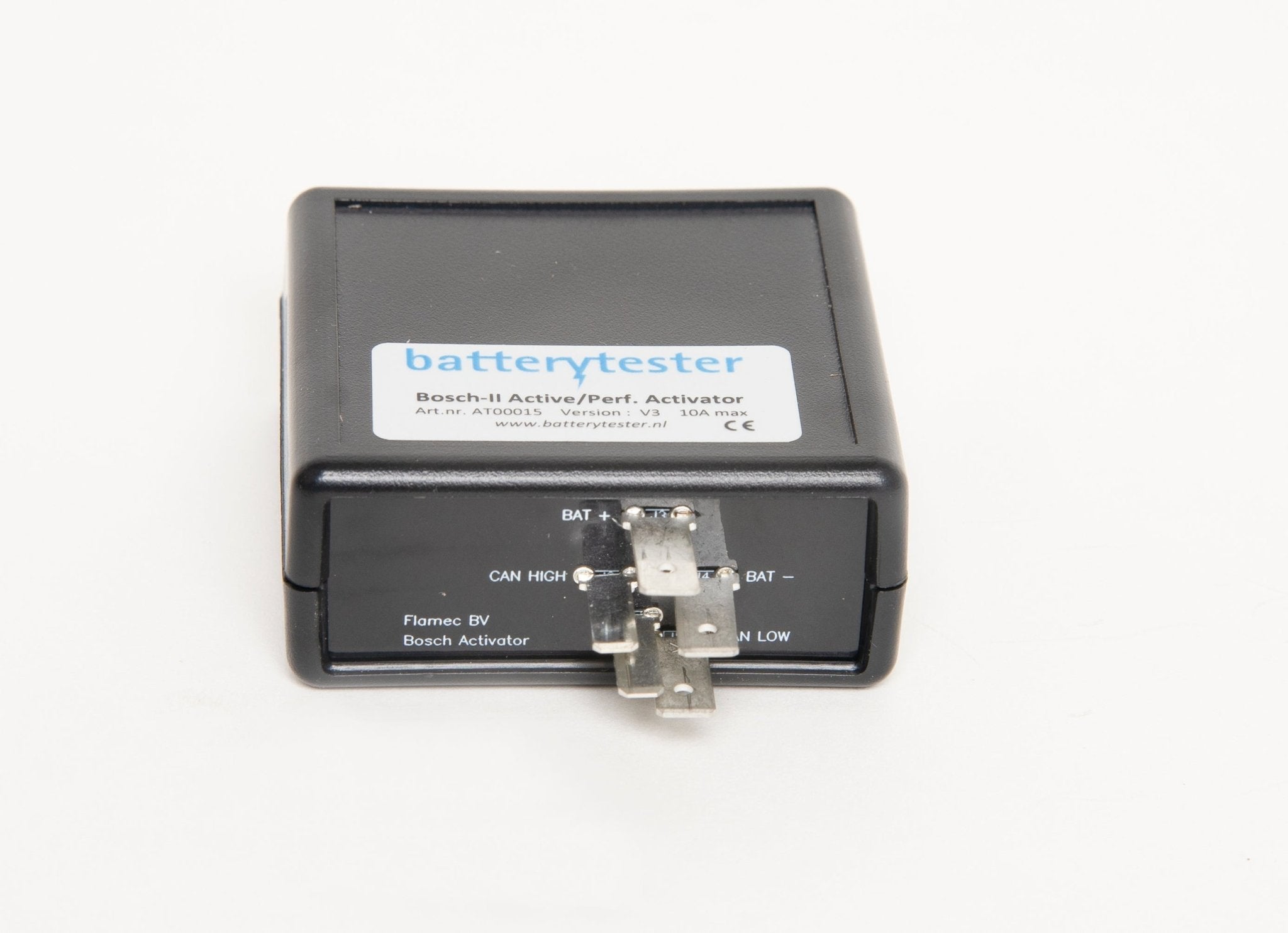

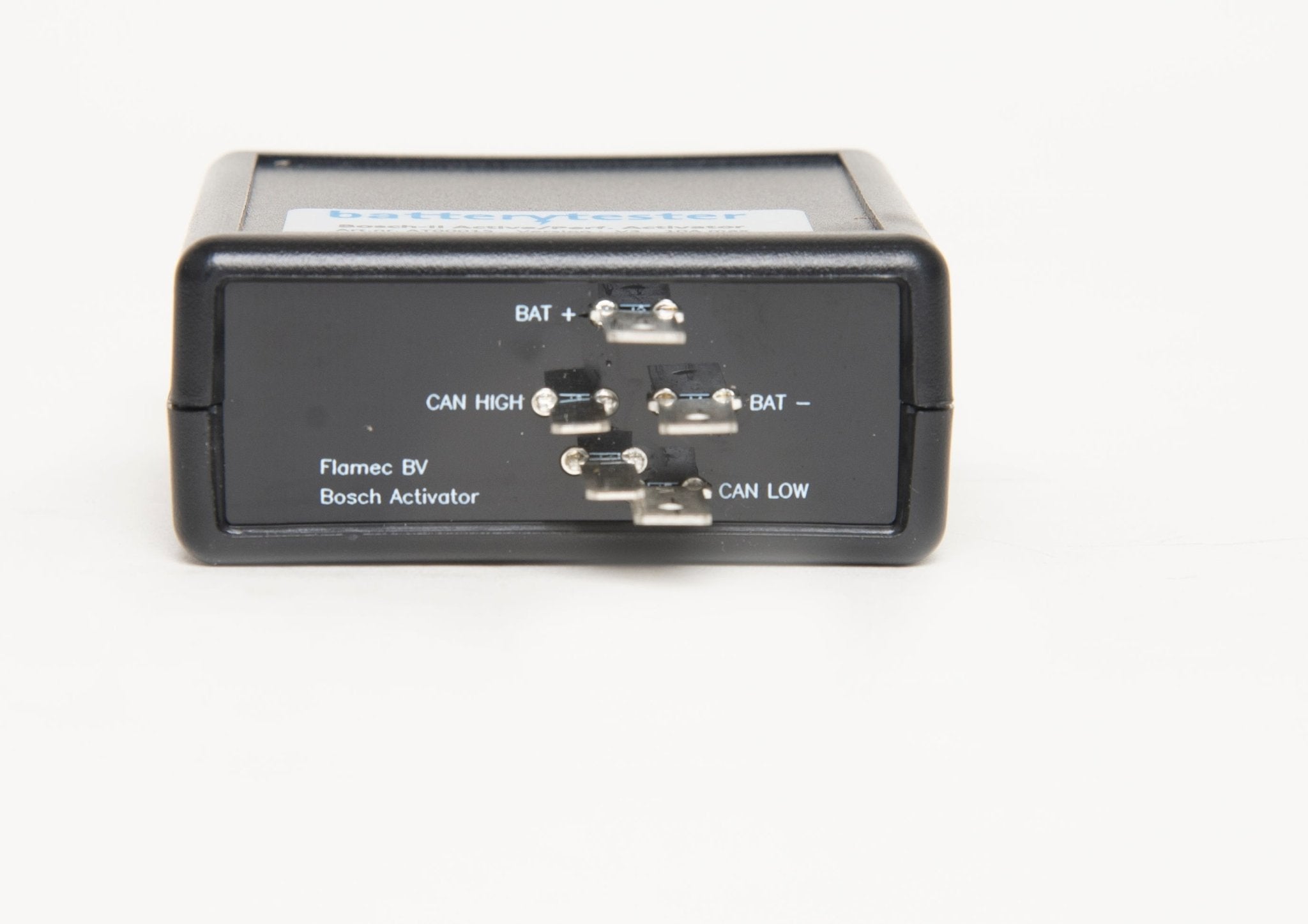

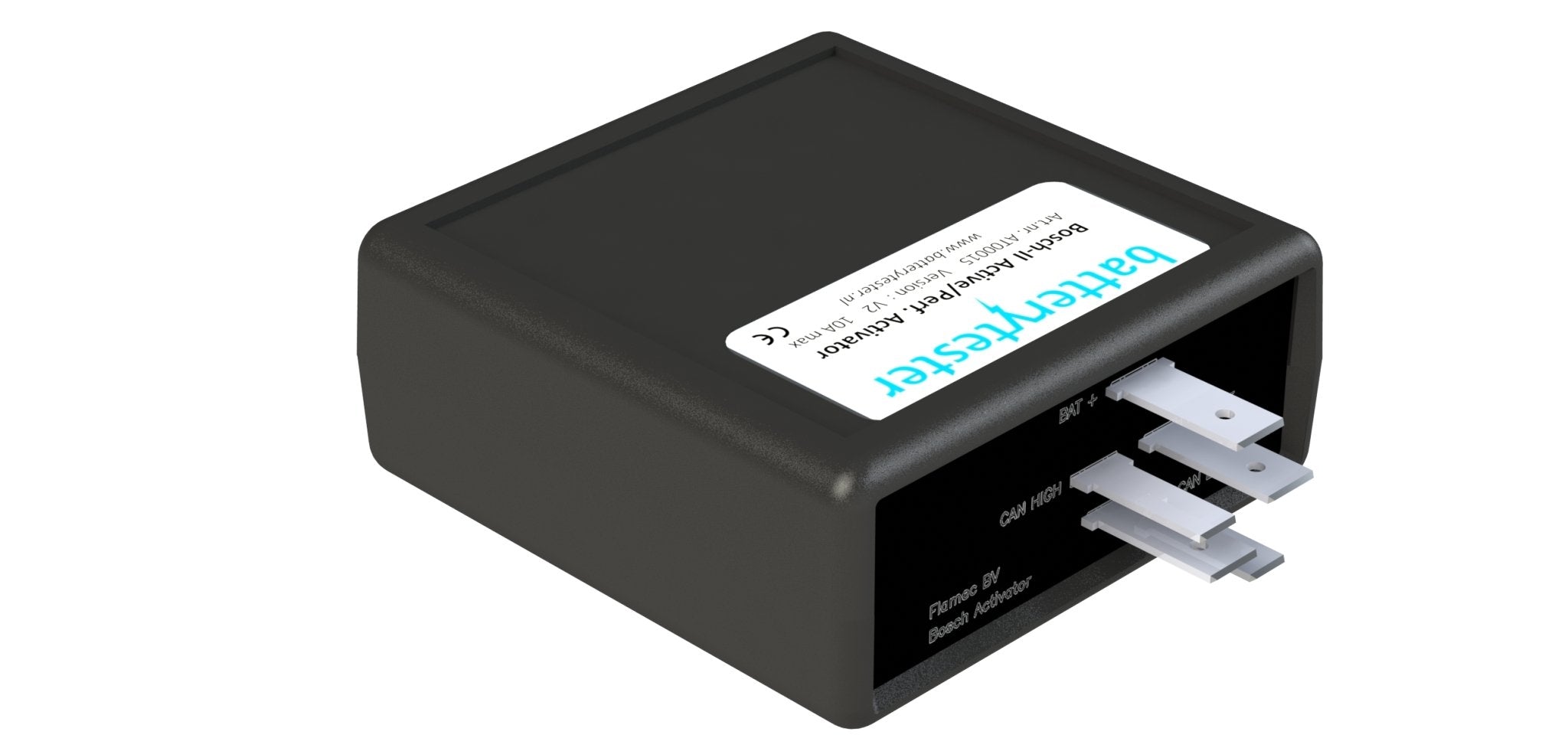

Bosch Active & Performance Smart Adapter
Adapter for testing 36V Bosch Active & Performance batteries. The adapter ensures that the battery remains active and can be tested
Bosch Active & Performance batteries (300W, 400W, 500W) are used in many different e-bikes:
Sparta, Kreidler, Ghos, Koga, Batavus, Faler, Hercules, Merida, Bergamont, Cannondale, Centurion, Haibike, Scott, Victoria, Trek.
Models as from 2014.
An adapter cable AT00038 is needed! This is included into the delivery of a Batterytester. The adapter cable can be ordered separately as well.
Instruction:
1. Connect the adapter with the adapter cable AT00038 to the Batterytester.
2. Slide the adapter into the battery.
3. Press the button on the battery to switch it on.
4. Start the battery tester and follow the instructions.

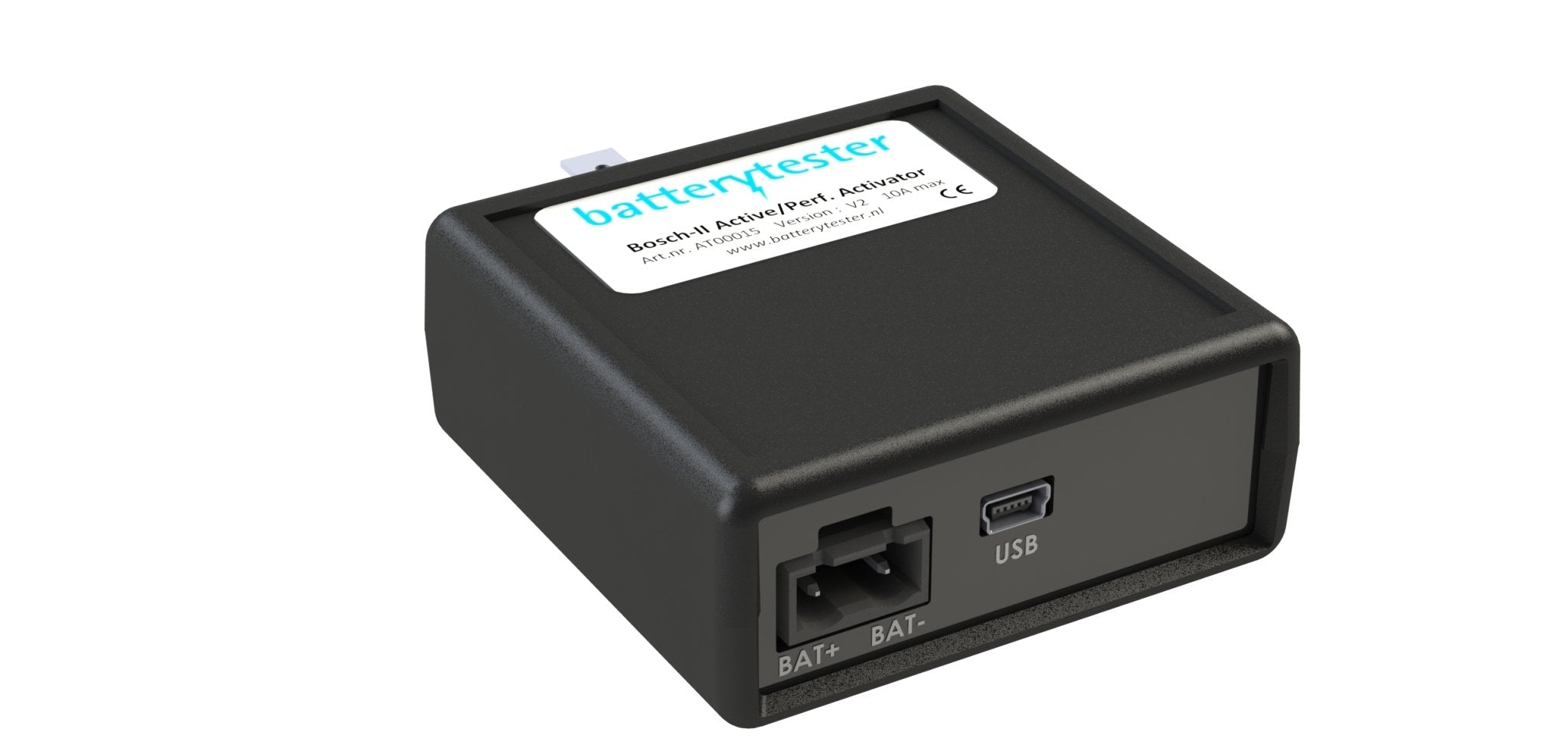

Note: The USB connection on the adapter is intended for a possible firmware update of the adapter. DO NOT connect this! Incorrect use may result in damage!
