72V 12Ah / 864Wh Samsung 40T eBike Battery 70A BMS CPHV72-12

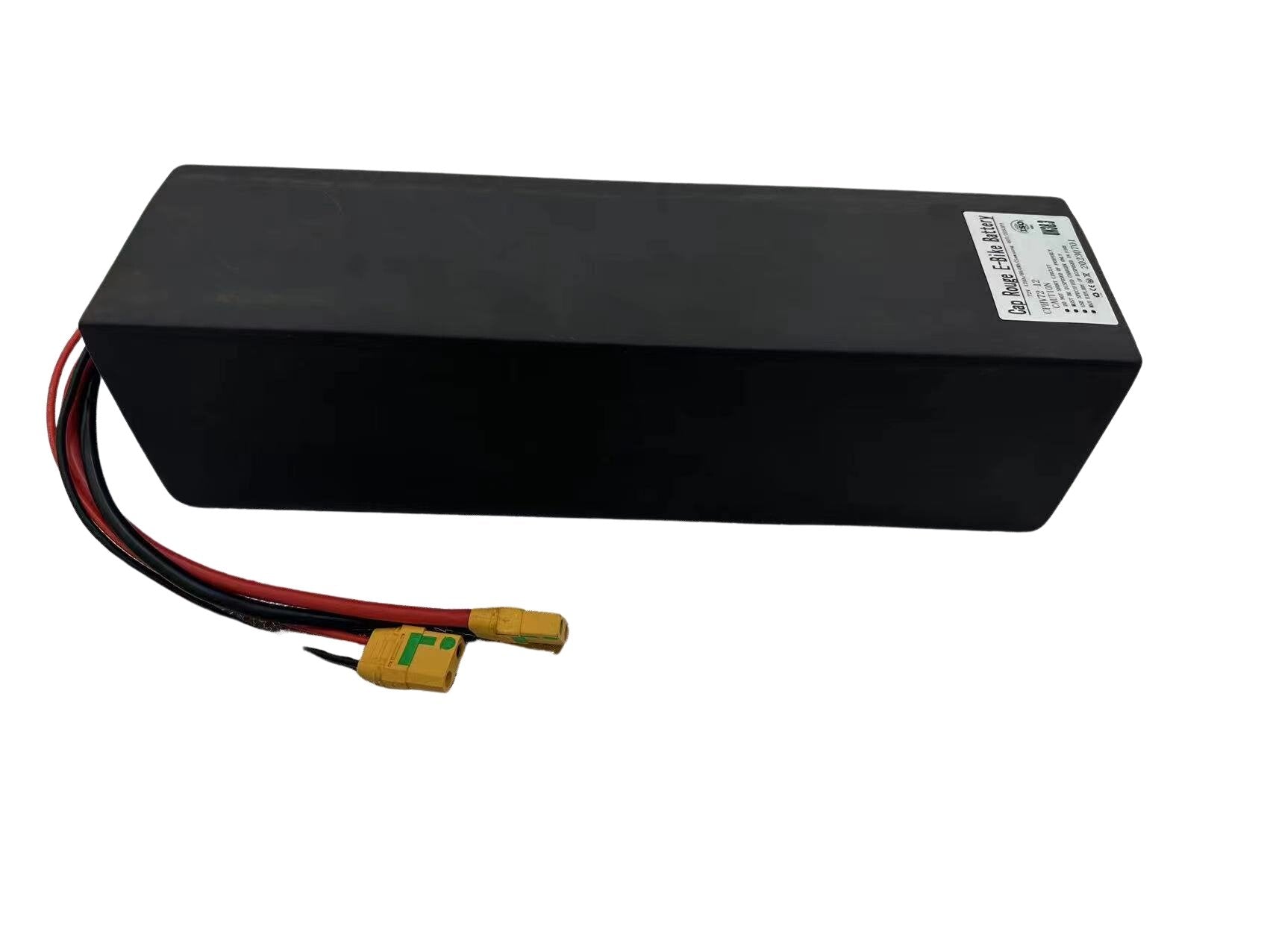

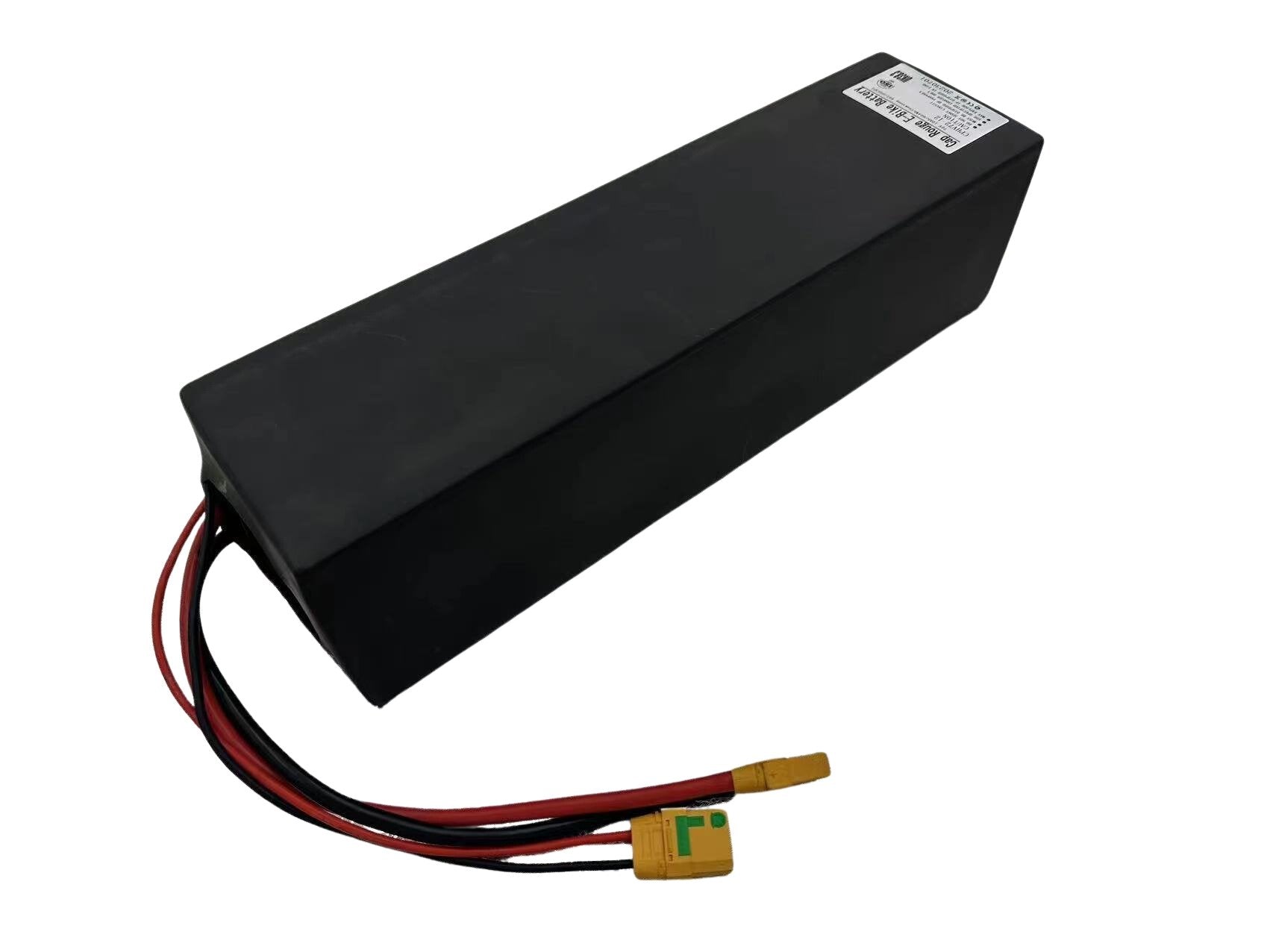

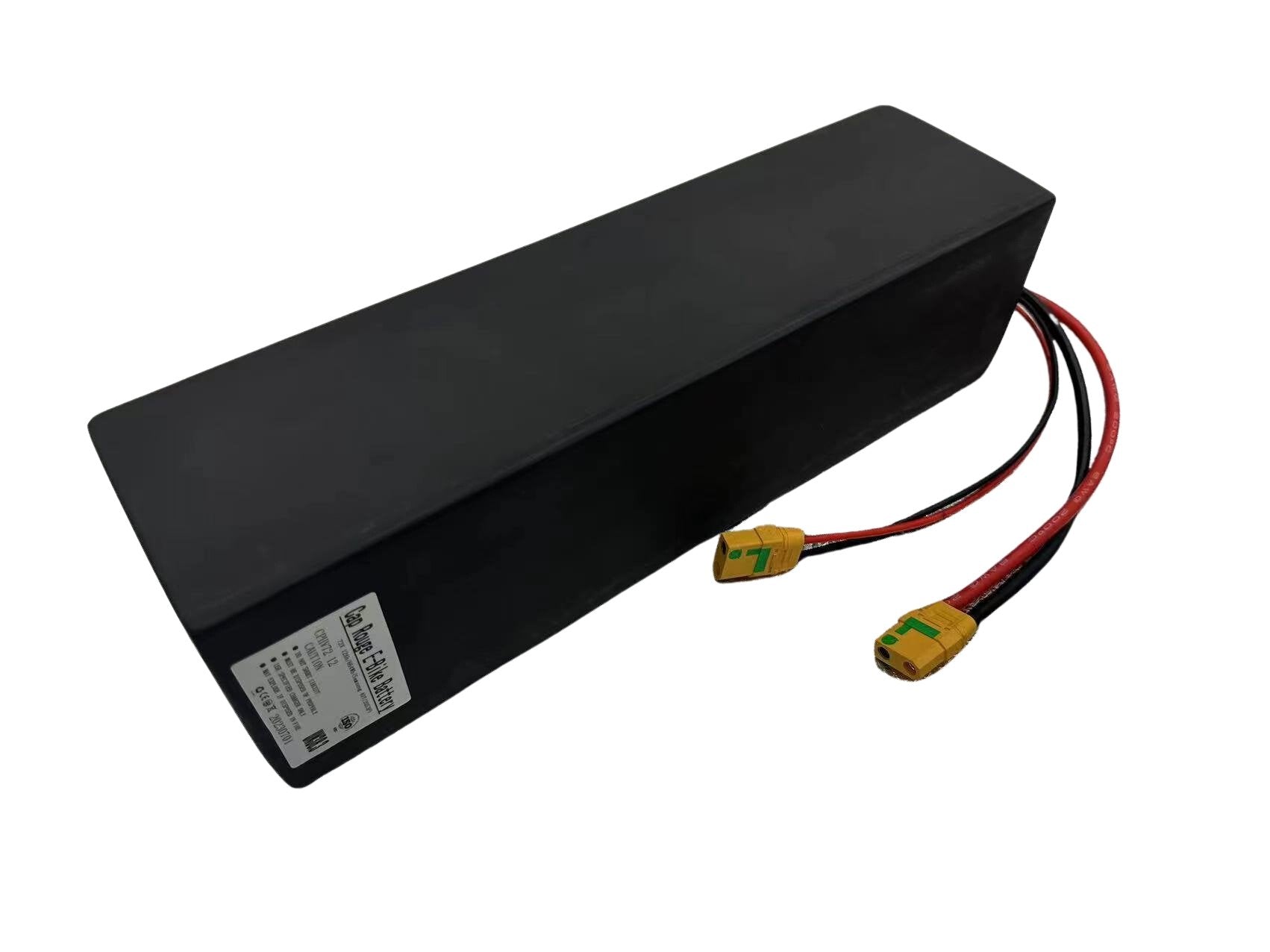

72V 12 AH / 864 WH Samsung 40T Lithium Mini Rectangle High Intensity e-Bike Battery

High Discharge Samsung 40T 21700 Cells

12 AH / 864 Wh

Continuous 70A BMS - Suitable for Motors Up to 5000W

340mm L - 95mm W - 95mm H

XT90 Female Charging Port - Cable 30cm

XT90 Female Discharge Port - Cable 30cm

Discharge or Charge From Either XT90 Port

Extra Layer Of High Grade Thick Rubber Shrink

Dimensions: L 340mm - W 95mm - H 95mm, can be placed in any direction

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

Rectangle shaped battery, to suit a large number of bicycle frames or other applications

These packs can be used for smaller spacers and to save weight amongst many other uses.

• 72 Volt
• 12AH / 864 WH
• 4000mAh 21700 Samsung 40T cells
• UN38.3, MSDS
• 20S3P
• Dimensions: L 340mm - W 92mm - H 88mm, can be placed in any direction
• 70A continuous discharge for motors up to 5000w
• XT90 Female Charging Port - 4A Charger optional
• Weight 4.95 KGS
• Discharge cable with XT90 Female connector
• Extra durable black rubber outer casing
• Internal battery pack encased in protective case
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
